Solved Where are A/C service ports? Sometimes the simplest things....

MGDavis

New Member
Joined
August 9, 2008
Messages
5
Reaction score
0
City, State
Orlando, FL
Year, Model & Trim Level
98 Mountaineer
OK, so where *is* the low pressure port? I see a lot of posts with "its between the compressor and the condenser" but nothing with a picture. I have a 98 V8 Mountaineer that needs a little topping off, and I'll be damned if I can find the port. Anybody got a picture they can upload?

Thanks in advance.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




TheJackal

Explorer Addict
Joined
August 11, 2007
Messages
1,060
Reaction score
3
City, State
Mandeville, LA
Year, Model & Trim Level
1999 Explorer XL 2WD

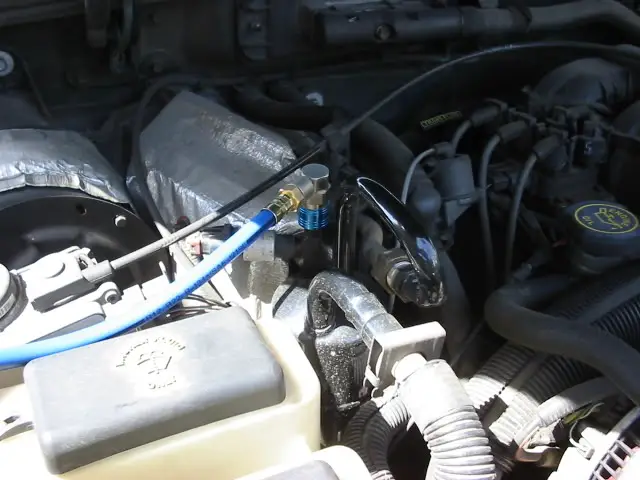

Low Side Port:
