Where is the Axle eye pivot bolt?

[Hermz]

?



[blueox]

I think you are asking where is the "axle arm" pivot bolt.

If this is your question the axle pivot bracket is riveted or bolted to the frame crossmember up front and the axle arm has a single bolt that attaches it to the pivot bracket.

Are you replacing your bushings??



[DeRocha]

Axle Pivot Pictures

The Red Arrow in Picture one shows the location of the Axle pivot Bushing.

Axle Pivot location

This next picture shows a vise being used to press out the Bushing.

Removing Axle Pivot Bushing



[Hermz]

I'm confused, is it the fat bolt in the main axle or the fat bolt behind the main axle below the rivets. Sorry and thanks



[DeRocha]

There are 2 axle pivot bolts. Each at the end of their respective beam. The photo I had uploaded shows the location on the beam (4x4). The 2 wheel drive is in the same location (but the beam is different). Do you have 2 or 4 wheel drive?



[DeRocha]

4x4 Axle pivot bolt photo

In the photo below the axle pivot Red Circle would be sandwiched between it's frame mounting brackets (Not shown). The axle pivot bolt goes through the frame bracket the Axle pivot (red circle) and though the frame bracket on the other side.

4x4 axle pivot bolt (driver's side beam)



[jrgaylor]

axle pivot bolt

passenger side axle pivot bolt shown with James Duff lift bracket.
Joe



[jrgaylor]

axle pivot bolt

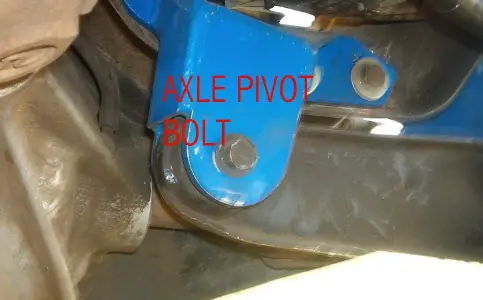

Drivers side axle pivot bolt shown with James Duff lift bracket.
Joe



[Hermz]

Thanks. I guess I did it right after all. But now its going to the shop because of those pesky rivets.



[DeRocha]

What kind of work are you doing? Are you installing a lift, or replacing your Radius arm bushings?



[jrgaylor]

Did you make any progress?
