why the plastic guides on timing chain?

Mbrooks420

High Voltage.
Elite Explorer
Joined
February 2, 2002
Messages
12,081
Reaction score
2,518
Year, Model & Trim Level
1998 Mountaineer AWD
It’d be a super easy piece to make. Could be cranked right out. I wouldn’t want the liability of bonding the plastic to them though.

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Paul Fithian

Elite Explorer
Joined
October 12, 2016
Messages
299
Reaction score
73
City, State
Long Beach, IN
Year, Model & Trim Level
2007 Job 1 RWD V8 Limited
I recently replaced the valve cover gaskets on my Job 1 2001 Sport Trac, 272,000 miles with the original engine. Both timing guides look to be in good shape.

It has chain rattle only on cold startup, but using the following cold start procedure pressurizes the tensioner and eliminates rattle:

1) Press accelerator to the floor
2) While holding the accelerator to the floor, crank the engine until oil pressure registers on the idiot gauge
3) Continue to crank, and let your foot off of the accelerator. The engine will start up perfectly with no chain rattle

Although these engines have a bad reputation, this one is smooth and strong. Doesn't burn oil at all.

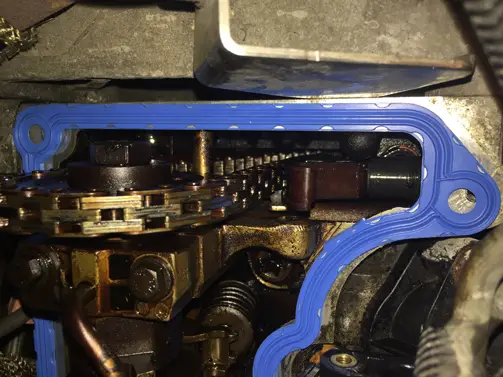

Timing Chain Guide Left Side.jpg

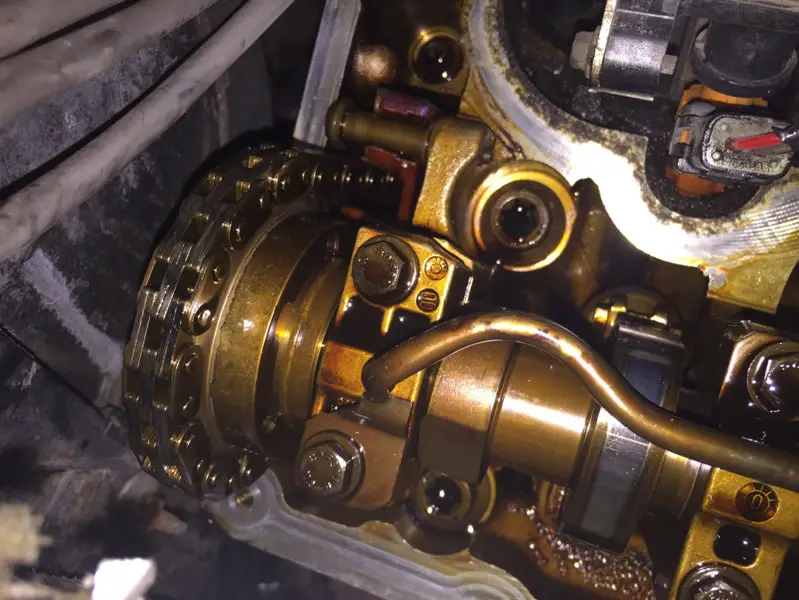

Timing Chain Guide Right Side.jpg

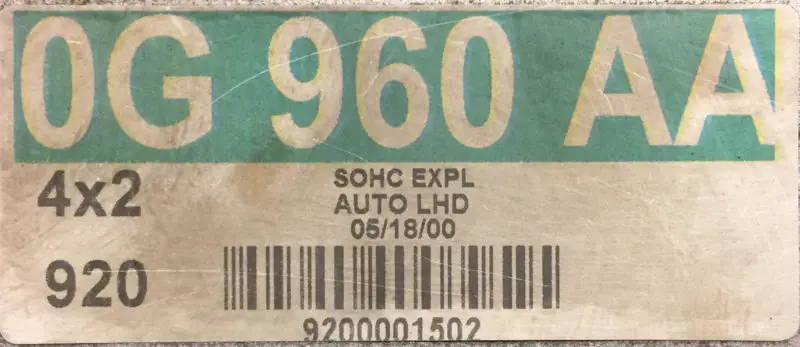

Engine buld label.jpg

<



Foz1359

New Member
Joined
January 18, 2019
Messages
8
Reaction score
1
City, State
Harahan Louisiana
Year, Model & Trim Level
2005 Ford Explorer 4.0

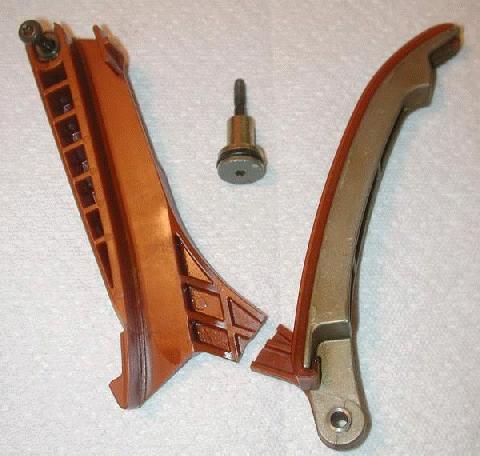

I see your pass side cassette is still intact. Found mine (140k) in the timing chain well, in a few chunks! There's some in this thread that believe I'm relying on JB Weld alone, I'm not. I drilled a set of tiny holes through the "yoke" slot on the salvaged guide piece, friction fit a copper pin across the yoke opening and above the guide bolt, and bedded them in with JB Weld. Anyway, the rig we cobbled together from the bigger chunk is hanging in there (literally hanging on the guide pin), she's still running on a sliver of copper, some JB Weld and numerous prayers. YMMV.

Ya'll be good to one another.

Mike

<



96eb96

Explorer Addict
Joined
October 20, 2004
Messages
3,427
Reaction score
244
City, State
Albany, NY
Year, Model & Trim Level
96 EB V6 OHV 4WD
<



imp

Explorer Addict
Joined
November 12, 2009
Messages
4,748
Reaction score
694
Location
West-Central AZ along the Colorado River
Year, Model & Trim Level
59 Ranchero F250 D'Line
How did they manage to mount huge V8s in FWD Continentals and Taurus with serviceable external pumps.
@96eb96

And, reveal too why use of a remote-mounted electric pump could not have been used instead, with either type of drive-line? imp

<



Mbrooks420

High Voltage.
Elite Explorer
Joined
February 2, 2002
Messages
12,081
Reaction score
2,518
Year, Model & Trim Level
1998 Mountaineer AWD
@96eb96

And, reveal too why use of a remote-mounted electric pump could not have been used instead, with either type of drive-line? imp
I’m surprised this wasn’t the route taken due to the increase in electric drive accessories, like power steering and AC.

<



imp

Explorer Addict
Joined
November 12, 2009
Messages
4,748
Reaction score
694
Location
West-Central AZ along the Colorado River
Year, Model & Trim Level
59 Ranchero F250 D'Line
I’m surprised this wasn’t the route taken due to the increase in electric drive accessories, like power steering and AC.
@Mbrooks420

Me too! I guess statistically, adding electrically-driven accessories adds more junk into the "soup of failure probability": Belt-driven, one variable: belt goes away. Electrically driven: Wiring, Fusing, added alternator load, drive-motor vulnerability. But, "pros" are there, too: ability to control water pump rate adds to fuel economy. Likely same for power steering, much lower pump output needed driving at speed than swiveling about in a parking space. imp

<



Joined
July 14, 2016
Messages
34
Reaction score
11
City, State
NJ
Year, Model & Trim Level
2003 Explorer
I recently replaced the valve cover gaskets on my Job 1 2001 Sport Trac, 272,000 miles with the original engine. Both timing guides look to be in good shape.

It has chain rattle only on cold startup, but using the following cold start procedure pressurizes the tensioner and eliminates rattle:

1) Press accelerator to the floor
2) While holding the accelerator to the floor, crank the engine until oil pressure registers on the idiot gauge
3) Continue to crank, and let your foot off of the accelerator. The engine will start up perfectly with no chain rattle

Although these engines have a bad reputation, this one is smooth and strong. Doesn't burn oil at all.

View attachment 167435

View attachment 167436

View attachment 167437
Your rear guide is busted at the pivot pin. You can see its up against the head casting, it should have a space and be up against the torq screw.

<



swshawaii

Elite Explorer
Joined
April 3, 2009
Messages
9,624
Reaction score
570
City, State
Kailua-Oahu, Hawaii
Year, Model & Trim Level
'05 Sport Trac XLS (RWD)
My "upper positioning bolt" looks the same as Paul's.


<



<



david4451

Well-Known Member
Joined
February 9, 2015
Messages
309
Reaction score
43
City, State
cotabato philippines
Year, Model & Trim Level
2001 ford sport trac

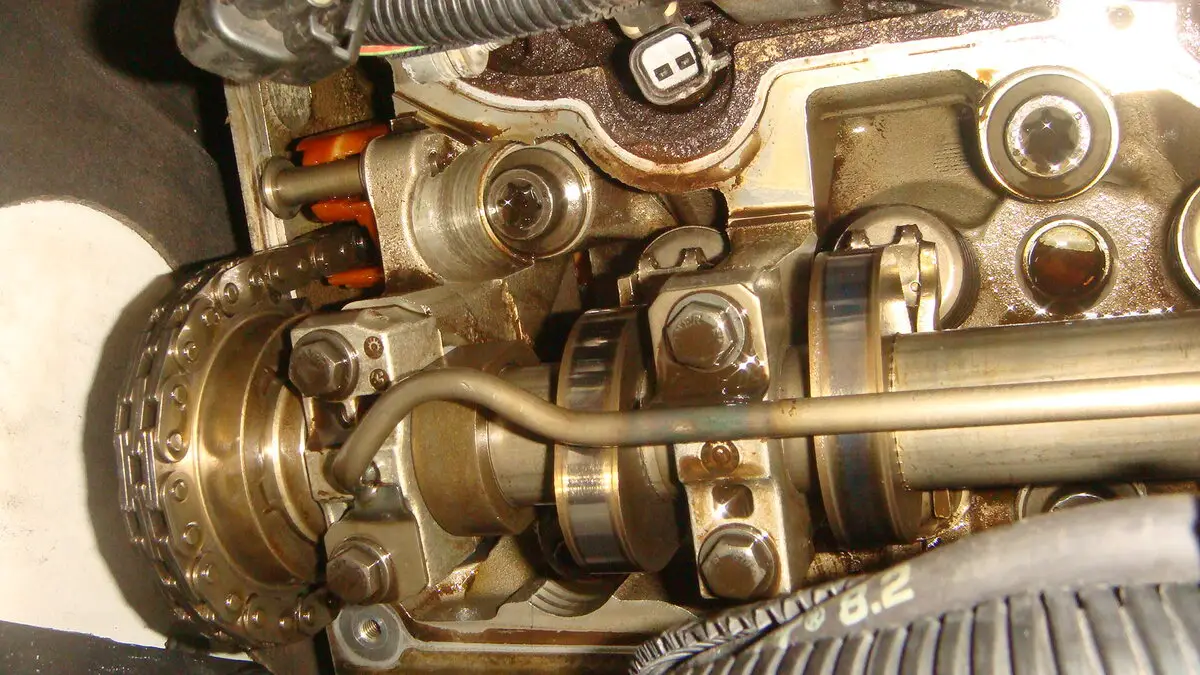

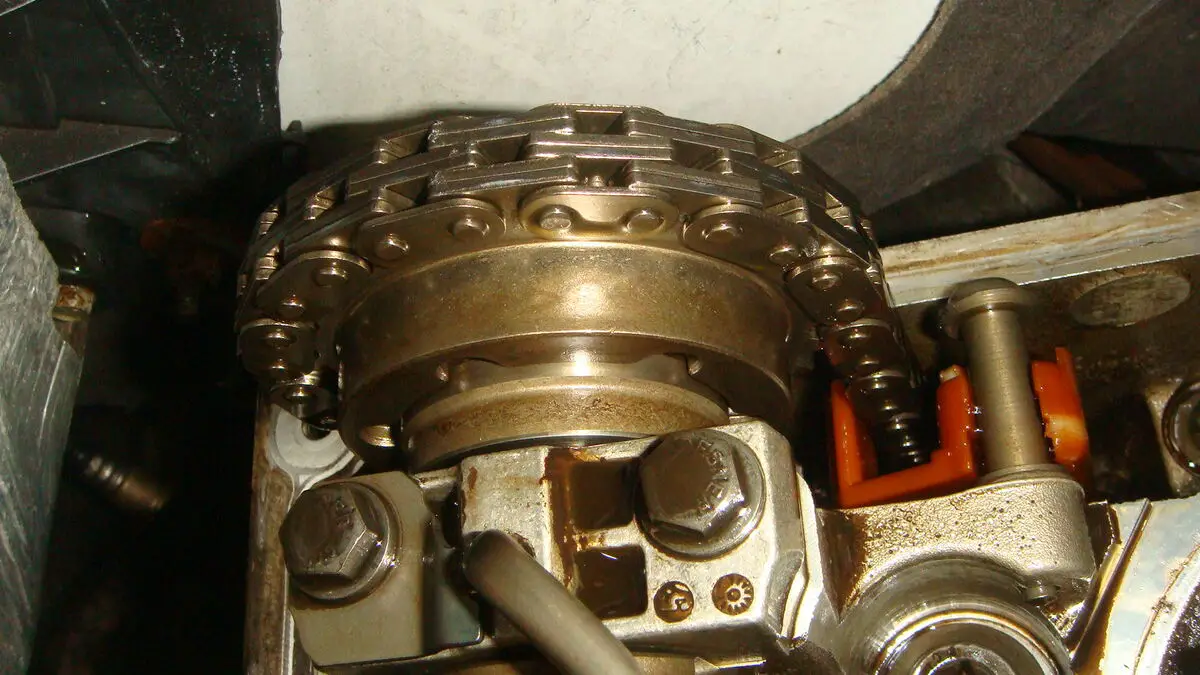

This is what it should look like.

<



<



Joined
July 14, 2016
Messages
34
Reaction score
11
City, State
NJ
Year, Model & Trim Level
2003 Explorer
I was going to say that rear guide sure rides a lot further forward than mine, but mine looks a lot more like that last picture.
You are correct. The picture above is how it's supposed to sit. The gentleman with 270k has a busted rear cassette so the chain is probably only riding on half the guide.

I just picked up another explorer with some rattle. Gonna try the JB weld fix. But my thought is, why can't I buy another guide, and disconnect it from the pivot pin. Then take the metal backed traction part, flip it upside down, and bolt it to the upper positioning bolt with a couple spacers so the chain rides on that?

That way you'd have 2 of the same parts. Not a permanent fix but definitely a trial run.

<



donalds

Elite Explorer
Joined
July 12, 2015
Messages
4,778
Reaction score
2,252
Location
Stem
City, State
Nc
Year, Model & Trim Level
1999 ford explorer sohc
Forge one out of beer cans
Sounds crazy but just might work

<



Paul Fithian

Elite Explorer
Joined
October 12, 2016
Messages
299
Reaction score
73
City, State
Long Beach, IN
Year, Model & Trim Level
2007 Job 1 RWD V8 Limited
Sorry, but I can’t tell what is broken on mine from the pictures.

<



Joined
July 14, 2016
Messages
34
Reaction score
11
City, State
NJ
Year, Model & Trim Level
2003 Explorer
Forge one out of beer cans
Sounds crazy but just might work
Im gonna try it. I've got a couple ideas, gonna draw them on paper and post it later. Keep in mind, I have an explorer that I did a total rebuild on. This one is just to goof around.

Worth a shot, if it lasts 30k then the truck was worth my $500.

<



david4451

Well-Known Member
Joined
February 9, 2015
Messages
309
Reaction score
43
City, State
cotabato philippines
Year, Model & Trim Level
2001 ford sport trac
Sorry, but I can’t tell what is broken on mine from the pictures.
I doubt your rear cassette is broken lower down near pivot pin but it is not being held in place by that top fancy bolt where it has damage. So the chain does not run fully/centrally on plastic.

A repair is possible, find a way to hold top of that plastic back against the rear of the cylinder head. Originally it was held by groove in plastic (loosely) that groove on back of cylinder head has gone due to breakage.

I don't advocate repair, but without pulling engine and fitting new cassette that's your only option. If you don't figure a way to hold plastic against back of head your on borrowed time now. It will break near pivot and get crunched up, probably causing the need for another engine.

<



imp

Explorer Addict
Joined
November 12, 2009
Messages
4,748
Reaction score
694
Location
West-Central AZ along the Colorado River
Year, Model & Trim Level
59 Ranchero F250 D'Line
You are correct. The picture above is how it's supposed to sit. The gentleman with 270k has a busted rear cassette so the chain is probably only riding on half the guide.

I just picked up another explorer with some rattle. Gonna try the JB weld fix. But my thought is, why can't I buy another guide, and disconnect it from the pivot pin. Then take the metal backed traction part, flip it upside down, and bolt it to the upper positioning bolt with a couple spacers so the chain rides on that?

That way you'd have 2 of the same parts. Not a permanent fix but definitely a trial run.
@Thev6thatcould
Metal friction against metal friction is tricky business. If both surfaces are very hard, it works effectively, or in the case of certain dissimilar metals, works well, like steel on bronze. One other factor is the need for constant lubrication. imp

<



Joined
July 14, 2016
Messages
34
Reaction score
11
City, State
NJ
Year, Model & Trim Level
2003 Explorer
@Thev6thatcould
Metal friction against metal friction is tricky business. If both surfaces are very hard, it works effectively, or in the case of certain dissimilar metals, works well, like steel on bronze. One other factor is the need for constant lubrication. imp
You are 100% correct and that's why ford engineered the nylon over the metal. What I'm saying is if I take a new cassette, split it in 2, and take the metal backed traction guide and bolt it upside down at the upper positioning bolt, it MAY work. Again, it'll need some trial and error but I'm out to design something that may be a temp fix.

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




imp

Explorer Addict
Joined
November 12, 2009
Messages
4,748
Reaction score
694
Location
West-Central AZ along the Colorado River
Year, Model & Trim Level
59 Ranchero F250 D'Line
You are 100% correct and that's why ford engineered the nylon over the metal. What I'm saying is if I take a new cassette, split it in 2, and take the metal backed traction guide and bolt it upside down at the upper positioning bolt, it MAY work. Again, it'll need some trial and error but I'm out to design something that may be a temp fix.
@Thev6thatcould
I had no intention of discouraging you.....I've done every possible fix over the years "outside of the box" that you could think of. Got a lotta experience that way! Not sorry I did it, either! Get busy! imp

<
