"Will This Work"

Think this will work?

Last picture is Winter's new work-out equipment


Attachments

  • DSC00669.jpg
    96.1 KB · Views: 7,890
  • DSC00670.jpg
    120.9 KB · Views: 4,108
  • DSC00671.jpg
    83.5 KB · Views: 4,072
  • DSC00672.jpg
    93.6 KB · Views: 8,252



Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





OMG I'm on line again.....Iz I agree on upping the challenge however I think BOTH Iz and I would be sitting on the corner talking/day dreaming about the rig not building it. Where's my Lumpia?????
By the time you got finished thinking about the build, months, years, even decades could pass. Mmmmmmmmmmmmmmmmmm..........Lumpia:D




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Friday Nite, the beginning of the 4-link setup.

1. The first picture show's how the frame was cut narrower and reshape for more cleareance.

2. Picture two show's getting ready for the setup.

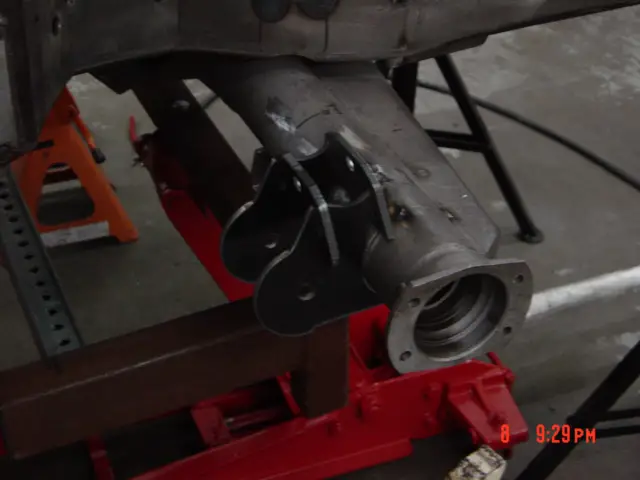

3. Picture three is the Coilover Link Bracket. These bracket's were custom
made by Ballistic Fabicator's and were modified to have a 1 1/2" spacing.














Friday nite continued --

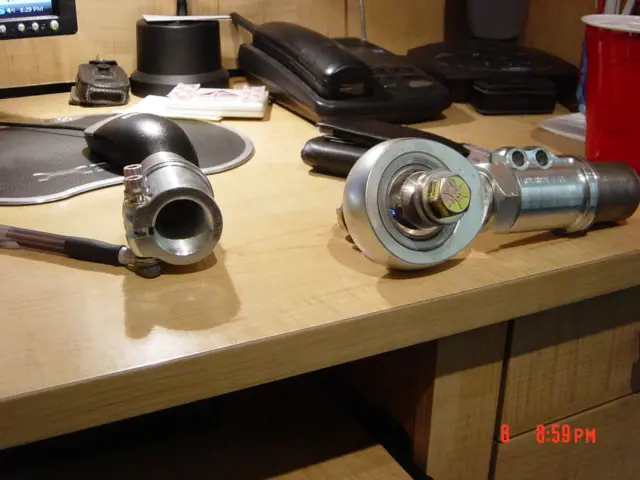

4. Picture four & five is the rod end pinch clamp housing.

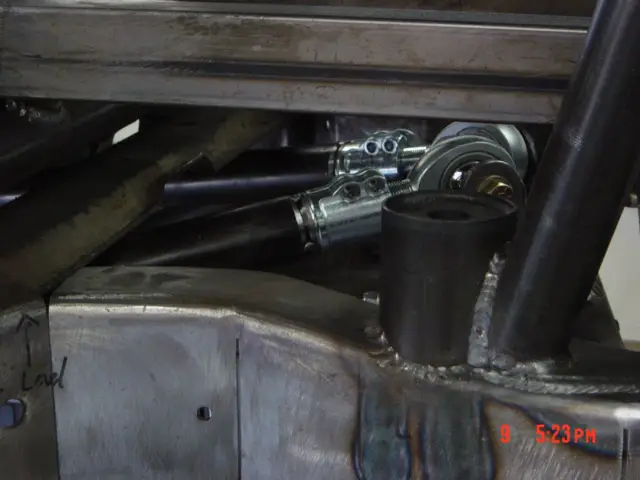

5. Picture six is the frame link mount.
6. Picture seven is the lower axle link mount














Friday nite continued --

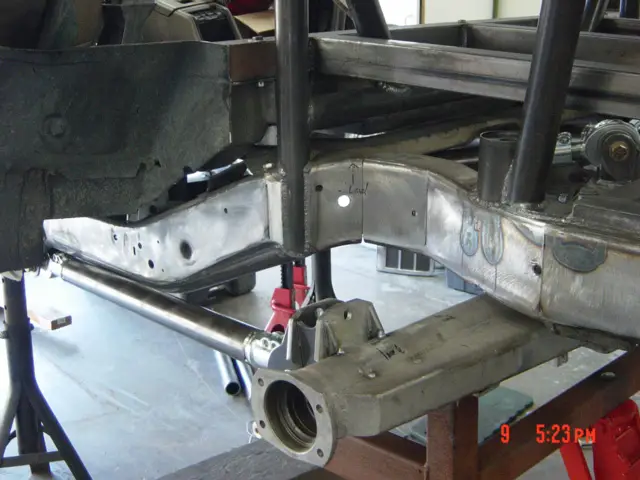

7. Picture eight is the total lower link setup.

More later on Sat. work!








easy as pie!
Keep em comin!

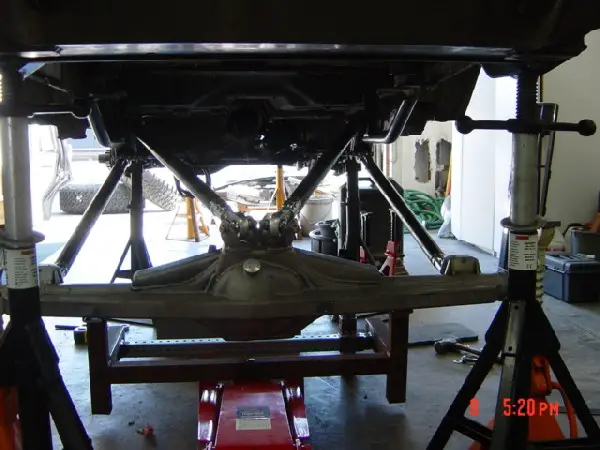

Finish 4 link system

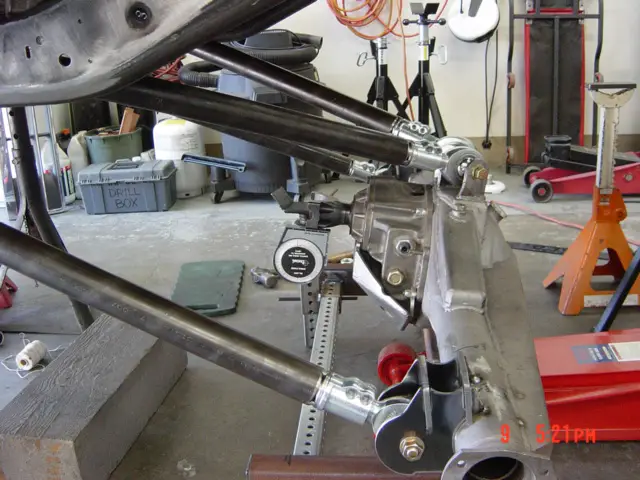

At full bump we have a 3 degree's pinion angle change from ride height to full bump.

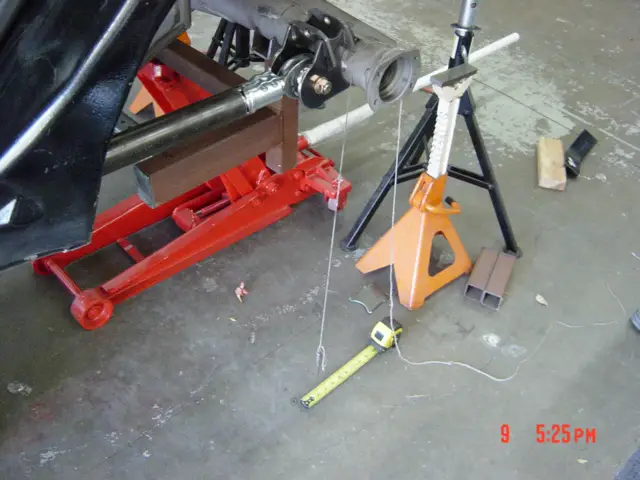

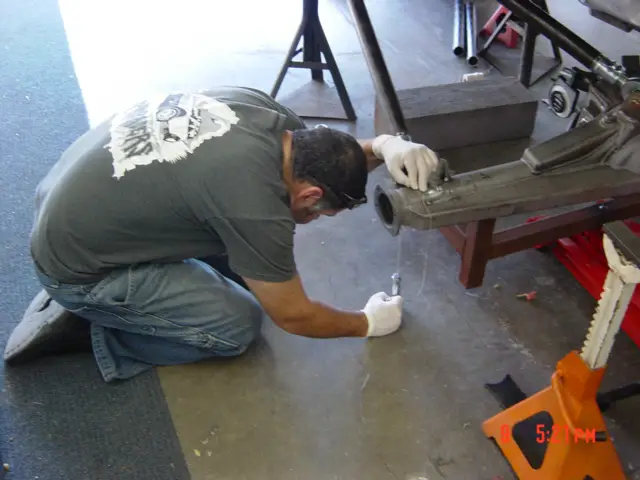

Winter is checking the plunge using a plumb bob



Were at 5 degree's at full droop

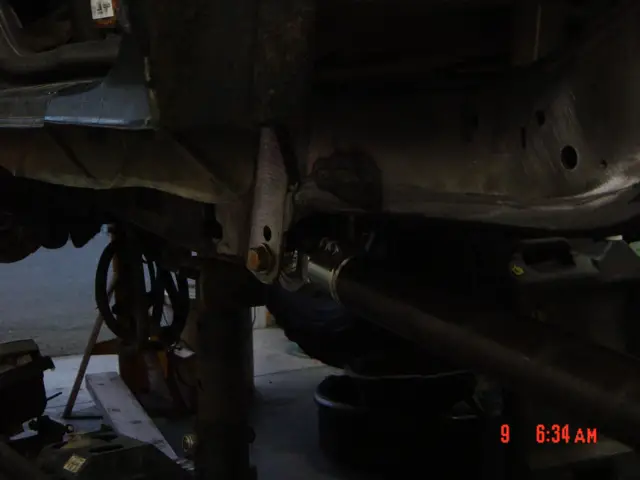

From ride height to full bump we have a 1/4" of drive shaft plunge. WOW that is good.



From ride height to full droop, there is a total of 2 1/2" of driveshaft plunge.

Copy of DSC00758.JPG


Copy of DSC00759.JPG









we are not worthy

trophey truck status







My favorite part is how the chassis is tweaked to make way for the rear shock -- must have taken a lot of work!







Wild stuff:D:burnout:













Iz you like that.....It turned out way better than I could have planned, I love the new tow rig....







Thanks Winter!! (who by the way is online ;) )

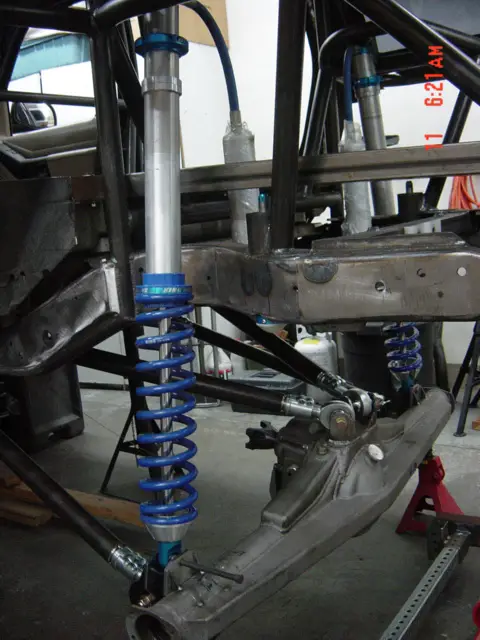

Coilover's at full droop

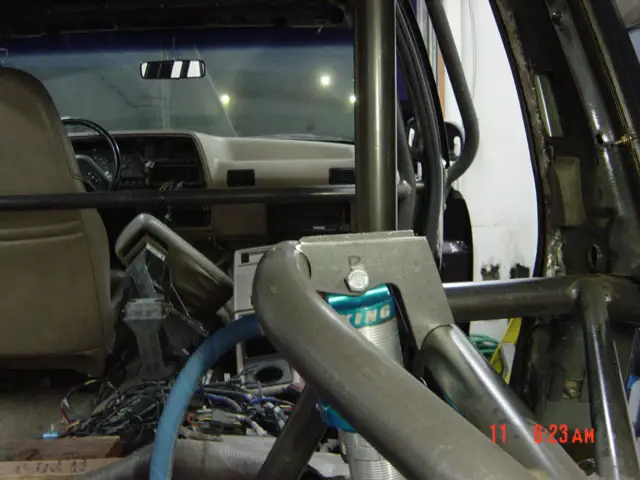

Shock Bracket's (Winter make's these, amazing)








...:D...Precise with no tack welds...."Simply Amazin'" (in the voice of Huell Howser)....:thumbsup:







You guys are doing some super nice work.:thumbsup: I'll say this for everyone I can't wait to see this in action.
















Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





...lol, I forgot they were together out there...We sure do miss Iz out on the West Coast..
