Wiring Diagrm for Sony Amp


CJ18

New Member
Joined
June 20, 2013
Messages
1
Reaction score
0
Year, Model & Trim Level
2012 Limited
Hey guys I am new to the forum and looking for some help.

I am looking to add a Rockford 360.3 processor to my 2012 Limited and am running into an issue at the Sony amplifier. Does anyone have any wiring diagram or information for what each wire on the 3 plugs goes to?

I think I figured out which plug is the output going to the speakers, but cannot figure out which wires are the inputs that I need to tap into for the High Level Inputs on the 360.3. I have found the wires for the sub output.


Thanks for any help.





Bkmcinty

New Member
Joined
May 19, 2014
Messages
11
Reaction score
0
City, State
Fort Myers, FL
Year, Model & Trim Level
2011 Explorer Limited
Did you ever find your answer? Looking for the same info!!





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
27,081
Reaction score
1,491
City, State
Ottawa, Ontario area
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
I don't know if you'll receive a reply. That was his one and only post. You could try sending a private message but not sure if you'll get a response.
Good luck.

Peter





Rudsther2435

Elite Explorer
Joined
June 6, 2013
Messages
28
Reaction score
0
City, State
Yuma, AZ
Year, Model & Trim Level
2013 Ford Explorer XLT

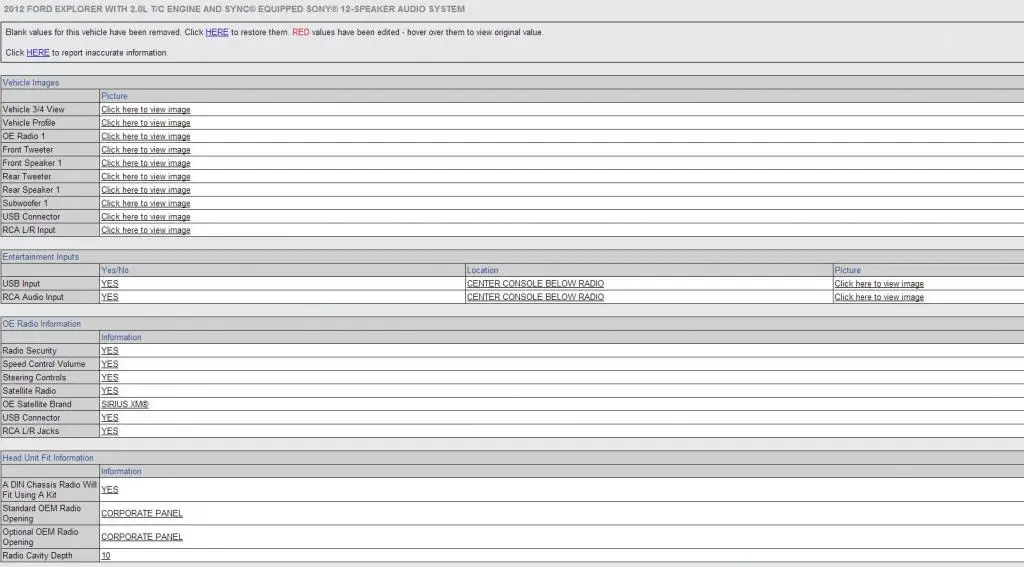

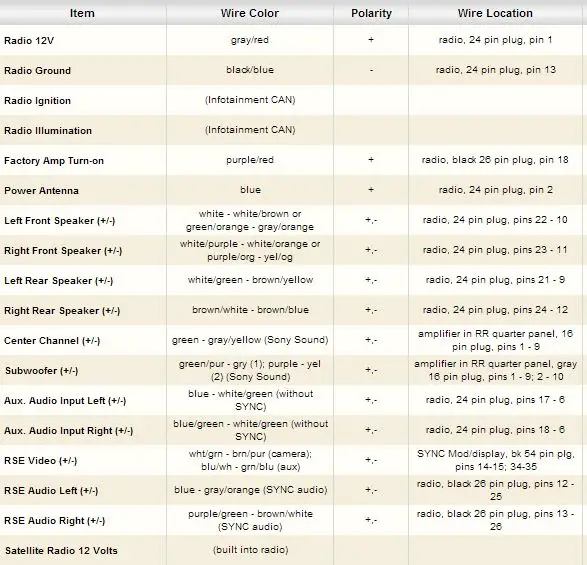

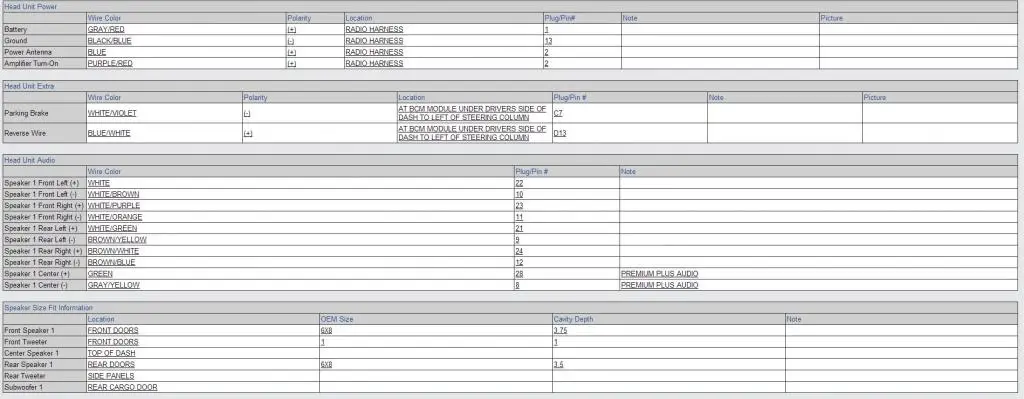

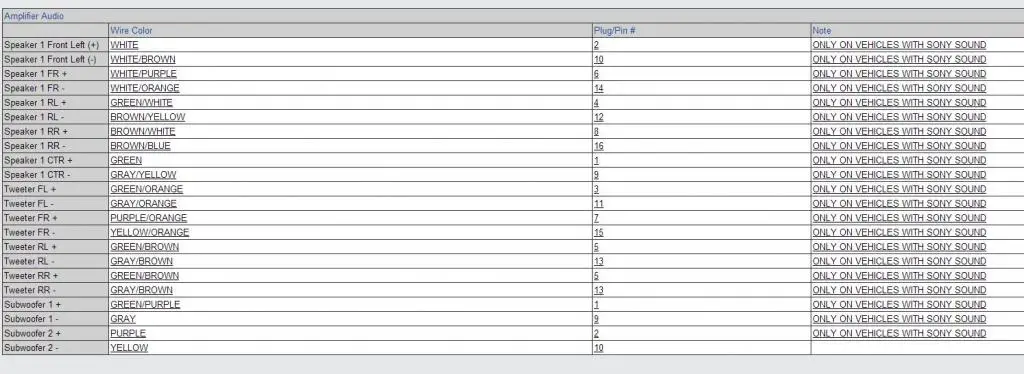

This should help

This information should help, if you need the pdf version, send me an email rudsther2435@gmail.com,
