Wiring harness under driver A pillar

fatatack911

Member
Joined
January 7, 2008
Messages
36
Reaction score
0
City, State
lake in the hills IL.
Year, Model & Trim Level
02 XLs
Does anybody know what the wiring harness under the driver side a pillar is.
I have a 02 explorer xls. Thanks




Join the Elite Explorers for $20 each year or try it out for $5 a month.

Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.

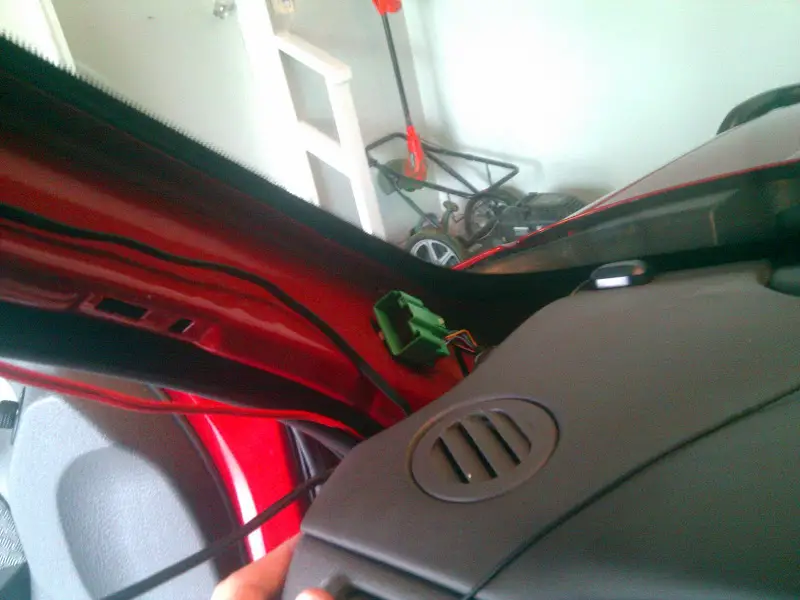

Here some picture








I assume you don't have an overhead console?

red/blue: Dimmer switch
yellow/blue: Temp sensor
white/blue : Temp sensor
black: Ground
black/blue: Dome light. This one turns lights on when door is open
green/orange: Dome light. This one is for the reading lights
gray/black: Speed sensor.
yellow/gray: Fuse power. Hot when key in the run position








I'm just shocked the harness is in place. On Gen. 1 and 2 there are no extra harnesses for anything. lol!! When I added the autolamp mirror despite the fact I have an overhead console and moonroof I still had to run my own wires for the mirror.







no i dont have an overhead console







run to the junkyard and get one :) and just plug it in. Not sure if you would need a different headliner . Cant say i looked "up" much .







no i had a moon roof installed, so not enough room for console













yes thanks for all the help
