Need diagram for fog lights - New from nyc

[trapcentral]

hey I'm having trouble with my fog lights . anyone have a diagram of the fuse box ? 98 explorer sport . I know it isn't the fuse because they are connected to the drls . I'm trying to change the relay but the internet wasn't giving me the right answers .



[J_C]

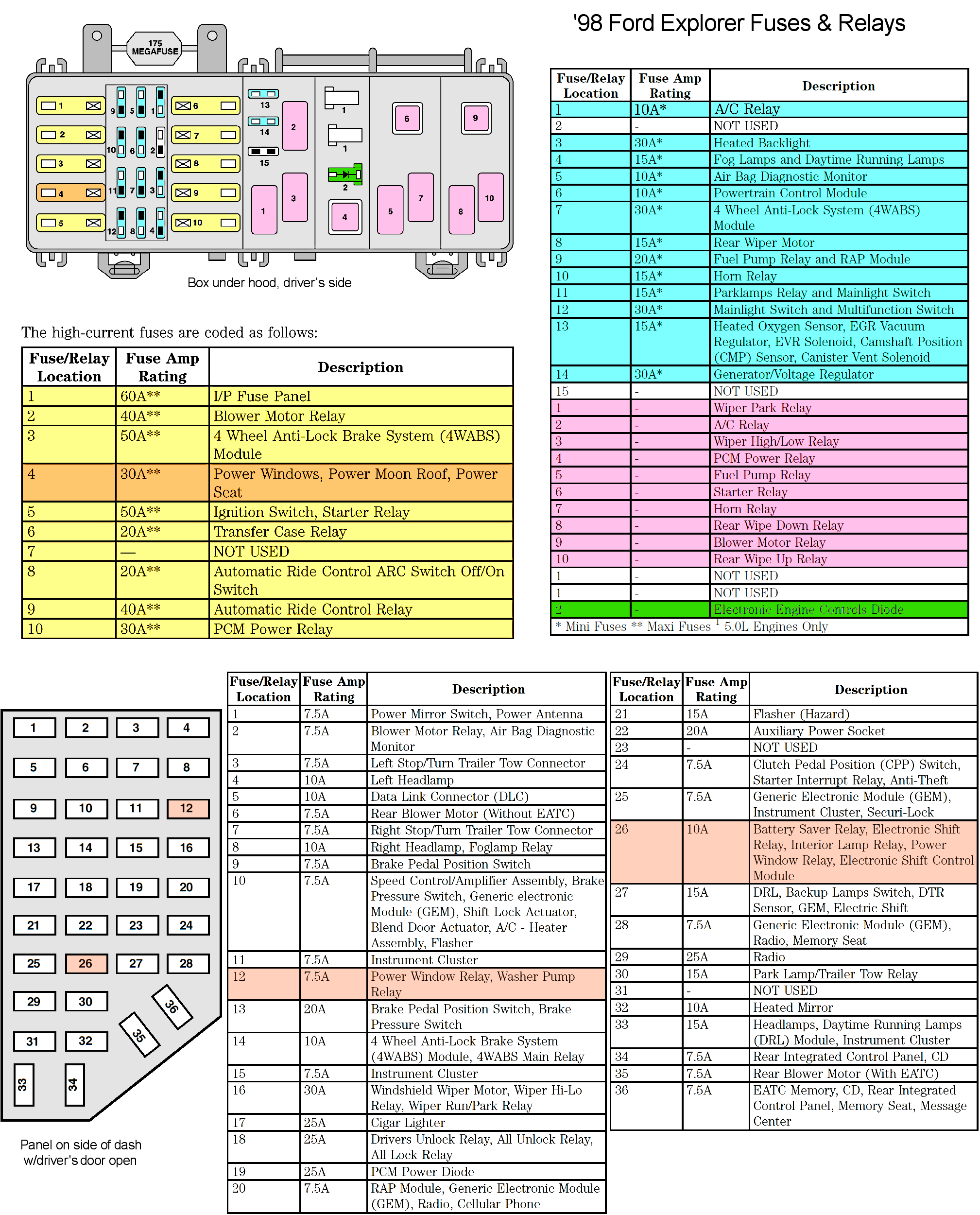

Fog lights are a 15A fuse #8, 2nd one down on the right side column. The picture below also shows fuse #4 in the under-hood power distribution box, but it is unclear to me why because that fuse is not in my fog light wiring diagram.

There should be a diagram of the fuse box in the owner's manual. Get the PDF version if you don't have one.

http://www.fordservicecontent.com/Ford_Content/catalog/owner_guides/98expog1e.pdf

As far as where that relay is, I think it might be under the air filter box.



[trapcentral]

I got it to work it was the relay under the intake . thanks alot .
