This isn't my X, but DC current is DC current, and a relay is a relay, no matter what vehicle, soo:
When I got my civic the PO had disconnected the interior trunk light, and had put in a 12” red neon in its place. This is cool with me, but the 1 neon just isn’t enough light to see squat at night. Since I had 4 pairs of 4” red cold cathodes collecting dust I figured I’d throw them in there.

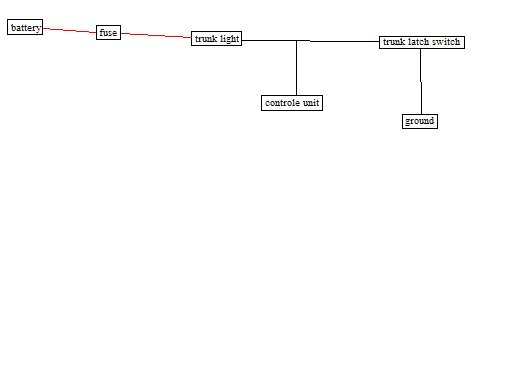

The tricky part is making sure the lights come on and turn off when they are supposed to. Here is a diagram of the stock trunk wiring:
As you can see the light always has power, the trunk switch opens and closes the ground (it connects the circuit when the trunk is opened). The Control Unit activates the dash warning light when grounded (saying that the trunk is opened).
This is what I have in mind:
This will now run juice through the trunk latch switch, but only enough to turn on the relay. I’ll have to cut the wire to the control unit, which means that the warning light will never work.
Is this a safe way to work it? Can anyone think of a scheme that would still retain the “trunk opened” warning light?
