Indestructable nerf bars/rock sliders, Lee Tongate

Safety
Take the time to wash under your truck. You'll be under there alot and it will be time well spent. Gloves and eye protection are a must. Don't want to end up having to get your eye's drilled. Disconnect the battery just in case and removing the gas tank is a MUST! Don't skip around this at all.

Tools needed
various drillbits(at least a 3/8")
a good drill
1 1/2" hole saw
jack stands
various sockets and wrenches
zip ties
C-Clamps
FlatHead Screwdriver
Grinder
Right Angle Drill Kit

REAR Drivers Side Mounts
The first thing you MUST do is drop the gas tank and remove the Ebrake cable. There is no room to fit the socket and bolt into them not to mention the fact that you've have to drill holes right next to the tank. Follow the instructions in the manual to do this. Since you've removed the tank this is also a great time to replace the fuel pump. Just a suggestion. Next you'll want to remove the bolt for the spring hanger. You'll only need to remove the front one. Keep this bolts as they will be reused. Put the mount up to the frame and put the bolt back in. Put a clamp onto the mount to hold it into place, and make sure it's on straight as this will decide how your bars are mounted. After double checking that everything is flush against the frame transfer the holes from your mounts onto the frame. Remove the mount and drill the frame. Take your time and before you start make sure all the fuel lines are out of the way. This is also where the Right Angle drill kit comes into play. There is not enough room between the frame and the body to fit a drill and the bit. Use a very small bit and the drill kit to drill the two holes in the top of the mount, then from the inside of the frame drill out the holes till the bolts fit. After these are done you'll be able to do the one on the bottom no problem.
Dead Link Removed


Front Drivers Side Mount
Start off by removing the bolt on the Transmission Crossmember(Save this bolt) and on the Fuel Filter bracket. While the bracket is off this is also a great time to replace the fuel filter. You'll have to take the fuel filter bracket and grind off the rear bolt. Next drill out the hole so a 3/8" bolt will fit. Do the same with the hole in the frame. Take the time here to zip tie all the fuel lines as well as any other wires out of the way. Put the mount onto the frame holding it on with the transmission cross member bolt and a C-Clamp. Once again make sure everything is flush and mark your holes. Remove your mount again and drill your holes. After you drilled you can put the mount back up, making sure you use the 3/8" bolt supplied rather than the stock bolt for the fuel filter mount.
Dead Link Removed
Dead Link Removed

Finishing Drivers Side
Now that all your holes are drilled put the mounts into place and put in the bolts. DO NOT TIGHTEN THEM! Leave them lose as this will help with the install of the slider. With help from a friend put the slider into the mount till the holes line up. It may take some taping on the mounts and the sliders, but if all the holes are drilled correctly they will fit. After the sliders are in double check the mounts are flush to the frame. If they are go ahead and tighten down all the bolts, reconnect your Ebrake and gas tank.
Dead Link Removed

Passenger Rear
Most of this mount is done like the drivers side. You'll need to remove the spring hanger bolt and put the mount up. Put the bolt back into place and make sure all is flush. If so mark your holes and remove the mount. Here is where you can make life easy on yourself. There is room to drill with the muffler in place, however if you take the time to drop the muffler you'll open up a ton of room that will save you time. It's not a must, but it's what we did to save us time. Drill the holes on the top of the mount first with the right angle kit and a small bit. If you dropped the muffler you're now able to remove the right angle kit and drill from the inside of the frame out slowly increasing the size of the bit as you go. If you left the muffler in place you'll need to continue to use the right angle kit, and do your best to keep the bit from moving. It will want to drill at an angle due to the bit not fitting and the frame being double reinforced where the bolts for the mount are. Take your time none the less. Once the top holes are drilled do the same for the bottom one.

Passenger Front
This one by far is the tuffest to do. Take your time and double check everything so you don't have to do it twice. It is also suggested that you remove the cat back, but is not required. We did not, but just keep in mind that it's very close as your drilling. Start off by removing the upper bolt on the transmission crossmember(save this bolt) and then putting the L-shaped bracket on, making sure the hole that is in the center is on the cross member and the one that is off center is going to the mount. You'll next drill a 1 1/2" hole into the cross member allowing you to get a socket onto the bolt that will go in this area. Next twist and turn the slider so the bracket will fit through the cross member and flush against the frame. Tighten down the mount and transfer the holes onto the frame. Next remove the mount and drill your holes. Take your time and make sure you do not drill into the cat back.
Dead Link Removed
Dead Link Removed

Finish the Passengers Side
Go ahead and put both mounts into place and put the bolts into place. DO NOT TIGHTEN THEM DOWN! As the same for the drivers side they may need to move some to allow the slider to fit into the mount. Do the same as the drivers side and slide the slider into place. Once it's in put the bolts into place and tighten. If you dropped the cat back and/or muffler put these back into place.

To finish you'll want to double check you didn't drill into anything that you shouldn't of and that the sliders don't interfere with anything. If not reconnect the battery and you're done. The steel on the mounts will bend somewhat to conform to the frame, however this is only making them stronger. The frame is helping strengthen the mounts. These were the instructions for a stock 1994 Explorer Sport, however they will change somewhat depending on your make/model and the mods you've done. Take your time and make sure your drilling into the correct spots. Don't rush as if you're off on the measurements the sliders may not fit into the mount. If you have any questions please email at
Leebo@explorerforum.com

Dead Link Removed
Dead Link Removed



This post will change as we find mistakes in me typing these instructions and changes in the product itself. I'm doing this after working from 9am on Monday till about 1am Tuesday morning. Add a three hour drive home and I've got a total of 4 hours sleep the past two day.

I'd like to thank Rick and Gloria for all you're help. I wish you two the best on the business and more so with the bundle on the way.



[Rick]

I hate to ask, but are those rock sliders or outriggers Maybe it's just the angle, but they sure seem to stick out far.



[Kris Guilbeaux]

This is Great I cant wait to get mine now... I already set it up to get them Powdercoated along with my Duff Front Bumper.



[RFR2212]

Originally posted by Rick
I hate to ask, but are those rock sliders or outriggers Maybe it's just the angle, but they sure seem to stick out far.

I second that... Can someone clear that one up for people who may be interested in these products

Pete



[leebo]

they don't stick out too much further than the tupperware would. If I still had the tupperware they would look flush. The hole can very easly be drilled in closer on the mount to make them closer to the body if you wish. Something I may do down the line depending on my mood.



[Kris Guilbeaux]

Do you think gloria would drill them a little closer to the Body for me since I dont have tupperware.



[leebo]

Dead Link Removed

There's a pic going down the side of the body. You can see that the sliders are even with the body where bit bow's out.

Kris,
I doubt they'd have a problem doing that. You'll have to talk to them about it though. I know we moved mine in some from their design, if ya wana go in more that's fine too.



[Dannyboy]

Originally posted by Rick
I hate to ask, but are those rock sliders or outriggers Maybe it's just the angle, but they sure seem to stick out far.

I guess I third that, I was expecting it to look a lot more like this. Guess that people should expect to run these with tupperware?



[Rick]

Thank goodness for sliders!



[leebo]

They can be made to do so with no problem. It's just 4 holes that need to be drilled to place the bar. If you want them closer, just ask. I personaly placed these to where I wanted. The pics don't show the true distance where they stick out due to the body denting in when you remove the sliders. There's nothing saying that you have to want the same thing I do. There's no way in this world I'd want them right up against the body though without the tupperware. You've gotta allow the body to flex some when wheeling, if you don't you'll crack the floor and the body mounts. I myself would still leave some gap between the body and the sliders for this. I wanted more due to my size and wanting them for more of a step than you may.



[Rick]

You know if you fold over that lip under the rockers you can gain another inch of ground clearance under the sliders.



[RFR2212]

If I understand ya there... that would allow the sliders to be shifted upwards 1 inch?
Pete



[Rick]

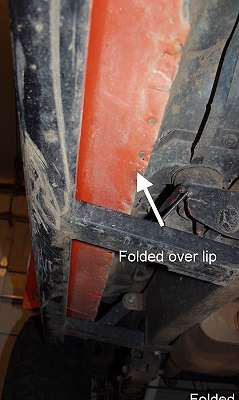

Folded Lip



[Rick]

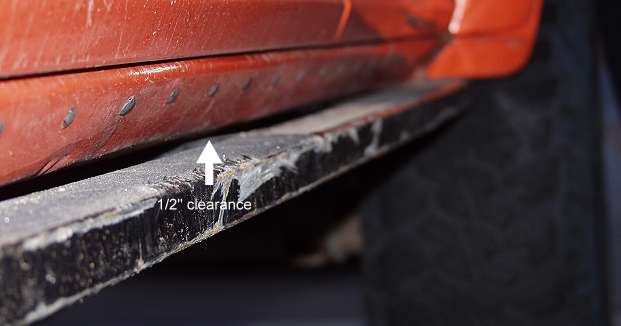

Clearance

These bars are supported in three spots, and have never contacted the body due to flex or a rock hit.



[zensius]

Here's what mine looks like without the sliders...Ooops. Another way to fold the seam down like Rick is to go rock crawling without sliders a few times.



[Extreme4x4]

Ok, to clarify to everybody, since everyone thinks my sliders look like training wheels..........

The bars are spaced, on Lee's, pretty much exactly like they are on my Explorer. They "look" further out because he does not have the rocker molding. However, they are designed to protect more than just the rocker itself. Spaced like they are, they will protect the body further up by spacing you away from it. With bigger, non stock sized tires, they do not look like they are sticking out. Remember the body on the Explorer does not go straight down, it goes like this ( ).

If you want the bars to snug right up to the body, then you will not be able to use them as a nerf bar....... well, unless your legs are bent like "(" also. )

Moving the sliders in closer to the body is easy for anyone to do. The front cross bar has space to move in, and you would only have to drill new holes. The rear crossbar would have to be cut down the distance you would want to move them in, then you would drill a new hole.

If someone wants me to accomodate them bending their pinch weld in, and moving the mounts up....... that is fine. However, it would be ALOT of money, since it would be a complete custom set (all the mounts would have to be totally redesigned). Also, for custom work like this, I do need the vehicle.

BTW, my sliders are shaped the way they are on the ends for a reason. They break rocks up real good, and allow a smooth transition into the slider side....... so as to not impede forward progress.

While the bars themselves will never make contact with the body....... it is entirely possible to have the crossbar do so. The body itself does flex alot, especially with the stock rubber type body mounts. The distancing on mine is also designed to not allow that to happen. I would never run urethane body mounts on a heavily wheeled vehicle, as the flex has to go somewhere. I would rather have it go in the mounts than the body structure.

Hope this has clarified things.



[riffman]

well..on mine, i have 3 mounts to the frame, and its made of some serious steel too, and i still get flex up into the body flange. these are also strong enough to support the weight of the entire truck, and have been used as winching points (a few times) to flop me back over. i don't want to come off like a jerk, and im not trying to sound like a cynic (spelling? ) or anything, but those seem pretty weak to me if your looking for serious protection. pics of my setup here:

Click Here
and here
and here

i can take more pics when i get home if people want to see em...and just in case anyone is wondering, i think we used 3/4" plate steel for the mounts...not sure though...

later!



[Kris Guilbeaux]

Ok I am Sold I want them Just like Lee's.



[leebo]

Dead Link Removed


I'm guessing at over 100 pounds of steel per side these will do just fine.



[rpenner54]

Man and I thought Rick's siders stuck out to far! I think I will just 1/4" the bottom of mine and call it good.
