I have a 2020 PIU that was hit in the front and both headlights were replaced with headlights that have the sound off signal lights in the headlights. I’m trying to activate them however when applying 12v to the 2 wires at the proper connector nothing happens. I checked the fuse panel and there was no fuse in spot 21 for the red/blue head lamp flashers, and that’s because there’s no power going to that spot on the fuse panel.

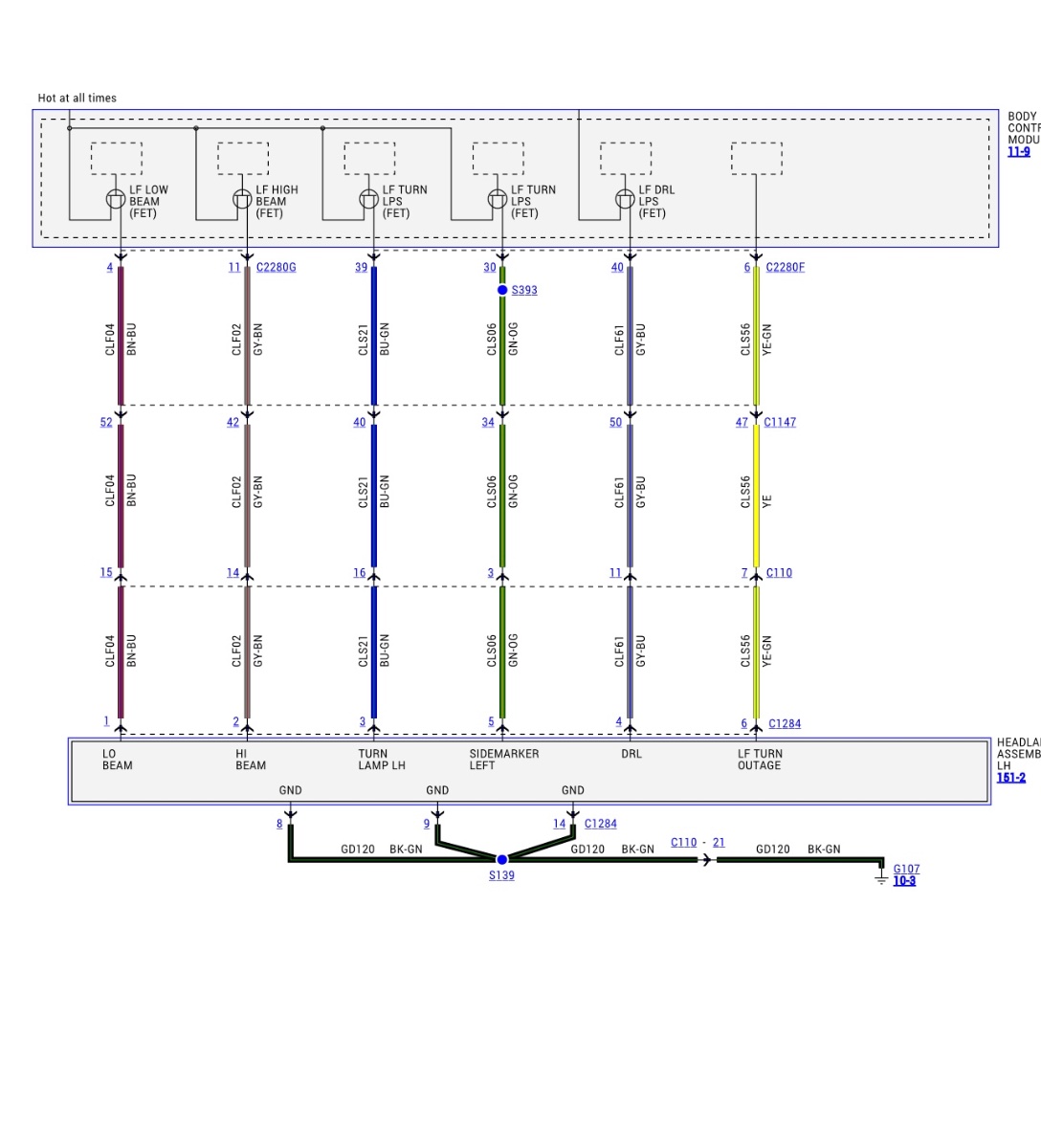

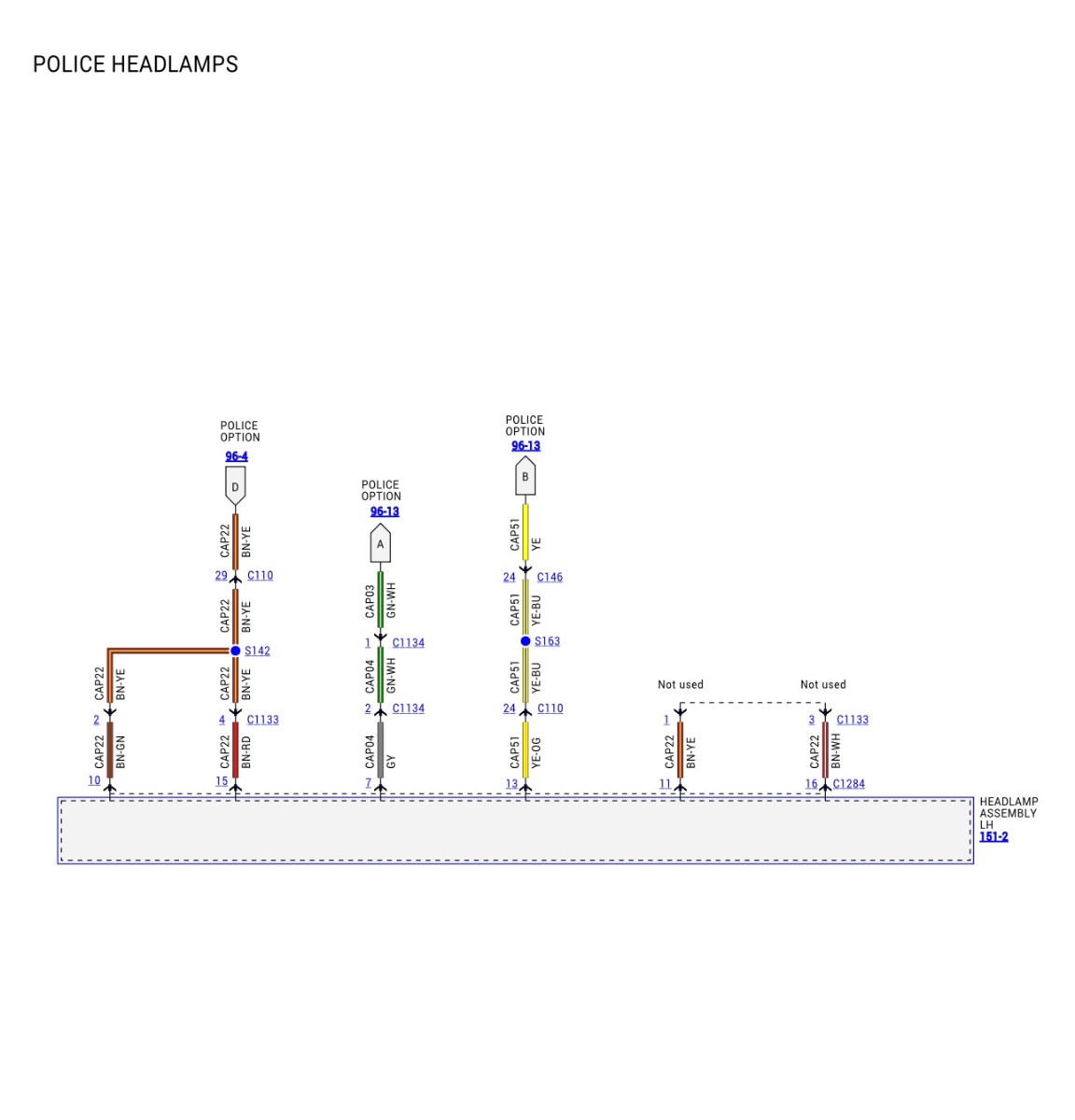

So. Long story short is the vehicle is wired for those lights, only kind of. It has all the connectors and wiring under the center console plate, but apparently not to the headlights. I’m not opposed to adding wires to the connectors that go into the headlights to activate the lights as I’ve dealt with adding wires and pins to similar connectors. I just need to find the headlight pin out to see where to add wires to the headlight connectors. I really hope this makes sense, and any help would be appreciated.
So. Long story short is the vehicle is wired for those lights, only kind of. It has all the connectors and wiring under the center console plate, but apparently not to the headlights. I’m not opposed to adding wires to the connectors that go into the headlights to activate the lights as I’ve dealt with adding wires and pins to similar connectors. I just need to find the headlight pin out to see where to add wires to the headlight connectors. I really hope this makes sense, and any help would be appreciated.
