1995 XLT 4x4 4R55E TCC solenoid

[2Nglenn]

Inductive signature or not?
The trans will not shift into 4th / OD no noises or parts in the pan. Shifts 1-3 no problem no flickering od light sends a 641 code.
What is the ohm value for TCC and EPC.
Thanks
Glenn



[wollimann]

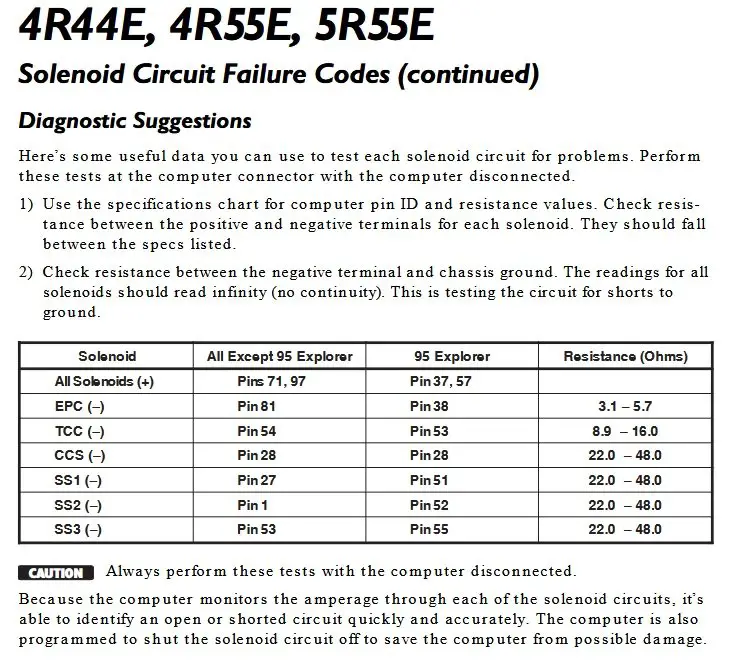

may help

https://atracom.blob.core.windows.net/manuals/individual/2000/2000-84.pdf



[2Nglenn]

Thank you this is exactly what I needed unfortunately everything is within spec at the 60 pin connector and at each solenoid (cold)
Next I will check each negative to chassis ground and go from there
Thanks again
I will let you know



[2Nglenn]

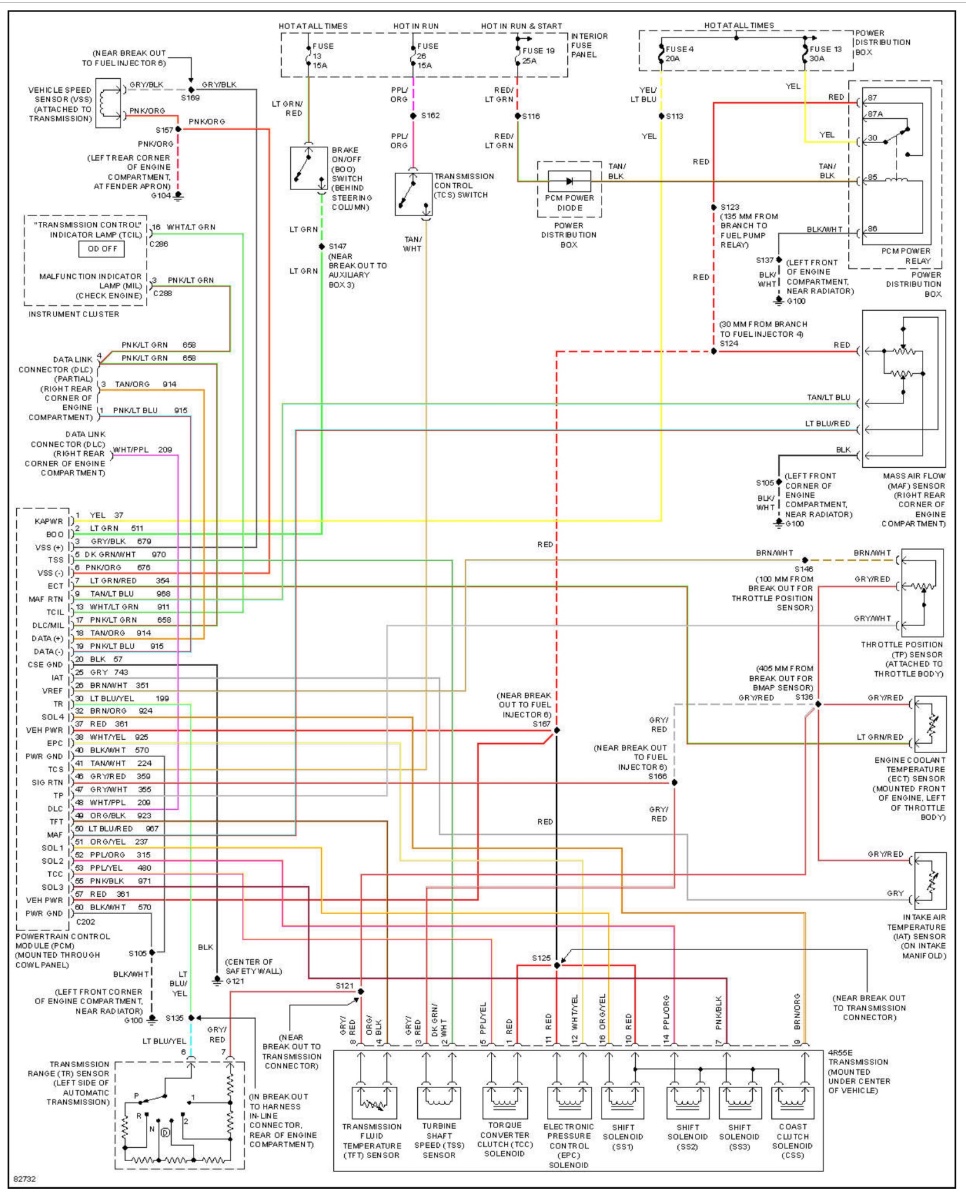

1995-2001 Ford Explorer Wiring Diagrams | Free Online Auto Repair Manuals and Wiring Diagrams

Free pdf online 1995-2001 Ford Explorer | Wiring Diagrams...

free-auto-repair-manuals.com



[wollimann]

Unfortunately there are some other reasons with no upshift to fourth gear.

18 Troubleshooting Tips for 4R44E & 5R55E Transmissions | Sonnax

With the proper repair, these cores can be just like money in the bank. Set yourself up for a successful rebuild with these expert tips.

www.sonnax.com

What happens before? Any work on valve body, simple oil change, ...?



[2Nglenn]

More good information

Go4trans - Buy Transmission Parts Online

Buy automatic transmission parts from worldwide suppliers. Find best deals and compare prices from various sellers.

go4trans.com

No previous work was done changed fluid and filter 10,000 miles ago
Replaced the battery then found a melted fuse holder to the electric fan
That may have upset the ECM
I have cleaned all connections to the 60 pin connector now I’m going to clean the conections to the engine
Thanks again
Glenn
