2005 Mountaineer v6 AWD Front Axle Torque?

rrack

Member
Joined
June 2, 2009
Messages
43
Reaction score
0
City, State
san antonio, tx
Year, Model & Trim Level
2005 Mountaineer AWD
Fixing to replace the front lower ball joints and I'll need to remove the front axles. What is the torque specs when I replace them? I've seen guesses of around 185? Actually while I'm at it, what is the torque for the lower ball joints as well?

Thanks much,
Robert




Join the Elite Explorers for $20 each year or try it out for $5 a month.

Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.

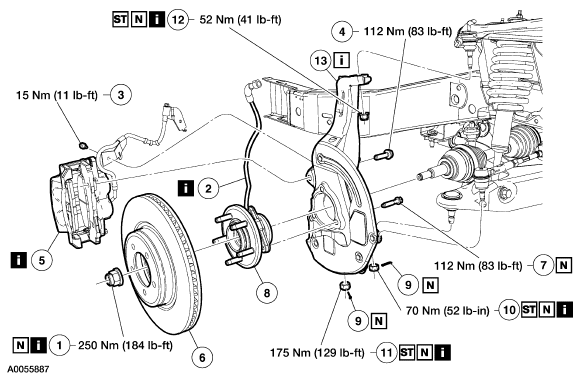

1 Axle-to-wheel hub nut (4x4 only)
2 Speed sensor harness (part of 2C204)
3 Brake hose-to-wheel knuckle bolt
4 Anchor plate bolt (2 required)
5 Brake caliper, pads and anchor plate
6 Brake disc
7 Wheel hub-to-wheel knuckle bolt (3 required)
8 Wheel bearing and hub assembly
9 Cotter pins
10 Tie-rod end-to-wheel knuckle nut
11 Lower ball joint-to-wheel knuckle nut
12 Upper ball joint-to-wheel knuckle nut
13 Wheel knuckle







Awesome! Thanks much! I can't find a definitive answer... What size is the OEM nut? 32mm 34 mm? I tried a 1 1/4... Too big... 1 1/8 too small... I'm guessing 30mm? Have tons o sockets... Just none that large,..













Thank you, Explorer04!!!
