How to: Pull trouble codes on 4WABS, very simple



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




bruce119

Well-Known Member
Joined
June 14, 2010
Messages
107
Reaction score
0
City, State
Holiday, Florida
Year, Model & Trim Level
'93 Explorer
I don't know if this will help or not because it is for a 1994 Bronco, but it should be similar. Can't yet find the Explorer info but when I do, I will post that.

http://www.fullsizebronco.com/forum/showthread.php?t=86620

Some good info and the link works...I will add this I disabled the ABS about 2 years ago pulled the 30 amp fuse...I didn't like the pulsing on hard stops...naturally the ABS light came on and went off when the fuse was put back in 2 years ago...Now 2 years latter the light wont go off with the fuse in and the fuse is good???


So why bother now, I had a transmission rebuild and I'm having trouble with TTC lock-up. The trany is slow to release lock-up and will not release lock-up when you hit the brakes. What I read the TTC gets it's info when to lock and unlock form the computer.
I read it's supposed to unlock when you touch the brakes. So my thought is the computer is not getting information from the ABS to send to the TTC...Just a theory???


Anybody now for sure...
Thanks for the help
Bruce





smegun

Well-Known Member
Joined
April 3, 2013
Messages
387
Reaction score
3
City, State
florida
Year, Model & Trim Level
1994 ford explorer xlt
Can someone re post the pics i dont know what pin e looks like





D

Deleted member 128963

ABS Connector

Hope this helps smegun.

I did a Google search and found the connector:

images





D

Deleted member 128963

Try this info

If that pic didn't help, try this video that bruce119 posted to youtube:

OK I'm going to add photos & video to this thread...I have a code 17 need help with that...

I had an ABS light on so I took photos and video


Hopefully it will help someone and someone can help me...


The connector is located here
View attachment 79588

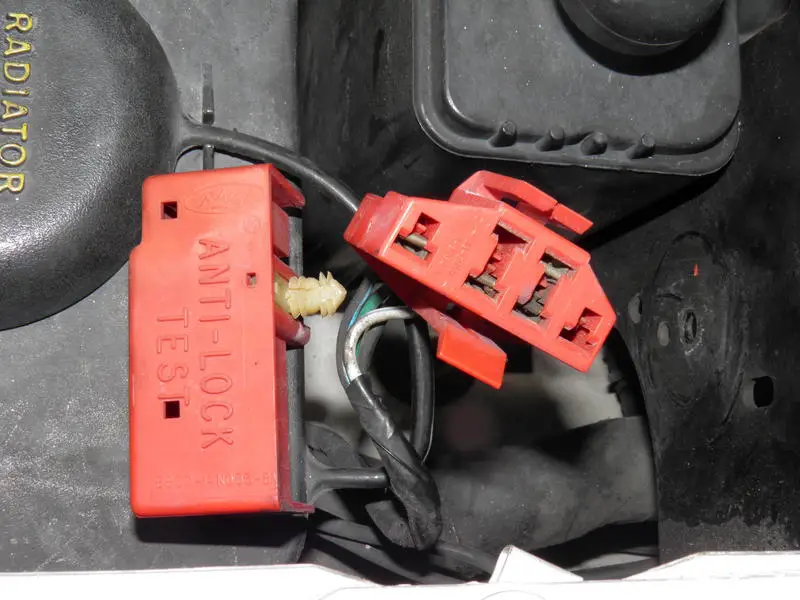

Here the cap is off and I pulled it away for easy access
View attachment 79589

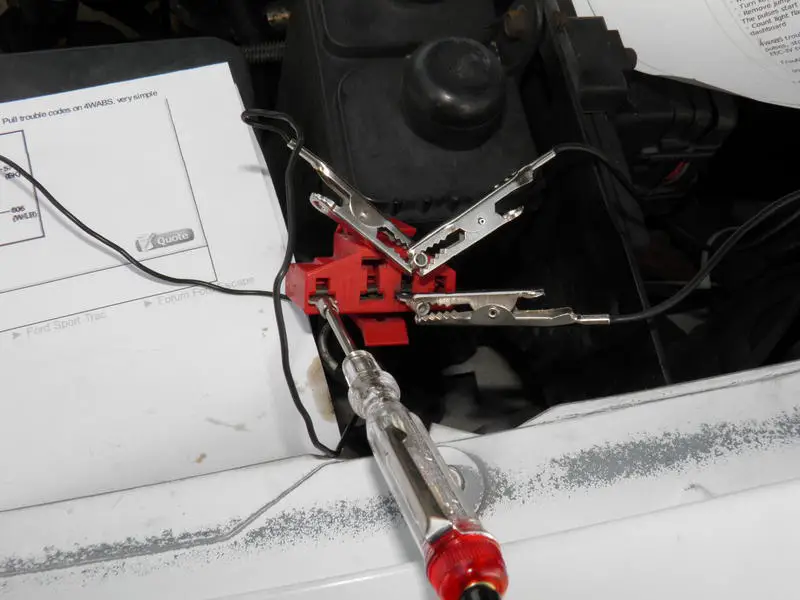

Here I have jumpers and test light hooked up my test light didn't work so I used the dash ABS light
View attachment 79590


Here is the YouTube video that shows my codes..
https://www.youtube.com/watch?v=fb__HhmDli0&feature=em-upload_owner


Hope it helps someone and someone can help me with the code 17...


Thanks
Bruce









OneofMany

Well-Known Member
Joined
December 21, 2012
Messages
225
Reaction score
3
City, State
Georgia Mountains- Talullah Falls
Year, Model & Trim Level
94 expl 4x4
which pins are what? I cannot tell by my connector.









natenkiki2004

Blue Bomb!
Elite Explorer
Joined
November 3, 2013
Messages
2,044
Reaction score
77
Location
North Idaho
Year, Model & Trim Level
1991 & 1994 Explorers
Please re-upload the pictures if possible
If I don't get lazy tomorrow and it's not raining like crazy, I'll perform this test on my 1994 and make a video.





natenkiki2004

Blue Bomb!
Elite Explorer
Joined
November 3, 2013
Messages
2,044
Reaction score
77
Location
North Idaho
Year, Model & Trim Level
1991 & 1994 Explorers
Since bruce119 covered 4WABS, I figured I'd make a video for RABS on the 1991 and 1992 model years.





VA7LFD

Active Member
Joined
July 12, 2015
Messages
50
Reaction score
5
City, State
Langley
Year, Model & Trim Level
1994 Limited Edition Expl
Photos & video

OK I'm going to add photos & video to this thread...I have a code 17 need help with that...

I had an ABS light on so I took photos and video


Hopefully it will help someone and someone can help me...


The connector is located here
View attachment 79588


Here the cap is off and I pulled it away for easy access
View attachment 79589


Here I have jumpers and test light hooked up my test light didn't work so I used the dash ABS light
View attachment 79590


Here is the YouTube video that shows my codes..


Hope it helps someone and someone can help me with the code 17...


Thanks
Bruce
I have a 94 Limited edition Explorer and the ABS light is always on. It did not flash at all. Is my ABS module faulty? Is it easy to replace? Or am I doing something wrong?
