need a diagram of the wires going to the battery

[bnichols04]

I need to extend the battery cables on my 93 and I need a diagram to see where the wires go. Can anybody help



[Bill Kemp]

Bump



[Arnie897]

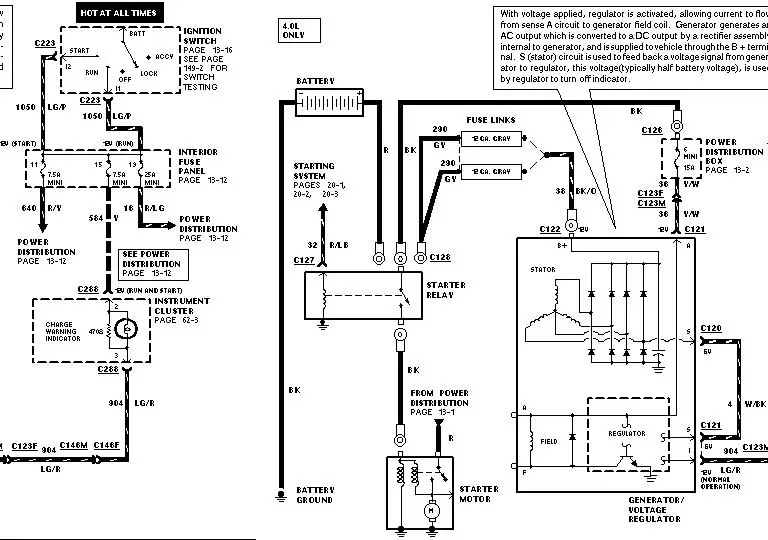

Well here's one for my 97. I have the OHV 4.0. I dno't know if the wiring is the same....but this might give you a start...



[bnichols04]

thanks for the pic I'll look to see if it is the same thing. My goal was to put the battery where the stock air box was. I did get it over ther but the ground wire that goes from the negative termanial to the inside fender is too short. I think I am going to just replace the battery connecters with new ones and extend that wire. I hope it works. Can anybody else find a diagram for a 93 explorer????
