2000 Explorer SOHC ECT sensor

[Dc4704]

I have the Haynes Repair Manual and all my symptoms point out that my ECT sensor is faulty. picked a new one up today but the manual says to wrap the threads with teflon tape and there arent any threads on it. do i have the wrong one?



[imp]

I have the Haynes Repair Manual and all my symptoms point out that my ECT sensor is faulty. picked a new one up today but the manual says to wrap the threads with teflon tape and there arent any threads on it. do i have the wrong one?

There are likely 2 sensors which give engine coolant temperature information. One operates the dashboard gauge, the other feeds a signal to the computer (PCM). I believe they must both be threaded, and extend into the coolant jacket. imp



[2000StreetRod]

wrong one

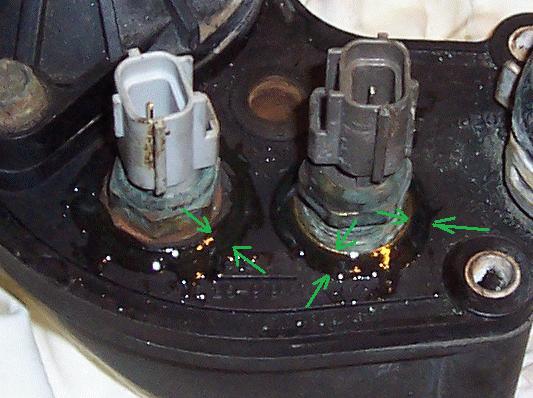

You have the wrong one. The later generation SOHC V6 engines have a redesigned coolant temperature sensor and engine temperature sender that clip into the housing. The second generation housing has brass inserts that easily slip and then leak. I applied epoxy to mine to keep them from coming loose. See Post #375 of:SOHC V6 Timing Chain Saga

A new housing from the dealer costs about $300. There's an upgrade kit availabe with new housing and sensors for a lot less and it's more reliable. Try searching on "thermostat housing".



[swshawaii]

Ditto posts #2 & 3. The solution is upgrading to the improved RH144 housing and sensors.

http://www.explorerforum.com/forums/showthread.php?t=239493
http://bengrosser.com/howto/fordthermostat/



[gonenuke]

Just did this upgrade and changed all hoses easy to do. Guy on Ebay sells the kit or the diffrent parts cheap, even had the clips.



[Dc4704]

i know its a little late guys but thanks for the info!



[swshawaii]

I have the Haynes Repair Manual and all my symptoms point out that my ECT sensor is faulty. picked a new one up today but the manual says to wrap the threads with teflon tape and there arent any threads on it. do i have the wrong one?

Assuming you exchanged the wrong ECT sensor for the threaded type.
Hopefully you got it replaced without breaking the lower t-stat housing.
