5R55E rebuilt, still no reverse

aut1jlt

Member
Joined
July 1, 2007
Messages
29
Reaction score
0
City, State
Minneapolis, MN
Year, Model & Trim Level
2000 XLT
Yeah, I've read their stuff. One of the things that helped me the most in pulling out the valves was heating up the VB with a hairdryer. Sounds dorky, but it really helped!
Do you happen to have an illustration of the VB with the different bores identified by number? I know I saw one somewhere in my researches, but cannot find it now.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
55,880
Reaction score
946
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars

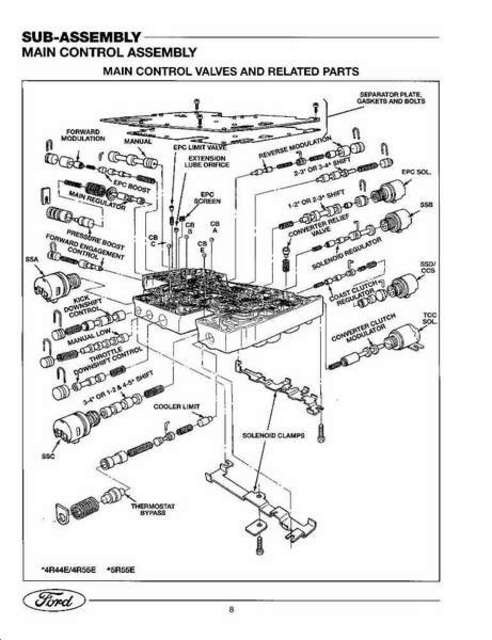

Glacier991 has these pictures in the photo gallery. They come up when you search for 5R55.











aut1jlt

Member
Joined
July 1, 2007
Messages
29
Reaction score
0
City, State
Minneapolis, MN
Year, Model & Trim Level
2000 XLT
Yep - I have all of these, but am looking for an illustration that will show what bore #203 is, and #204, #205, etc. I KNOW I saw one of these somewhere! Thought it was the Sonnax site, but those are numbered with Sonnax references.







aut1jlt

Member
Joined
July 1, 2007
Messages
29
Reaction score
0
City, State
Minneapolis, MN
Year, Model & Trim Level
2000 XLT
Possible cause found. Bracket which holds 4 shift solenoids also hooks around the knob on the plug for 2-3 shift bore. Bracket was not hooked, causing valve to sit too far into the bore. I have excellent pics from the web site where I found the info, but don't know how to post.







Glacier991

EF Tranny Guru
Moderator Emeritus
Joined
February 8, 2003
Messages
9,826
Reaction score
61
City, State
Sacramento, CA 95827
Year, Model & Trim Level
1992 XLT
Let's try this out and see if it fixes your problem. I can use a VB here and take pics to show the condition in detail if warranted. This was great detective work by Aut1jlt and if this was his problem I will incorporate this into the Diary and credit him with finding the fix, which was posted on a website at the following location:

Dead Link Removed

I was unfamiliar with TransmissionDigest.com but it is a wonderful resource. Those pics are worth 1000 words.... but copyrighted.

My hat is off to you Aut1jlt! Hope this was it.
