94 Explorer test connector location?

[Dennis94XLT]

Hi,
I just got an engine tester that plugs in to the Ford connector for performing engine code reads. Does anyone know where I can find the connector on the vehicle? It's a 94 XLT 4 door auto trans made in California.

Thanks everyone!

Dennis



[section525]

Should be right below the steering wheel behind a removable panel.



[Crankcase]

On a 94, it will be a black connector located by the washer fluid resivoir. It says EEC test on the cap. On the passenger side, directly opposite that, is the red ABS one....



[Rick]

Originally posted by Crankcase
On a 94, it will be a black connector located by the washer fluid resivoir. It says EEC test on the cap. On the passenger side, directly opposite that, is the red ABS one....

Are you sure about that? On the '93 the test connector is on the passenger side attached to the back of the underhood fuse/relay box.

The engine compartment layout was changed several times in the Ex's.



[Dennis94XLT]

Found It

Thank you everyone for helping. The last reply is the correct one for my vehicle. It is in the engine compartment - passenger side right behind (and well hidden) the fuse/breaker panel box. It's lower back behind it and you have to look in behind the fuse/breaker box to see the connector cover (for those of you that go look).

Thanks again.

Dennis



[Crankcase]

Originally posted by Rick
Are you sure about that? On the '93 the test connector is on the passenger side attached to the back of the underhood fuse/relay box.

The engine compartment layout was changed several times in the Ex's.

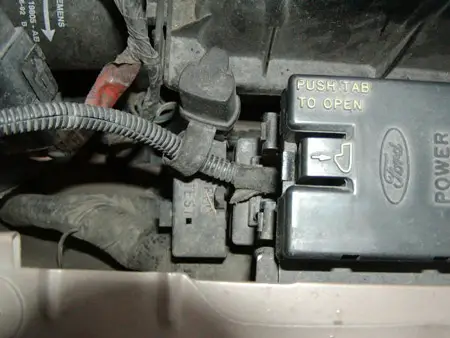

Ha, I am so wrong....I just went outside in the snow(yeas Snow, yay!) and snapped pics....The 92 one is in the same location.....



[Crankcase]

The 94...The dist box is bigger



[Crankcase]

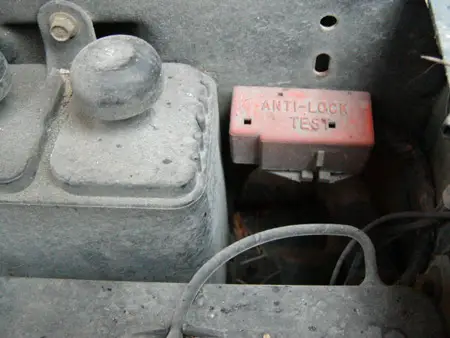

The ABS test is on the other side in the 94.....duh



[hamexplorer]

Can you show me where the water temp sensor is located or what it looks like? I would really appreciate it.!!
