New F-150 Lightning

DocVijay

Meow
Joined
February 8, 2001
Messages
3,470
Reaction score
0
City, State
Tampa, FL
Year, Model & Trim Level
1999 Sport 2WD
The new Lightning looks pretty nice.





Join the Elite Explorers for $20 each year or try it out for $5 a month.

Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





you got any more details on that? like when its going to come out etc? ford is on a roll...first the mustang and now this....i realize some of u may not like it but im a fan







The engine is totally sick. It's a variant of the 2000 Mustang Cobra R engine.

Supercharged DOHC 32V 5.4L V8!!! :eek:







Haven't found anything else on it yet. If anyone else has info, post it. I'll keep looking and will post what I find. Looks great. Nice and edgy.







gotta keep up with that new dodge pickup wiht the viper motor and the new chevy silverado SS. glad to see ford isnt wimping out in the arms race :)







Dead Link Removed

Dead Link Removed

Dead Link Removed

Dead Link Removed

Dead Link Removed







INFORMATION PROVIDED BY FORD


Ford's vision to extend sport truck domination

Ford's bold vision for a third-generation SVT F-150 Lightning sport truck emerged today from a powerful new-product cloudburst at the 2003 North American International Auto Show.

The SVT Lightning concept was a surprise during Ford's unveiling of the all-new 2004 F-150. Launching a "Whole New Era of Built Ford Tough," the new F-150 is an all-new full-size pickup architecture designed for more power, refinement and unprecedented driving dynamics capability. It is the star of Ford Motor Company's biggest-ever wave of new-product introductions at the dawn of its Centennial year.

"We are excited about the new F-150, because it will provide an outstanding platform for the next-generation Lightning," says Tom Scarpello, marketing and sales manager for Ford Special Vehicle Team (SVT). "The SVT F-150 Lightning concept hints at what we could do with Lightning and sends a signal that we don't intend to give up our dominance of the sport truck market."

The SVT F-150 Lightning concept features a six-speed manual transmission, independent rear suspension and a 500-horsepower supercharged V-8. It is a powerful combination aimed at extending SVT Lightning's supremacy into the future.

Since it was introduced in 1993, the Ford SVT F-150 Lightning has been the undisputed sport truck king, making a name for itself as the "World's Fastest Production Pickup."
Ten years later, competitors are finally bringing Lightning imitators to market. John Coletti, director, SVT Programs, welcomes the challenge.

"It will be nice to finally have a little cross-town rivalry," Coletti said. "But we have no intention of being overshadowed on our home turf. The SVT Lightning Concept showcases technology we're developing to meet the competition head-on."

Cool Technology Takes Power to New Levels

Coletti's team fit the SVT Lightning concept with an all-aluminum,
5.4-liter DOHC supercharged and intercooled V-8 engine conservatively rated at 500 horsepower and 500 foot pounds of torque (SAE net). And while they were at it, they invented and patented a speed secret for those times when even that much power just isn't enough.

Ford's patented SuperCooler technology cleverly provides a special burst of power for the SVT Lightning concept. Traditional intercoolers dissipate heat from the supercharged air by circulating coolant through a front-mounted, air-cooled radiator. With the SuperCooler system, the vehicle's air conditioning system is used to chill a small storage tank of coolant to about 30 degrees Fahrenheit.

On demand, the SuperCooler system switches the intercooler flow from its normal circulation and dumps the chilled coolant into the engine's intercooler. In turn, the intercooler dissipates up to 20 percent more heat from the charge air - resulting in a denser air charge.

A green light on the instrument panel indicates the system's readiness. SuperCooler is activated automatically when the driver depresses the accelerator to a wide-open-throttle position.

"This technology plays directly into the hands of the enthusiast," Coletti says. "The SuperCooler provides the edge for the driver, and it is done simply by taking advantage of the hardware that already exists in the vehicle."

As a result of this cool technology, the SVT Lighting concept can give its driver as much as 50 transient horsepower for short bursts of 30-45 seconds and regenerate within 2 minutes under normal driving conditions. While its effect is similar to that of an aftermarket nitrous oxide system, the SuperCooler is completely self-contained, environmentally friendly and regenerative.

The SVT Lightning concept engine features a Lysholm, screw-type supercharger, paired with both an intercooler and the new SuperCooler system. The 32-valve, double-overhead-cam powerplant boasts Manley connecting rods, two fuel injectors per cylinder and high-performance heads similar to those on the limited-edition 2000 Ford SVT Mustang Cobra R.

Exhaust gases escape through free-flowing headers and dual side pipes, producing a classic American V-8 rumble. Power is delivered to the rear wheels through a six-speed manual transmission. The same Tremec T-56 transmission is used in the 2003 Ford SVT Mustang Cobra. In keeping with the performance nature of the SVT Lightning, the short-throw, console-mounted shifter is more like that of a sports car than a traditional pickup's long-shaft, floor mounted shift lever.

SVT Lightning Concept's Driving Dynamics

The SVT F-150 Lightning concept features an independent rear suspension and SVT's famous attention to every detail of the suspension, steering and braking systems for driving dynamic capabilities that match the sport truck's awesome power.

The concept truck's handling potential is immediately apparent, evidenced by massive 22-inch cast aluminum wheels that convey power even standing still. The wheels are wrapped in hand-cut Goodyear P295/40R22 tires in front and P325/45R22 tires at the rear.

Visible through the six-spoke wheels are equally impressive Brembo brakes - six-piston calipers in front, four-piston at the rear - mated to platter-size, 380-millimeter, cross-drilled ventilated discs.

SVT engineers chose to fit an independent rear suspension (IRS) system to the Lightning concept in lieu of F-150's standard Hotchkiss type solid rear axle with leaf springs and outboard shock absorbers. The IRS unit was adapted from the Ford Expedition.

"The new architecture of the F-150 made it easier for us to adapt the independent rear suspension system," says Jeff Feit, SVT Lightning chassis and powertrain engineer. "This allowed us to reduce unsprung weight even further and fine-tune the handling in true SVT style."

The front suspension is derived from the new F-150, with the upper control arms modified to accommodate the oversized wheel and tires. The new rack-and-pinion steering system of the F-150 contributes to the SVT Lightning concept truck's steering precision.

Quick-Out-of-the-Box Design

The new SVT Lightning concept isn't just built for speed off the line. It was designed to be quick out of the box, thanks to a new F-150 modular design architecture that's geared
to flexibility. That made it possible to show off the new SVT Lightning concept as a possible derivative of the new F-150 immediately at the truck's public unveiling.

"Modular design lends itself to special editions like this," says Craig Metros, F-150 chief designer. "Changing details such the front grille, the side body panels and interior trim transforms the truck. The result is a specialized, high-performance model, far from being just a wheel-and-tire package."

The SVT Lightning concept is based on the new Regular Cab F-150 Flareside model, finished in Liquid Silver Metallic and dripping with performance character. In keeping with SVT Lightning tradition, the concept only has two doors. The rear access doors on the new Regular Cab F-150 are replaced on the concept with longer front doors and fixed B-pillars. Other SVT design cues include electro-luminescent gauges, side exhausts, clear taillights and round foglights.

Stunning Performance Interior

The stunning interior of the SVT Lightning concept perhaps best illustrates the benefits of adapting F-150's modular design architecture. It builds on the craftsmanship and meticulous detailing of the all-new 2004 F-150, according to Jim Smithbauer, F-150 design manager.

"The luxurious Lariat interior was a perfect starting point for the SVT Lightning concept," Smithbauer says. "The color and trim emphasize the SVT Lightning concept's aggressive character, while the seat bolsters and console-mounted shifter make the perfect ****pit for the performance enthusiast. The dash and center console are accented with Liquid Silver Metallic to match the exterior. The seats are covered in Mustard Yellow leather, complemented by Ebony carpet and door trim. Even subtle changes emphasize performance, like the red engine start button and the electro-luminescent gauges - an SVT trademark."

Another emphasis on performance is the manual gearbox instead of the top-of-the-line F-150 Lariat's automatic transmission. Most pickups with a manual transmission have shifters mounted on the floor. The SVT Lightning concept employs a flow-through center console, enabling a short-throw shifter reminiscent of a sports car.

Electrifying Exterior

The profile of the SVT Lightning concept is dominated by 22-inch tires mounted on Gunmetal Gray alloy wheels. The work of F-150 designer Michael Trump, the wheels feature a sculpted, flush face and positive offset for aggressive strength resonating the
F-150 "Built Ford Tough" character.

The roofline is slightly chopped for a streamlined, aggressive look. The panels below the waterline (a horizontal character line that connects the front and rear bumpers) are sharply sculpted to give the sport truck a more purposeful profile. Integrated into these lower panels on both sides are dual exhausts.

The 61/2-foot Flareside bed has smoothed side steps, a hard tonneau cover and an aerodynamic spoiler at the top of the tailgate. Aerodynamics also influenced the rear of the SVT Lightning concept, where twin venturi tunnels wrap under the rear bumper. The tunnels are designed to increase stability at high speeds by reducing turbulence and generating rear downforce.

Above the rear bumper, the SVT Lightning concept has unique taillights featuring a three-element design and a complex reflector showcased under a clear lens.
Unlike the production F-150, the grille of the SVT Lightning concept is separate from the hood, creating a continuous arch from headlight to headlight. The effect, according to Ford Tough Truck designer Damon Depeyster, is an "aggressive, menacing brow."
To further accent the aggressive visage, Depeyster created a new lower fascia that incorporates SVT's trademark round fog lights, and a new hood with functional air induction vents.

The design detail doesn't stop on the exterior of the SVT F-150 Lightning concept hood. Inside, the engine bay is meticulously detailed. The engine is topped by a Performance Red air intake, in homage to '60s American muscle cars. The supercharged, aluminum 5.4-liter V-8 is completely chromed and polished and capped with "Powered by Ford" valve covers.

"This is a performance truck," says Metros. "So the engine bay had to be all business, all performance. It had to be clean and sophisticated, with an unobstructed view of the engine. It had to be the ideal of the perfect engine, like that of a custom hot rod."
Adding Voltage to SVT's Sport Truck Heritage

The Ford SVT Lightning concept marks the coming of a future third generation of the "World's Fastest Production Pickup." It arrives as the Ford Special Vehicle Team celebrates its 10th anniversary and Ford Motor Company is kicking off its Centennial year.
Since its introduction as a 1993 model, the Ford SVT F-150 Lightning has dominated the sport truck market. By the end of 2003, about 36,000 SVT Lightning pickups will be on the road.

The SVT Lightning has been constantly improved since its introduction, as output has jumped from the original's 240 to today's 380 horsepower. Acceleration has improved accordingly, with official 0-60 mph times dropping from an impressive 7.6 seconds to a scorching 5.8 seconds.

The Ford SVT Lightning concept making its world debut at the 2003 North American International Auto Show hints that the next-generation SVT Lightning will raise the bar even farther, and continue to dominate in the sport truck arena.

As it celebrates its 10th anniversary in 2003, SVT's lineup currently includes the SVT Mustang Cobra, SVT F-150 Lightning and SVT Focus. With more than 100,000 vehicles sold, the Ford Special Vehicle Team has become a leader in factory high-performance vehicle development, marketing and sales.







Dodge SRT10 what?????? lol.

I was going to post that on the new Lightning but ya beat me to it..........for anyone who didn't believe me before, told ya it was going to use a twin-screw charger:p Can you say massive torque at any RPM with a twin-screw.

Ford was correct when they said the next Lightning was going to be the top dog, and not only in it's class, but it will also embarress plenty of Sports cars.







So why can't ford do something like this to the X or X sport, If there is a market for 500HP pickup trucks and Porsche SUV's then surely a 400HP limited edition X would sell.







im not exactly feigning for that yellow interior, but that truck is SAWEEEEEEEEEEET!! i've liked the Lightnings look since the 2nd gen's this 3rd gen is great looking.


why are manufacturers going back to the boxed body styles? shouldnt they make something more aerodynamic bodies?







that is not new technology on the intercooler. its been used before on everything from Supra's to 'stang's to LS1's and everything else. while it does work very effectivly, Ford cannot take credit for it.

i really like the new version, but it just looks alittle too busy. i also dont believe thats what the final version will look like (same thoughts on the new stang).







yeah, gag me on the interior but... it's that a shifter I see? That truck is definitly sick...







Originally posted by LowdPypes
yeah, gag me on the interior but... it's that a shifter I see? That truck is definitly sick...
yep, a 6-speed Tremec I think is what it's using...might say something in that long post, didn't feel like going through it all though lol.

The final versions of the next Lightning and Coupe Mustang (not the nasty vert') I want parked in my driveway:D

off-topic: Lowdpypes you never sold black box??







yeah, www.fordtruckworld.com has a lot of information on the 2004 F-150's. I think they look awesome, and will look awesome lifted :).







Ah, yes, the Tremec... awesome tranny.

SaleenEXP: No, I went through a list of pro's and con's and lotsa buddies were pissed when even the thought of selling BBX was brought up. Ya see, I tow our project mustang out to the track with BBX. When I get there, we unhook the trailer, then drive both the mustang and BBX over to the strip. I have no clue whether I want to continue with performance mods or starting going back into the off road direction but, either way, I'm gonna hang on to her... think she might make the summit truck world, ride of the month... :confused: who knows...







Don't Really Like it...

As from what i can see from the pictures, and from what all that post said. I really don't like it too much, except for the amount of power it is putting out. I don't like the 22" Wheels, i don't like the vent on the side panel, i don't like the way the exaust looks. The whole thing in general is too boxy too. And for god's sake, what is with that interior. It is hidious. That yellow makes me wanna puke. Those seats should be black or grey, in my opinion.

The things i do like is that they made it to where there will be room to fit some real tire under the rear. It said it comes stock with 325/size rear tires, so that is cool. I would stuff those rear wheel-wells with 325-drag radials. I also like that it comes with a six speed. No more of the auto in the lightings. And that is a console shifter, not a floor shifter.

All in all, i like what they are doing as far a performace goes, but the styling needs to be smoothed out a lot.

Of course, this is all my honest opinion, anyone else can say what they want...







James,

I have never heard anything about that special cooler system they have on it. It said that it uses the truck's air conditioning system to cool a small space down to 30 degrees, and when at WOT, it releases it into the intercooler, good for an extra 50 ponies. Lots of cars and trucks have intercoolers, but i have never heard anything about that air-conditiong system cooler.

Its like a 50 shot of spray, except you never have to refill a bottle or push a button.

Sounds pretty cool to me...







not factory, i mean home-made. yes, Ford will have the first factory one, but there have been several guys on stangnet and other places i have seen made their own. it just appeared to me that Ford was acting like it was some new technology, when im sure they got the idea off of some forum.;)

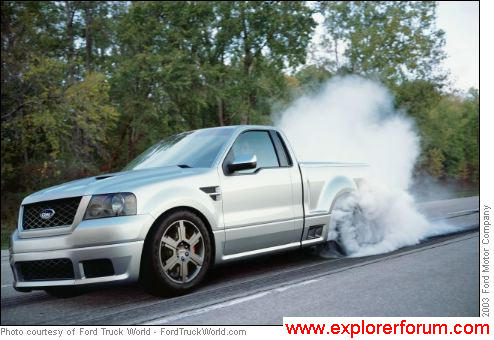

I like this pic.
