Popping/grinding in steering when turning


Satz

New Member
Joined
November 15, 2019
Messages
26
Reaction score
5
City, State
MA
Year, Model & Trim Level
2011 Explorer XLT 302A
165k 2011 . I had a werid clunk and it turned out the spring it was jumping at an angle change. Monroe strut with spring and the noise cleared up. Werid as I have seen this spring jump case ever before.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




dont slow down

Active Member
Joined
December 1, 2014
Messages
159
Reaction score
3
Year, Model & Trim Level
2013 Explorer XLT
Been searching for something and haven’t found much, however I did find what’s called a steering rack limiter and seems to be mustang related. It’s a plastic clip that snaps over the rack shaft and acts as a bump stop. While it obviously won’t offer the same shock absorption as the washer with rubber it may be a temporary fix for those that have to remove the mangled washers and rubber. It will at least keep the rack from traveling past it’s designed range of motion. It also wouldn’t require disassembly to install. Just cut off the existing washers and install the clips and boot. I’m wondering if the real stops are available in the aftermarket sector and maybe an alignment shop would know about them. Seems like explorers aren’t the only vehicles with these stops. I’ll see if I can find a knowledgeable alignment tech to talk to.

Also since we are on the topic of the inner tie rod area I thought it would be good to share this note that I found in the Ford Explorer factory service manual.

NOTICE: When servicing inner tie rods, a new bellows boot and clamps must be installed. The boots and clamps are designed to provide an airtight seal and protect the internal components of the steering gear. If the seal is not airtight, the vacuum generated during turning will draw water and contamination into the gear, causing failure of the steering gear components. Zip ties must not be used as they do not provide an airtight seal.

NOTICE: The inner ball joint grease is not compatible with water contamination. Do not allow water to become trapped in the grease or degradation and failure of the joint may occur.






k2dub125

New Member
Joined
November 10, 2019
Messages
2
Reaction score
0
Year, Model & Trim Level
2016 Explorer Sport 3.5L
Came here with the same symptoms and same year and trim as Maxud. Preparing to take a look at my Explorer but may instead check extended warranty paperwork for coverage if the solution is likely a whole to rack for something so simple.

Maxud: thanks for the details and pictures.
Took my 2016 Explorer Sport to the dealer with this clunking issue. Didn't get pictures but the root cause sounded like the same as Maxud's. Fortunately, my 3rd party extended warranty covered a new steering rack.

Not looking forward to this washer failing again after that warranty expires. Without the warranty, it would have been ~$2200. Hopefully, there will be an aftermarket solution by then to replace just the washers and not the whole rack.





Maxud

New Member
Joined
November 8, 2019
Messages
24
Reaction score
6
City, State
CT
Year, Model & Trim Level
2009 Nissan Maxima SV
I too am here because of the same symptoms, narrowed down to passenger inner tie rod area. Even went as far as to start sourcing new inner tie rods and preparing to order them. I see this has been found to be the steering stops inside the rack. And it seems absurd that these stops are designed they way they are. I am currently on my second rack from ford. First one was replaced around 30k miles, now I’m at 106k miles. I hope Maxud would be kind enough to share if the mustang stops fit or work in this rack. I don’t feel comfortable removing them completely, I feel this may extend the rack beyond its limits and cause damage to the rack. I will start looking for other options and alternatives to this part, hopefully we will be able to find something to replace this part with instead of replacing the entire rack. Maxud, can you give any estimated dimensions of this stop? Inner and outer diameter, possible thickness? Thanks so much for sharing the information you found!
I threw away the old parts, right before it dawned on me what they were. I will be following up with the repair, so this time, I will measure things up and provide resolution.





dont slow down

Active Member
Joined
December 1, 2014
Messages
159
Reaction score
3
Year, Model & Trim Level
2013 Explorer XLT
Came across this site that sells rack and pinion rebuild kits. Seems like a fairly stock photo but I wonder if the stops would be included in the kit? The photo shows two stop looking things but I'm not sure if they would be stops or the actual end seals? I will email the company and ask. Here is the link and a pic.

2011-2015 Ford Explorer Power Steering Rack and Pinion Seal Kit






dont slow down

Active Member
Joined
December 1, 2014
Messages
159
Reaction score
3
Year, Model & Trim Level
2013 Explorer XLT
I contacted that company about its kits and they responded, the bump stops are not included in the kit and are not available separately. That's disappointing.





dont slow down

Active Member
Joined
December 1, 2014
Messages
159
Reaction score
3
Year, Model & Trim Level
2013 Explorer XLT
Still searching for something to use, haven't found anything yet.





Maxud

New Member
Joined
November 8, 2019
Messages
24
Reaction score
6
City, State
CT
Year, Model & Trim Level
2009 Nissan Maxima SV
As promised, coming back here with resolution. Hold my beer.
Here are the parts I purchased:
https://www.amazon.com/1979-2004-Mu...op+Spacers&qid=1573233017&s=automotive&sr=1-1

Worked like a charm. I first installed one spacer, put it back together and tested, it was not enough, so I put second
stopper, that was Perfect. So I ended up with 2 spacers on each side.
Spacer spec is as following: 6.5mm depth, about 23mm inner, 32mm outter diameter. The great part is that its plastic and meant
to spread apart.
The passenger side shaft is 30mm, inner diameter of the rack tube is about 47mm
The driver side shaft is 28mm, inner diameter of the rack tube is about 47mm

Here are various Ford spacer part numbers I found
N804842-S Steering Limiter - 6.5mm <- this is the ones I bought
N808506-S Steering Limiter - 10.65mm (blue)
N807853-S Steering Limiter - 2.4mm
W705003-S Steering Limiter - 4.25mm
W705004-S Steering Limiter - 7.25mm

Unfortunately I dont know original thickness of the limit stoppers, so best I can guess is that they are more than 6.5 mm and less than 13mm.

Here are pictures of the completed job. Spacers fit snug, I snapped them right after inner tie rod at the outer edge of rack.
They stay in place and not gonna move anywhere.

Picture of single spacer



Rubbing mark on wheel well liner



Rubbing mark on Lower control arm



Passenger side with two spacers



Driver side with two spacers




Driver side, shows the inner tube


I am fully confident in this repair, feel free to spent $15 on 6 spacers, vs $1500 on a new Rack.
Nice job Ford.





dont slow down

Active Member
Joined
December 1, 2014
Messages
159
Reaction score
3
Year, Model & Trim Level
2013 Explorer XLT
That is great news! Those were the only thing I could find that would be relatively close to working. Thanks so much for sharing the pictures. What did you use to resecure the boot to the rack? The factory clamps require a special tool I believe and I was thinking about doing hose clamps until I read the not about the seal needing to be airtight.





Maxud

New Member
Joined
November 8, 2019
Messages
24
Reaction score
6
City, State
CT
Year, Model & Trim Level
2009 Nissan Maxima SV
That is great news! Those were the only thing I could find that would be relatively close to working. Thanks so much for sharing the pictures. What did you use to resecure the boot to the rack? The factory clamps require a special tool I believe and I was thinking about doing hose clamps until I read the not about the seal needing to be airtight.
I have the special tool, but its of no use here, because there is no space to use it. I used zipties, get it nice and tight and its as good as factory. As a matter of fact, because I had to do the job twice, the original zipties I put on held perfect. Yes, given the perfect world, I would have used oetiker clamps, but in this case, there is just noway.
Don't stress out too much about the factory requires statement. Factory requires a whole new rack if your steering stops fail.....

Last edited:




gideon123

Member
Joined
January 29, 2014
Messages
52
Reaction score
0
Year, Model & Trim Level
2014 Ford Explorer Ltd

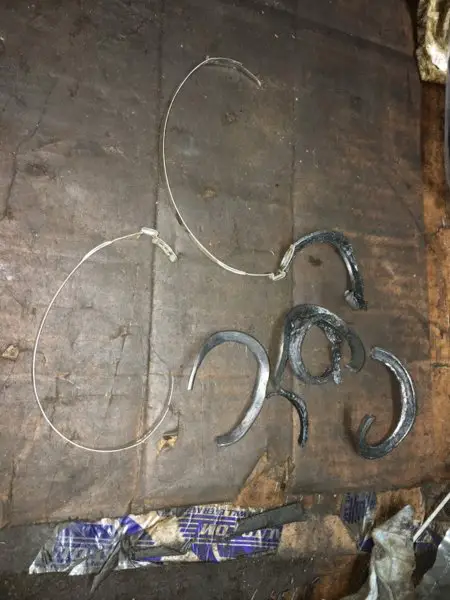

Below are cut off washers with remnants of rubber donut.

View attachment 175353

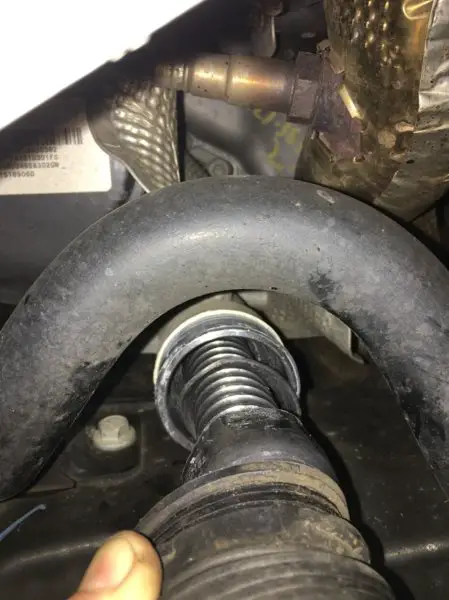

Passenger side steering exposed, beat up washer just hanging on the threads

View attachment 175354

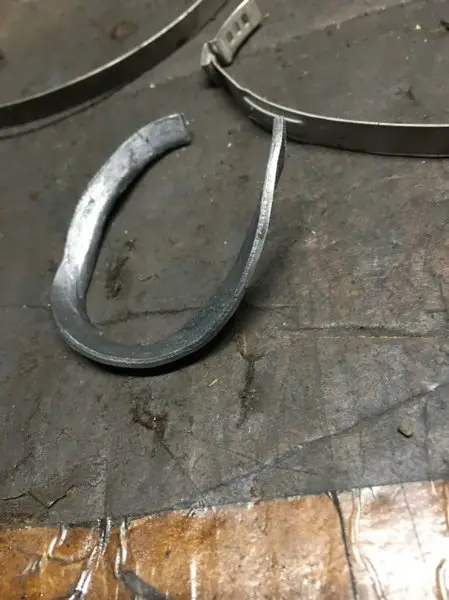

Close up on the washer

View attachment 175355

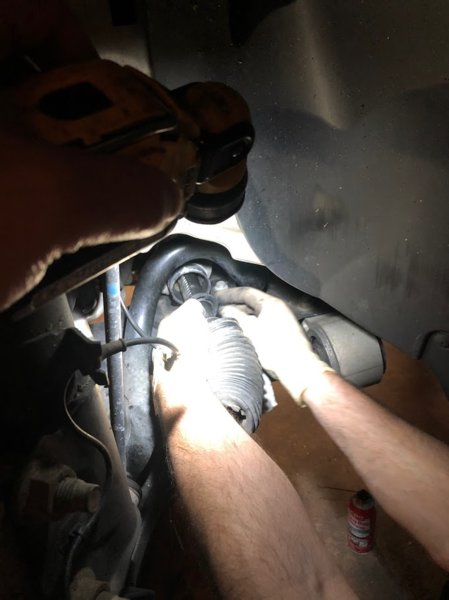

Driver side steering exposed

View attachment 175356

Thanks so much for the pics. I am almost certain I have the same issue with my 2014 Explorer LTD. I'm located in Korea and the dealer wants to charge me approx 2000 USD for parts and labor!!!

Other shops won't touch my Ford because the mostly know about Hyundai and Kia so they are uncomfortable. What will eventually happen if I just ignore this problem and let this rings wear down after extended periods of turning the wheel? Eventually, what will happen? I don't really have the cash to get it repaired at this point :(





Maxud

New Member
Joined
November 8, 2019
Messages
24
Reaction score
6
City, State
CT
Year, Model & Trim Level
2009 Nissan Maxima SV
Thanks so much for the pics. I am almost certain I have the same issue with my 2014 Explorer LTD. I'm located in Korea and the dealer wants to charge me approx 2000 USD for parts and labor!!!

Other shops won't touch my Ford because the mostly know about Hyundai and Kia so they are uncomfortable. What will eventually happen if I just ignore this problem and let this rings wear down after extended periods of turning the wheel? Eventually, what will happen? I don't really have the cash to get it repaired at this point :(
I would highly recommend to not just ignore it. This is most definitely a safety issue. Piece of that washer can get wedged between the steering arm and the outer housing, rendering you unable to turn. Right (passenger side is especially bad, because of the shape of the arm.





henautio

New Member
Joined
November 11, 2016
Messages
2
Reaction score
0
City, State
Redmond, WA
Year, Model & Trim Level
2016 Explorer Limited V6
Oh this thread was my savior! Had same symptoms in my 2015 Explorer. Semi random clunking sound normally when driving in garage etc, but 100% reproducible when I reversed from drive way and steered right. I hope I would have found this thread before I replaced strut mount bearings on both side.

20200101_152542.mp4

Is that washer originally located near the sealant or what is the purpose of that thing?

Last edited:




Mekks082

New Member
Joined
June 26, 2019
Messages
39
Reaction score
3
City, State
Denver, CO
Year, Model & Trim Level
2016 Explorer Limited
Had this popping on the pass side. Pulled the boot today and sure enough the metal ring just loose and bent all up. The rubber "bumper" was just crumbled and in like 20 parts. Cut the metal ring off with tin snips and installed 2x of the mustang plastic stops someone posted here. Also pulled the driver side but the stop was still good so I left it. I was unsure about zip ties so I used some worm clamps.

The only advise I can give is to pull the end link off the sway bar on both sides and rotate it up. Made a lot more room.

*EDIT* Now after going back over this thread... I only had one metal ring floating around. Their should be two correct? I poked at what could have been a second ring inside the rack but it didnt budge. Should I attempt to pull it out?

Last edited:




Maxud

New Member
Joined
November 8, 2019
Messages
24
Reaction score
6
City, State
CT
Year, Model & Trim Level
2009 Nissan Maxima SV
So I come back here, somewhat humbled. I was so excited about my fix and was sure it would last. Car came back for routine work and while at it, I decided to inspect my handy work with steering rack stoppers. To my dismay I found passenger side to have one semi intact stopper and one completely off and deformed. Driver side contained chewed up pieces of those stoppers.
Unfortunately my solution does not work. I guess if somebody often uses steering wheel to the bump stops, enough force is applied to these parts that cause inevitable destruction. I guess in retrospect, it makes sense, since original pieces were made of pretty solid metal, and they got all bent out of shape in no time.

Last time I went to hardware store, I found following item. Its a split collar, which can be tightened around steering shafts.
The way I see this problem, is that you either have to press something into the bore that will remain in place and not flop around,
or you have to attach something to the end of the shaft (like the steering stoppers I used before).
I am thinking giving this split collar a try. Its made of solid metal. The way its engineered, it will have no issues clamping over
auger style shaft on passenger side.
As long as the size fits over the shaft and into the bore, it may just provide a permanent fix.
Its not ideal, because there will be no cushioning, but short of throwing a new rack in there, I don't see a better solution.
Brass or aluminum will get pounded and expand and or break inside, which could turn entire rack inoperable.
I plan on using locktite on the bolts to make sure nothing loosens.






rmkilc

New Member
Joined
November 5, 2018
Messages
18
Reaction score
12
City, State
Vancouver, WA
Year, Model & Trim Level
2015 Ford Explorer Sport
So I come back here, somewhat humbled. I was so excited about my fix and was sure it would last. Car came back for routine work and while at it, I decided to inspect my handy work with steering rack stoppers. To my dismay I found passenger side to have one semi intact stopper and one completely off and deformed. Driver side contained chewed up pieces of those stoppers.
Unfortunately my solution does not work. I guess if somebody often uses steering wheel to the bump stops, enough force is applied to these parts that cause inevitable destruction. I guess in retrospect, it makes sense, since original pieces were made of pretty solid metal, and they got all bent out of shape in no time.

Last time I went to hardware store, I found following item. Its a split collar, which can be tightened around steering shafts.
The way I see this problem, is that you either have to press something into the bore that will remain in place and not flop around,
or you have to attach something to the end of the shaft (like the steering stoppers I used before).
I am thinking giving this split collar a try. Its made of solid metal. The way its engineered, it will have no issues clamping over
auger style shaft on passenger side.
As long as the size fits over the shaft and into the bore, it may just provide a permanent fix.
Its not ideal, because there will be no cushioning, but short of throwing a new rack in there, I don't see a better solution.
Brass or aluminum will get pounded and expand and or break inside, which could turn entire rack inoperable.
I plan on using locktite on the bolts to make sure nothing loosens.

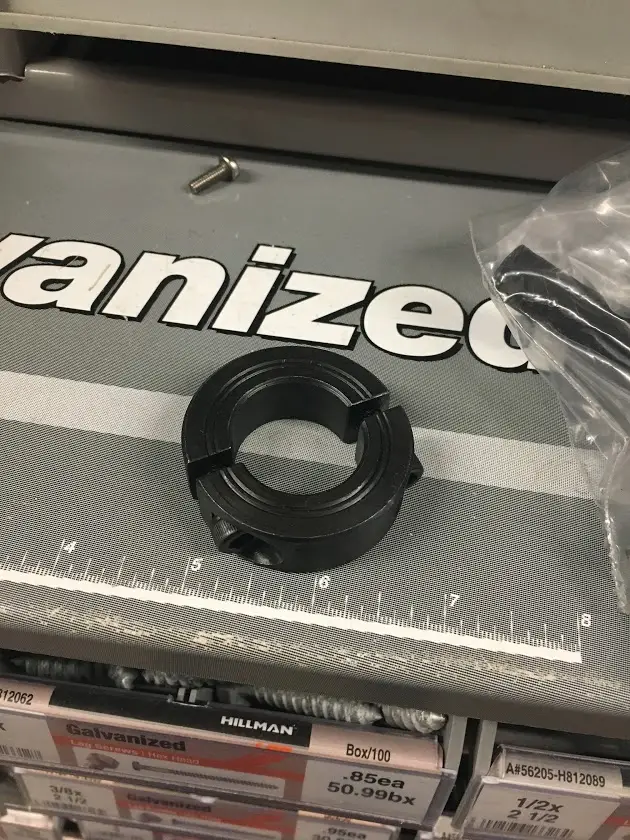

View attachment 316593
Any idea why the plastic stops would be breaking when it's common practice to install these in newer Mustangs to limit travel? Is the outside diameter too small for whatever it contacts within the rack? I just figured out the noise my 2015 Sport is making is coming from the passenger side of the steering rack so I too am looking for a solution short of replacing the entire rack. I wonder if the N808506-S Steering Limiter - 10.65mm (blue) is worth a try since it would be only once piece?





Maxud

New Member
Joined
November 8, 2019
Messages
24
Reaction score
6
City, State
CT
Year, Model & Trim Level
2009 Nissan Maxima SV
Any idea why the plastic stops would be breaking when it's common practice to install these in newer Mustangs to limit travel? Is the outside diameter too small for whatever it contacts within the rack? I just figured out the noise my 2015 Sport is making is coming from the passenger side of the steering rack so I too am looking for a solution short of replacing the entire rack. I wonder if the N808506-S Steering Limiter - 10.65mm (blue) is worth a try since it would be only once piece?
That's a good question.
The stoppers could definitely stand to have larger surface area. The one surviving stopper did have impression around the inner diameter where it hits the inner portion of the rack, but its not a deal breaker. I don't think it would make a difference if you used a single thicker stopper, or larger plastic stopper.
That said, I think the reality is that if the person often cuts steering wheel all the way to the stops, like parking in tight quarters or whatever, the electric assist makes it super easy, without realizing what kind of forces these plastic stoppers get subjected too. Again, consider that factory parts get bent out of shape, and those are not regular thin washers.
Here is what was left of 3 washers. The black color is due to the grease I applied to the shafts when I performed the fix. Only one stopper survived.






rmkilc

New Member
Joined
November 5, 2018
Messages
18
Reaction score
12
City, State
Vancouver, WA
Year, Model & Trim Level
2015 Ford Explorer Sport
That's a good question.
The stoppers could definitely stand to have larger surface area. The one surviving stopper did have impression around the inner diameter where it hits the inner portion of the rack, but its not a deal breaker. I don't think it would make a difference if you used a single thicker stopper, or larger plastic stopper.
That said, I think the reality is that if the person often cuts steering wheel all the way to the stops, like parking in tight quarters or whatever, the electric assist makes it super easy, without realizing what kind of forces these plastic stoppers get subjected too. Again, consider that factory parts get bent out of shape, and those are not regular thin washers.
Here is what was left of 3 washers. The black color is due to the grease I applied to the shafts when I performed the fix. Only one stopper survived.

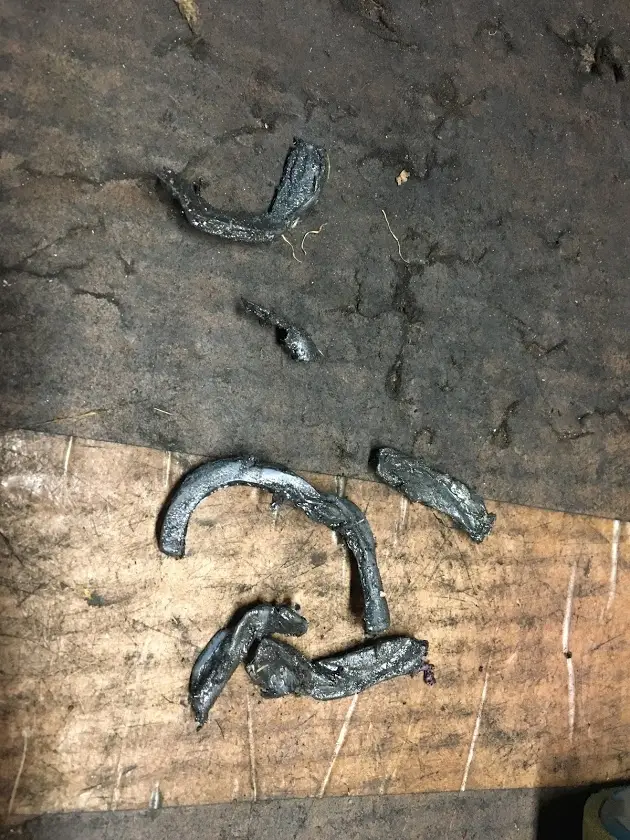

View attachment 316619
What happens if you don't have a travel limiter at all? Does it damage the steering rack when the wheel is turned all the way?





Maxud

New Member
Joined
November 8, 2019
Messages
24
Reaction score
6
City, State
CT
Year, Model & Trim Level
2009 Nissan Maxima SV
What happens if you don't have a travel limiter at all? Does it damage the steering rack when the wheel is turned all the way?
read through this post and look at the pics.

Without the stoppers, the tires rub on lower control arms and wheel well fenders. At least it happens on this car, I think it has 20 inch stock tires (255/50-20 according to TireRack). Smaller tires may not exhibit this behavior.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




rmkilc

New Member
Joined
November 5, 2018
Messages
18
Reaction score
12
City, State
Vancouver, WA
Year, Model & Trim Level
2015 Ford Explorer Sport
read through this post and look at the pics.

Without the stoppers, the tires rub on lower control arms and wheel well fenders. At least it happens on this car, I think it has 20 inch stock tires (255/50-20 according to TireRack). Smaller tires may not exhibit this behavior.
I wonder if these would work any better (if they fit of course)?

6R3Z-3932-CA

I know removing the inner tie rod would be required to slip them on but it'd be worth it if it was a long term solution.

I removed the broken pieces from my passenger side today. I don't get any rubbing so far at full lock but it definitely turns way sharper than before. I'm afraid it's going to break a CV joint.





Thread starter Similar threads Forum Replies Date
B Popping/grinding noise coming from under the front end when steering left or right Stock 2011 - 2019 Ford Explorer Discussion 4
B Popping noise coming from engine Stock 2011 - 2019 Ford Explorer Discussion 5
R Popping sound from 2nd row seat behind driver side Stock 2011 - 2019 Ford Explorer Discussion 8
D Popping noise when turning Stock 2011 - 2019 Ford Explorer Discussion 1
M 2012 ford Explorer popping when i turn Stock 2011 - 2019 Ford Explorer Discussion 0
T Ears popping while driving? Stock 2011 - 2019 Ford Explorer Discussion 26
C Popping when turning right Stock 2011 - 2019 Ford Explorer Discussion 4
D 2012 Explorer front end popping noise Stock 2011 - 2019 Ford Explorer Discussion 1
C Strange popping sound... Stock 2011 - 2019 Ford Explorer Discussion 2
S Popping noise from tailgate Stock 2011 - 2019 Ford Explorer Discussion 11
S Lift/tail gate popping/rattle Stock 2011 - 2019 Ford Explorer Discussion 3
F Paint Popping Off Stock 2011 - 2019 Ford Explorer Discussion 1
F Window popping when rolling down Stock 2011 - 2019 Ford Explorer Discussion 1
L Creaking/Popping Noise In Dash Stock 2011 - 2019 Ford Explorer Discussion 16
F Popping sound during grade changes Stock 2011 - 2019 Ford Explorer Discussion 1
F Popping, Clicking noise from front. Newer TSB Stock 2011 - 2019 Ford Explorer Discussion 58
F Popping sound when accelerating gently. Stock 2011 - 2019 Ford Explorer Discussion 6
B Does your base make cracking popping sounds when the heat is on Stock 2011 - 2019 Ford Explorer Discussion 14
W Clicking/Popping in the Dashboard Stock 2011 - 2019 Ford Explorer Discussion 3
M Popping, crack sound behind dash Stock 2011 - 2019 Ford Explorer Discussion 38
1 Popping noises when turning? Stock 2011 - 2019 Ford Explorer Discussion 62
S ‘13 Explorer rear grinding noise with any speed Stock 2011 - 2019 Ford Explorer Discussion 3
M 2013 Ford Explorer Dash Noise\Grinding-Not a blend door I think Stock 2011 - 2019 Ford Explorer Discussion 3
C 2014 limited- whining/grinding noise Stock 2011 - 2019 Ford Explorer Discussion 2
P Loud grinding on hard braking Stock 2011 - 2019 Ford Explorer Discussion 8
S Grinding noise rear right brake/wheel area Stock 2011 - 2019 Ford Explorer Discussion 3
B Grinding Noise when attempting to engage AWD Stock 2011 - 2019 Ford Explorer Discussion 6
J 2013 explorer grinding coming from front wheel Stock 2011 - 2019 Ford Explorer Discussion 4
D Grinding noise out of front end of a 2014 explorer Stock 2011 - 2019 Ford Explorer Discussion 3
J Grinding noise while stopping Stock 2011 - 2019 Ford Explorer Discussion 5
F Mysterious Front End Grinding/Grunting Stock 2011 - 2019 Ford Explorer Discussion 10
F Help!! 2011 Ford Explorer 3.5l 4wd GRINDING NOISE FROM FRONT OF CAR?!!? Stock 2011 - 2019 Ford Explorer Discussion 19
S Hill descent in gnarly conditions makes a grinding noise? Stock 2011 - 2019 Ford Explorer Discussion 11
R Steering assist fault on a new sport Stock 2011 - 2019 Ford Explorer Discussion 6
D Sync upgrade and steering program Stock 2011 - 2019 Ford Explorer Discussion 1
M Hello :) Ticking / Clicking noise heard when rotating steering wheel Stock 2011 - 2019 Ford Explorer Discussion 5
S Steering Wheel Power Tilt/Telescoping Function Not Working Stock 2011 - 2019 Ford Explorer Discussion 2
L Loose handling / steering? Stock 2011 - 2019 Ford Explorer Discussion 3
W Steering fluid Reservoir? Stock 2011 - 2019 Ford Explorer Discussion 3
M Random new noise in steering column Stock 2011 - 2019 Ford Explorer Discussion 2
S 2014 Sport steering clunk help please Stock 2011 - 2019 Ford Explorer Discussion 10
T Cleaning steering wheel Stock 2011 - 2019 Ford Explorer Discussion 6
S 2019 Sport - squeaking/moaning steering wheel? Stock 2011 - 2019 Ford Explorer Discussion 7
G Power Steering recall 15N01 Stock 2011 - 2019 Ford Explorer Discussion 7
T Two issues--HVAC and Steering Stock 2011 - 2019 Ford Explorer Discussion 10
F 2016 Sport Steering Issues Stock 2011 - 2019 Ford Explorer Discussion 10
S New Steering Rack - 2014 Sport Stock 2011 - 2019 Ford Explorer Discussion 1
N Steering Wheel Airbag Stock 2011 - 2019 Ford Explorer Discussion 1
A 2016 explorer XLT squeaky noise when turning the steering to the left only Stock 2011 - 2019 Ford Explorer Discussion 1
M Steering sticks in 12 o'clock position Stock 2011 - 2019 Ford Explorer Discussion 5
Similar threads


















































Top
