2001 explorer bolt question

Dan8089

New Member
Joined
May 31, 2012
Messages
5
Reaction score
0
Year, Model & Trim Level
2001 explorer

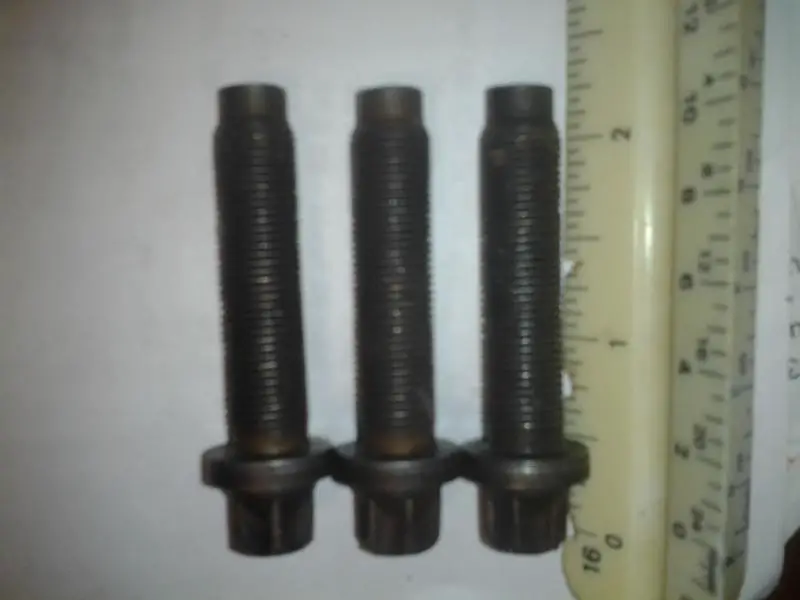

I have a 2001 Explorer 4x4. It was left disassembled for about a year after I pulled the trans to fix a broken reverse band. Now that I am putting it back together I have the a couple of bolts that I can not figure out where they go. I believe they go somewhere on the underside of the car but If anyone on here recognizes the bolts and could tell me where they go I would appreciate it.
Thanks






Join the Elite Explorers for $20 each year or try it out for $5 a month.

Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





They look like they are for rear driveshaft







They don't go to the drive shaft, all of those bolts are accounted for.







Are those 8 point or 12 point heads? Did you take anything else apart aside from pulling the trans/transfer case/driveshafts?







They look to me like the bolts that bolt into the cross members that adjust the height of the frame.







the bolts are a reverse torx
The only thing besides the trans/transfer case/drive shafts that I remember removing was exhaust pipe/cats that link the two sides to the exhaust.
