camp shower installation

whitetrash96

Well-Known Member
Joined
September 16, 2005
Messages
127
Reaction score
0
City, State
East Kootenays
Year, Model & Trim Level
'92 Explorer
Heres what I did.

Heres my suction line


Sucks from the left and pumps to my tranny cooler and is then fed into my heat exchanger.

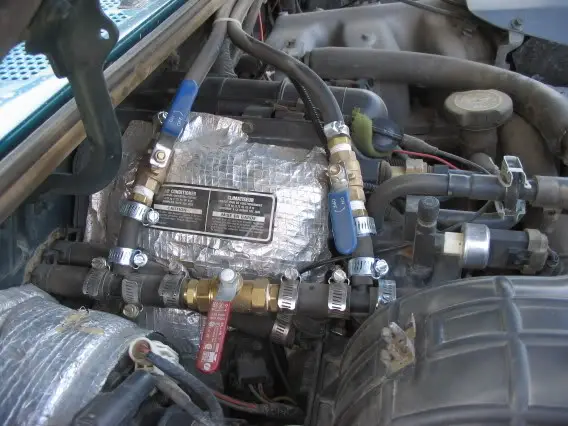

Heres where I tied into my heater hoses




Finished product.


Okay originally I went with just my tranny cooler but it was only hot for a minute or so because there was too much flow. Then I got the smallest heat exchanger I could find for mounting purposes but it would only get warm not hot. So I decided to run it thru the tranny cooler and then thru the heat exchanger, it gets seriously hot now. With the engine at idle the water is warm not hot so with my hand throttle I run it at about 2000rpm and the water is almost too hot even when sourced from a mountain stream. I also put a valve at the shower head to slow the flow if the water was not hot enough but I find it unneccessary. I can also infinitely adjust water temp with the heater controls. This thing works better than I could have hoped and was a big hit with everyone who used it, I think this is one of my best mods yet. :D

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




ajr2000

Well-Known Member
Joined
March 19, 2006
Messages
184
Reaction score
1
City, State
Trumbull, CT
Year, Model & Trim Level
93 XLT
That's awesome! Now you just gotta mount that pump permanantly. :)

<



whitetrash96

Well-Known Member
Joined
September 16, 2005
Messages
127
Reaction score
0
City, State
East Kootenays
Year, Model & Trim Level
'92 Explorer
ajr2000 said:
That's awesome! Now you just gotta mount that pump permanantly. :)

I have no intention of mounting the pump permanently, theres no need, and I have to store the hoses anyway. :)

<



taxx

Make em say Ugh
Joined
June 11, 2001
Messages
4,128
Reaction score
3
City, State
Indianapolis, IN
Year, Model & Trim Level
73 EB
I like it. But I would run a bypass around the heat exchanger with a valve for adjusting the temp. :thumbsup:

<



Positive Vibes

Elite Explorer
Joined
June 18, 2001
Messages
3,951
Reaction score
2
City, State
Santa Cruz, Ca
Year, Model & Trim Level
'94 XLT
Sweet!

<



SensRanger

Active Member
Joined
September 14, 2005
Messages
90
Reaction score
0
City, State
Ottawa, ON
Year, Model & Trim Level
96 Ranger XLT 4x4 Xcab
shower finally ready

Well it has only been 28 months since I started this thread so I figured I would finally post what I came up with. Got a chance to use it several times at our Victoria Day camping long weekend (aka May 2-4) on public lands just 80km from the city! Me and a buddy got all the parts and a test design ready, to make sure everything worked as it should, last summer. We got a Shurflo pump and accumulator tank from an RV parts place (I think it came to $150 or so), and the Doucette 1/2 ton coaxial coil heat exchanger from a local refrigeration supply place, it was around $60. Then recently I got the bin you see in the photos and installed the hot/cold taps and fixed a few problems from the tests last summer. The biggie was reduced water flow and pressure due to using a too-flimsy vinyl hose as the inlet line. The suction power of the pump sucked the line flat in places and restricted water flow. The new tougher rubber hose has worked great so far. Originally I wanted to mount the unit in my truck permanently. But there was no way that was going to happen because space under the hood of my Ranger is pretty much nonexistent. Having the shower kit external made sense though since this way my buddy could modify his cooling system also to connect to the shower. We used quick-connect couplings on the line coming from the heater core on the Ranger.

quick connect coupling on my heater line


beginning to assemble the things in the bin


bin coming along. just need to connect to the heat exchanger.


packed up for easy transport


inlet filter. high tech system made of whiffle ball wrapped in screen door repair mesh and sealed with hockey tape


ready to go at the campsite


buddy scrubbing up. didn't want to creep out the chicks by taking their photo, unfortunately


my ranger and buddy's explorer parked at the site


catching the pens-flyers game on site


partying late night,..perfect weather


the view from the site.


man down, beer safe


my truck with buddy's 84 chevy beauville camper in the back.

<



Positive Vibes

Elite Explorer
Joined
June 18, 2001
Messages
3,951
Reaction score
2
City, State
Santa Cruz, Ca
Year, Model & Trim Level
'94 XLT
Cool write up!!!

<



DeRocha

NEX Vice President
Elite Explorer
Moderator Emeritus
Joined
July 5, 2003
Messages
6,671
Reaction score
42
City, State
Brockton, MA
Year, Model & Trim Level
'93 XLT 4x4
Very sweet:thumbsup: Thanks for taking the time and effort in putting together a great thread.. :cool:

<



ld50

Oh, the money you`ll blow
Joined
April 16, 2002
Messages
3,333
Reaction score
23
City, State
British Columbia
Year, Model & Trim Level
93 4 dr 4x4 manual XL.
I love this idea and have been pondering doing it for a while. Me and a friend have each built campfire heaters for showering and hot-tubbing in the bush (no it`s not just for us two)



I have researched some options, I have also pondered the ability of an a/c compressor operating as a pump, anyone heard of that?

Here are some heat exchangers I have been looking at from Ebay


10 plate model

http://cgi.ebay.ca/ws/eBayISAPI.dll?ViewItem&item=230566344419&ssPageName=STRK:MEWAX:IT


Here is a 30 plate model:

http://cgi.ebay.ca/30-Plate-Heat-Exchanger-SS304-Cu-Brazed-3-4-MPT-B3-12-/230566344505?pt=LH_DefaultDomain_0&hash=item35aed33739

spec sheet:
