Headlight Switch Replacement

ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL


Last week I was driving at night and my headlights and foglights went out (my parking lamps were still on), and I could barely see the road. I then barley touched the headlight switch and the lights come right back on - which indicated to me that the switch was bad and not a wiring problem. I then ordered a switch, 3L5Z-11654-BA, and replaced it. Here is how you replace it on a second gen:



I believe the bolts inside are standard, but I went ahead and used metric stuff (so you'll need a 7mm and a 8mm - 1/4 drive). You may also want a light if you aren't in a well lighted area.

Go in this order:

(1) Radio Bezel, (2) Instrument Panel Bezel, (3) Bottom Panel (by OBDII connector and Hood Release), (4) Hood Release, (5) Metal Panel (under #3), (6) Under Panel

attachment.php


That may seem a little complicated but it'll all make sense once you get into it.

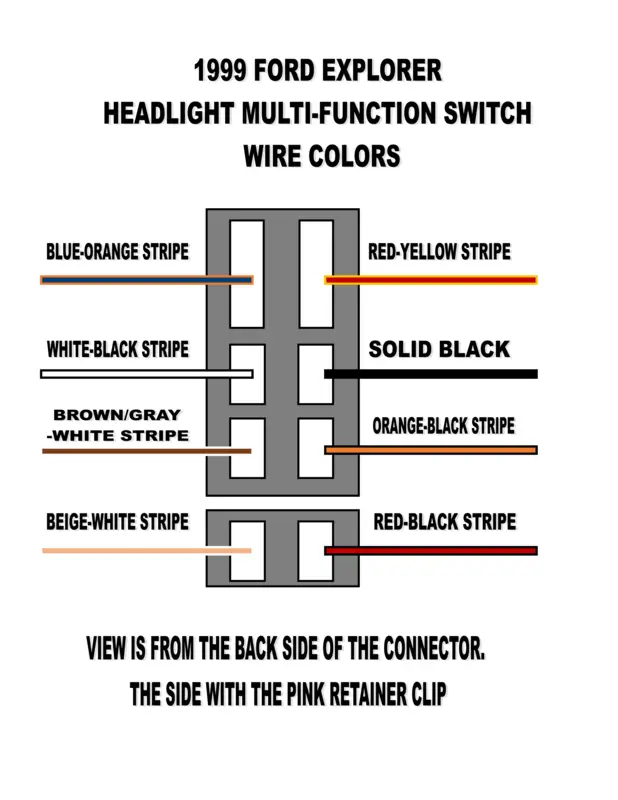

Now, once you get to #5, you will see two gold colored screws (both 8mms) that will need to be either loosened or removed to pull it down just a little to get to the two other bolts for the instrument panel bezel. After you get those two bolts, you're ready to pull the bezel out. Now, I pull the bezel only out a little bit and then unscrewed the screws for the switch (2 phillips screws). You can also pull the bezel out, just make sure you disconnect everything before. Disconnect the connector once the switch is loose and replace it with the new one. Then reverse the directions to reinstall. It isn't that hard.

Here is what I found:

1) Burnt/Corroded Prong/Post
2) Melted Switch and Connector (a little bit, not enough to complicate the connection)
3) Burnt Out Light (which indicates Off, Parking, Headlamps)

Sorry for the not so clear pictures, but they'll work:

attachment.php


attachment.php


You can see the discoloration on the prongs/post and if you look hard enough you can see a little bit of the melted plastic. My connector (thats in the car) was melted a little, but not enough to keep my switch from getting a good connection. If a connector is burnt/melted really bad, you should replace it before replacing the switch (it may cause the new one to burn up).

When I recieved this Explorer I always noticed that the indicators (Off, Parking Lamps, Headlamps) never illuminated; but it was because the bulb was burnt out. I could of caught this earlier, but I didn't know it was suppose to light up until I was in my brothers '99 Ranger which illuminated. Oh well, live and learn. Hope this helps someone out.

-Drew



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




dogfriend

Human-Animal Hybrid
Joined
July 22, 2002
Messages
7,566
Reaction score
7
City, State
Carmichael, CA
Year, Model & Trim Level
'97 Sport 4x4
Its been discussed before that it is so common to have the indicator light burnt out that most people don't realize that it is supposed to light up. Mine has been out for years.





ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
That indicator light even stays on during the day - no wonder it burns out prematurely. But it still better than nothing at all :thumbsup:

-Drew





ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
I pulled the old switch apart and the thing was just corroded up inside and the contacts were just worn down. That thing gets a lot of use -- can't blame it for crappin out.

-Drew









bmacd

Well-Known Member
Joined
May 15, 2003
Messages
229
Reaction score
0
City, State
Farmington, MI
Year, Model & Trim Level
'96 XLT 5.0
that doesn't look anything like my switch on my '96

-=bmacd=-





ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
bmacd said:
that doesn't look anything like my switch on my '96

-=bmacd=-

The top picture is not my switch -- it's just a picture I found of one thats similar. That looks like a Ford Expedition and F-150s switch. It was just for reference.

-Drew





Lefy

Well-Known Member
Joined
December 13, 2002
Messages
736
Reaction score
0
City, State
Westchester, NY
Year, Model & Trim Level
98 Sport 4x4 4.0 SOHC
thanks this was helpful





TheJackal

Explorer Addict
Joined
August 11, 2007
Messages
1,060
Reaction score
3
City, State
Mandeville, LA
Year, Model & Trim Level
1999 Explorer XL 2WD
The top picture is not my switch -- it's just a picture I found of one thats similar. That looks like a Ford Expedition and F-150s switch. It was just for reference.

-Drew

Must be for a Euro spec vehicle, even my mom's Expedition with all the bells and whistles doesn't have rear fog lights. IIRC Ford only includes them on their European models.

As said before the burned out headlight switch bulb is a very common occurrence, I didn't know it was supposed to illuminate either until I saw a thread here about it. Ford really should use LEDs instead of light bulbs for illumination; it'd make life a lot easier.

There are write-ups for converting everything that lights up in the interior to LEDs. I've decided against doing it though because I'm not sure if the brightness and spread of light will be the same with the LEDs as the stock bulbs are. Plus I don't like cutting up my Explorer.





Naptown Pete

New Member
Joined
January 13, 2010
Messages
1
Reaction score
0
City, State
Annapolis, MD
Year, Model & Trim Level
'99 EXPLORTER
This thread is the reason I joined this forum.
Same problem on my '99 Ford Explorer.
running light, dash lights stopped working while driving all of a sudden.
Check all fuses- All OK.
Remove headlight/running light switch and used a continuity tester on the leads. Seems to be a problem, but the internal inspection of the switch seemed OK with no strange looking corrosion or burnt sections. I couldn't get continuity across the small light bulb.
New switch ordered from Pep Boys arriving this afternoon.
I'll post the results and I'll re-test the continuity across the posts to see if it's different than the suspect old switch.
Fingers crossed...





freetodragdoors

Active Member
Joined
September 14, 2009
Messages
52
Reaction score
0
City, State
south brunswick nj
Year, Model & Trim Level
93 explorer
the headlight switch shown above (the top one) is a volkswagen euro switch if anyone was wondering. its the same one i have in my jetta





Electrohacker

Explorer Addict
Joined
March 15, 2004
Messages
1,248
Reaction score
3
City, State
Clinton Twp, MI
Year, Model & Trim Level
'96 XLT V8 4WD

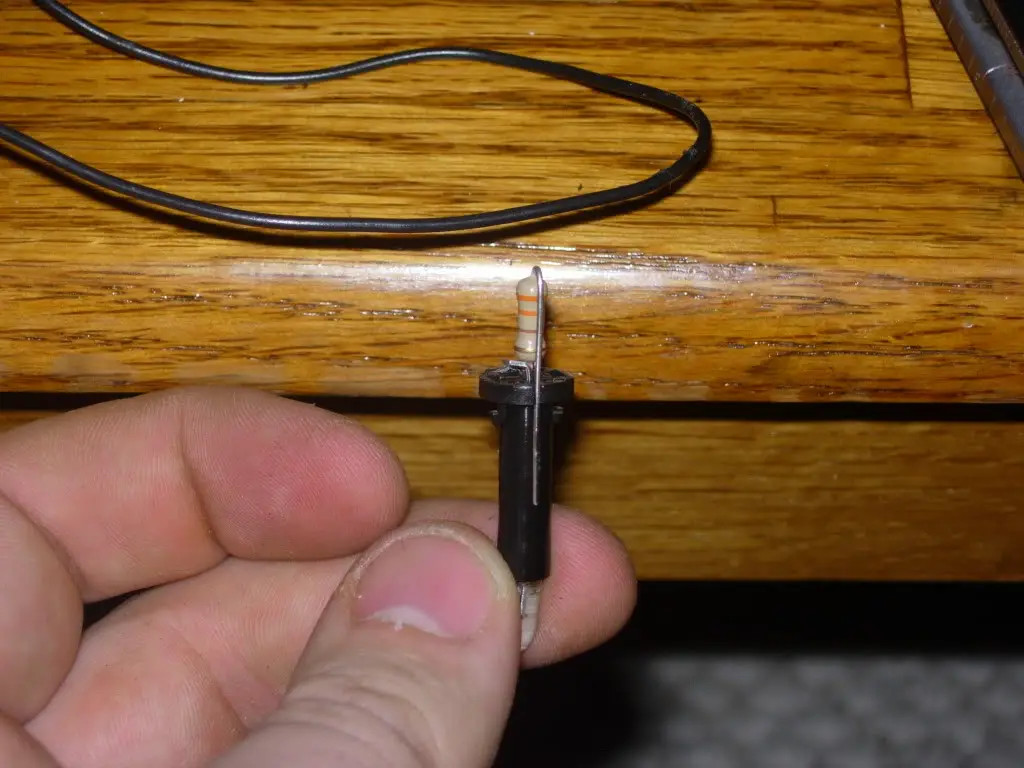

I recommend just ripping the bulb out of the switch and relaceing it with an LED and resistor



then it wont burn out





nas0915

Member
Joined
May 22, 2008
Messages
38
Reaction score
0
City, State
Tonawanda, New York
Year, Model & Trim Level
96, XLT
great write up. I just had to replace my headlight switch. very easy. the thing that took the most effort was prying the wire from the bad headlight switch. Other than that everything worked out. New swtich cost $30 at local auto parts store.





yimmerz

New Member
Joined
November 7, 2012
Messages
1
Reaction score
0
City, State
Kansas City, Mo
Year, Model & Trim Level
1998 Explorer
Nice thread, I got pulled over by the cops for my tail lights both being out (and my interior instrument lights were out too). I tried to fix it and found some corrosion on the wiring, but I couldn't pry the wire from the switch assembly. I gave up and put it together and then my car wouldn't start. Took it to a mechanic and he got the car to start, but then my headlights wouldn't turn on. Going to give it another shot and if not then I'll be in trouble.





jcs7duke

New Member
Joined
December 8, 2014
Messages
2
Reaction score
0
Year, Model & Trim Level
1997 Ford Explorer
thanks!

Would like to say thanks for this thread! Just replaced my switch.
