Pic Request- Your Explorer Towing


OBX Gurl

New Member
Joined
July 20, 2017
Messages
2
Reaction score
0
Location
The Outer Banks of North Carolina
City, State
Kitty Hawk
Year, Model & Trim Level
1997 Explorer XLT AWD v8
Ill start the show with my pic-




Mountaineer Green, what is the weight and length on that trailer? How does she tow and did you mod the Mounty for towing with helper springs transmission cooler or brake control modulator?



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.












jbb0177

New Member
Joined
February 5, 2018
Messages
7
Reaction score
1
Year, Model & Trim Level
2018 Explorer Sport
What's the dry weight of your trailer??



[/QUOTE]





Indispensable Explorer

Active Member
Joined
December 30, 2016
Messages
112
Reaction score
37
City, State
Tennessee
Year, Model & Trim Level
1995 Explorer XLT
This trailer is a fraction of what she used to tow. This trailer as pictured is not much more than 1,600 pounds, but fully loaded it will be around 2,000 lbs. The trailer was recently bought to haul (and store) mow equipment. The "hazard" has towed around 5,000 lbs on several occasions when it was the family's tow vehicle. (I currently don't have pictures but I will look for them)






traveler

Staff member
Moderator
Elite Explorer
Joined
March 14, 2005
Messages
1,109
Reaction score
259
Location
Mesa AZ
City, State
Mesa
Year, Model & Trim Level
2000 EB Explorer 5.0

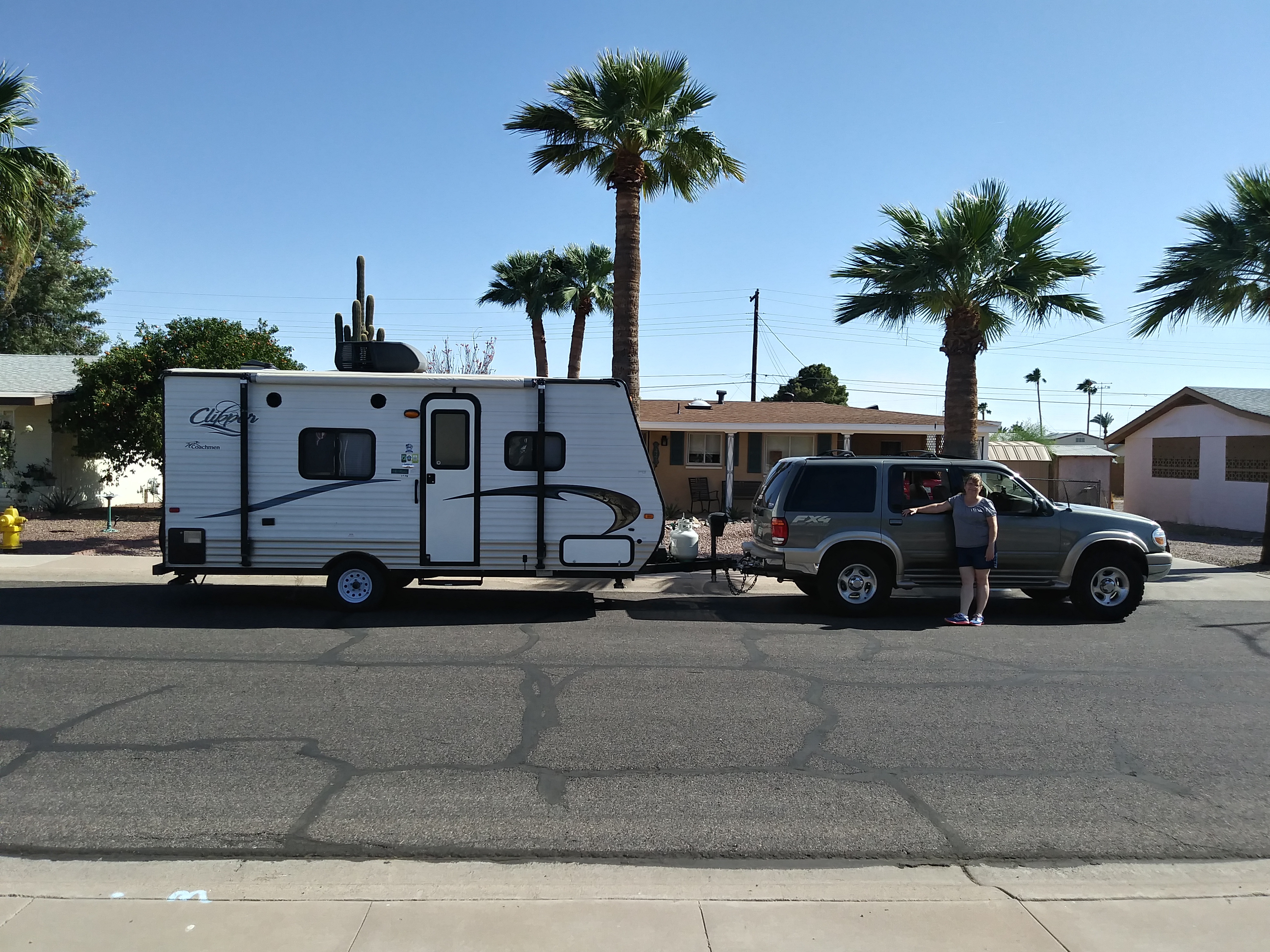

Newer pic of Eddie towing our camper. The previous pics were while towing the camper back from the dealer. Now its equipped with an anti-sway connection, and booster shocks.

Took this pic after hooking up and loading before heading out for Tombstone AZ.






rowekmr

Member
Joined
January 29, 2005
Messages
91
Reaction score
0
City, State
Chgo, IL
Year, Model & Trim Level
06 Limited 4.6 4X4
That's a nice looking set up. I love those 5.0l's had one and miss it. With the flowmasters and deletes it must sound real mean.
Newer pic of Eddie towing our camper. The previous pics were while towing the camper back from the dealer. Now its equipped with an anti-sway connection, and booster shocks.

Took this pic after hooking up and loading before heading out for Tombstone AZ.

View attachment 158055





traveler

Staff member
Moderator
Elite Explorer
Joined
March 14, 2005
Messages
1,109
Reaction score
259
Location
Mesa AZ
City, State
Mesa
Year, Model & Trim Level
2000 EB Explorer 5.0
Thank you! The trailer does tax it, but It does ok. Sounds good. The inner youth wished it was louder but the mature adult realizes it would make conversation more difficult. LoL.
Hardest part is making sure any upgrades serve all uses... Daily driver, tow rig, and off road toy.









rmkilc

New Member
Joined
November 5, 2018
Messages
18
Reaction score
12
City, State
Vancouver, WA
Year, Model & Trim Level
2015 Ford Explorer Sport
I just came across this thread so I thought I would put up some of my towing pictures.











willied

Well-Known Member
Joined
December 1, 2009
Messages
1,173
Reaction score
2
City, State
Columbus, GA
Year, Model & Trim Level
2006 XLT V8
So how do the two Explorers compare to each other in towing? Pretty big loads ya got there!





Mbrooks420

High Voltage.
Elite Explorer
EF Vendor
Joined
February 2, 2002
Messages
9,830
Reaction score
1,344
Year, Model & Trim Level
1998 Mountaineer AWD
That Big Tex is squatting that Explorer pretty good. I’d look into a bag setup if I was towing that thing with any regularity.





rmkilc

New Member
Joined
November 5, 2018
Messages
18
Reaction score
12
City, State
Vancouver, WA
Year, Model & Trim Level
2015 Ford Explorer Sport
So how do the two Explorers compare to each other in towing? Pretty big loads ya got there!
My 2000 is rated for 6,620 lbs whereas my 2015 is rated for 5,000 lbs. The Big Tex dump trailer weighs about 4,200 lbs empty. With my 2015 I have only towed it empty and that was more out of curiosity than anything as there isn't much room for payload.

To be honest, my 2000 is a lot more confidence inspiring. Even with the dump trailer loaded up versus an empty trailer behind my 2015. There is a section of road that is downhill and needs repaved real bad. In my 2015, I have to take it easy and the steering feels floaty. But in my 2000, I can cruise through it with no problem. I'm not sure why that is. Perhaps part of it is because I have a lot more experience towing with my 2000. Part of it could be because my 2015 cabin is so quiet, a lot of noise comes through the trailer hitch which kinda throws me off whereas in my 2000 the cabin is already loud and adding a trailer hardly makes a difference. Part of it could be body-on-frame vs unibody. I have the same model Tekonsha P3 trailer brake controllers in both.

In my 2000, I don't see transmission temps over 200° even on long tows. I do have an electric fan installed behind the OEM transmission cooler and a thermostat to turn it on when the fluid gets above 170°.

As far as transmission and PTU temps go in my 2015, they were both normal on the one tow I did with the big trailer. Transmission never exceeded 205° and PTU never exceeded 180°. But it was only about a 10 minute drive although it was hilly.

That Big Tex is squatting that Explorer pretty good. I’d look into a bag setup if I was towing that thing with any regularity.
Currently I have generic short add-a-leafs installed but I'm not very impressed. I do have real proper vehicle specific add-a-leafs from General Spring that I haven't installed yet.





Mbrooks420

High Voltage.
Elite Explorer
EF Vendor
Joined
February 2, 2002
Messages
9,830
Reaction score
1,344
Year, Model & Trim Level
1998 Mountaineer AWD
I put a bag kit for a Bronco in my old 98 when I carried ridiculous tongue weights. Was a huge help. With two dirt bikes hanging on the hitch it was way nicer.





kmack

Active Member
Joined
December 28, 2000
Messages
122
Reaction score
43
City, State
San Antonio, TX
Year, Model & Trim Level
1993 Ford Explorer
Total towing weight is about 3,200 lbs






BrewCrewX

New Member
Joined
August 26, 2015
Messages
7
Reaction score
3
City, State
Arizona
Year, Model & Trim Level
2010 Ford Explorer XLT


Picked up my new camper yesterday. Pulled pretty well, stuck around 55 with OD off (26-2800 RPMs.) Trailer is around 3,400 dry. My only real concern is no way to determine transmission temp. I have a OBD/Bluetooth plug-in that connects to my phone but transmission temp was not an option to view. Truck is a 2010 V8 4x4 with towing package. Might have my local shop look at installing a temp gauge for the transmission.

For those wondering, average 10.6MPGs. Husky weight distribution hitch with passenger side sway control and brake controller in truck.
