Question regarding Daytime Running LED's on 5th Gen Explorer (Picture) | Page 2 | Ford Explorer - Ford Ranger Forums - Serious Explorations
  • Register Today It's free!

Question regarding Daytime Running LED's on 5th Gen Explorer (Picture)

markls8

Well-Known Member
Joined
July 3, 2014
Messages
154
Reaction score
0
City, State
Niagara, Ontario
Year, Model & Trim Level
2015 Explorer Sport
I guess the first sort of 'day time running lights' I saw was in the late 50's when it seemed there was a fad to install a single light in the center of the grille. BTW, DRL also help on those bright hazy days when the heat is simmering off the roads. It makes oncoming vehicle much easier to see.

Peter

Yeah Peter, I've seen old photos of that, and they were against the highway traffic act (HTA) regulations then, just as they are now. That is one infraction the police seem to keep enforced, or nobody wants to try it - you can't have a single headlight in the centre of a vehicle. Unless it's a motorcycle of course.

The studies I recall (there are so many variables that are changing the study has to be well-designed to give any meaningful results) had an initial benefit that diminished over time as people adjusted to always looking for just DRL's, instead of looking for anything coming that might not have lights on it.

As a motorcyclist, I would prefer cars not have DRL's, and motorcycles to have them. I think a bike would then have a better chance of being seen by someone who isn't looking. :D




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





White14xs

Active Member
Joined
January 3, 2015
Messages
54
Reaction score
1
Year, Model & Trim Level
2014 ford xsport 401a
http://www.amazon.com/Alpena-77015-White-Litz-Strip/dp/B005GAGBF2

This is them, at a better price than I got, but I got them from the local Wal-Mart for easy return, and inspection, if I needed to. I spent quite a bit of time (over a 6 month period) trying to find quality ones that were suitable, there are a lot of them out there, and put off buying until the last minute hoping something perfect would surface on the market. The side-firing feature fairly unique, and is ideal for this application, IMHO. I'm sure more will surface on the market soon.

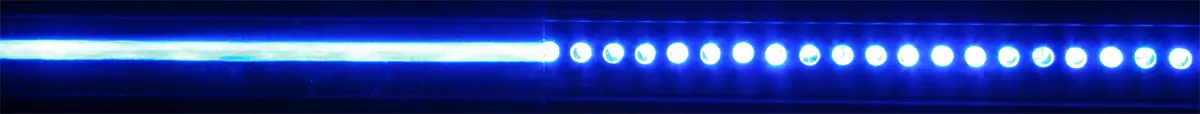

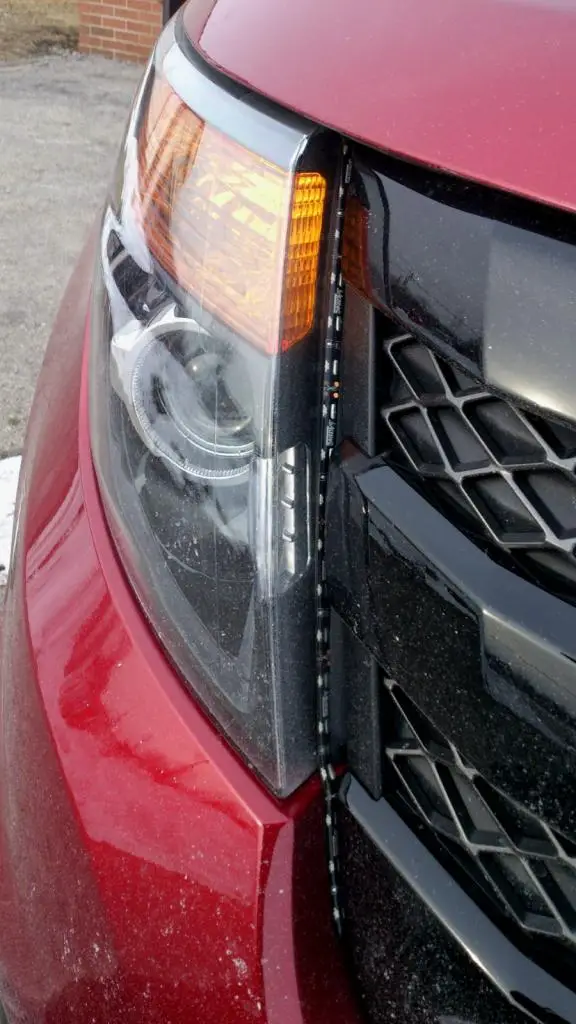

I originally wanted to outline the gorgeous curve at the headlight, but the body panels are too tight to the lens housing and would have needed some major shifting and disassembly to make work.

The wire lead (shown above) on the right light comes out the top, and the wire lead for the driver's side light needs to exit the bottom, in order for the side-firing LEDs to face forward. It was nice to figure that out ahead of time from seeing them in the store.

The is such a no-brainer mod for Ford to have done, but they abandoned developing the current models to focus on the next 2016's. The Explorer actually got criticism in the automotive press (and me) for not keeping the Ex current with simple things such as this. Especially when other Ford product lines, Edge etc, have had the improvements.

:)

pretty sic Mark!!!!!! :thumbsup: this looks clean and not APC autozone ghetto.......... this is next on my list.







BrightLites

EF Vendor
Joined
December 10, 2012
Messages
33
Reaction score
8
City, State
Overland Park, KS (Kansas City)
Year, Model & Trim Level
2012 Ford Edge
Great topic. Kind of timely too. We have actually just committed to developing an Explorer specific LED DRL system that will fill the angled cavity between the headlight and the grill. Our LED lamps will be very bright and function as true DRLs in bright daylight. The universal LED products mentioned in some of the posts would be considered accent lights, not suitable for bright sunshine visibility.

Our DRL lamp housing design will form to the contours of the grill and surrounding surfaces. Our goal is to create a light that looks like it came on the Explorer from the Ford factory.

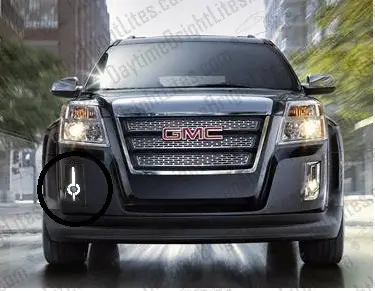

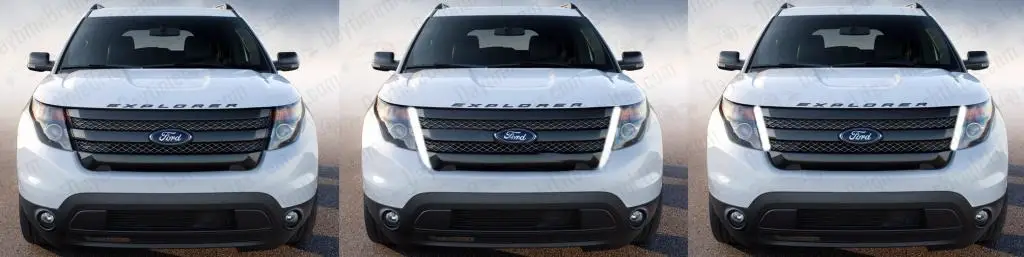

I am not going to give too much away about the design, but the photo below shows the direction we are heading. We are considering several types of LED emitters, reflectors and lens designs from our Ford Fusion DRL and our GMC Terrain DRL prototype. (see photos below).

I would love input from forum members on the design and any features or functions you would like to see incorporated in it. We are moving forward quickly on the development of this DRL, so get your suggestions in soon. If you want to discuss this offline, anyone is welcome to email me at [email protected] or call at 913-304-0720.

Thanks, in advance,
Dan Smith - DAYTIME BrightLites, LLC & DriveBright.com

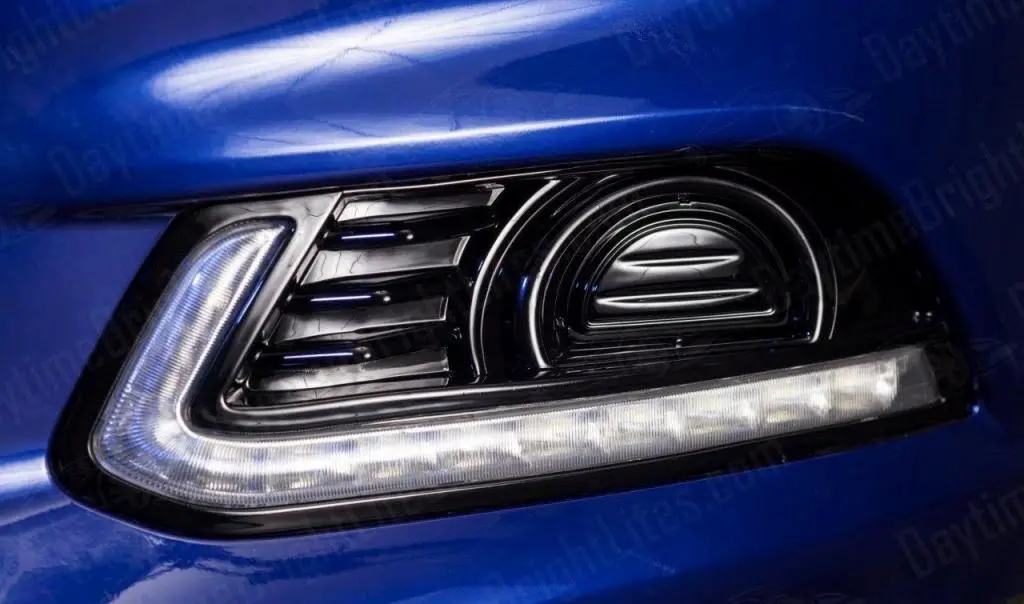

FUSION DRL

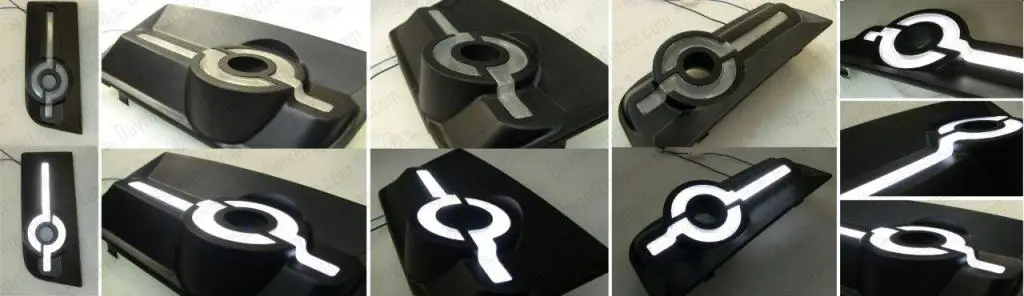

Prototyped - GMC Terrain DRL










markls8

Well-Known Member
Joined
July 3, 2014
Messages
154
Reaction score
0
City, State
Niagara, Ontario
Year, Model & Trim Level
2015 Explorer Sport
Hi Dan! Thanks for posting.

Affirmative on your assessment on the intensity of my lights. The "parking" lights by themselves fulfill the legal requirements for DRL's here in Canada. I can say this because I am aware of individuals importing vehicles from the US in earlier years who had to make this modification (running with "parking" lights always switched on) among a few other things, to meet the new standard. Are you aware of a brightness standard that these must meet (and maybe even not exceed) in order to qualify as stand alone DRL's?

Even though your lights alone might meet the DRL requirement (which is good of course), for aesthetic reasons I think the side marker (or "parking" lights) should remain lit at the same time. To me it gives the appearance of a manta ray (the animal), and also brings together the other lines that are already present in the design of the vehicle. Of course, this might be an option that you could leave up to the customer, depending on how much electrical connection installation hardware you are planning on providing with the kit.

I played with the two lengths that you have shown. While the shorter ones maintain a more horizontal and slimmer appearance to the front fascia, I went with the short extra downward lengths, and they also incorporated lines in the grillwork already present.

That little detail, always working with lines and contours already present, is one thing that can make the difference between something that looks complimentary and in place, and something that looks not quite right, even if it's at a sub-conscious, subliminal level. But I likely am preaching to the choir here!

You might find the shorter of the two easier to manufacture and fit to the car, though.

Good luck with the product!:thumbsup:

Brian Mark Smyth.
Industrial Designer,
Flextek Design.







sobsmb

Active Member
Joined
March 16, 2007
Messages
86
Reaction score
1
City, State
Cincinnati, OH
Year, Model & Trim Level
2013 Explorer XLT
Hi Dan.

For me I'd be interested in the version you have pictured on the right:



This was my original intent to add to mine however the strip I originally got was yellow when off and I didn't care for it, plus there was some issues of heat that I didn't want to risk. But depending on what you guys come up with my may have a customer.







White14xs

Active Member
Joined
January 3, 2015
Messages
54
Reaction score
1
Year, Model & Trim Level
2014 ford xsport 401a
Hi Dan! Thanks for posting.

Affirmative on your assessment on the intensity of my lights. The "parking" lights by themselves fulfill the legal requirements for DRL's here in Canada. I can say this because I am aware of individuals importing vehicles from the US in earlier years who had to make this modification (running with "parking" lights always switched on) among a few other things, to meet the new standard. Are you aware of a brightness standard that these must meet (and maybe even not exceed) in order to qualify as stand alone DRL's?

Even though your lights alone might meet the DRL requirement (which is good of course), for aesthetic reasons I think the side marker (or "parking" lights) should remain lit at the same time. To me it gives the appearance of a manta ray (the animal), and also brings together the other lines that are already present in the design of the vehicle. Of course, this might be an option that you could leave up to the customer, depending on how much electrical connection installation hardware you are planning on providing with the kit.

I played with the two lengths that you have shown. While the shorter ones maintain a more horizontal and slimmer appearance to the front fascia, I went with the short extra downward lengths, and they also incorporated lines in the grillwork already present.

That little detail, always working with lines and contours already present, is one thing that can make the difference between something that looks complimentary and in place, and something that looks not quite right, even if it's at a sub-conscious, subliminal level. But I likely am preaching to the choir here!

You might find the shorter of the two easier to manufacture and fit to the car, though.

Good luck with the product!:thumbsup:

Brian Mark Smyth.
Industrial Designer,
Flextek Design.

Mark since you and I are "working" lol, how do your DRL leds look or turn out at night with your headlights on? or day? NEVERMIND seen you've updated your original pic post.:salute:







markls8

Well-Known Member
Joined
July 3, 2014
Messages
154
Reaction score
0
City, State
Niagara, Ontario
Year, Model & Trim Level
2015 Explorer Sport
Mark since you and I are "working" lol, how do your DRL leds look or turn out at night with your headlights on? or day?

They look equally good both ways, but the headlights are on (at reduced intensity?) for now until I get the dealer to turn them off in the daytime, which might be an improvement in overall appearance, I would say. Many lights might look OK on a transport truck, but too many on a vehicle can make it look too "busy". I like clean, simple lines in things that compliment each other.

At night they stand out well, even with the headlights on full.

Along the same train of thought, I do not use the fog lights - they are the most benign (from a practical point of view) thing that is routinely put on cars, IMHO. Never seen one that improved vision in fog, in fact, I've never seen fog lights that didn't worsen your vision in fog. They might make you more visible to other traffic (well, so do the headlights) but they also impair vision through the fog for others at the same time.

;)







White14xs

Active Member
Joined
January 3, 2015
Messages
54
Reaction score
1
Year, Model & Trim Level
2014 ford xsport 401a
Hi Dan.

For me I'd be interested in the version you have pictured on the right:



This was my original intent to add to mine however the strip I originally got was yellow when off and I didn't care for it, plus there was some issues of heat that I didn't want to risk. But depending on what you guys come up with my may have a customer.

has any put a LED light bar right above the bumper blow the grill for off road use? ? thinking about putting one for Glamis trips..







peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
34,444
Reaction score
3,277
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
I don't know if anyone actually installed an LED bar but there was a member in another thread who was thinking about it.

Peter







White14xs

Active Member
Joined
January 3, 2015
Messages
54
Reaction score
1
Year, Model & Trim Level
2014 ford xsport 401a
I don't know if anyone actually installed an LED bar but there was a member in another thread who was thinking about it.

Peter

i think ill be the first and update when complete. On my way to big bear last weekend a jeep if front of me was using them and WOW what a difference in visibility.... thanks Peter.







peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
34,444
Reaction score
3,277
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3






White14xs

Active Member
Joined
January 3, 2015
Messages
54
Reaction score
1
Year, Model & Trim Level
2014 ford xsport 401a

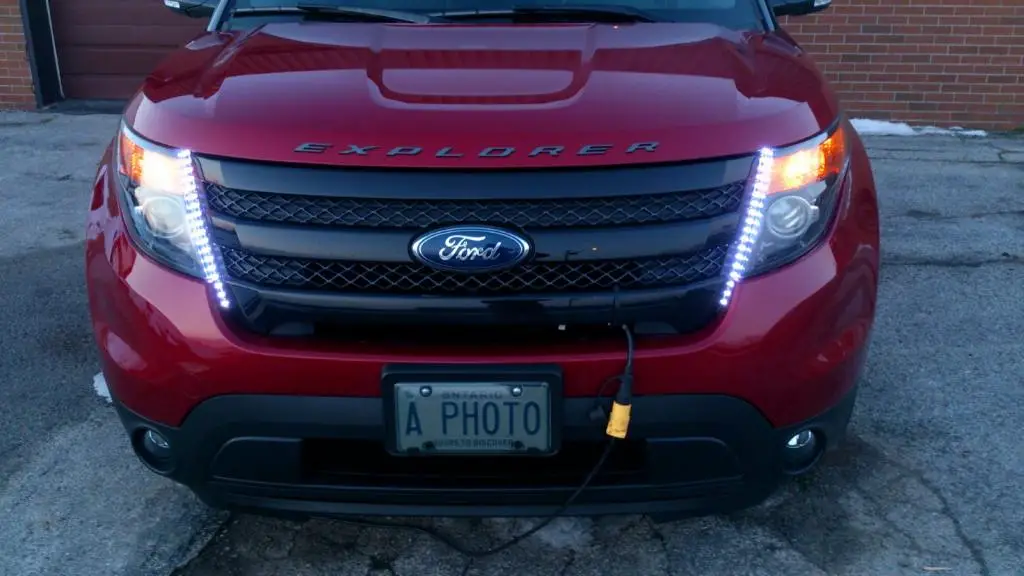

Pictures....the night ones are not so great. Well, it's freezing cold here, and maybe I should have put a jacket an gloves on!!! I oil sprayed the car AFTER installing these. I am very familiar with the 3M VBH foam backed adhesive tapes; these are not coming off accidentally when the surface is properly prepped (for those who aren't familiar with it). Do it when it's warm, or warm both areas with a heat gun carefully first.

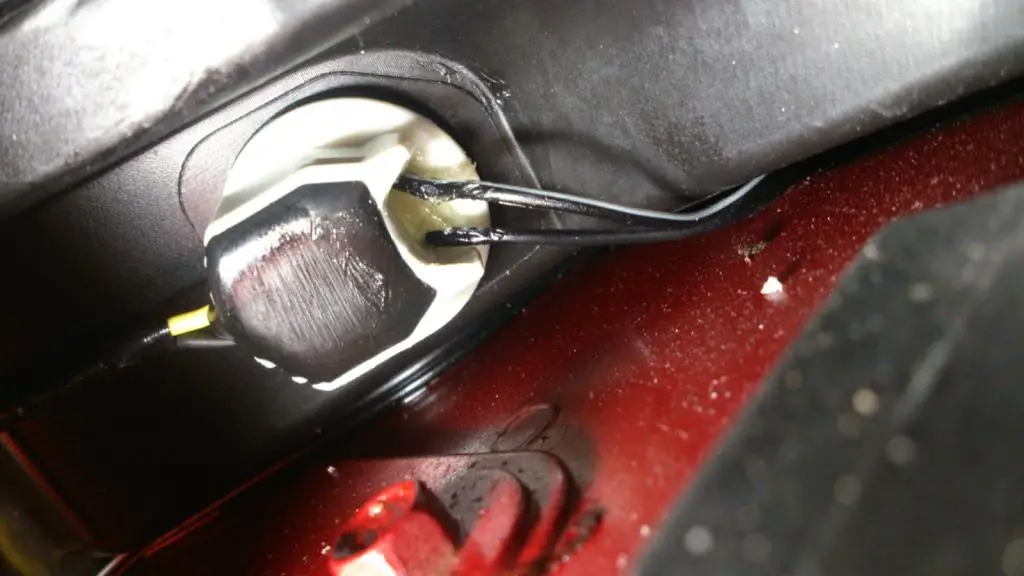

The two wires on the left lead into the pilot
