Shorter End Links (Front)

Big_Pezzy

Active Member
Joined
September 20, 2012
Messages
140
Reaction score
6
City, State
San Bernardino CA
Year, Model & Trim Level
2001 Ford Explorer Sport
I am planning on lowering my 01 sport 2 inches all around. TT in the front and blocks in the rear. I have read about using the F-250/Excursion end links for the rear to keep the sway bar at it's original angle. My question is, does anyone have shorter end links in the front or know which ones to use?
https://www.explorerforum.com/forums/showthread.php?t=83199

I read this thread but there are no part numbers or dimensions associated with the end links. Anything helps. Thanks in advance

Join the Elite Explorers for $20.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see practically no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.


Anime

EF YEAH!!
Elite Explorer
Joined
November 6, 2000
Messages
5,445
Reaction score
28
Year, Model & Trim Level
2018 EX Sport Concept
The end links in the front can just be replaced with "universal" Energy Suspension brand end links. I'm not sure if most Autozone stores would stock the longer links, maybe the large stores do.

X~FACTOR said they were 4.5 inch end links, that means the distance from middle to middle between the bushings is 4.5 inches. Probably good for 2-2.5 inch lowering, but you might want/need 5 inch long end links if the 4.5 inch work well with a 2.5 inch lowered suspension. Whatever makes the sway bar ends sit at the same angle as it would at stock height with stock end links, or makes the sway bar and end links fit correctly. You don't want the end links to be too tight or binding because they are forced to be at an angle. You want the sleeve between the bushing washers to be snug, but still turnable with your fingers when the bolt is tightened.


delexploder

Well-Known Member
Joined
March 11, 2012
Messages
1,991
Reaction score
105
City, State
Greenwood De.
Year, Model & Trim Level
97 ford explorer sport
Measure twice cut once, I would just cut down a stock set , cutoff wheel , hacksaw, saws all , its just a tube and long bolt


swshawaii

Elite Explorer
Joined
April 3, 2009
Messages
9,463
Reaction score
389
City, State
Kailua-Oahu, Hawaii
Year, Model & Trim Level
'05 Sport Trac XLS (RWD)

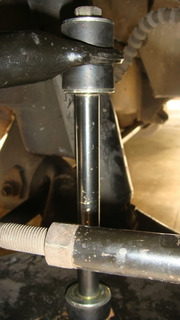

Tricky part here is that ES recommends the front sway bar eyelets parallel to the LCA. Looking at Explorer front
sway bars, the eyelets are angled down. I was blowing out blue Moog bushings quickly with my 2.75" front drop
and cut down the center sleeves the same distance. Same issue. My final solution was using the larger ES 7/16"
I.D. bushings (9.8103) using the Moog K7275 hardware at stock length. Four years without a failure. Link below.

https://www.explorerforum.com/forums/showpost.php?p=2791778&postcount=10
Make sure stabilizer bar end eyelet (B) is parallel with the control arm (C). Many times they are not. You may be required to use a slightly longer or shorter sleeve length than the original. Measure sleeve length (A) and compare to the chart to find the correct set.

http://www.energysuspension.com/universal-products/sway-bar-end-links-set-sizing-charts.html


Anime

EF YEAH!!
Elite Explorer
Joined
November 6, 2000
Messages
5,445
Reaction score
28
Year, Model & Trim Level
2018 EX Sport Concept
Prothane is ok, they are a major brand like Energy Suspension, but $20+ and then shipping is a lot for an end link kit. They cost less in-store at Autozone.

The info in that older thread might not be the best to go by, based on swshawaii's comments above. I'd say you might want to detatch the end links and measure the distance between the sway bar eyelet and the lower control arm hole the endlink goes through (when the sway bar end is parallel to the LCA) and see what measurement that gives you. The larger 7/16 ES bushings with stock length Moog endlinks as mentioned above might be the way to go rather than just buying 4.5 or 5 inch endlinks.


toypaseo

Flunked daycare
Elite Explorer
Joined
January 3, 2003
Messages
7,190
Reaction score
433
City, State
outside shovelling snow
Year, Model & Trim Level
................ 96 XLT ™

Big_Pezzy

Active Member
Joined
September 20, 2012
Messages
140
Reaction score
6
City, State
San Bernardino CA
Year, Model & Trim Level
2001 Ford Explorer Sport
Well I usually order from summit once I've accumulated $100 worth of items so I get free shipping (I'm also buying new shocks). So stock length might be alright? Also, polyurethane bushing are the best quality correct? I know moog also has rubber and a thermoplastic


swshawaii

Elite Explorer
Joined
April 3, 2009
Messages
9,463
Reaction score
389
City, State
Kailua-Oahu, Hawaii
Year, Model & Trim Level
'05 Sport Trac XLS (RWD)
See second link in post #7 . After lowering assume you are looking for the best handling, correct?
Polyurethane end links have very little give and thus give the best overall performance boost.
TYPES OF END LINKS

HOW-TO MEASURE

If you plan on using the shorter rear sway bar end links all bushings must be removed.
Here's the rear poly kit if you have the stock 19mm rear sway bar.

EDIT- Yes, Moog's poly end links would be my choice for bolt-on's. Reviews have been excellent so far. Measure first?

http://www.energysuspensionparts.com/4.5153

http://www.explorerforum.com/forums/showpost.php?p=3015693&postcount=29

Last edited:

toypaseo

Flunked daycare
Elite Explorer
Joined
January 3, 2003
Messages
7,190
Reaction score
433
City, State
outside shovelling snow
Year, Model & Trim Level
................ 96 XLT ™
If you do opt for those, here they are for $8.63 shipped, on eBay: http://www.ebay.com/itm/231668571240?_trksid=p2057872.m2749.l2649&ssPageName=STRK:MEBIDX:IT

I somehow broke one of those, or it came apart. I purchased a single unit to replace it from that seller. Should be here shortly. I did contact the seller, gave them a link to the Moog K700542 webpage, and asked them if that was the item, and they replied it was. I can PM you when I get it to confirm that what they are selling is actually the correct item. PM me if you want confirmation.


toypaseo

Flunked daycare
Elite Explorer
Joined
January 3, 2003
Messages
7,190
Reaction score
433
City, State
outside shovelling snow
Year, Model & Trim Level
................ 96 XLT ™
Prothane knockoff.
Nice catch :thumbsup: I didn't dig into the details, just noticed the matching part number. I would contact the seller before purchase.


Big_Pezzy

Active Member
Joined
September 20, 2012
Messages
140
Reaction score
6
City, State
San Bernardino CA
Year, Model & Trim Level
2001 Ford Explorer Sport
I'm in no rush to get these, but thanks for the heads up on that sweet deal :D
