wanted B II schematics

[mr cribb]

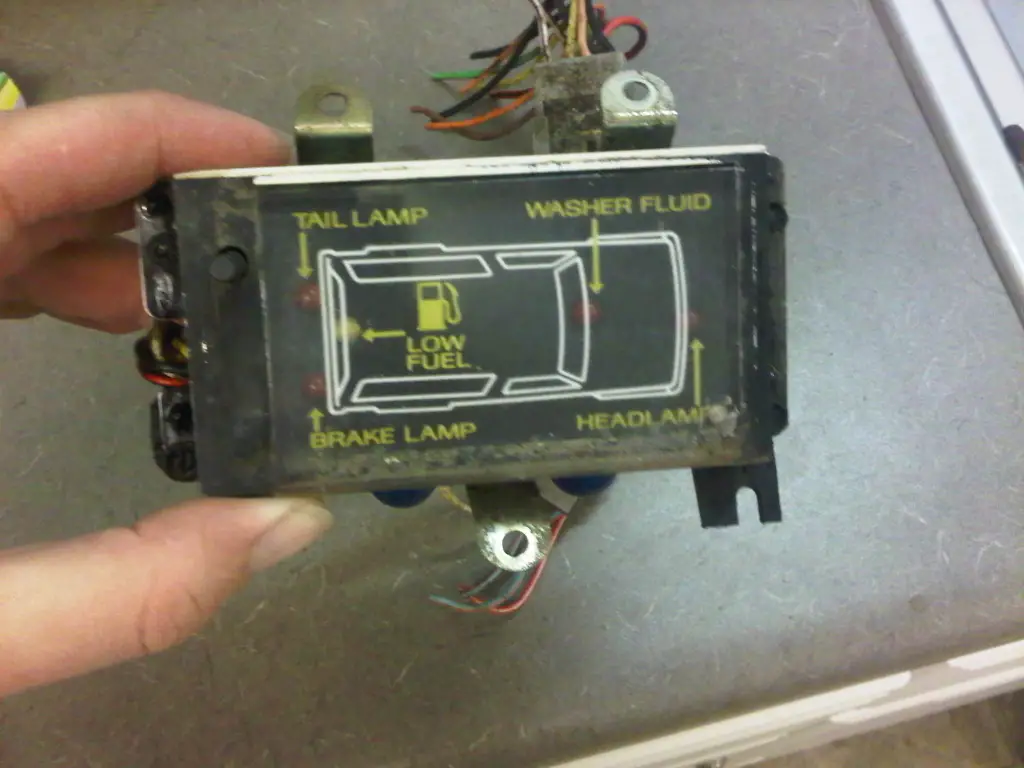

I picked up a ford warning system from an 86 Bronco II out of a junkyard.

The warning system includes:
Low fuel
Low washer fluid
Headlight out
Taillight out
Brake light out

I am looking for schematics to make it all work again in my Explorer.



[mr cribb]

bump



[bats]

I really would love to wire mine back in once I finish all the other wiring on the swap. The ranger station library has a ton of wiring diagrams that may be of use. I think Tbars has a sticky in the first gen section with a bunch of wiring stuff.



[mr cribb]

I really would love to wire mine back in once I finish all the other wiring on the swap. The ranger station library has a ton of wiring diagrams that may be of use. I think Tbars has a sticky in the first gen section with a bunch of wiring stuff.

Ok thanks I will ask.
