Two lockers and 4.56 gears in the mail this week along with the ARB mini compressor!!!!!!!!!!!!!!

Heck yeah!!!! I saved for a while to get these for my wife
We shopped and shopped for ARB's when I came across a super Toyota package deal, seriously this guy will build the complete diffs (FJ cruiser has 3rd members front and rear) with the lockers, gears, etc for almost cheaper then I could buy all the parts myself!

Chase Perry at East Coast Gear Supply is the MAN:
http://www.tacomaterritory.com/forum/showthread.php?p=1468877#post1468877
I only wish our Fords had removable 3rd members for the 8.8, makes things so much easier!

FJ cruiser = monster
So the BII and the FJ will both be fully locked
I will get some updated pics of the FJ and the installation of the diffs/compressor/switches, when it all gets here!

Last edited:
Join the Elite Explorers for $20.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see practically no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.


Sams01XplrSprt

Southern Cali Explorer
Joined
November 14, 2004
Messages
14,262
Reaction score
1
City, State
Newport Beach California & Bay Area California
Year, Model & Trim Level
2001 Sport (sold)
do u got pics of ur fj.

nvm i saw them on page 1 it looks nice r going to do an exhaust or hids or anything else to it or what. I like that color fj that is my favorite color.

Last edited:

410Fortune

Mud Season
Staff member
Moderator
Joined
August 3, 2000
Messages
24,814
Reaction score
1,165
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 Slightly Modified
Sam I will get sum recent pix
alot has changd since we 1st tuk thos pix

yes HID's and yes a cat back exaust built by my buddy Chuck here in Denver are in the works.....


Sams01XplrSprt

Southern Cali Explorer
Joined
November 14, 2004
Messages
14,262
Reaction score
1
City, State
Newport Beach California & Bay Area California
Year, Model & Trim Level
2001 Sport (sold)
how many k hids r u going to put it on the fj


410Fortune

Mud Season
Staff member
Moderator
Joined
August 3, 2000
Messages
24,814
Reaction score
1,165
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 Slightly Modified
I am not sure! Julee is light shopping right now, we will likely put 4 on the roof and 2 up front :)
once we have two of the lights she wants here, we will look at location and mounting options

Plan is to make the roof bar remove-able (so it fits in the garage)


RangerX

Elite Ranger
Staff member
Moderator
Elite Explorer
Joined
July 14, 1999
Messages
9,830
Reaction score
246
City, State
Omao, Kauai
Year, Model & Trim Level
'93 Ranger XLT 4X4

410Fortune

Mud Season
Staff member
Moderator
Joined
August 3, 2000
Messages
24,814
Reaction score
1,165
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 Slightly Modified
1 kid LOL
already found the yellow and black seat

I have a 4 door explorer and an 02 sport trac for hauling family, the FJ will also be used, all of them are 4 doors, I think we're covered


Hey Bill check this out!:
Your tikis have a new home, I built all this junk for the new Calspa:







we love it! The houde came with the deck, but we stained it last summer, then we got this amazing deal on a 2006 Calspa, so we moved it in, then I built all the privacy fencing and blinds for under $200 :)
Your tikis make the perfect drink holders and decor!!

we had two trees removed from our backyard also, (dead) and I left one 6' tall (background pic 2) so I/we can carve a tiki in it! Coming to Colorado? LOL

Someday I want to get more tikis from you, they are so cool!!
(no palms in CO LOL)


RangerX

Elite Ranger
Staff member
Moderator
Elite Explorer
Joined
July 14, 1999
Messages
9,830
Reaction score
246
City, State
Omao, Kauai
Year, Model & Trim Level
'93 Ranger XLT 4X4
Damn, nice setup!!! And lol on the 'drinkholder, glad they turned out to be functional tikis. ;)


410Fortune

Mud Season
Staff member
Moderator
Joined
August 3, 2000
Messages
24,814
Reaction score
1,165
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 Slightly Modified
i still want to put little red led's in their eyes :)


410Fortune

Mud Season
Staff member
Moderator
Joined
August 3, 2000
Messages
24,814
Reaction score
1,165
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 Slightly Modified
OKay good news! New built front and rear diffs including gears and lockers are ON THEIR WAY

UPS says the 60 pound package will be here on the 24th

complete front and rear differentials for 07 FJ cruiser built by Chase @ East Coast Gear Supply
Nitro 4.56 ring and pinions
ARB air lockers
ARB mini compressor
front and rear 3rd members

I send him back our diffs for cores when install is completed.

FJ is going to be a bad mo fo! time to learn how to install Toyota diffs!!


JTX

Well-Known Member
Joined
April 24, 2003
Messages
2,456
Reaction score
3
City, State
New Mexico
Year, Model & Trim Level
94 xlt
Looks sweet! Gonna talk to my girlfriend about getting a 4x4 now. haha.


410Fortune

Mud Season
Staff member
Moderator
Joined
August 3, 2000
Messages
24,814
Reaction score
1,165
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 Slightly Modified
Dude! The new diffs arrive TODAY!!

updated pics:

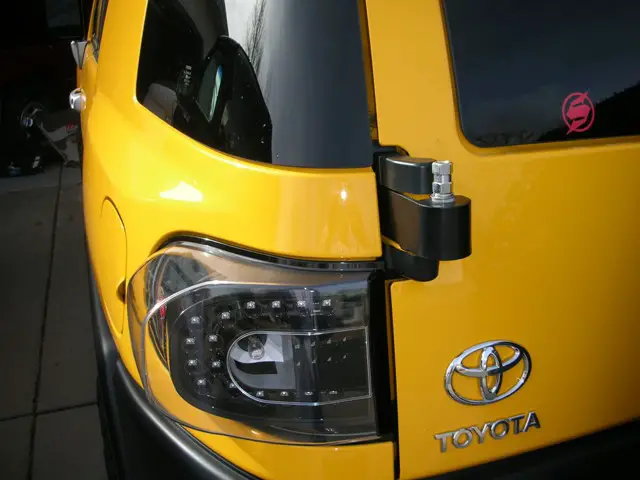

rear led's and Bandi CB mount for FJ:


Rear LED's again:


Front Projectors and flat black grill:


JTX

Well-Known Member
Joined
April 24, 2003
Messages
2,456
Reaction score
3
City, State
New Mexico
Year, Model & Trim Level
94 xlt
That thing is sick man.. I never use to like them, but your slowly changing my mind..


Sams01XplrSprt

Southern Cali Explorer
Joined
November 14, 2004
Messages
14,262
Reaction score
1
City, State
Newport Beach California & Bay Area California
Year, Model & Trim Level
2001 Sport (sold)
looks nice so far u got pics of the hids installed yet 410


410Fortune

Mud Season
Staff member
Moderator
Joined
August 3, 2000
Messages
24,814
Reaction score
1,165
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 Slightly Modified
No Hid's to install, yet
I plan to upgrade both the Explorer and the FJ to HID kits soon

But right now I am getting the 98 V8 out of the garage so the FJ can go in, likely this weekend. FJ = 4.56 and ARB install

Last edited:

410Fortune

Mud Season
Staff member
Moderator
Joined
August 3, 2000
Messages
24,814
Reaction score
1,165
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 Slightly Modified






Sams01XplrSprt

Southern Cali Explorer
Joined
November 14, 2004
Messages
14,262
Reaction score
1
City, State
Newport Beach California & Bay Area California
Year, Model & Trim Level
2001 Sport (sold)
if i ever got a fj cruiser i would get in yellow cause its my favorite color and ur wife fj cruiser is lookin awesome


410Fortune

Mud Season
Staff member
Moderator
Joined
August 3, 2000
Messages
24,814
Reaction score
1,165
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 Slightly Modified
well Sam if you ever got a yellow FJ, its gonna need some upgrades to keep up with my wifes rig!!

I finally got the ARB's installed, I took my time and did it the 410 way, keeping with tradition, this is no 4wheel parts differential swap, what you are about to see is performed with love and affection, to help make my wifes rig super special, its the small things!!!

Any day now I will be a dad, 36 years it took, I cant wait!!

With a new baby coming its going to leave alot of time for projects around the house, our goal is to also take him camping / mountiains / lakes / trails etc as soon as possible and as much as possible...with the wedding, pregnancy, etc we have misssed most of the last two seasons.... not this year!!

So if the FJ want to keep up with the BII its gona need some lockers, and we figured if you are gonna re-gear for tires, bite the bullet and go all out so, 4.56 Nitro ring and pinions with brand new ARB's and mini compressor installed ourself, saved about $1500!!!

Special thanks to Chase at East Coast Gear Supply and to Toyota for making these rigs SUPER WICKED EASY to work on, I LOVE THE FJ, the more I work on it, the more I like it, big learning curve here no manuals, I am used to my Fords so with this truck its learn as I go I have learned alot! The full floater rear axle and 3rd member (8" ring gear tacoma/4 runner/fj 95+ rear) makes me wish I had 9" in both my Fords

The FJ has its power back, 4.56 = wake up call!!! okay on to the pics/how to:

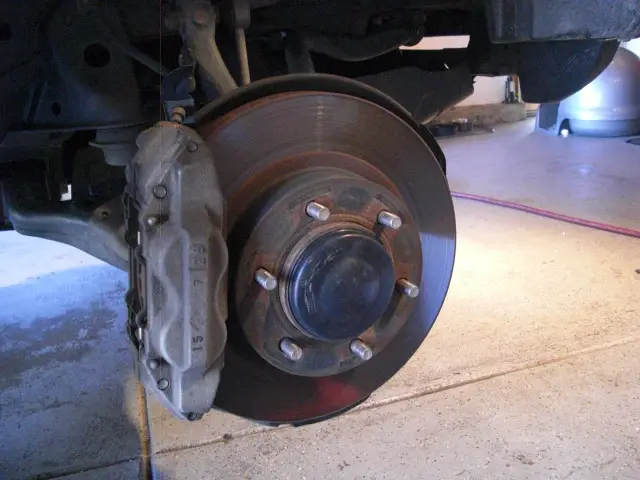

first the front end, jack up the truck, support with jack stands BY THE FRAME, remove both tires and factory skid plates (all 3).
Now you are looking at the dust cover, small plat head screwdriver, working around the edges and it pops off, dont BEND IT:





cover removed, cv axle retaining nut exposed:
This SUCKER is HUGE, 36mm to be exact, I had to go to Harbor Freight and purchase a whole new set of impact sockets in 3/4" drive to get this sucker! LOL any excuse to buy some tools!!



Little trick to getting them loose, dont do like me, you should have the lug nut threaded on the stud to protect the threads here:


Nice new 3/4" driver!! $8!!! thanks HF!!!

perfect time to get the front diff drained and let it drip:


24mm socket here (I had this one LOL)

remove cotter pin, castle nut, replace castle nut to protect tie rod stud, use dead blow hammer and BLAMO, take the tie rod off the knuckle:



Unbolt the two lower ball joint retaining bolts (17mm I think): THANKS TOYOTA!! (Ford pay attention):


Also unplug CAREFULLY the wiring clip for the wheel speed sensors


Congrats, now you can swing the entire knuckle/brake assembly out far enough to remove the cv shafts. No need to remove the brake caliper, the upper ball joint, shcok, or sway bar! repeat other side

Okay now Chase made me aware of these 4 little gem's, these 4 bolts retain the pass side axle shaft and CAD to the differential, these bolts are TIGHT
So its best to break them loose NOW while the diff is still in the truck, MUCH easier then attempting on the work bench. Another special tool here!! 14mm internal star thingy doo dad (cant think of the proper name now but HF had the whole set!!)



Now to drop the front diff, there are 3 large bolts that retain the entire front diff assembly, one is a very large hex nut (again Harbor freight had the tools needed! I got the whole set!!):



remove the two front retaining bolts, 18mm I think, and carefully drop the diff! I used a jack to support the assembly, this allowed me to UNBOLT the hose retaining BOLT, disconnect the wiring and vacuum line for the CAD assembly (center axle disconnect, just like our gen II 95-96 V6 trucks) before fully dropping the diff assembly, careful here, its HEAVY



vent hose, vacuum line, etc:

Last edited:

410Fortune

Mud Season
Staff member
Moderator
Joined
August 3, 2000
Messages
24,814
Reaction score
1,165
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 Slightly Modified
Part duex:

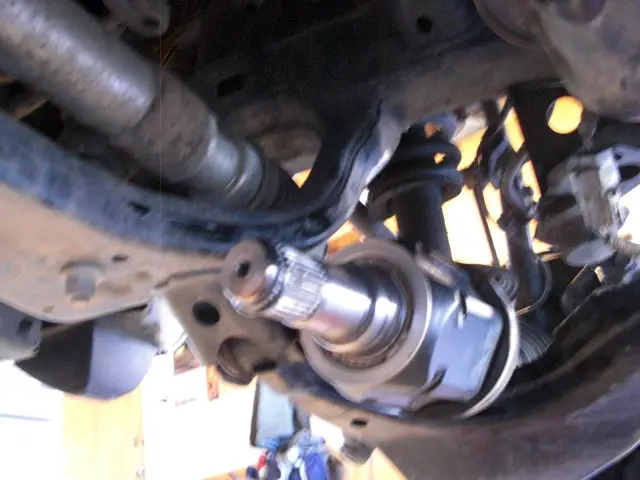

Diff is out! CV shafts are hanging there:

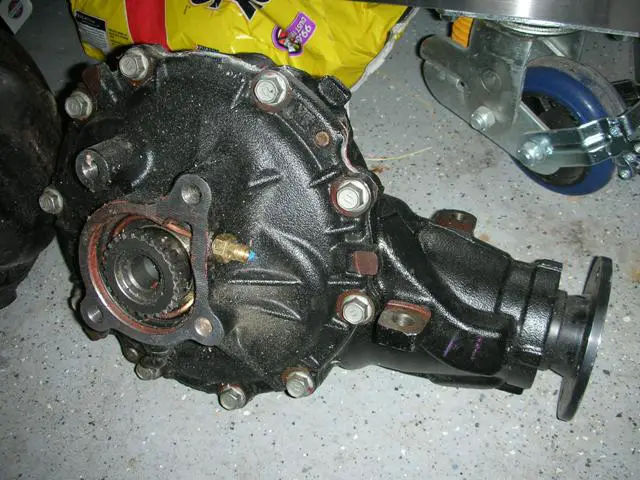

Here is the stock front diff and CAD assembly, next to the new 4.56 and ARB diff, looks like we need to swap some parts!!



This is how Chase runs the air line for the front ARB, NICE!!:



Removed the CAD /axle tube, rear mount, and front two mounts from the old diff, clean and paint, LOL Wifey uses her FJ:



wire brush the wirt, then remove the CAD:



any excuse, new sockets:


diff mounts front and rear, remove from old, clean, paint, install on new:





front assembly readyt to go back in! CAD and mounts covered with Rustoleum hammered grey (had some) assembled with new silicoln, and ready to go back in





I will likely be the only person to ever see how pretty it turned out, but hey thats less dirt in my eyes when Im under there and its far and above what any shop would do, we love our FJ this much!

now to re-install, reverse everything above, fill the diff with gear lube, plumb the new air line CAREFULLY and then on to the rear diff









now we have some time to kill so instead of a messy hand pump, I put the FJ on an IV injection of gear lube, took about an hour to gravity feed it full , but I didnt spill a drop! Did this for the back also :)


Join the Elite Explorers for $20.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see practically no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.


410Fortune

Mud Season
Staff member
Moderator
Joined
August 3, 2000
Messages
24,814
Reaction score
1,165
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 Slightly Modified
Part thrice, full floater rear, talk about EASY!!

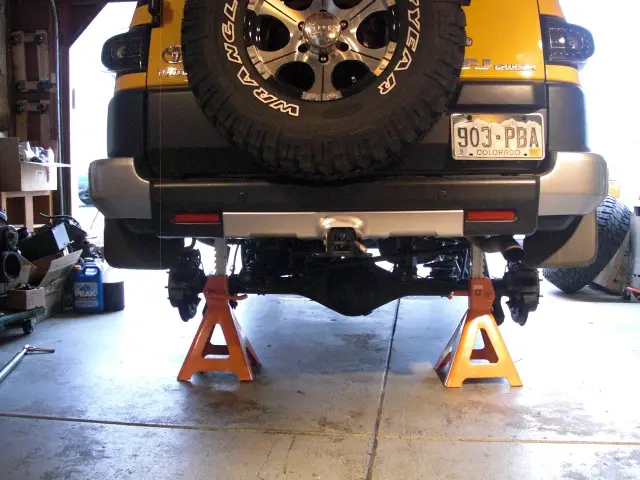

support truck by frame, remove wheels, etc, man shes dirty! Those shocks are 1 month old!! pictured at full droop with OME 3" springs, Bilstein 5150 shocks, and stock everything else
