How to: 2011+ Grille Removal with pictures


zckry

New Member
Joined
July 8, 2017
Messages
5
Reaction score
2
City, State
Austin, Texas
Year, Model & Trim Level
2015 Ford Explorer (Base)
Wonderful write up and what I am looking to do first! However, all the pictures at the top are gone. Might anyone have saved them or know of a spot to view the bolts? Rather remove to shoot and spray. Thanks in advance!
Just re-uploaded them, best of luck!



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Eltee

Elite Explorer
Joined
September 16, 2007
Messages
332
Reaction score
133
Location
West of the Rockies
City, State
West Coast USA
Year, Model & Trim Level
2013 Explorer XLT
4WD
I still get the pop up boxes instead of pics, the boxes tell me to update my Photobucket acct., etc..

Something I need to do?





zckry

New Member
Joined
July 8, 2017
Messages
5
Reaction score
2
City, State
Austin, Texas
Year, Model & Trim Level
2015 Ford Explorer (Base)
I still get the pop up boxes instead of pics, the boxes tell me to update my Photobucket acct., etc..

Something I need to do?
I'm not the OP so I can't change his photos.
You'll have to "click to expand" my post up there ^^





Eltee

Elite Explorer
Joined
September 16, 2007
Messages
332
Reaction score
133
Location
West of the Rockies
City, State
West Coast USA
Year, Model & Trim Level
2013 Explorer XLT
4WD
I'm not the OP so I can't change his photos.
You'll have to "click to expand" my post up there ^^
GOT IT, many thanks. The first week I had my Exp I relied heavily on this excellent tutorial with pics to remove my original grille and replace it with a Sport grille. I managed to get my original out without damage and sold it within 72 hours since it had all the tabs, no cracks, etc.

Anyway, thanks for reposting the pics.





Mr_Fruffles

Elite Explorer
Joined
November 15, 2016
Messages
80
Reaction score
6
Location
Denver
City, State
Denver, CO from Tinley Park, IL
Year, Model & Trim Level
2015 Ford Explorer XLT
Callsign
Mr_Fruffles
can we get the images reloaded in the instructions?





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
28,158
Reaction score
1,680
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
can we get the images reloaded in the instructions?
If you are referring to post #1 then I think you're out of luck. That member was last on here March 31, 2015.

Peter





Roderick112

New Member
Joined
July 4, 2015
Messages
11
Reaction score
0
City, State
Florida
Year, Model & Trim Level
2016 Ford Explorer XLT
hey guys,

looks like this will be my first post since 2015.. :)

In short, I have a 2016 Ford Explorer XLT and got a black grill for xmas to replace the original one. After searching this forum I could not find any specific instruction for a 2016 and up and I was hoping these excellent instructions would help me.

After going thru the different steps, it pretty much stopped after Step 1 for me. Unfortunately, on the 2016 model, it is required to have your whole bumper removed in order to remove and replace the grill...

I will do my best to describe the various steps I completed performing the replacement. I hope the write-up will help others who are planning on doing the same on a 2016 and up and give them less of a head-ache while doing so...

Step 1; Follow step 1 above by opening the hood and removing the upper plate. Same number of bolts etc. From here on the instructions are a bit different.
Step 2; You will have to remove 7 bolts on the inside of the wheel well plus additional plastic rivet fastener screw push pins. There are two of these push pins behind the tire at the bottom, a few on the left side of the wheel and above. It is not required to remove all of them all around the wheel well. I also turned my left wheel all the way to the left for easy access while working on the left front wheel (and vice versa).
Step 3; At the bottom of the car / wheel well there is a plastic piece that is held in place by 3 bolts. Remove these 3 bolts. You will have to slide under the car to actually see the 3 bolts.
Step 4; Once you have removed the bolts inside the wheel well, under the car and removed some of the push pins, you should be able to lower your plastic wheel well and let it sit on top of your tire. This will give you "access" to 3 tricky bolts that bolt the plastic bumper to the fender.
Step 3; Now this is the fun part. For me, removing these 3 bolts was a huge pain due to lack of access. However, it is required to remove the 3 bolts because these bolts attach the bumper to the fender. You will only have access to these 3 bolts via the wheel well you just lowered. You can actually see the bolts through a small "window" next to your headlight unit. This helped me locate the bolts.
Step 4; After you removed the 3 bolts, you will have to perform the same steps on the other side of the car.
Step 5; Additionally, underneath the car in the center of the bumper, there are 3 additional bolts you will have to remove. These 3 bolts attach the bumper to the frame of the car.
Step 6; Once you removed all the bolts and pins on both sides, including the 3 tricky bolts on the left side and the 3 tricky bolts on the right side that attach the bumper to the fender and the extra bolts under the car you can pull back the whole bumper with grill.
Step 7; For me, there was only one electrical plug on the right side of the bumper (looking towards the car) which I unplugged and I was able to put the front bumper on the ground. Make sure to put it on a blanket or so to prevent it from scratching...
Step 8; At this point you have full access to the grill and its "wonderful" clips... on the inside of the bumper there is a cover that you will have to remove first and you will also have to unplug the cable than runs from left to right on the inside of the bumper. There is also a small sensor in the center on the inside which you will have to remove first. Now you can remove the actual grill.
Step 9; After you were able to remove the original grill (without breaking any clips) its very easy to install the new grill. Just align the grill on the bumper and its clips and push them in.
Step 10; At this point, with the new grill installed onto the bumper, just reverse the process to reinstall and you are done.

I have some pictures but I am trying to figure out how to upload those..I will get these added to the post as soon as possible.

Like I said, I hope this will help anyone of you with a 2016 and up Explorer and are planning on replacing the original grill.





JasonB13

New Member
Joined
October 20, 2018
Messages
10
Reaction score
1
City, State
PA
Year, Model & Trim Level
2014 Explorer base model
before I knew about this site I looked on youtube for the how-to,I pulled my chrome grill off but chose semi-gloss spray paint instead of the dip a friend did his Dodge charger and his seems to be a dust magnet. I left the 2 chrome strips and blacked out the grill, love the look of it .outstanding write guys thank you for all the info here





PlatinumExporer2017

New Member
Joined
March 21, 2019
Messages
3
Reaction score
0
Year, Model & Trim Level
2017, Explorer Platinum
Thank you for the additional information as I intend to do this on my 2017 Platinum. However, as I have very little blocks of open time, I'm wondering how much time should I budget for this?

Did this take a few hours, half a day, the whole weekend?

Thanks in advance!

hey guys,

looks like this will be my first post since 2015.. :)

In short, I have a 2016 Ford Explorer XLT and got a black grill for xmas to replace the original one. After searching this forum I could not find any specific instruction for a 2016 and up and I was hoping these excellent instructions would help me.

After going thru the different steps, it pretty much stopped after Step 1 for me. Unfortunately, on the 2016 model, it is required to have your whole bumper removed in order to remove and replace the grill...

I will do my best to describe the various steps I completed performing the replacement. I hope the write-up will help others who are planning on doing the same on a 2016 and up and give them less of a head-ache while doing so...

Step 1; Follow step 1 above by opening the hood and removing the upper plate. Same number of bolts etc. From here on the instructions are a bit different.
Step 2; You will have to remove 7 bolts on the inside of the wheel well plus additional plastic rivet fastener screw push pins. There are two of these push pins behind the tire at the bottom, a few on the left side of the wheel and above. It is not required to remove all of them all around the wheel well. I also turned my left wheel all the way to the left for easy access while working on the left front wheel (and vice versa).
Step 3; At the bottom of the car / wheel well there is a plastic piece that is held in place by 3 bolts. Remove these 3 bolts. You will have to slide under the car to actually see the 3 bolts.
Step 4; Once you have removed the bolts inside the wheel well, under the car and removed some of the push pins, you should be able to lower your plastic wheel well and let it sit on top of your tire. This will give you "access" to 3 tricky bolts that bolt the plastic bumper to the fender.
Step 3; Now this is the fun part. For me, removing these 3 bolts was a huge pain due to lack of access. However, it is required to remove the 3 bolts because these bolts attach the bumper to the fender. You will only have access to these 3 bolts via the wheel well you just lowered. You can actually see the bolts through a small "window" next to your headlight unit. This helped me locate the bolts.
Step 4; After you removed the 3 bolts, you will have to perform the same steps on the other side of the car.
Step 5; Additionally, underneath the car in the center of the bumper, there are 3 additional bolts you will have to remove. These 3 bolts attach the bumper to the frame of the car.
Step 6; Once you removed all the bolts and pins on both sides, including the 3 tricky bolts on the left side and the 3 tricky bolts on the right side that attach the bumper to the fender and the extra bolts under the car you can pull back the whole bumper with grill.
Step 7; For me, there was only one electrical plug on the right side of the bumper (looking towards the car) which I unplugged and I was able to put the front bumper on the ground. Make sure to put it on a blanket or so to prevent it from scratching...
Step 8; At this point you have full access to the grill and its "wonderful" clips... on the inside of the bumper there is a cover that you will have to remove first and you will also have to unplug the cable than runs from left to right on the inside of the bumper. There is also a small sensor in the center on the inside which you will have to remove first. Now you can remove the actual grill.
Step 9; After you were able to remove the original grill (without breaking any clips) its very easy to install the new grill. Just align the grill on the bumper and its clips and push them in.
Step 10; At this point, with the new grill installed onto the bumper, just reverse the process to reinstall and you are done.

I have some pictures but I am trying to figure out how to upload those..I will get these added to the post as soon as possible.

Like I said, I hope this will help anyone of you with a 2016 and up Explorer and are planning on replacing the original grill.





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
28,158
Reaction score
1,680
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
^^ Welcome to the Forum.:wave:

Peter





Eltee

Elite Explorer
Joined
September 16, 2007
Messages
332
Reaction score
133
Location
West of the Rockies
City, State
West Coast USA
Year, Model & Trim Level
2013 Explorer XLT
4WD
Thank you for the additional information as I intend to do this on my 2017 Platinum. However, as I have very little blocks of open time, I'm wondering how much time should I budget for this?

Did this take a few hours, half a day, the whole weekend?

Thanks in advance!

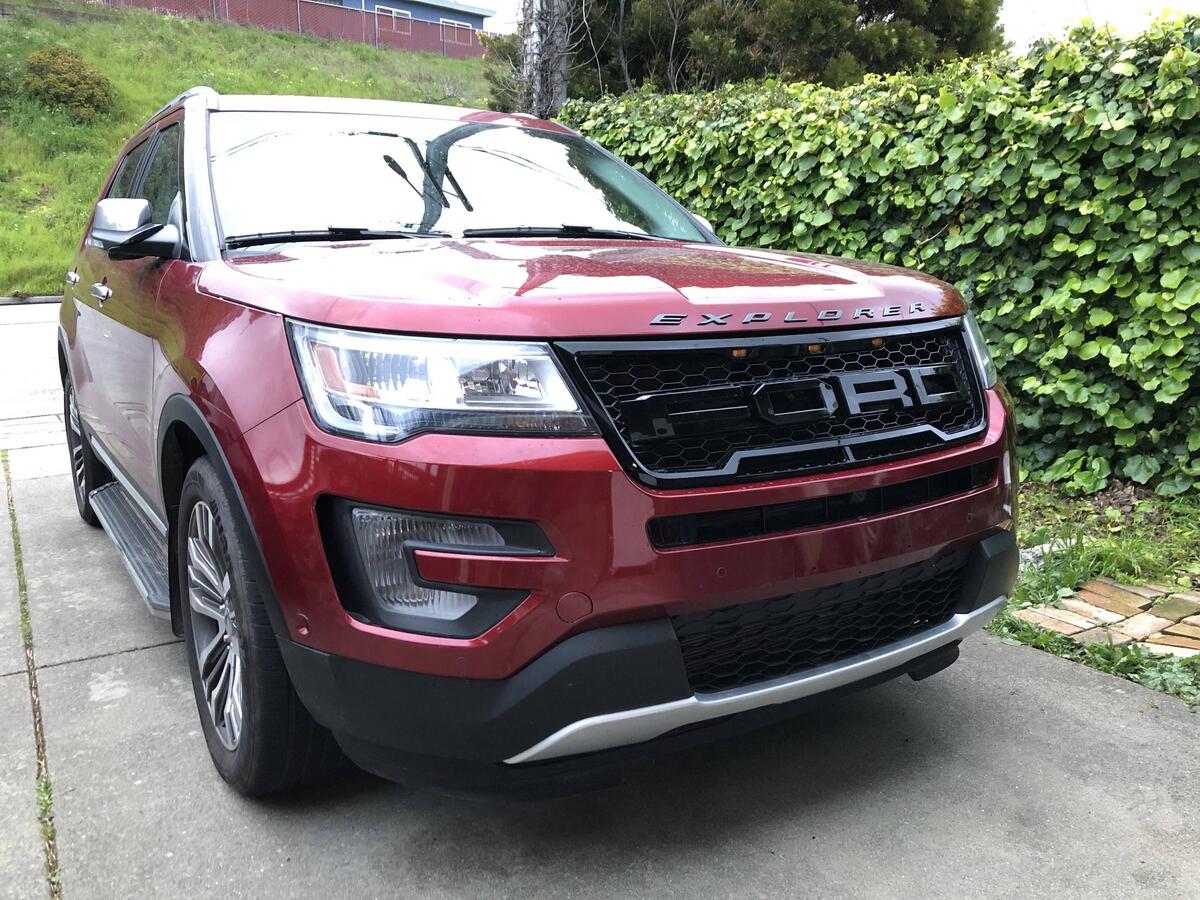

With the help of an agile teenager we swapped out the grille on my 2013 XLT in under 2 hours. The hardest part was getting at a couple of the retaining bolts that were in tight areas ... hence the agile teenager. No problems.





PlatinumExporer2017

New Member
Joined
March 21, 2019
Messages
3
Reaction score
0
Year, Model & Trim Level
2017, Explorer Platinum
With the help of an agile teenager we swapped out the grille on my 2013 XLT in under 2 hours. The hardest part was getting at a couple of the retaining bolts that were in tight areas ... hence the agile teenager. No problems.
Okay, so I did this myself, but it took way longer than a couple hours. Probably because of the constant interruption of my two 6 year old twins. But the good news is I successfully swapped the grill and hooked up the LEDs.








narcanony18Platinum

New Member
Joined
January 20, 2019
Messages
33
Reaction score
1
City, State
Brighton, CO
Year, Model & Trim Level
2018 Explorer Platinum
All of these grills look great and I am looking to plastidip mine soon. I just went out to get a better look and it seems the Platinum grill is solid with airflow only coming from around the grill itself. I'm thinking it could be dipped without removing the grill at all. Anyone with a Platinum grill done this or can give some input into this theory?

Maybe @PlatinumExplorer2017 above can confirm it is solid since it looks like the OEM grill was completely removed.





PlatinumExporer2017

New Member
Joined
March 21, 2019
Messages
3
Reaction score
0
Year, Model & Trim Level
2017, Explorer Platinum
All of these grills look great and I am looking to plastidip mine soon. I just went out to get a better look and it seems the Platinum grill is solid with airflow only coming from around the grill itself. I'm thinking it could be dipped without removing the grill at all. Anyone with a Platinum grill done this or can give some input into this theory?

Maybe @PlatinumExplorer2017 above can confirm it is solid since it looks like the OEM grill was completely removed.
Yes, it does appear to be mostly solid except two openings








drudis

Member
Joined
December 21, 2008
Messages
91
Reaction score
14
City, State
Livonia (Metro-Detroit)
Year, Model & Trim Level
2016 Explorer Sport








BigDaddyret

New Member
Joined
April 26, 2019
Messages
1
Reaction score
0
City, State
Woolwich, Maine
Year, Model & Trim Level
2015 Ford Explorer XLT
So after reading many many threads asking the same thing about how to remove the grill on a 2011+ Explorer I got the gist of it and tackled it myself.

I completed the plasti dip of my grill but forgot to take pictures along the way so I went back and removed the grill AGAIN and took some pictures along the way.

This is to help supplement the many other grill removal threads out there and I hope it helps.

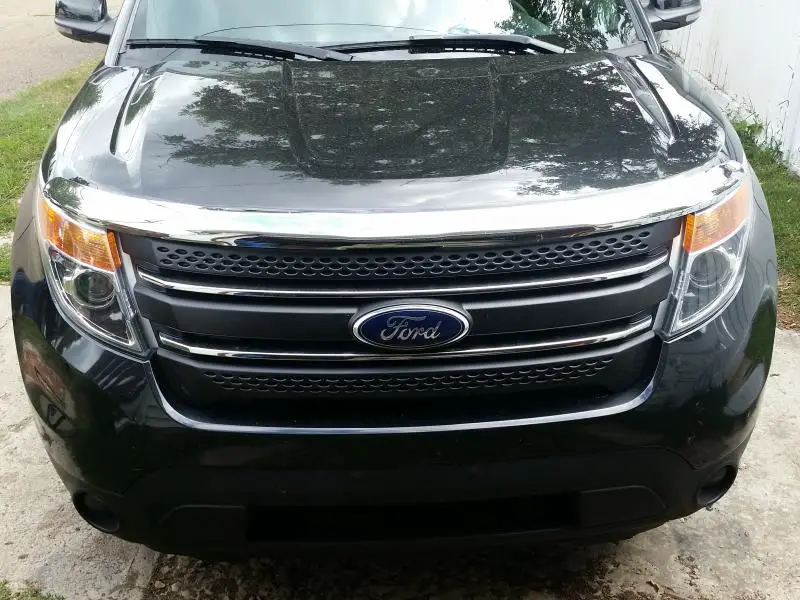

Front Grill

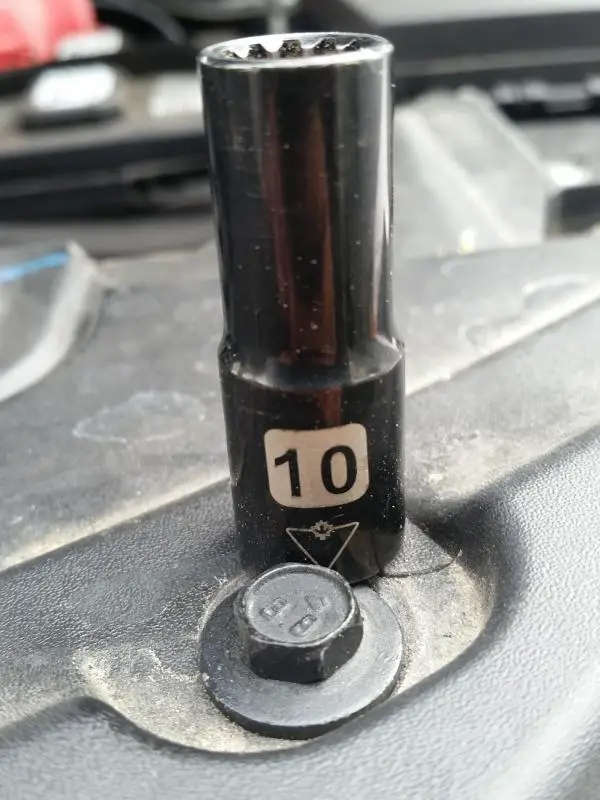

Step 1 - Open Hood, get 10mm Socket and small flat screwdriver

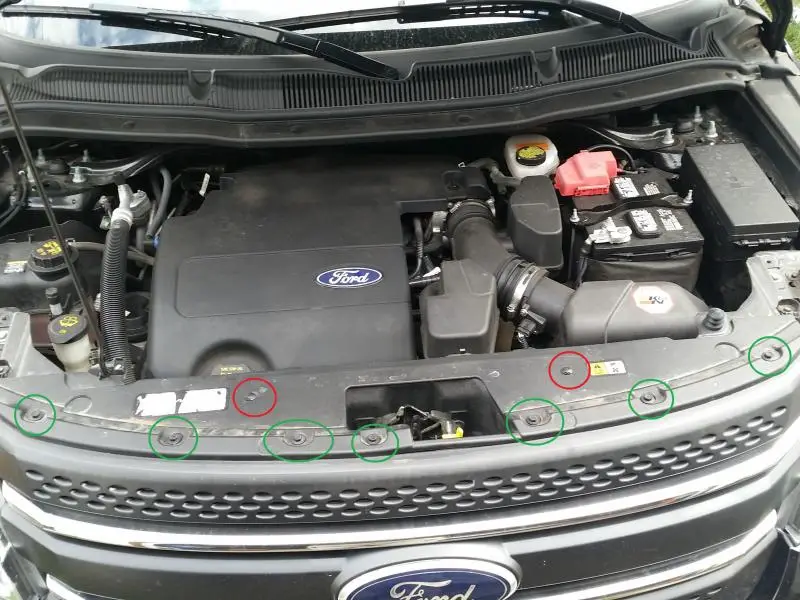

Remove SEVEN (7) of the 10 mm bolts circled in GREEN and the TWO (2) push rivet fasteners circled in RED

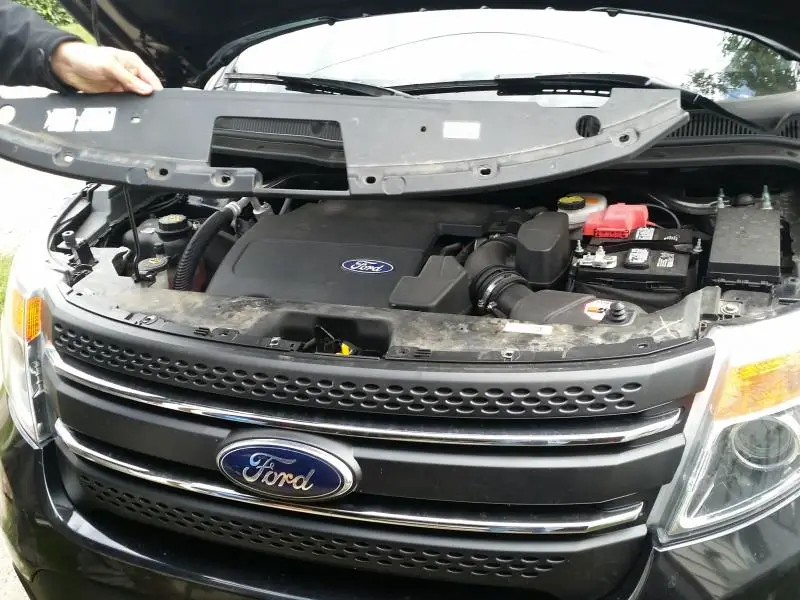

The top plastic cover then should come off freely

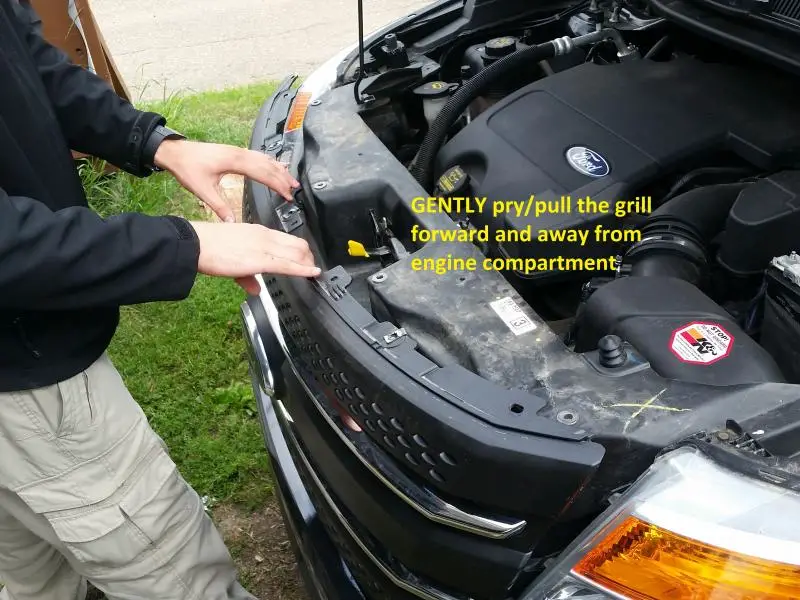

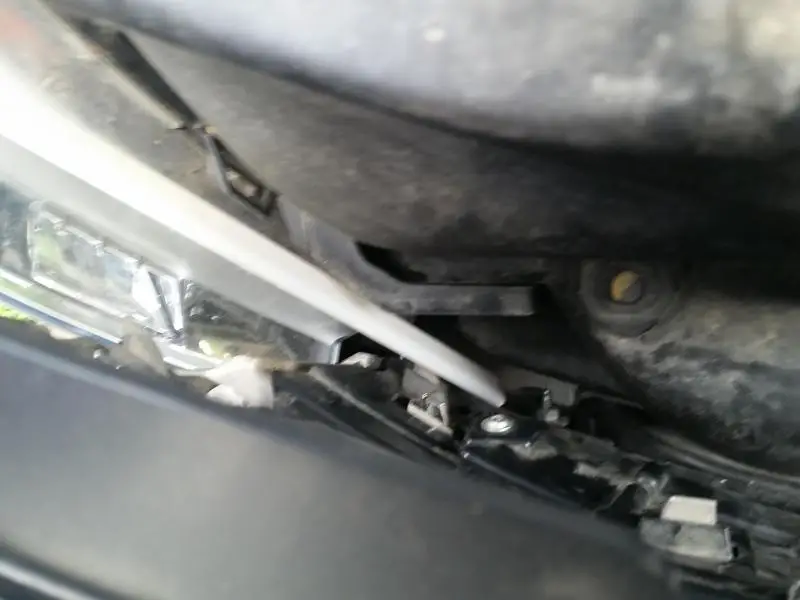

Step 2 - VERY GENTLY pry the grill away from the engine compartment and tilt it forward to expose the FOUR (4) very tricky nuts (10mm). TWO (2) are near the middle, and are the easier of the 4. The other TWO (2) are down by the headlights and are VERY tricky/hard to remove

You can see the back side of the bolt, which has the nut on it, at the tips of my fingers. This is one of the center ones.

Just above the White pointer stick (very technical) is the back of the bolt showing the nut near the passenger side headlight.

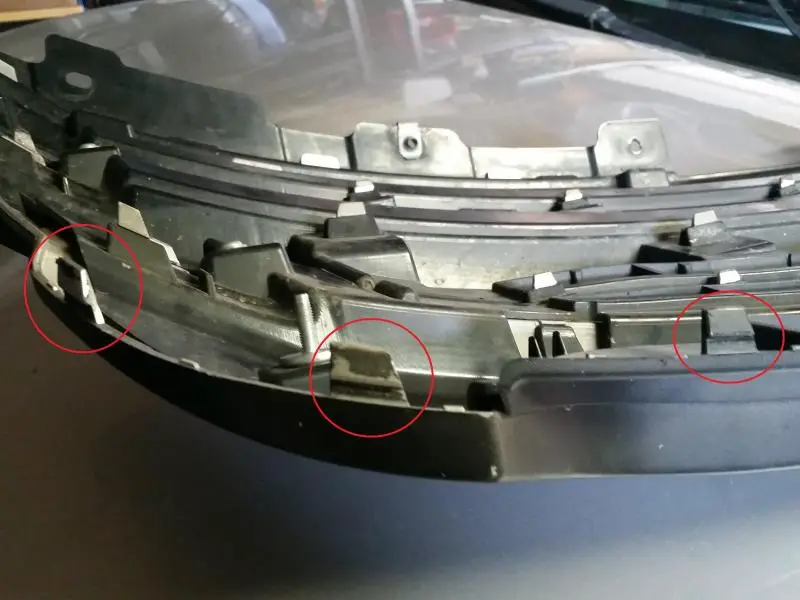

Step 3 - Remove the grill

This can be very tricky so TAKE YOUR TIME

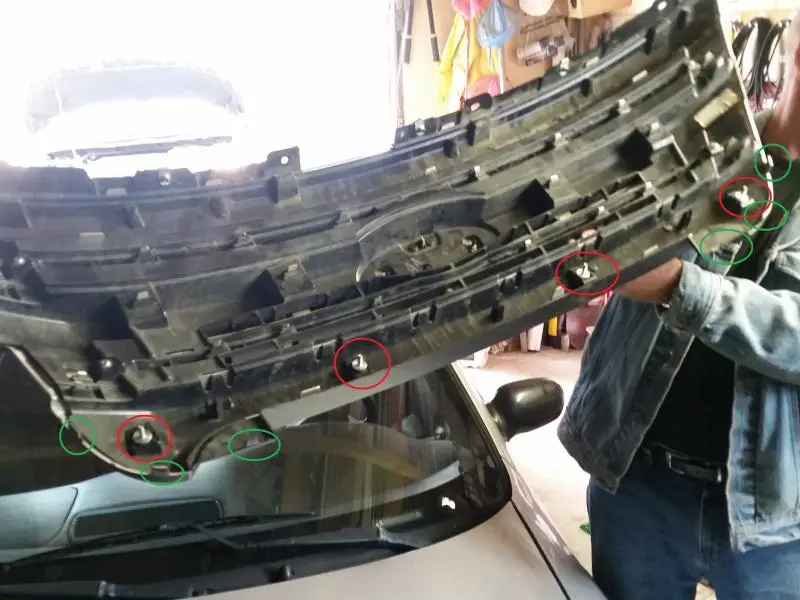

Seen here is the back of the grill, circled in RED are the FOUR (4) bolts that had the nuts on them. Circled in GREEN are the SIX (6) clips holding the bumper in place. Careful, I broke one doing this write up.

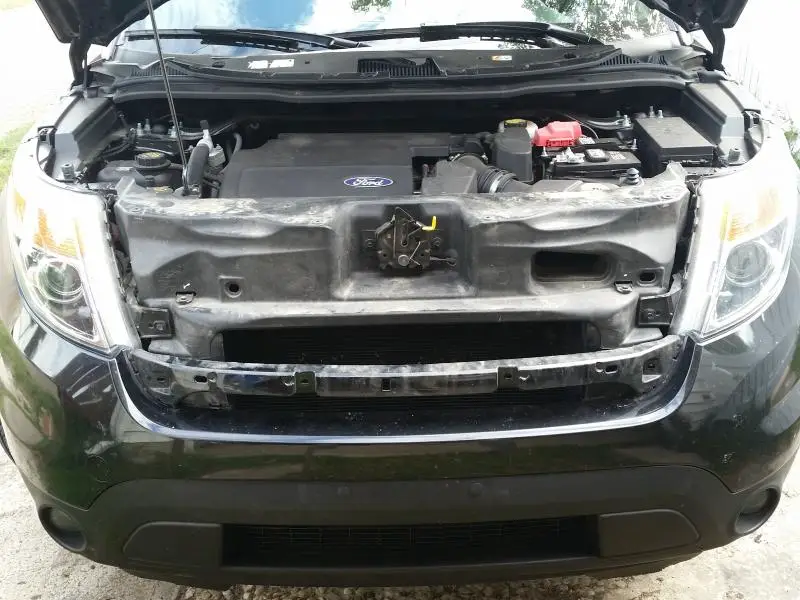

Grill removed -



Reverse the process to reinstall,

Hope this helps!!!
Thank you very much! I will tackle it this weekend!!





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
28,158
Reaction score
1,680
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3




Thread starter Similar threads Forum Replies Date
S Raptor Grille for Ford Explorer 2011-2015 Modified 2011- 2019 Explorers - Tuning & Mods 14
D Grille Interchange 2016/17 with 2011/15 Modified 2011- 2019 Explorers - Tuning & Mods 9
T pic of silver 2011 and up explorer with black grille ? Modified 2011- 2019 Explorers - Tuning & Mods 21
C Custom grille for a 2011 Explorer. Modified 2011- 2019 Explorers - Tuning & Mods 31
J Tow/Haul Mode 2011 Explorer without tow package Modified 2011- 2019 Explorers - Tuning & Mods 3
A 2011 XLT HD radio upgrade Modified 2011- 2019 Explorers - Tuning & Mods 1
TJ@Steeda Steeda New Product Release: Steeda F-150/Explorer Pro-Flow Blow-Off Valve Adapter (2011-2019) Modified 2011- 2019 Explorers - Tuning & Mods 1
C 2017-18 sport rims on 2011-2015? Picture? Modified 2011- 2019 Explorers - Tuning & Mods 2
K Thinkware F750 front & rear dashcam hardwire install (Ford Explorer 2011-2017) Modified 2011- 2019 Explorers - Tuning & Mods 43
B customising headlight housings for 2011+ explorers Modified 2011- 2019 Explorers - Tuning & Mods 4
K 2011 3 inch lift kit Modified 2011- 2019 Explorers - Tuning & Mods 0
B 2011 Lifted XLT Project Modified 2011- 2019 Explorers - Tuning & Mods 42
Q Front Tweeter replacement? 2011 XLT w/202A Modified 2011- 2019 Explorers - Tuning & Mods 8
S 2016 Roof Rails on 2011-2015? Modified 2011- 2019 Explorers - Tuning & Mods 23
Y Installing OEM Subwoofer 2011 XLT Modified 2011- 2019 Explorers - Tuning & Mods 2
D 2011 Lifted with BFG TA/KO's Modified 2011- 2019 Explorers - Tuning & Mods 45
D 2011 explore tire size Modified 2011- 2019 Explorers - Tuning & Mods 2
Rick How to: Install Traxda 2011 - 2015 Ford Explorer Lift Kit - Video Modified 2011- 2019 Explorers - Tuning & Mods 2
J New Member 2011 Limited Modified 2011- 2019 Explorers - Tuning & Mods 2
R 2011 Explorer on 245/70R17s Modified 2011- 2019 Explorers - Tuning & Mods 9
K 2011 Explorer XLT (My Way) Modified 2011- 2019 Explorers - Tuning & Mods 11
S Has anybody ran 20 x 10 wheels on a 2011-up? Modified 2011- 2019 Explorers - Tuning & Mods 2
W Vandalized Explorer 2011 Modified 2011- 2019 Explorers - Tuning & Mods 2
A 2011 Explorer brakes Modified 2011- 2019 Explorers - Tuning & Mods 4
Z 2011-2014 chrome explorer door handles Modified 2011- 2019 Explorers - Tuning & Mods 4
P 2011 Ford Explorer CEL after CAI install Modified 2011- 2019 Explorers - Tuning & Mods 4
S My Ford Explorer 2011 modification !! Modified 2011- 2019 Explorers - Tuning & Mods 16
W 2011 FORD EXPLORER LED Lights from carid? Modified 2011- 2019 Explorers - Tuning & Mods 4
C Explorer 2011 - HID Headlight Issues Modified 2011- 2019 Explorers - Tuning & Mods 5
J 2011 Explorer XLT Modified 2011- 2019 Explorers - Tuning & Mods 3
S 2011 Explorer amplifier power cable routing. Modified 2011- 2019 Explorers - Tuning & Mods 36
R how much height will the following tires add to the 2011+ explorer Modified 2011- 2019 Explorers - Tuning & Mods 4
S 2011 Explorer XLT side view mirror convex inserts unsafe at night! Options? Modified 2011- 2019 Explorers - Tuning & Mods 4
R Changes to the 2011! NOW WITH PICS Modified 2011- 2019 Explorers - Tuning & Mods 19
B BF All-terrain 285/55/R20 on the 2011 EXP Limited? Modified 2011- 2019 Explorers - Tuning & Mods 32
B 2011 explorer running lights Modified 2011- 2019 Explorers - Tuning & Mods 2
2 2011 Explorer Base Wheel Cover Modification Modified 2011- 2019 Explorers - Tuning & Mods 8
J Mod chip for 2011 explorers Modified 2011- 2019 Explorers - Tuning & Mods 13
M pictures of your 2011-12 black explorer w / upgrades Modified 2011- 2019 Explorers - Tuning & Mods 54
B Cost to paint 2011 EX?? Modified 2011- 2019 Explorers - Tuning & Mods 14
D Help with Retrofit Source light kit for 2011 Explorer Modified 2011- 2019 Explorers - Tuning & Mods 3
S HID Questions fpr Ford Explorer 2011 Ltd Modified 2011- 2019 Explorers - Tuning & Mods 3
T 2011 Explorer Remote starter Wiring Diagram needed Modified 2011- 2019 Explorers - Tuning & Mods 2
R question about headlamps on 2011 EX Modified 2011- 2019 Explorers - Tuning & Mods 4
A 2011+ owners - The SEMA Show is looking for a few good (modified) Explorers Modified 2011- 2019 Explorers - Tuning & Mods 12
T 2011 Explorer Aries Bull Bar and Tube Steps installed Modified 2011- 2019 Explorers - Tuning & Mods 44
R Groupbuy: Magnaflow Catback (Part No. 15467) for 2011 & 2012 Explorer 3.5 V6 Modified 2011- 2019 Explorers - Tuning & Mods 44
T What have you added to your 2011 Ford Explorer since you picked it up? Modified 2011- 2019 Explorers - Tuning & Mods 72
M 2011 vs 2012 Ordering Options Modified 2011- 2019 Explorers - Tuning & Mods 1
M Class III bolt on hitch for 2011 Modified 2011- 2019 Explorers - Tuning & Mods 13

Similar threads

Top
