How to: 2011+ Grille Removal with pictures


Drako99

New Member
Joined
August 5, 2014
Messages
27
Reaction score
3
City, State
Edmonton, AB
Year, Model & Trim Level
2013 Explorer XLT
So after reading many many threads asking the same thing about how to remove the grill on a 2011+ Explorer I got the gist of it and tackled it myself.

I completed the plasti dip of my grill but forgot to take pictures along the way so I went back and removed the grill AGAIN and took some pictures along the way.

This is to help supplement the many other grill removal threads out there and I hope it helps.


Front Grille


Step 1 - Open Hood, get 10mm Socket and small flat screwdriver
Remove SEVEN (7) of the 10 mm bolts circled in GREEN and the TWO (2) push rivet fasteners circled in RED




The top plastic cover then should come off freely

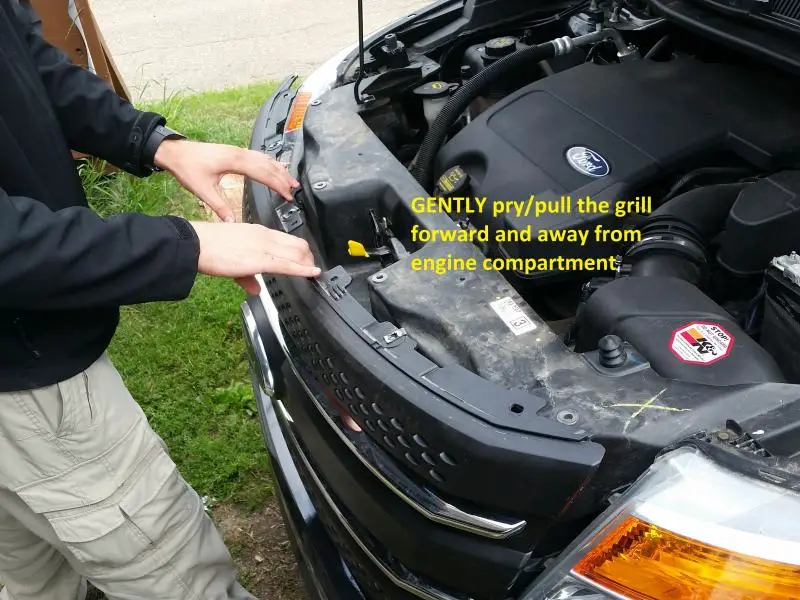

Step 2 - VERY GENTLY pry the grille away from the engine compartment and tilt it forward to expose the FOUR (4) very tricky nuts (10mm). TWO (2) are near the middle, and are the easier of the 4. The other TWO (2) are down by the headlights and are VERY tricky/hard to remove

You can see the back side of the bolt, which has the nut on it, at the tips of my fingers. This is one of the center ones.

Just above the White pointer stick (very technical) is the back of the bolt showing the nut near the passenger side headlight.


Step 3 - Remove the grille

This can be very tricky so TAKE YOUR TIME
Seen here is the back of the grill, circled in RED are the FOUR (4) bolts that had the nuts on them. Circled in GREEN are the SIX (6) clips holding the bumper in place. Careful, I broke one doing this write up.

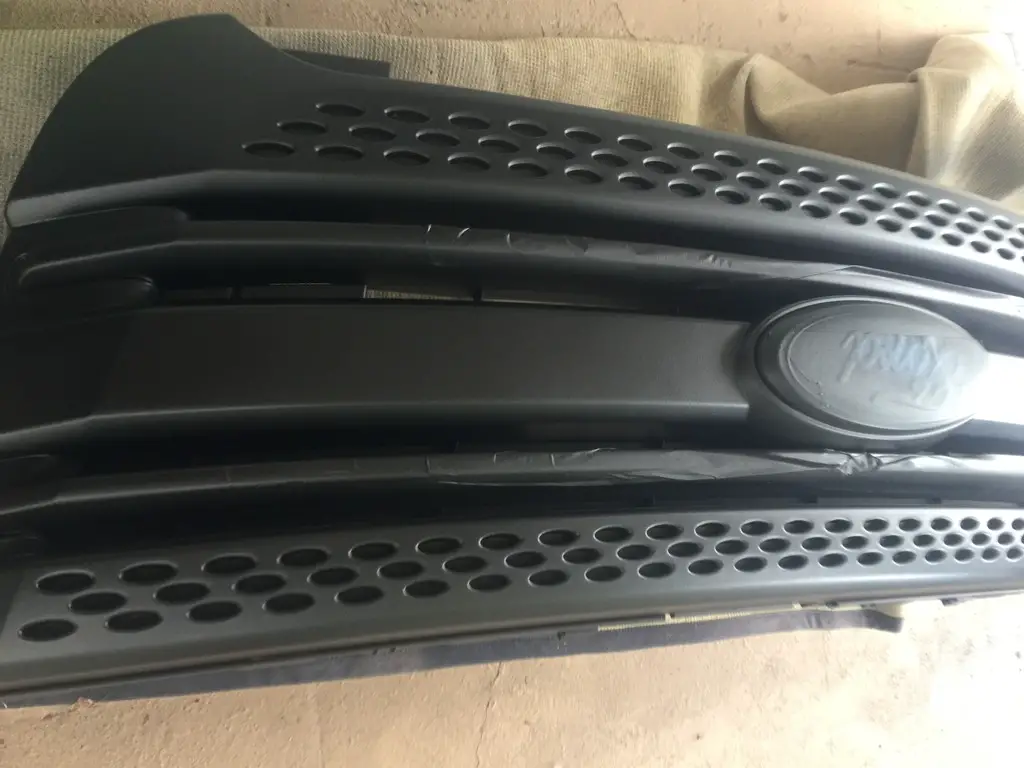

Grilel removed -



Reverse the process to reinstall,

Hope this helps!!!

Last edited:


Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
32,103
Reaction score
1,013
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
Drako, I just split your post off into it's own thread and made it a sticky post.

I also set you up with a 6 month Elite membership for your very informative article.:thumbsup:





jsn13

New Member
Joined
October 1, 2014
Messages
4
Reaction score
0
Year, Model & Trim Level
2013
Thanks

Last edited:




nrochwal

New Member
Joined
October 8, 2014
Messages
1
Reaction score
0
Year, Model & Trim Level
2013 explorer
Turned out awesome!

How many cans of plastidip did you use on the grille? Did you use the glossifier?





Drako99

New Member
Joined
August 5, 2014
Messages
27
Reaction score
3
City, State
Edmonton, AB
Year, Model & Trim Level
2013 Explorer XLT
I used 1.5 cans. No glossifier





MikeCallery

Elite Explorer
Joined
March 17, 2011
Messages
286
Reaction score
2
Year, Model & Trim Level
'11 XLT Tri-Coat
Great article on removing the grille, thank you.

I am wondering if anyone has ever played with the air intake and what the implications would be of enlarging it?





jalmario15

New Member
Joined
August 22, 2013
Messages
1
Reaction score
0
Year, Model & Trim Level
2013
Up for this done with my diy
many thanks to the thread starter





Mondak

New Member
Joined
July 20, 2012
Messages
30
Reaction score
0
City, State
Carlsbad, CA
Year, Model & Trim Level
2013 Explorer XLT 4wd
This is fantastic. Any information about the plastidip process itself you want to impart?

Either way, great work.





Zach7

New Member
Joined
June 14, 2015
Messages
36
Reaction score
0
City, State
Great NW
Year, Model & Trim Level
2012 Ford Explorer XLT
Great post and pictures for this removal. Thanks!





tektoo2

Member
Joined
November 6, 2008
Messages
87
Reaction score
9
City, State
Maplewood NJ
Year, Model & Trim Level
2013 XLT 3.5 V6 4x4
Great write up! i did the same to my '13

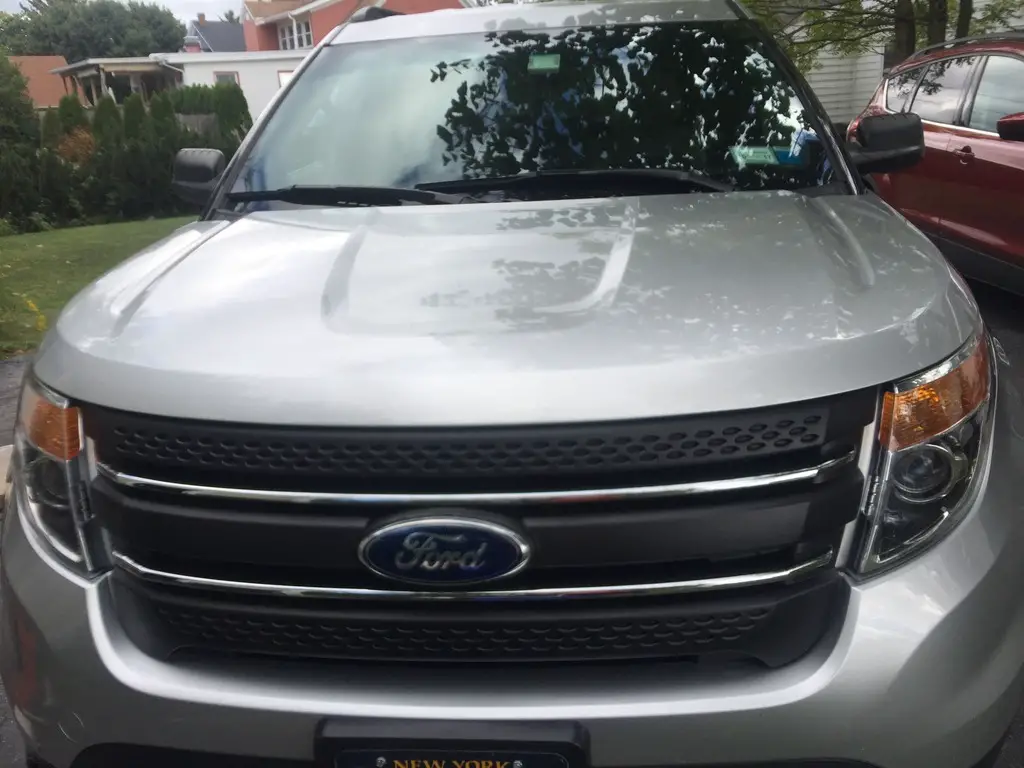

This is my end result:


Last edited:




RandyH2

Active Member
Joined
March 28, 2011
Messages
822
Reaction score
17
City, State
MI
Year, Model & Trim Level
'11 Limited AWD
Great post. Thanks for taking the time!





mmartin028

Elite Explorer
Joined
March 5, 2016
Messages
46
Reaction score
6
City, State
Nashville, TN
Year, Model & Trim Level
2015 Explorer XLT
Thanks for the write up and the photos.

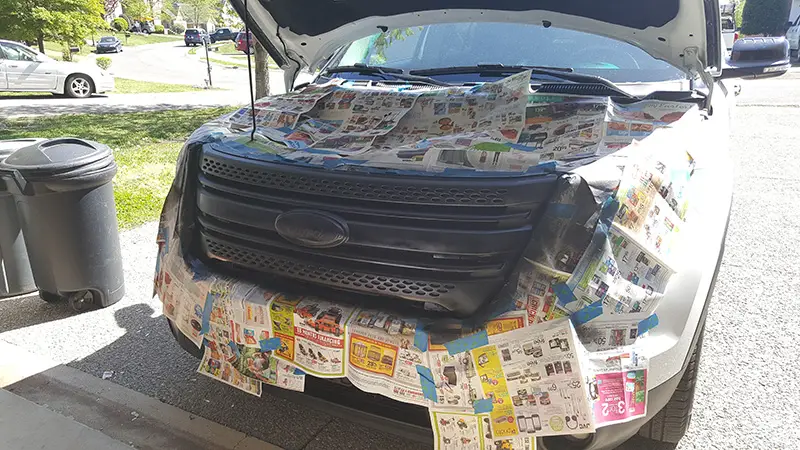

I want to plastidip the grille without taking it off. After removing the top screws and the plastic piece, is it possible to pull the grille forward enough to put a piece of cardboard or something to block the radiator from being painted while painting the grille?
