Intro:
This is not a common build here on this forum, but this build is part of another long term build, that has been going on for 10 years now. I feel it is fitting to share this build here, since so much of it's companion is documented on EF. This thread is as detailed as my patience has allowed. I want to be able to help others that might be searching for methods/ideas, and "how to" for much of the build. I do belong to other Overland forums, and will link this thread from them, to share with others.

About:
This trailer is a short compact, stout, capable, high clearance, Swiss army knife of a camper. It is not a popup camper, nor is it a sleep in hard shell camper. It will offer all the creature comforts those do, but in a little different fashion. This style trailer, makes you enjoy the outdoors. You cook/dine, lounge & hot shower outside, but you sleep inside a roomy insulated roof top tent, 78" off the ground.

The tow rig:

The Black Hole

The entire build for the tow rig, has always been with this build in mind, and it has been extremely difficult to keep that to myself, and why it was built the way it was. It is a purpose build, with a specific objective.

The Objective:
To be the living quarters and storage, for off the beaten path journeys yet to come.
To have everything needed to sustain myself, and a few others, out in the middle of nowhere, only accessible by unpaved trails, such as old mining roads. Hauling all the boondocking gear behind, instead of overloading the vehicle's suspension. To minimize setup and tear down times for camping, and have camping items readily accessible, whenever needed.

The trailer needs to be capable of following wherever the tow rig goes. Matching tires, axle width, and the same, if not more height clearance as the tow rig. Sleeping & shelter for 4 comfortably, sustainable cold food storage, food prep space, gas powered cooking, AC/DC power supply, and hot showers for days at a time, are all the requirements for this build.

Goal:

This is the other half of that long term build plan. I am slow at the building and fabricating process, and this will take about a year to complete. Updates will happen as the build progresses. I have entered the 7th month of the build, and expect another 3-4 months left to get it road worthy at the least. Just like anything I have done, it never ends, and improvements will happen, as I gain experience & knowledge with what works best for me.

Baby steps:

This is the first time I have ever attempted anything like this. I am bound to make mistakes, and corrections/improvements are all but a guarantee. I do have a final vision for what I want this to be, as it has been a thought process for many many years now. Please bear with me as this thread goes. Some items won't make sense until it comes to be. I am not going to tell you how things should be done. I am just sharing how I did things on this build. Agree/disagree, like it or leave it, it's mostly a learning experience by mixing what I know, and what I had to learn, to get things as I want them. Definitely not for everybody. Heck, I know I will change things down the road, as I find ways to improve on it. That is part of the fun!



Why am I building this?
I'm Tired of ground tent camping all my life. Tired of the time it takes to set up & tear down. Tired of all the tedious packing, unpacking, moving things from place to place after every trip. Plus, I don't want a motor home that can't leave the roads.
I plan on getting lost a few times, venturing out to places unknown and unseen. We live in a large, beautifully gifted geographical location on the planet. Our own back yard is filled with amazing spectacles. Places that can only be seen on dirt trails, off the beaten paths, not by roads covered in pavement, and delivery trucks. Exploring into the dark hours of the night, and setting camp in the middle of nowhere, instead of heading back. We can traverse a lot of ground this way.

Kudos:

A few friends helped with this build, and I couldn't have got as far as it is without them. Special thanks to James, Matt, Kurt, Ryan, & Jacob. You guys rock!

A warning from the author:

This thread contains: Long drawn out boring tedious explanations, Dry humor, embarrassing anecdotes, speech in the 3rd person, countless pictures, and some content is for Mature audiences. There is a little for everybody here, but be warned, this is not your typical build thread, and not from your typical builder. I am not responsible for your emotional mood swings, due to reading this material. ;)

Edit: Progress pics as of 10/15/18. Getting closer every day!

Dr washed.jpg

RTT on front pass side full view.jpg


First real use!

Camp set 1.jpg

Camp set 2.jpg

Bat wing awning up.jpg



Current specs:
Main Frame- 12'.5"L x 48"W
Whopping 25" of ground clearance with 35" tires
Fenders- 72" Long x 14.00" Wide tapered to 0.00" in front
Cabin- 48"W x 72"L x 36"H
Overall Width - 76"
Overall Height - 68" Roof Rack lowered - 78" Roof Rack lifted
Overall Height- 80" With RTT stowed - 140" RTT open & rack lifted
Dry weight- 2300#'s

2"x3"x3/16" Steel Tube Frame, with 1 pc center tongue beam from front to rear.
3500 Lb Timbren Axleless Independent suspension
10" Electric brakes
35"x12.5" Goodyear MTR's w/kevlar & matching spare
15"x10" Mickey Thompson black satin aluminum wheels
Lock N Roll off road articulating Hitch
14 Ga steel cabin walls & roof
3/4" Ply floor, stained, sealed, & 5 topcoats of acrylic gloss clear
Commercial 60 Mil Waterproof TPO membrane under belly skin
12 Ga steel Fenders on Sq frame & 2" x 3/16" Round slider tubes
Spare tire mount on cabin front
16 Ga swing out 4'W x 2'D x 24"H Tapered Tongue box
16 Ga Side boxes with Tapered front compartments
Telescoping Roof rack (12") with scissor jack actuation
Two rear 31" BAL C leveling jacks & swivel plate base
Dual 5K swivel weld ring flat plate base Tongue jacks
ARK dual wheel offroad 750 HD Tongue jack
Slider system for hidden Solar panel storage
Dual 11 lb Propane tank storage mounts
Quick Disconnect Water supply
All Stainless & Aluminum hardware, where applicable

Interior:
Front compartment 48"Wx24"Lx36"H
Two side doors, and upper 12 ga shelf with expanded metal rear wall
Rear Compartment 48"Wx48"Lx36"H
3/4" PT wood flooring, custom finish, clear satin marine topcoats.
Tie downs on frame tubes
1-60W Led rear cabin, 3-10w Led front cabin
Wiring plumbed with flex and hard conduit
Split cabin with full rear cabin deck, tie down racks

Power:
Dual Group 31 MAGM deep cycle 110 AH batteries
110 shore
100W Renogy Solar
Charge:
NOCO Marine 110v 20 amp onboard Dual smart charger
30 amp Renogy MPPT Solar charger
140 amp traveling vehicle charge, via smart charger
Soon to come: 40 amp-500 watt DC-DC charger from alternator
Portable Valence 80Ah Lifepo4 Solar Gen w/inverter

Accessories:
4 season 23Zero 73" Walkabout RTT W/ large Annex room - telescopic ladder w/rung pads- Ext shoe bags-Led lights- 3" thick x Ca King mattress w/anti condensation mat.
Oversized high density 3" thick 56" x 96" mattress. Cold weather cover, additional secondary rain fly.
Rhino Rack 8.5' Bat Wing 270* Wrap around Awning (2019 version)
5Liter - 1.5 gpm - On demand instant hot water heater
ARB/ViAir 150 psi onboard air system
Ready Welder II

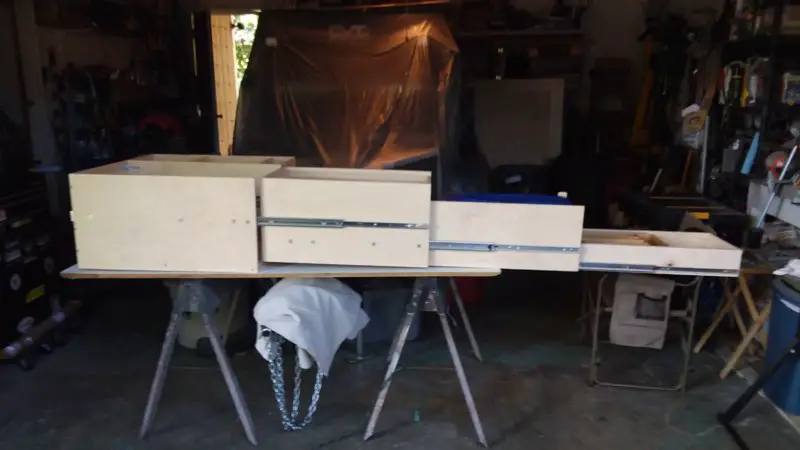

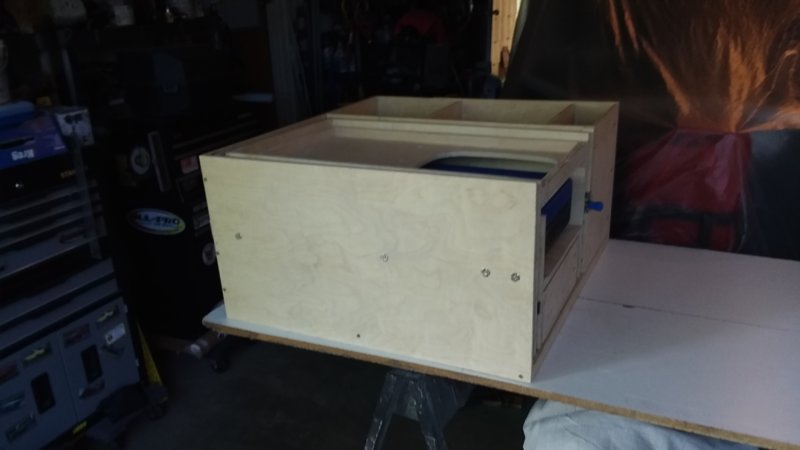

Slide out Kitchen/storage- 1/2" Baltic Birch, sealed/stained/clear coats 350# slides
ICECO VL45 portable fridge/freezer - AC/DC
Custom powder coated locking Fridge slide out.
Wireless controlled winch (upper roof rack storage, rear bumper hitch receiver)
Rear door interior fold down table
Dual 11 lb propane tanks (rear fender mounted)
Marine control panel, rocker switches w/circuit breakers, 12v battery meter, Aux outlets
30 gallon fresh water tank & 3.0 gpm instant on pump w/ inline filter
Trailer Harness Connection lock box
First Aid field kit (large)
Dual Fire Extinguisher's

LED Lighting:
Front- 2-45w dual pods w/amber fogs
Sides- 4-18w pods
Rock- 4-10w blue IP 67
Cabin- 1-60w 3 setting round rear compartment ceiling fixture, 3-10w pods front compartment
Tails/brakes/turns- 30w 6" oval
Reverse- 30w 6" oval
Markers- 3w red & amber
7 pin RV trailer harness & J box

Tongue box build:
Full box tube frame & 16 ga sheet, w/plate and tube gussets
Dual battery mount tray
Red oak Shelf for Noco dual 20 amp charger, 20amp solar charger, 12v systems (3) circuit breakers, fuse panel, main power cutoff switch
3 space divider walls & front storage shelf
Gas lift struts, 2"x 3/16" thick Aluminum lid hinge
Dual SS locking paddle latch handles
Dual 4" SS louvered vents w/bug screens
Pass thru power cord outlet with weatherproof door hatch
NOCO 110v wall power plug w/ weatherproof cover
2k locking latch to frame, & dual 7/16" clevis pins to frame
5/8" spindle for swivel action, for spare tire removal/security

Paint:
Frame- Chassis saver gloss black
Cabin Exterior- Acid etch primer & Single stage Gloss Black automotive 2k urethane
Cabin Interior- SW DTM Gloss White
Side & T boxes, All doors- Urethane Epoxy primer & Single stage Gloss Black 2k Urethane
Roof rack- Chassis saver gloss black
Fenders-Acid etch primer underneath & Urethane base topside, Black Raptor liner w/grip additive

Trim: Aluminum



Lots to add to that list up there, and I will as the build progresses. :)

I hope you enjoy the thread, as much as I have enjoyed the build itself.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Previously on................. Night Shade !


The spare tire was fit snugly between the cabin wall and the Tongue box for storage, and bolted/locked, to a mount on the wall. The Tongue box was made to swing out on a pivot, to access the tire.

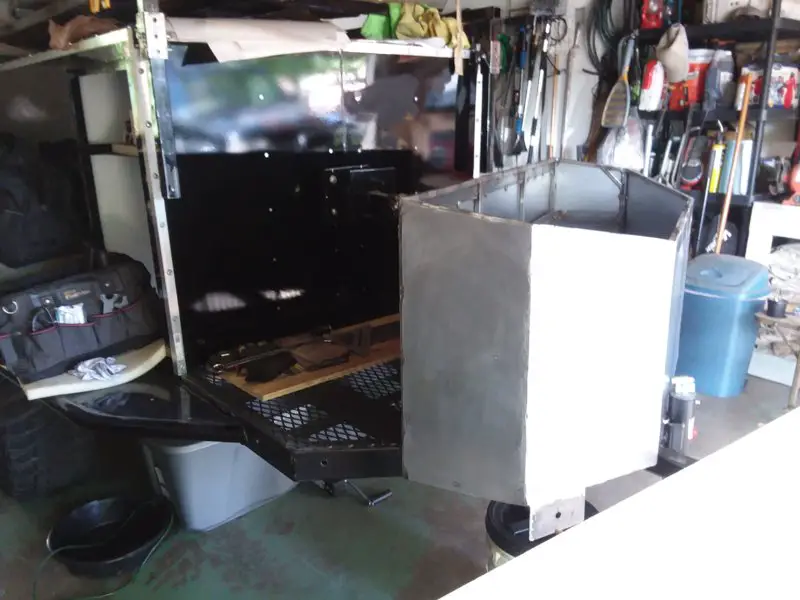

box on pivot out front view.jpg

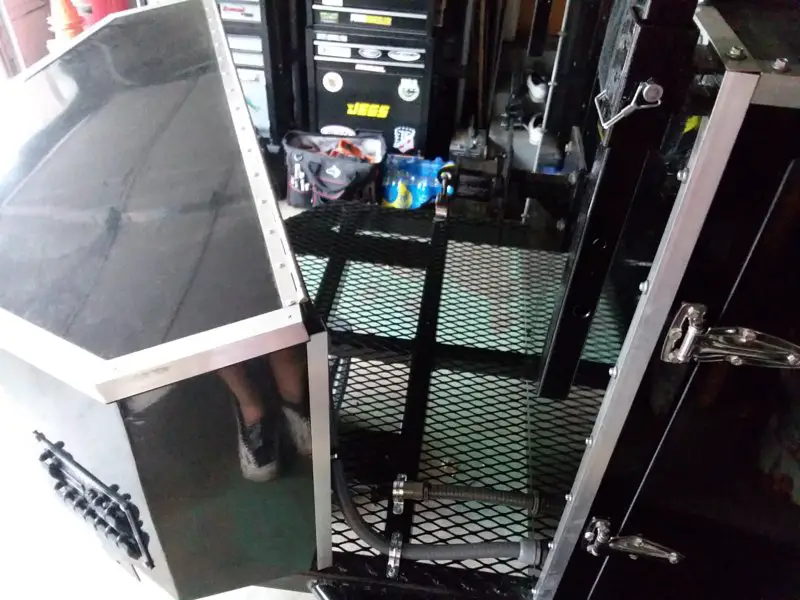

T-box swung Dr side.jpg


The box swings out far enough to cross over the main center beam in front of it, and needs a clear path in order to do so. Right now, with the Jack placement, it acts as a stop for the box when deployed. That's as far as the box needs to move to easily remove and install the spare tire.

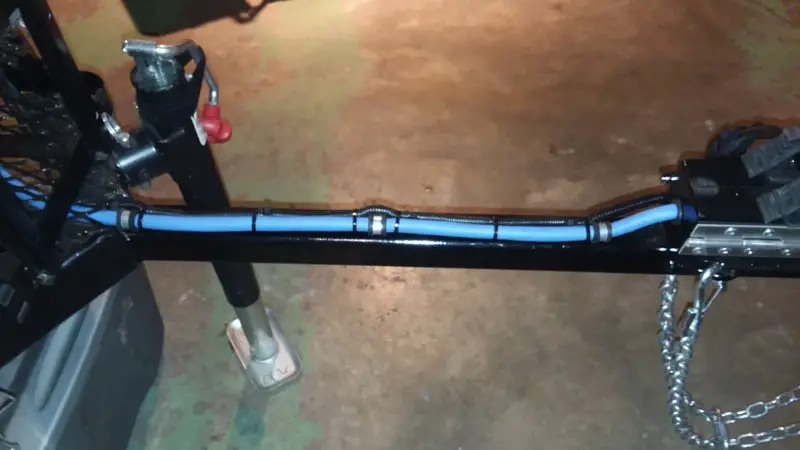

The wire tow harness was installed on top of the center beam, to keep it out of harms way. (Remember, trail use, and pinch points.) It is low enough to allow the T-box to swing over it, but barely. Center beam is 2"x2", while the trailer frame tubes are 2"x3", with a 1/2" exposure, top & bottom. The harness (and battery charge cable) is exposed like this, and I can see others stepping on it to climb over the beam, instead of walking around the vehicle while attached. Myself included.

Silicone jacket harness on.jpg



This brings us to tonight's Episode......


As seen in the preview, just a bunch of random junk not making much sense. All will be revealed, right after this commercial break....





A section of 1-5/8" Super strut was cut into 2 pcs. Mounting tabs was welded on, to bolt it to the center 2" beam. To get the tabs flush, two 1/8" plate squares was welded to the Superstrut on both sides, in 3 locations. After some 1/9" plate was welded to the top to cover the struts bolt holes, a hinge was welded onto both sections on top, making a front & rear section. Rear tabs had 5/16" holes drilled in them, and front tabs got 1/4" holes. The underside had some slots cut into it for weep holes for the J channel. Once it was all welded, it was cleaned, and 2 coats of self etch primer sprayed on.

Harness cover primed.jpg


A few coats of gloss black oil sprayed on, and left to cure for a day.

Harness cover  paint job.jpg


Since the T-box needed the clearance to swing out for spare tire access, that's the reason for the 2 pc with hinge on it. Before the box can swing out, the rear section of this harness cover needs to be lifted up and folded out of the way. Yes, I know, another step to get to the tire, but it only takes a second. Sheesh.....

With the harness clamps removed, and the bolt holes now plugged, the front section is bolted on tight to the 2" center beam. The hinged rear section is held in with a 1/4" x 2.5" Clevis pin. I managed to mark and drill the holes perfectly, and once the pin is in, there is no play, no movement, at all.

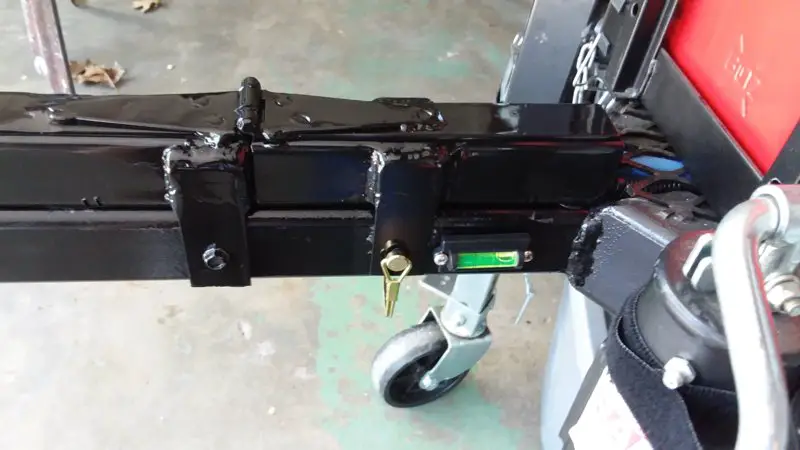

cover hinge.jpg

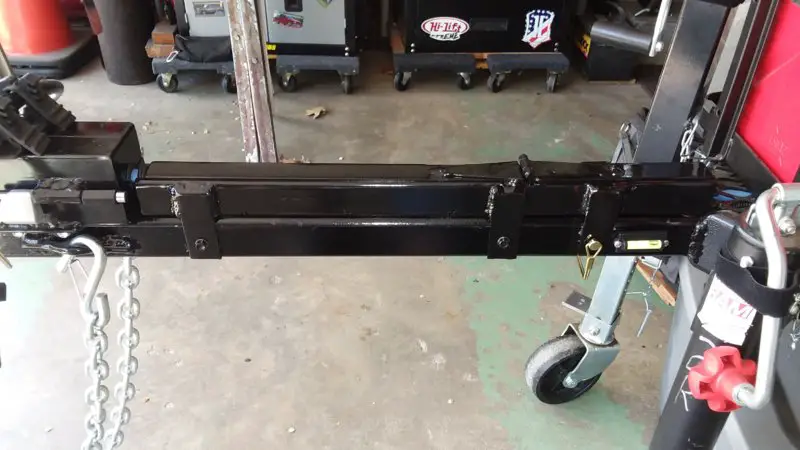

Harness cover installed.jpg


A grommet was added to the cable, and a little of the top plate was left short on purpose for the cable, as it rises to enter the security cog box.
Both the harness and charge cables fit nicely up inside the Superstrut, and are not resting on the 2" center beam any longer.

With the width and design of the Superstrut, it sits squarely on top of the beam along the entire length of it. It can now be walked on, stood on, and items dropped onto it, and the cables are safe and sound.

Testing an idea out here......

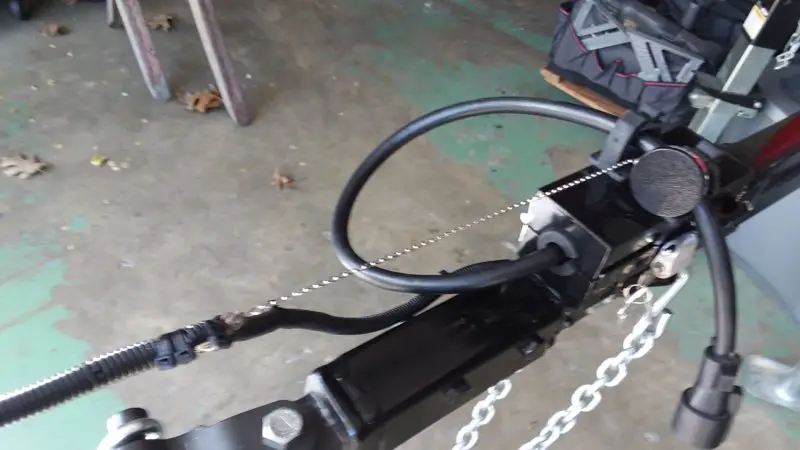

I have a couple of these Stainless chain re tractor devices. These are a little more stout with a heavier working load then the thin cable types. I attached one to the top of the cog box, and then to the out stretched battery charge cable. It will take up the cable slack when connected, and disconnected. Just an idea...

Power cable retractor.jpg


That's it for this weeks episode, Thanks for watching.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Honestly, I thought the harness was secure riding on top of the tongue, but....awesome. Overkill comes in handy while off the beaten path.







It will serve another purpose when the XO off road Jack is installed. The mounting plate on it is about the same height ( bit taller) as these two tubes are. It has 2 bolts over and 2 bolts under to sandwich the tubes.

The tongue beam sits at 25" off the ground. Stepping on it, while stepping over it, and I just wanted to keep it safe. Nothing says kill, better than overkill. Lol







Again, the controls guy says excellent wire work. One thing I’ve learned if there’s a weird, unlikely circumstance to damage your wiring it will absolutely happen. And will definitely happen when you are under the gun for other things.







. One thing I’ve learned if there’s a weird, unlikely circumstance to damage your wiring it will absolutely happen. And will definitely happen when you are under the gun for other things.
So true .... this is why I love my weller shoot had the base since I was a kid been through like 3 heating element's







Broke out the Ready Welder, and put a full 1 lb spool of Lincoln 35 flux wire in it. Made a set of 4 awg wires in case I ever need to use 3 batteries (450 amps) for HD welds. Hooked it all up to be ready for a trail repair. The case is just big enough to hold everything it comes with, and no room for anything else.

So I have a couple of cheap HF welding goggles I was going to use, as they are small for storage, but never really liked the idea of using them. Figured I would find something better down the road.

That day came unexpectedly. I have a client who is a regional manager for Miller welding. I did some Barter work, in exchange for a brand new Miller soft hood mask. It's bigger than goggles, but is small enough to store easier than a conventional mask.

This thing has all the same bells & whistles as it's full size counterpart. Can use with or without the soft hood, as it slips on over it.

Miller mask 1.jpg

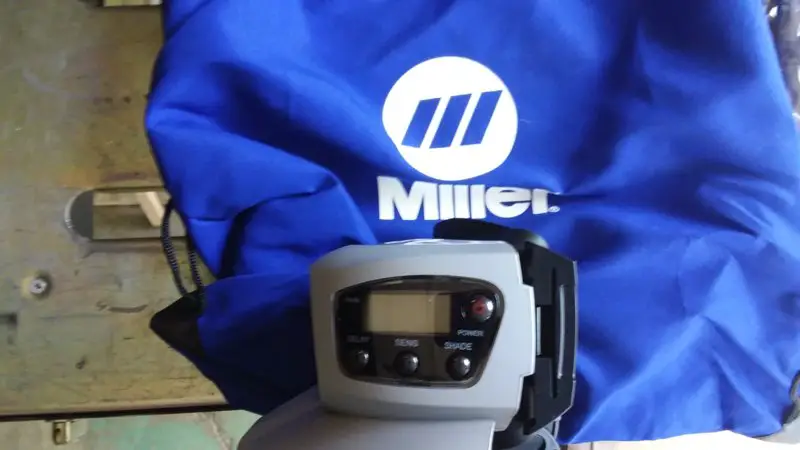

Miller mask 2.jpg


It comes with a storage bag, but I need to find a hard case for it. Storage space is a premium in this trailer. The pelican cases are too bulky, and overkill, so I will be on the hunt for something more fitting for storage.

Bonus from my client....They are sending me the Miller under the hood slim air mask and a good supply of replacement cartridges for it. No more sooty nostrils! lol

Haven't had time or funds for this project lately. Hoping to get back at it asap, but might be some time. Crazy winter, crazy spring weather, has stopped production, which means no extra funds for anything. We are still flooding here, and the area is a mess. Going to take some time for these major rivers to recede, and then the dry out can begin. We are still 10-15' over flood stages all along the rivers, and cresting at least once a week. Funsville.







Hot water heater build Part 1: Storage case and heater install

I bought a couple of 20" Pelican knock off cases a while back. They was on sale for $20/ea, and knew I would find a use for them eventually. I was researching how others have mounted their instant hot water heaters, and seen some had used these cases for storing the water heaters, with some modifications to them. All of these people just bolted the case to the sides of their trailers permanently, which I have no spot to do this. I needed a good way to store the heater, to keep it safe, and also use it. If I wanted to use this case to store the heater, I had to come up with a different way to use it. I did just that, but in this post, we will just go over the box build itself, and talk about the mounting of it in the following post.

For those not familiar with these Pelican style cases...They have a deep side, and a lid side with strong hinges, 4 latches, 2 locking tabs, a water tight lid gasket seal, and a pressure release. Because they are air tight, the pressure inside of them changes with altitude changes. Say you travel in a plane, or drive over mountains for example. In order to open them, you have to turn these knobs to level off the pressure inside. They will suck in, or blow out, then the lid can open. I removed all the pluck foam, and the lid foam for this build, as it is not needed.

The water heater I chose after doing a lot of research, was the Camp Chef HWD5 Triton series. It is a mid size heater out of 3 sizes offered. It is an automatic instant propane hot water heater.
Some specs:
  • 72" shower hose and spray handle
  • 34,000 BTU burner
  • Maximum flow: 1.5 gallons/min - raises water temp 38° F
  • Minimum flow: 0.5 gallon/min - raises water temp 102° F
  • Requires at least 25 PSI water pressure from input hose for proper flow
  • Uses 2 D batteries for ignition (not included)
The operating system:
When you push/pull the handle trigger, it releases pressure, The 3.0 gpm water pump kicks on, water starts flowing, the heaters battery powered igniter sparks the 34k burner, water flows thru the coils, and hot water emerges from the end of the output hose. When you release the handles trigger to stop the water flow, the heater automatically shuts off. The pump will build pressure again, and then shut off. All this takes but a mere second to happen. On initial use, the water sitting in the output hose to the handle will be cold, so best to let it flow for a second before use.

The top of the heater is a large vent where all the hot air escapes. The bottom of the heater is all business. This is where the intake/output water and propane connections are, the drain valve, and the double D battery compartment is. The face has 2 knobs, 1 for temp control, and 1 for water rate flow.

To get this heater to mount inside the case, plus have room to hook all 3 lines up, and close easily, I had to come up with some ideas here to make it all work.

Because it needs... A) Room to install & remove all 3 lines, open the battery compartment, and be able to open/close the drain valve.. B) The top hot air vent needs to be able to be in the open, the heater is installed on the lid of the box. With the heater flat on the lid, the lids lip was in the way of a straight shot at the line connections. To remedy this, I made a couple aluminum 3/4" channel mounts to lift it up higher. To figure out exactly how much space I had between the heater knobs, and the box when closed, I used modeling clay. A block of clay was set on top of a paint stick which sat across both knobs. Closed the box, smashing the clay. Open the box, and measure the clay/stick to get my gap measure. It had 7/8", and thus why the 3/4" channel was used. It leaves a 1/8" gap between the heater and box when closed.

To mount the channels, to the heater, and then to the box lid itself, it was cut to length, then holes marked and drilled for 1/4" SS hardware. Channel is bolted to the heater first, using it's mounting tabs.

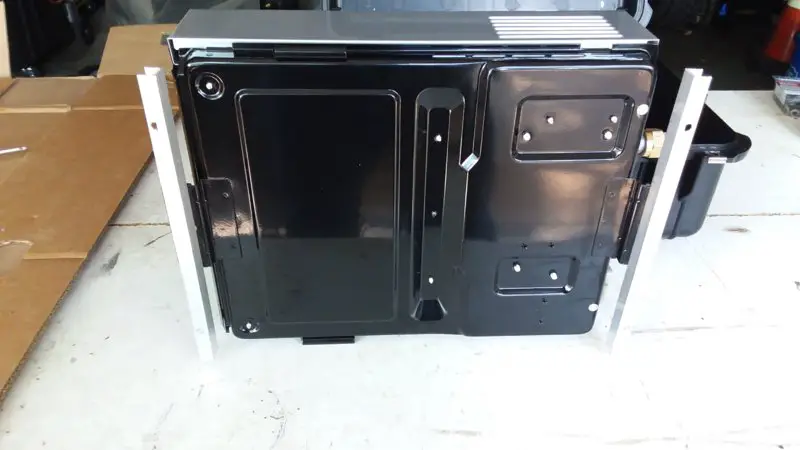

Backside showing bottom mounts.jpg

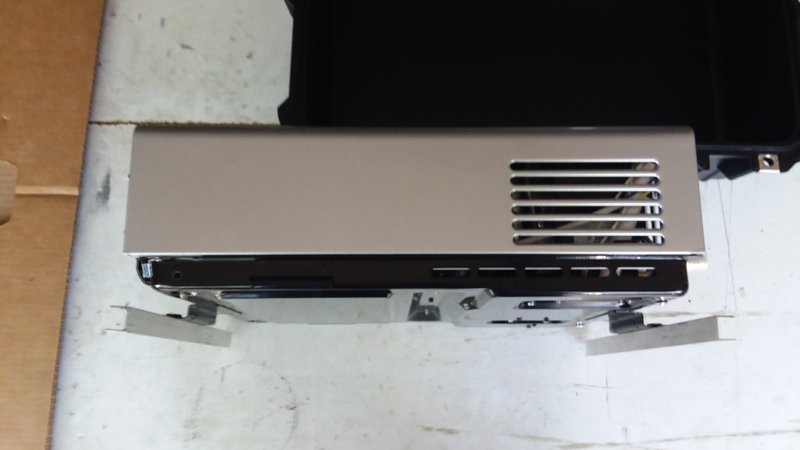

Side view showing mounts.jpg


Next was to mount it to the case lid.

There was really no room to get the nuts on the bottom half of the channel, so I opted for longer bolts, and ran them all the way thru it, then the nuts went on top easily. The alum channel is not as strong as mild steel, so I made some 1/2" long 1/4" spacers for the bolts. These sit inside the channel, and when the bolts are tightened, the channel doesn't collapse on itself. 2 sets per channel. Large fender washers used on the outside of the lid.

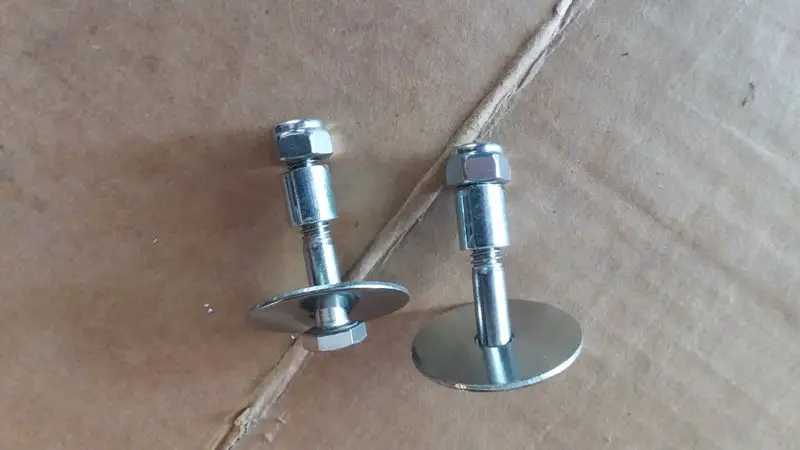

SS bolts with spacers.jpg

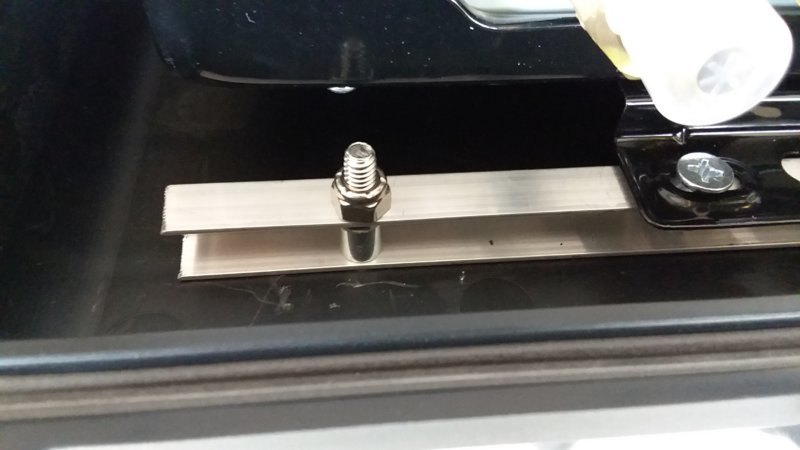

Bolt spacer in channel.jpg

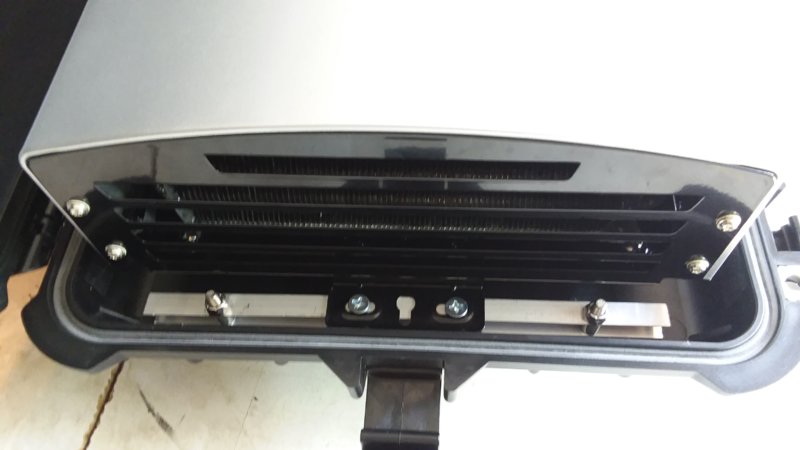

Top mounted.jpg


As you can see the top of the heater is almost all vent, and needs as much open space as possible when running so it doesn't melt the molded case.

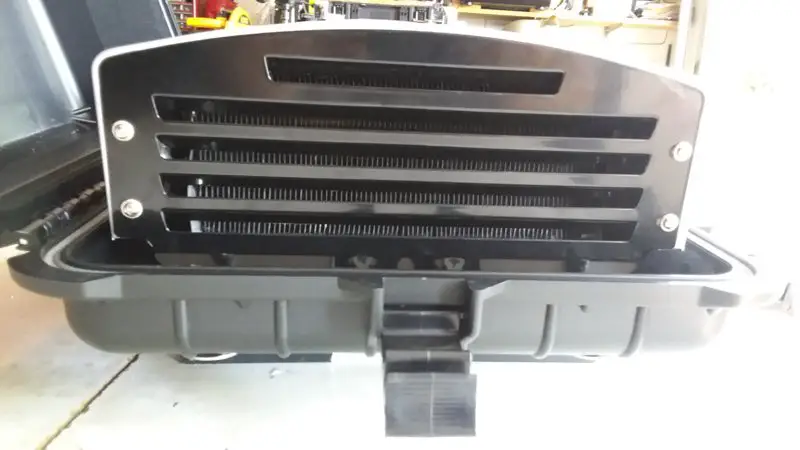

Here is a better view of it showing it is completely clear of the case lid.

Top vent view.jpg




The bottom (back) of the heater is lifted far enough to get all the lines installed easy enough now.

Water lines hooked up.jpg


The Outlet hose on the left is a NSF drinking water hose with stainless ends. The Intake line is also NSF, but is a 15' coiled line with the quick connect end on it, for hook up to the water feed on the side of the trailer. I chose a front trigger Melnor XT 8 selection water handle, with thumb control for pressure out. Will be used for everything, showers, dishes, cleanup, etc....

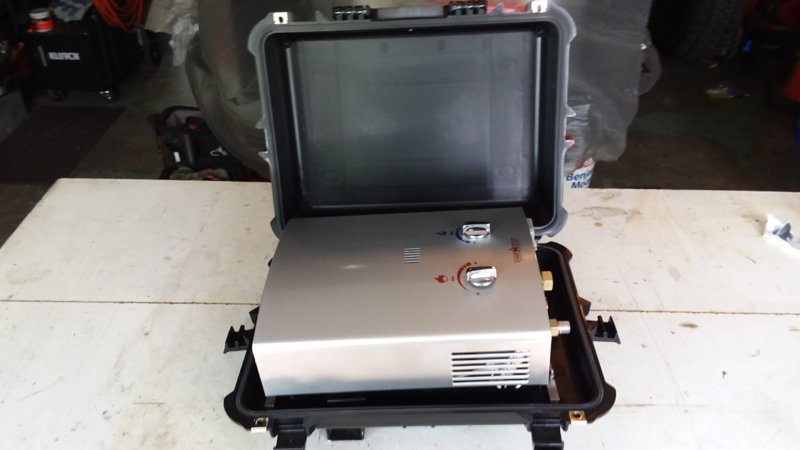

The Heater in the open case.

Heater in box profile.jpg


Ok, so now the heater is safe for storage, and while in use, I can now turn my attention towards how I plan on using this when camping. The removable mounting system is currently being built, and is almost ready to share. Stay tuned for Part 2 !































Just out of curiosity, what do you think will be the weight of the completed trailer?







Hoping around 2000 dry, but honestly I'm not sure as I still have a bunch left to add to it. Had a goal set to keep it under 2500 wet. The day I take it to the scales will be a nail biter. Lol







Water Heater build Part 2: Mounting it to the trailer for use...

To get this case close to the propane tank and water outlet, and high off the ground, I came up with a solution. The winch is stored on top of the trailer rack using a 2"x2" tube cross member. The winch mount is welded on, so there is nothing passing thru this tube. Tested a scrap pc of type "A" & type "B" Superstrut by putting them inside the 2" tube. They both fit. I had a long pc of the smaller Type "B", so I started with it. In the end, it wasn't strong enough and twisted under the heater case weight. I went and got a new stick of the larger type "A", and started over.

I cut the Strut to length, leaving it 1.5" shorter then the length of the 2" tube. A bunch of measuring was done, a couple holes drilled in the sides of the 2" tube, and five 1/4" strut nuts was welded to the strut channel. The strut channel is inserted inside the 2" sq tube, and held tight with two turn knobs that bolt into the welded on nuts. The 2" tube end cap is put back on to close it all up. I installed a SS eye bolt to grab and pull the end cap off.

I removed the blue plastic keepers on the 1/4" strut nuts and welded them on the strut. The end caps are for the smaller "B" strut, but I also had the larger "A" strut caps. The knobs are 1/4" studs with SS fender washers.
Heater mount strut  hardware.jpg


The case had some more stuff added to it, so the heater came off. Using some 2"x2" sq aluminum tube scraps I had, I bolted them to the case lid. These slide over the extended strut channel, and two knobs are used to secure it tight using the welded nuts installed.

Also added a couple of rubber grab clamps to hold the hose & handle when not in use.

After mounting the case to the extended channel, the weight of it, still twisted this larger channel, but only a little. Still enough that I didn't like it. So after scratching my head, and eyeballing everything I had, I came up with another solution. Not the best looking solution, but one that works well.

I used a truck bed cargo bar for a leg. These bars are the kind that can collapse/expand, have feet on them, and after you get the ends touching both sides of the bed, you turn the bar to tighten it. The feet stay put and unscrew from the bar, making it longer. Perfect! I removed one of the feet, and bolted it to the case lid. I swapped out the bolt/nut with a 3/16" pull pin to be able to remove the bar from the case easily. Once on, I simply extended it, placed a 3/4" block of wood under the other foot on the ground, and turned the rod until it lifted up on the case, and made it true vertical. Offers awesome support to the entire system. I will get a real ground pad for it later.

From start to finish on hooking it up from scratch took me 3 mins, and I was taking my sweet time doing it. The heater case and rod will be stored inside the trailer, and the small misc hardware (in a small nylon tool bag), plus the propane line stores inside the case.

Had to remove some of the raised ribs on the case, for the fender washers and sq tubes to sit flush. Used a Dremel with a router bit, and zipped them right off.

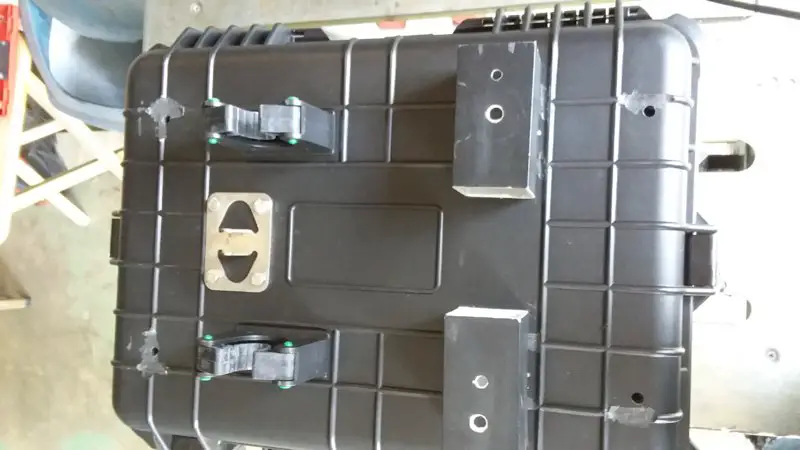

Topside of lid.jpg


The SS eye bolt used to remove the end cap, and showing one of the knobs to hold the channel tight inside the tube. Remove them both, and slide the strut out of the rack tube. Secure it with 1 knob to the rack tube. Slide the heater case onto the strut, and secure it with 2 knobs.

DR side knob on & cap on.jpg

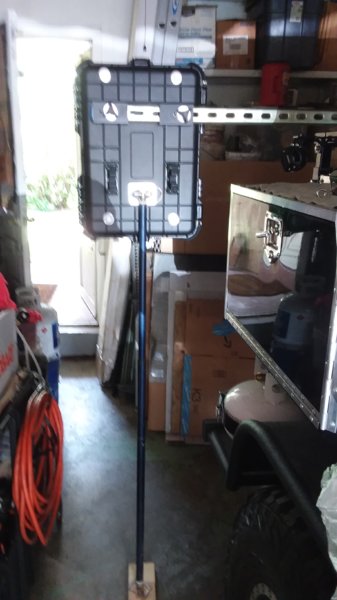

Backside of the case all mounted up.

On with tilt fixed.jpg

Final install backside.jpg

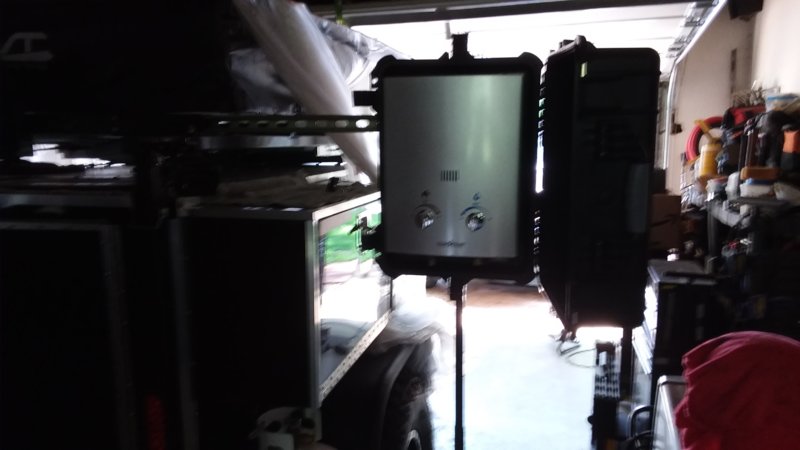

Front view

Final install front view.jpg

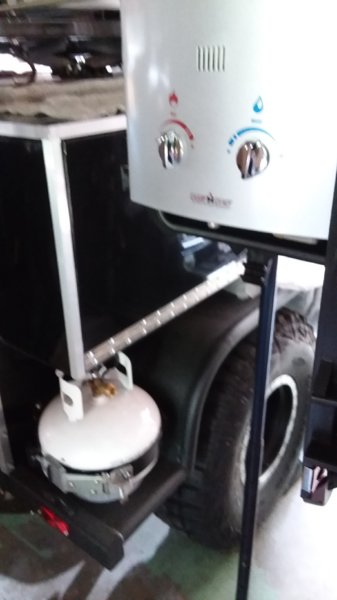

Final install showing gas tank.jpg


It looks like it's in the way, but it isn't. When the tent is opened, and the lower annex room is installed, it won't even be noticed where it's located. Those extend past the trailer by 8 feet. It is nice and close to both fuel & water supply. The shower enclosure itself will be about 8-10 feet away from the trailer itself. When using hot water for anything other than showering, the water hose/handle will reach to the backside of the trailer easily with plenty of extra slack to reach the kitchen area.


I finally received all the Stainless trim bolts. Ended up getting the R2 Sq panheads. That is going to be a hell of a labor intensive job removing all that, clear coating the trim, and getting the first coat of wax on the black paint work. Some of the trim doesn't come off as it is permanently installed, so those pcs need clear coated while on, which means they get done before the wax/finish. I think I will wait until after the interior build is completed.

Going to be long periods between updates on this, as work hasn't picked up as much as I hoped for, but per the usual, I will do what I can, when I can. I am not in any rush with this thing. Only been almost 2 years now, whats another few more months? lol

Until next time folks.....







Things are about to get busy again at the ole trailer shop.

5'x5' sheets of authentic sanded Russian Baltic Birch Ply (10 ply, no fillers) for the storage/kitchen build just got delivered. (Thanks Pugly!) Man that stuff is hard to manhandle alone. Getting them on/off a lifted rig only drew a little blood. lol

5x5  BB on pugly.jpg

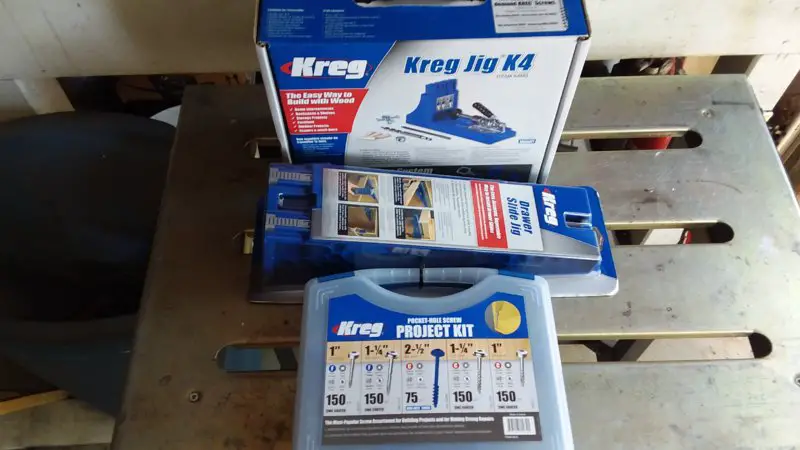

Lowes had a sale going with the Kreg tools. I got the master joiner kit, and they threw in a 675 pc screw set for free ($40). I also got the slider jig, to make that job easier. They are a PITA sometimes, so this should make life easier for me.

New Kreg tools.jpg







I'd love to just hang out with you to learn how you do stuff. I'd learn so much.







I'd love to just hang out with you to learn how you do stuff. I'd learn so much.

Most everything done so far is a first for me. I'm learning as I go!!

I just decided that I would figure it out as I went. Had to go at it one thing at a time, and have no fear. Learn from mistakes, and celebrate the accomplishments, no matter how small.

It's also why this is taking so long. That and finances. Lol

Edit:
Meant to say this before, but hit the post too fast.
Dono, your welcome to come by and visit anytime you want. If you get bored watching me work, the drag strip is close by, and there is always something going on there in the warmer months. :D







This Kitchen / storage box build is still alive and going, slow, but going.

Days & days of woodworking...
Lost count of how many slivers pulled...
A few mistakes, and a few extra saw cuts...
Many holes drilled...
Many trips to the stores...
Much orbital sanding...
Many many slider adjustments...
Many mind changes along the way...
Box of unused materials to return...
Much excitement watching it come to be...
Almost ready to seal it all up, just waiting on hardware to be delivered to cut a few more holes. Got lost in transit somewhere I guess.

Haven't been slacking, just haven't got to a point to share any worthy progress pics. Mini update in case Y'all forgot about me. lol

Closed up, it is 29" deep x 18" tall. Seems small right? But wait!

Opened fully, it is 110" deep with plenty of work space. :D

My brain hurts from all the math that went into this dang thing, but, it will be pretty damn cool I think. Pics coming soon!!







I'd love to just hang out with you to learn how you do stuff. I'd learn so much.

Ditto. Most of my friends in High School took Auto Shop. I lent a helping hand, but that was about it. Now with an Explorer, I'll attempt most things, if I think I can pull off the job. One of my-coworkers mentioned me working on my Explorer, but not changing my own oil :wtf:




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Going to be a bit longer for the finished pictures, so here are a few teasers. Raw assembly before tear down for finish work.

There are 4 total compartments, and each are unique in someway for their purpose. All slide out on HD 250 lb slides, except the lowest which is only 100 lb slides. The main box with storage has a locking slide, as does the kitchen side. I bought a set of locking slides, and used 1 slide per box, so it only takes one hand to unlock, while the other hand is free to pull the box out. These also lock when opened fully. All slides are installed using T-nuts and SS bolts. The lower two boxes will have slam latches, that self lock.

Closed - 29"D x 18"H x 32"W

Raw assembly closed.jpg

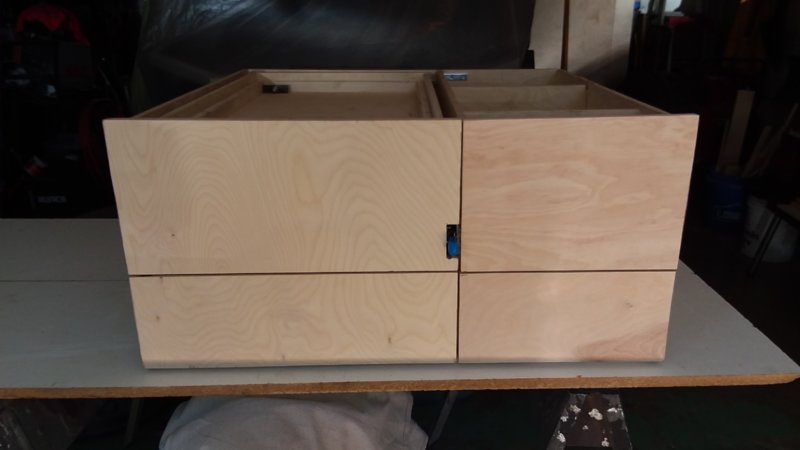

With faces on

Raw assembly closed front.jpg


Almost fully opened

Raw assembly opened front.jpg

Raw assembly opened side.jpg


Looking at that last picture above, going from left to right....
Main box with storage for slide outs on left, and storage space on right.
Sink and workspace countertop box
Grill use & storage box
Drawer for utensils and accessories with small countertop for small single burner stove.

This entire box will be attached inside another large box bolted inside the trailer, and have another set of large HD locking slides. Each box can be pulled out individually, or closed up while using another box. If I just want the grill, or something in the drawer, no problem. If I want to grab pots & pans, or food, the whole box pulls out for access to right side storage. These ball bearing slides work great, and are very easy glide with a simple tug. The height was kept at 18" as I want to use the rest of the height space to store bigger gear with a strap down system.

Lots more to share eventually, as this is just the beginning of the build. :)







Back
Top
