How to: Install Coil-Overs and ditch T-bars

DominicanX

Well-Known Member
Joined
February 10, 2004
Messages
663
Reaction score
9
City, State
Fairfax, Virginia
Year, Model & Trim Level
99 Sport
!Disclaimer!
Modifying a vehicle's suspension may affect it's performance or handling. Proceed at your own risk.!!


Parts list as purchased from ORW (OFF ROAD WAREHOUSE)

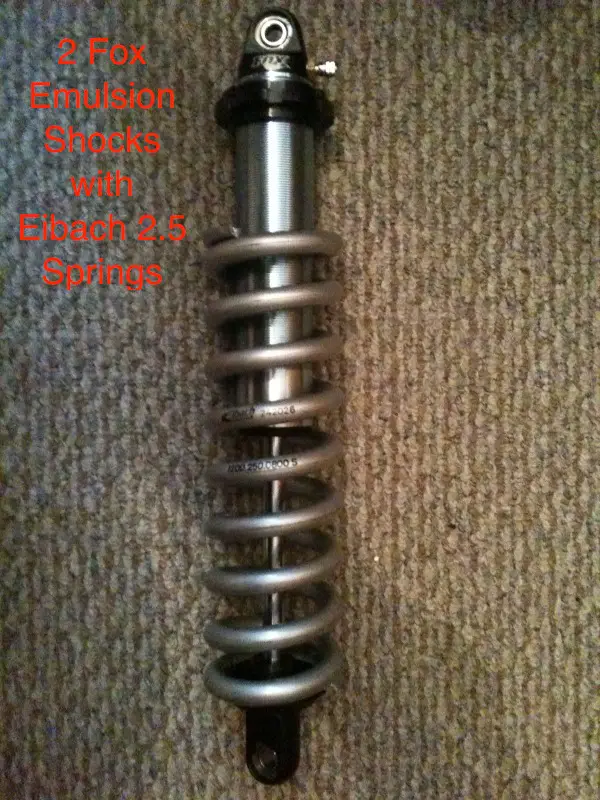

Fox 2.0 emulsion shocks (980-02-001-A) x2 ($207 each)
Eibach 12" 800lb springs (1200.250.0800) x2 ($52.99 each)
Spanner Wrenches (07-100 and 07-102) for adjusting coilovers on shock body ($13.50 for both)

Fox Longer Eyelet (213-01-282-B) x2 ($30 each)

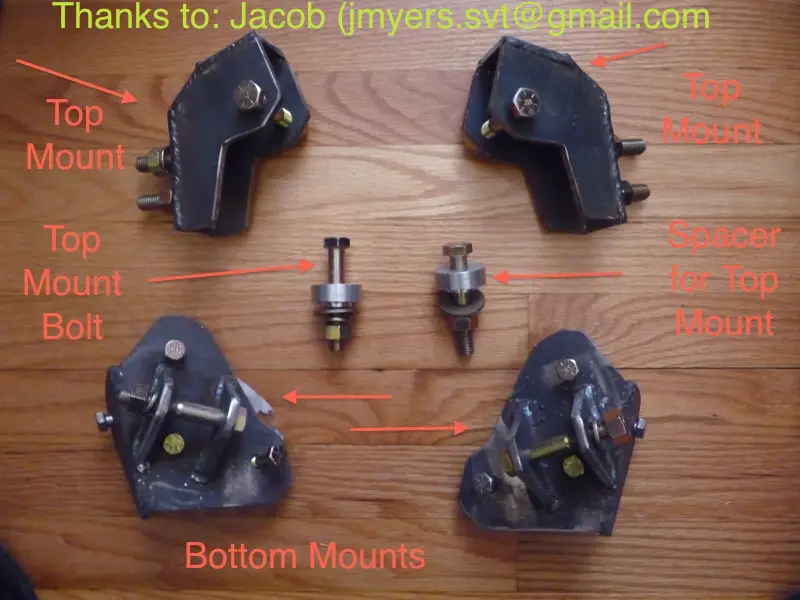

Fox Heim Spacers (213-18-009-A) x8 ($4.50 each) these are to space them correctly in the mounts.
Shock Soft Jaws (4023-875-625) these are to hold the shock rod while changing eyelets ($30)

Prices and part numbers are subject to change at the discretion of the vendor. Please don't quote prices or part numbers if attempting to order.

Oh man was I getting sick of looking at those torsion bars hanging down from my "Superlifted" X. They had to go. I started by reading every single last thread on this site in regards to coilover conversions; from how to's and reviews to RCD discontinuing there kit. Bottom line, and everyone says it on here, "Use the Search function! And read the entire thread!" If you want it, you can make it happen. Everyone said this kit conversion was impossible to find. Well...I got it done.


Attachments

  • 1.jpg
    137.6 KB · Views: 11,145
  • 2.jpg
    206.5 KB · Views: 11,843
  • 3_lgweb.jpg
    170.1 KB · Views: 11,146


Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




DominicanX

Well-Known Member
Joined
February 10, 2004
Messages
663
Reaction score
9
City, State
Fairfax, Virginia
Year, Model & Trim Level
99 Sport
Let's get it done.

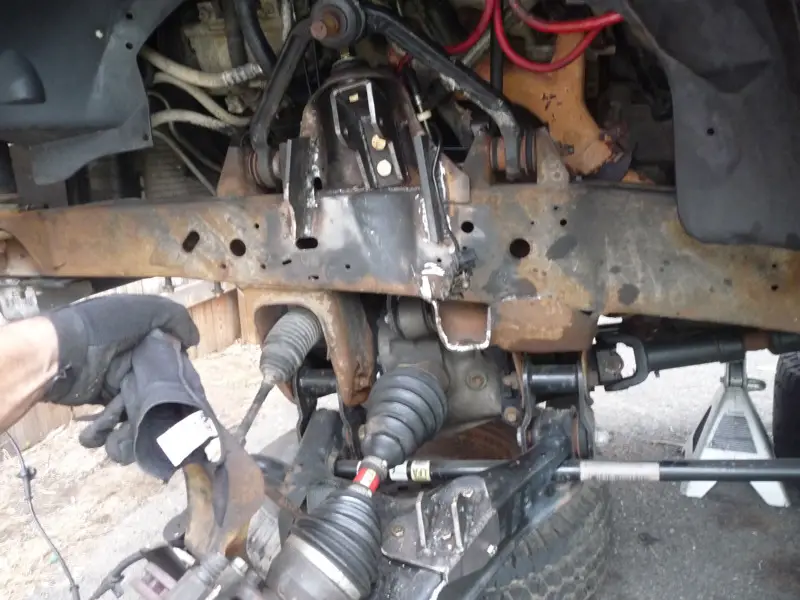

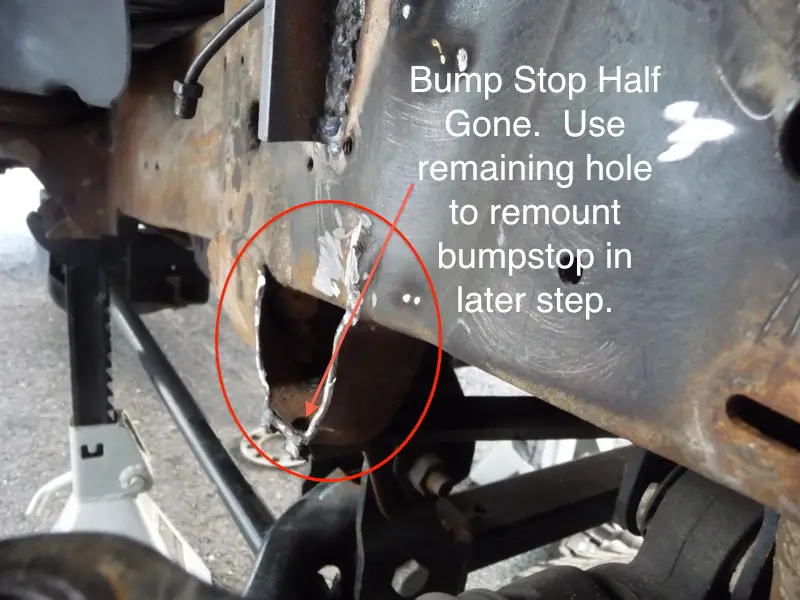

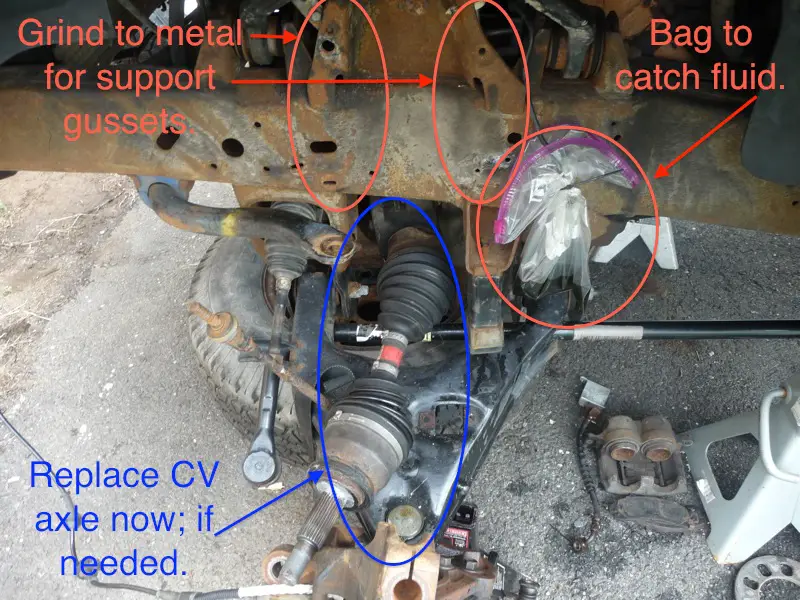

Tear it all down to this point. Identify other parts that may need to be replaced. Why not...you've got it all torn apart.

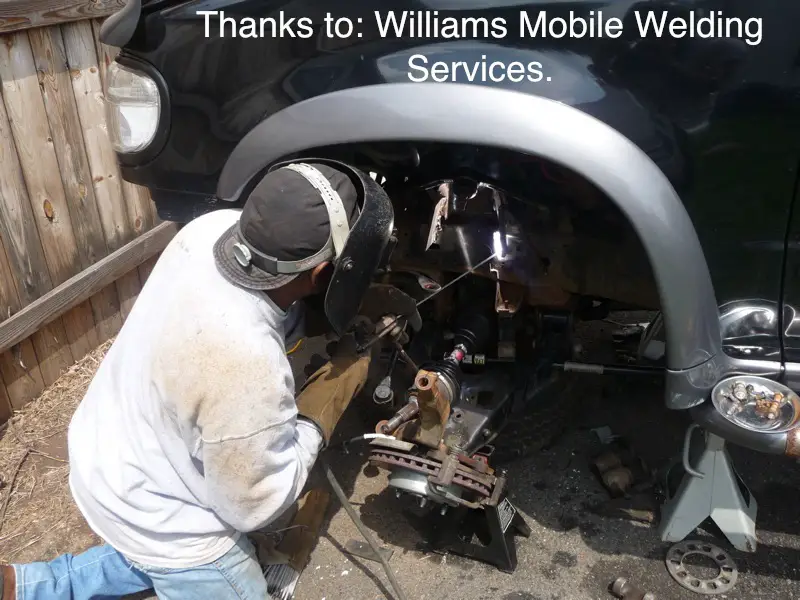

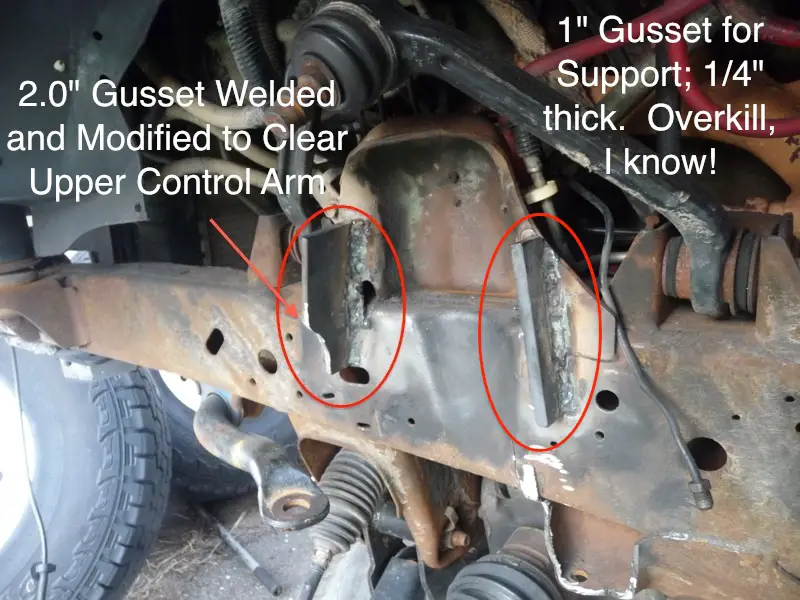

Weld Support Gussets to Shock Tower





DominicanX

Well-Known Member
Joined
February 10, 2004
Messages
663
Reaction score
9
City, State
Fairfax, Virginia
Year, Model & Trim Level
99 Sport

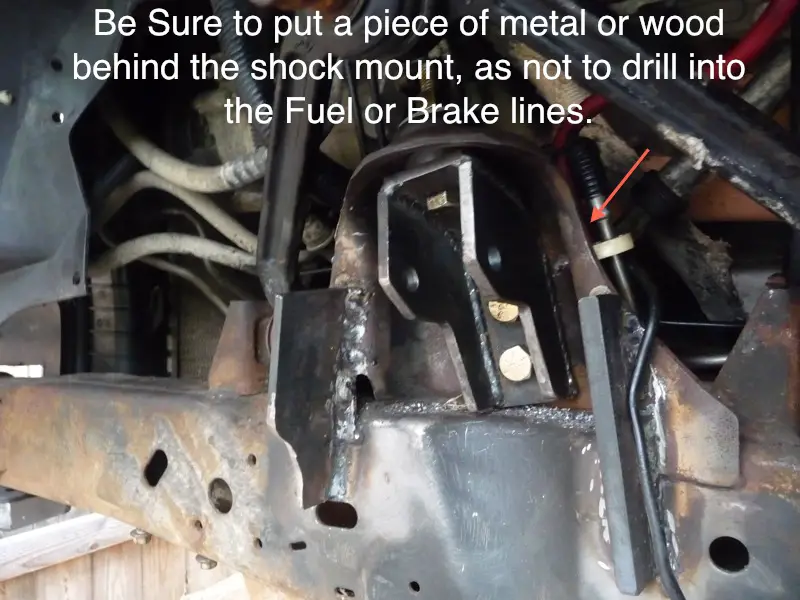

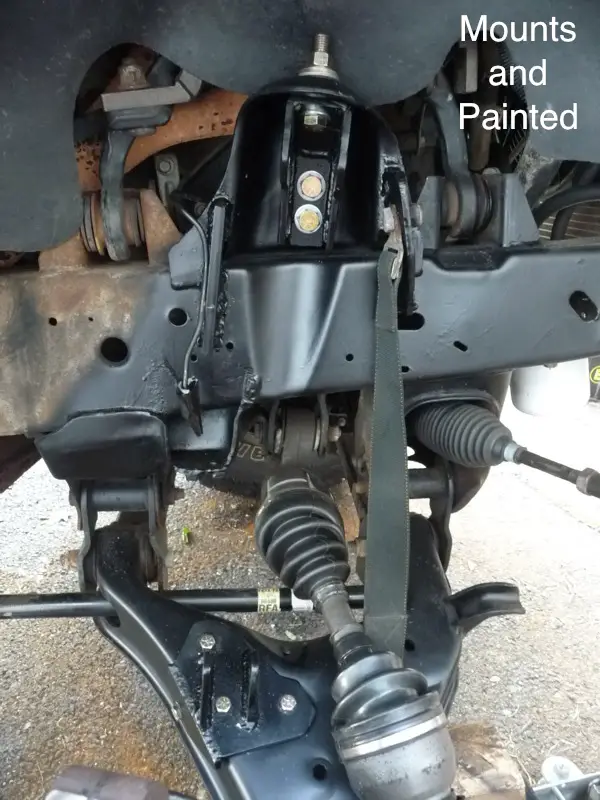

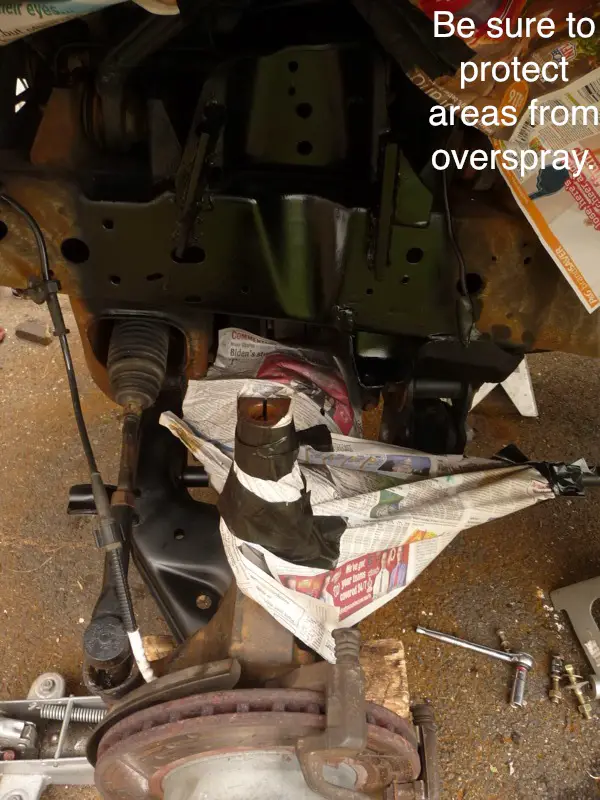

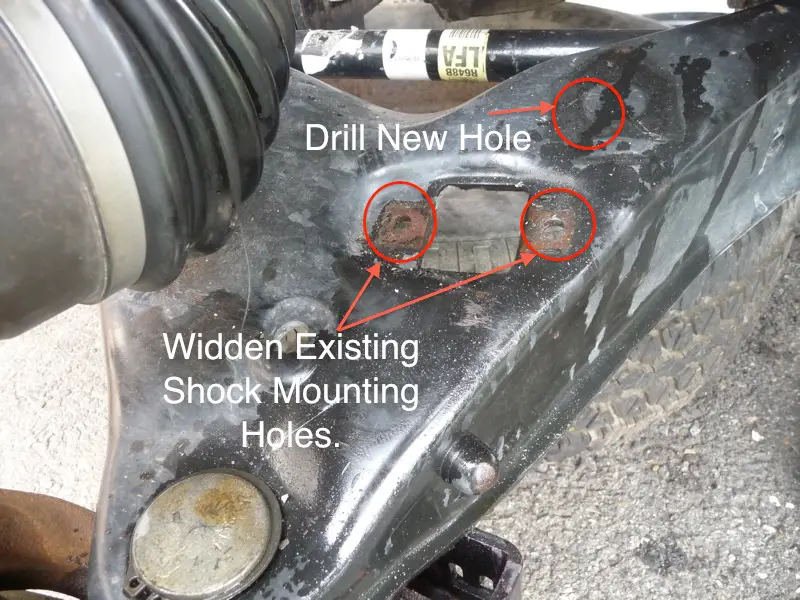

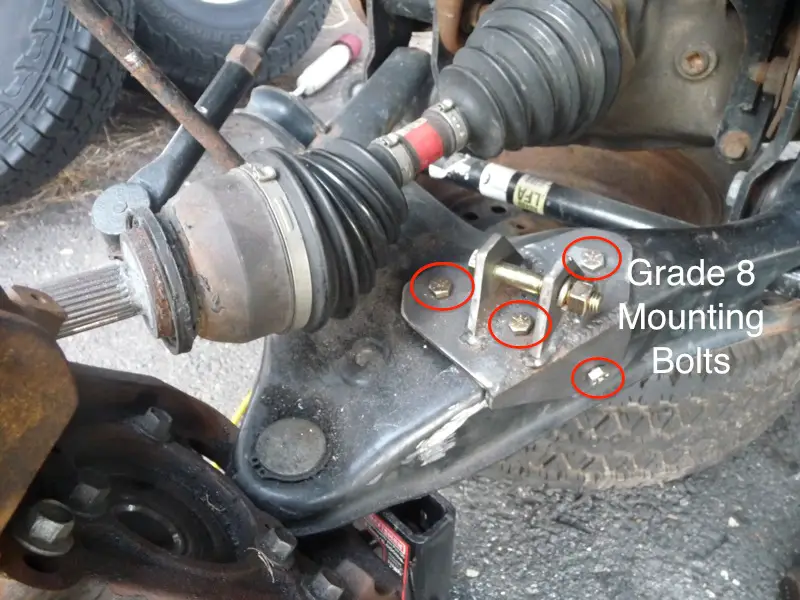

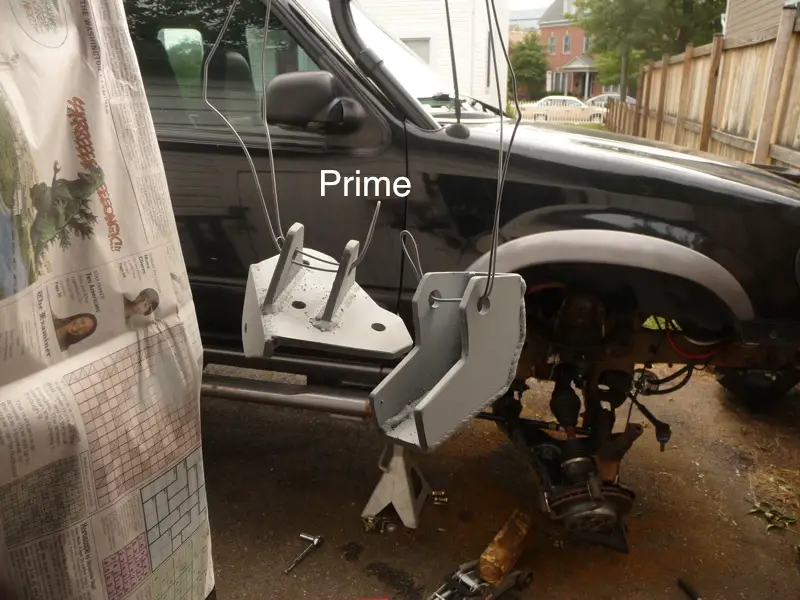

Start Pre-Installing Mounting Brackets and Hardware.













DominicanX

Well-Known Member
Joined
February 10, 2004
Messages
663
Reaction score
9
City, State
Fairfax, Virginia
Year, Model & Trim Level
99 Sport

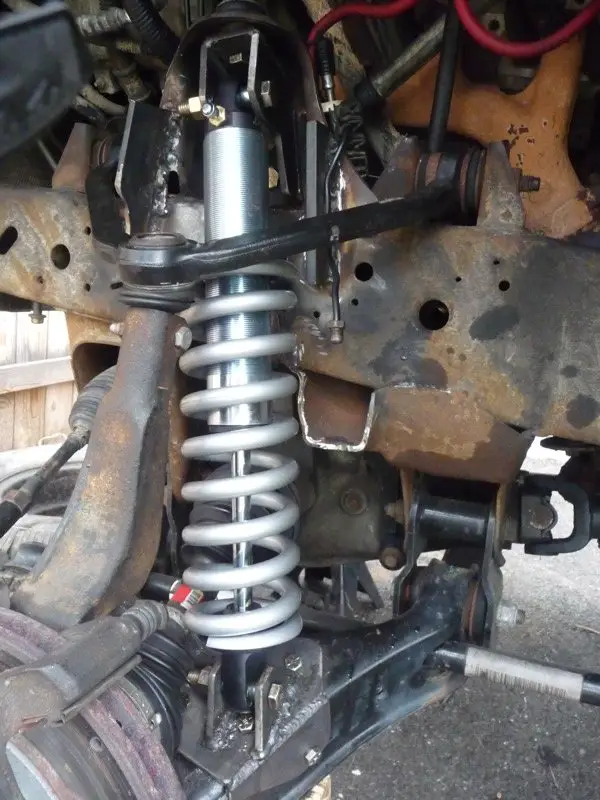

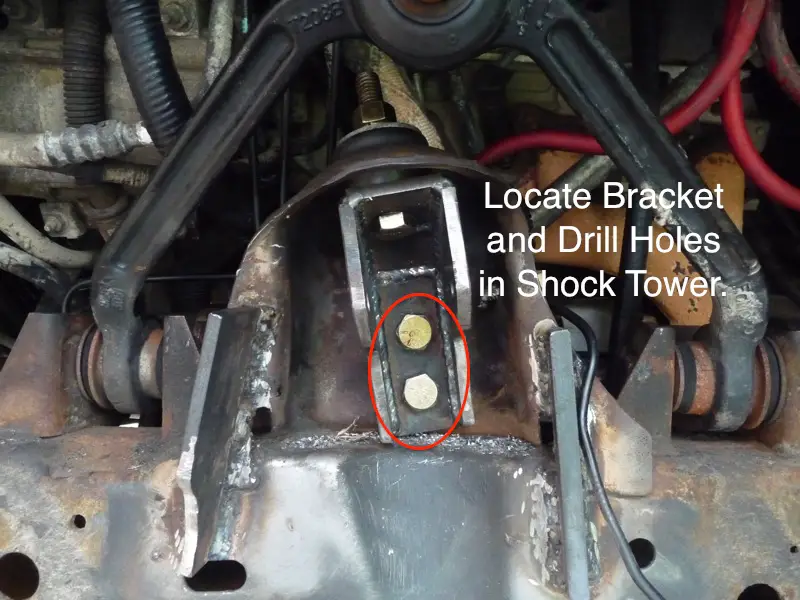

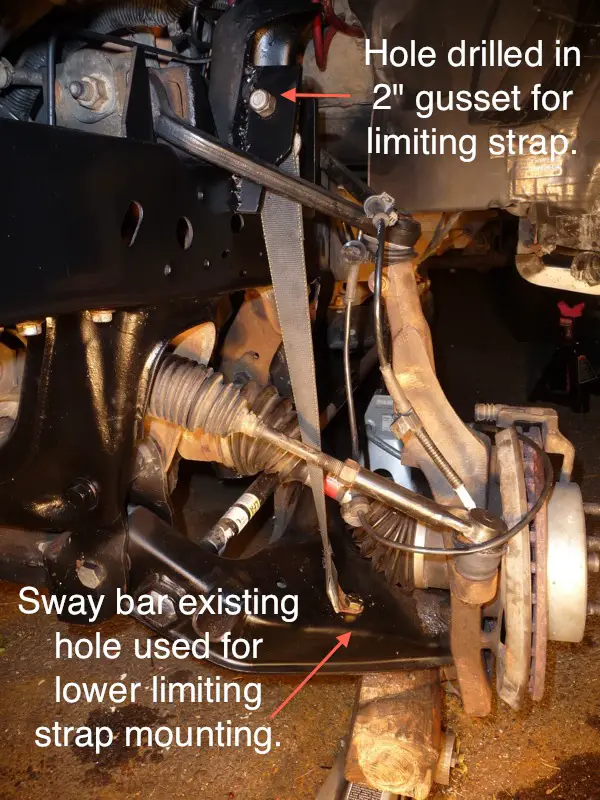

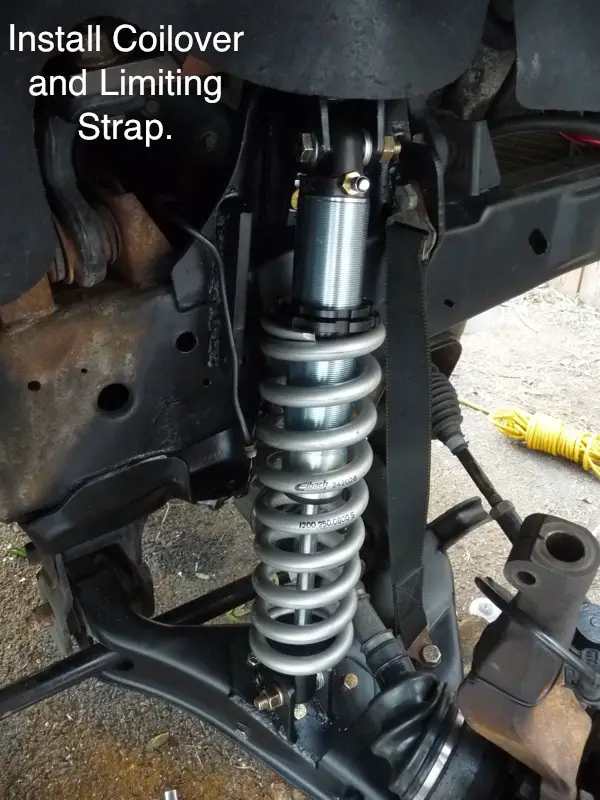

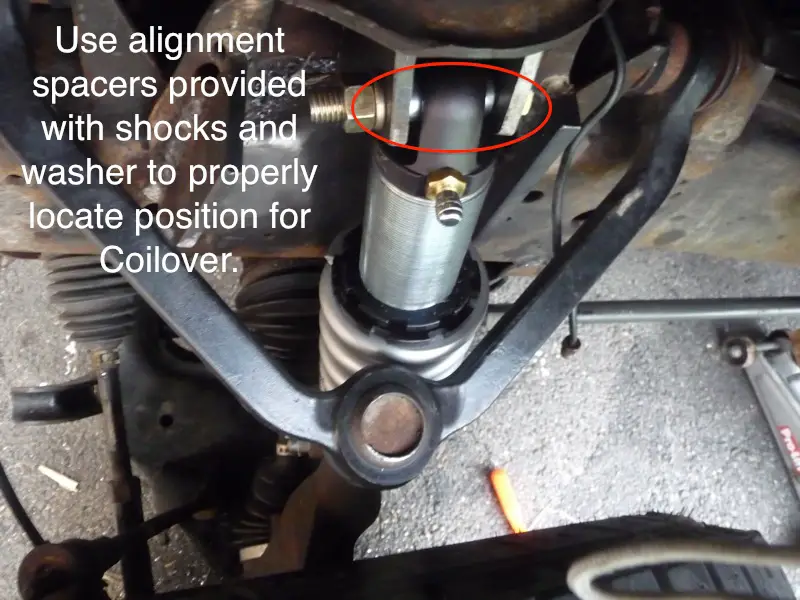

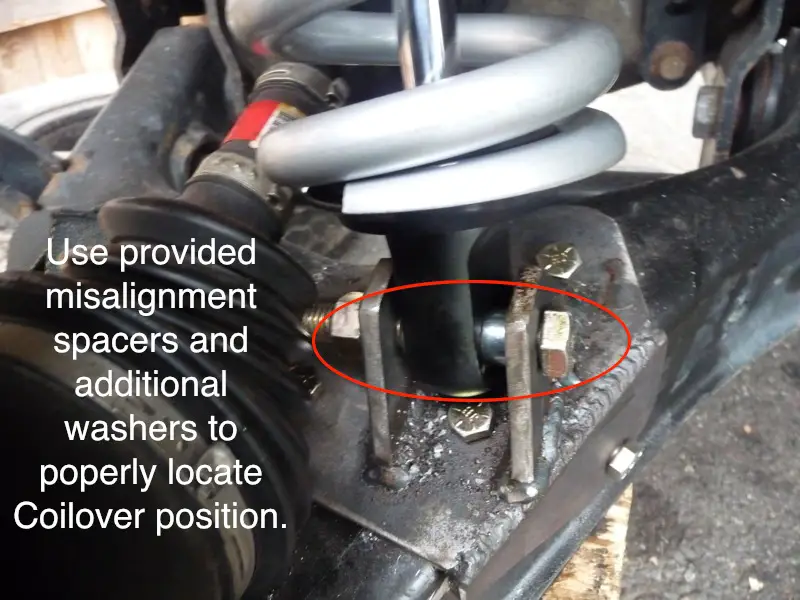

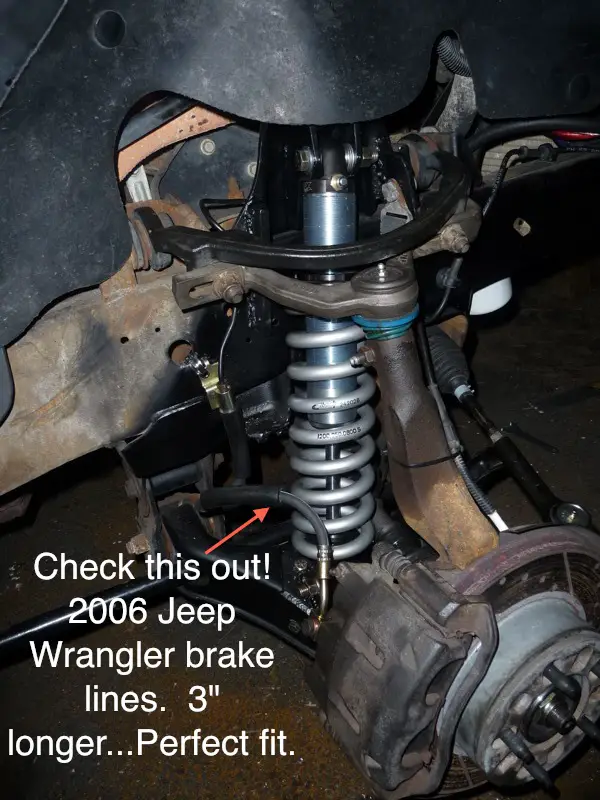

Pre-Install the Shock and make sure everything as adequate clearance.



I know I know, I tried to rotate it. Didn't work out.

















Spdrcer34

Explorer Addict
Joined
March 14, 2002
Messages
3,899
Reaction score
7
City, State
Bremerton, WA
Year, Model & Trim Level
1992 Explorer XL
Awesome work....

I would cleaned up the welds on the the bracket a LITTLE....but it looks awesome either way!

Ryan





4rd4life

Well-Known Member
Joined
October 15, 2010
Messages
465
Reaction score
1
City, State
nj
Year, Model & Trim Level
99 xlt 4wd
great work did you make all the brackets and gussets your self or did you find a company to make them? made it look very easy kinda wanna find a beater so i can rip the front end apart now lol





mounty71

It's green, not gray.
Elite Explorer
Joined
February 3, 2007
Messages
3,619
Reaction score
202
City, State
Oakland, CA
Year, Model & Trim Level
'00 Mountaineer
How much clearance do you have between the coilover and frame, and the coilover and upper arm? Just curious since I've been told a 2.5 coilover would fit, but I have my doubts.





the_aszman

Active Member
Joined
July 22, 2010
Messages
73
Reaction score
0
City, State
Alexandria,VA.
Year, Model & Trim Level
97 sport and 94 xlt
looks great :thumbsup:

where are those after shots from ?





DominicanX

Well-Known Member
Joined
February 10, 2004
Messages
663
Reaction score
9
City, State
Fairfax, Virginia
Year, Model & Trim Level
99 Sport
4dr4life: Had a guy in texas make them. I believe he use to make them a while ago for guys on this forum or the ranger forum, i forgot which. Found his info on one of the threads and gave his email a try and had the brackets on the car 2 weeks later. Awesome guy to work with.

Mounty71: The coils clear the upper arms with ample space. I will get the measurements for you and post.

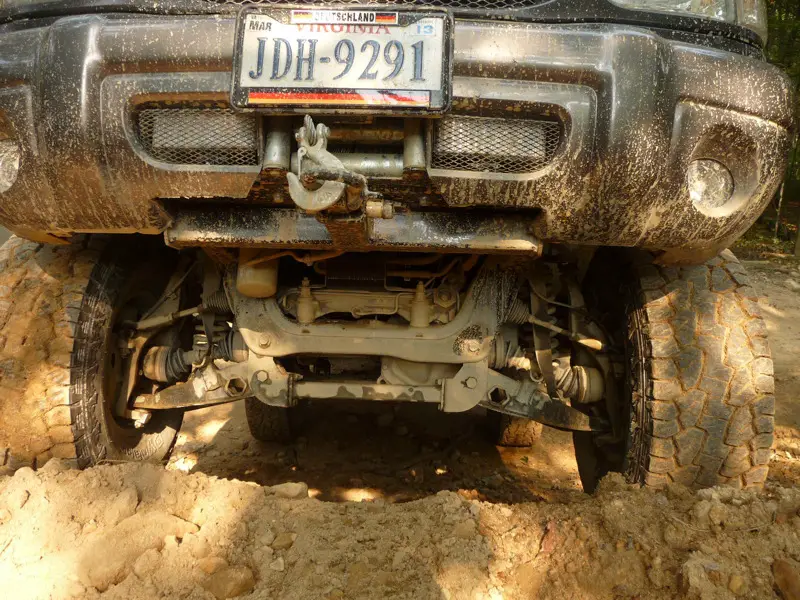

theaszman: Those shots are from GW National forrest! Only 2 hours away from us NoVa peoples.
