How to: SOHC V6 Timing Chain Inspection & Repair

ef2764

Member
Joined
September 20, 2015
Messages
25
Reaction score
0
City, State
St. Louis Missouri
Year, Model & Trim Level
2003 Ford Explorer
On a side note

What else should I replace while the engine is out? I don't want to do a full rebuild but I imagine a fresh oil pump wouldn't be a bad idea.

Thoughts?

J



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




laker82

Member
Joined
March 28, 2015
Messages
39
Reaction score
2
Year, Model & Trim Level
02 explorer xlt
Sorry to hear. I was running NAPA synthetic and only heard a light ping, more ERG ping than rattle. But my hearing is not the best.
I found it easier to unbolt the mounts to block and lower the engine to get a little more gap for the top back bolts. Removed the bottom bolts after hanging the engine. Same on install.
Left header off made it easier to get past the pumps. Did not remove Power steering.





Tech By Trade

Explorer Addict
Joined
May 2, 2012
Messages
2,542
Reaction score
167
City, State
Your mom's house
Year, Model & Trim Level
07 Sport Trac
What else should I replace while the engine is out? I don't want to do a full rebuild but I imagine a fresh oil pump wouldn't be a bad idea.

Thoughts?

J

That's all I did when I did mine. Oil pump chains, gears and guides.





laker82

Member
Joined
March 28, 2015
Messages
39
Reaction score
2
Year, Model & Trim Level
02 explorer xlt
If you look at Post #1 photo you will see valve contact on the cylinders, bent valve stems follow that contact. Broken chains may be a more common contact cause than worn guides.
Changing the pump requires removing the 2nd section of oil pan, that gets you into new seals. I found the discounted Ford pump was as cheap as aftermarket pump after the special screens get added on.





Drewmcg

Elite Explorer
Joined
August 27, 2015
Messages
731
Reaction score
91
Location
Michigan
City, State
Ann Arbor, MI
Year, Model & Trim Level
2010 XLT 4WD
2002 XLS 2WD
I don't think you need to change the oil pump w/o good reason. Oem one is built like a brick and spun smoothly with the jackshaft, so I left it alone.

If you do change pump you can re-use your old Ford p.u. screen (except for one manufacturer). Just be sure to really inspect in the recess under the opening between the plastic shroud and the screen with a pick to get out any bits of guide that may have lodged in there.

Even if you don't want to machine the heads (valve job) and replace the piston rings, you might still want to replace the head gaskets (to forestall blowing one).

Engintech parts (no, I don't work for them) I noticed are 10% off for October @ Rockauto. You can get two head gaskets and two sets of head bolts for a little over $50 (shipped) right now; or the whole gasket set (including exhaust manifold and intake manifold) for a little over $100. My intake manifold gaskets were definitely shot and I've seen youtube videos where these engines make quite a lot of racket if an exhaust manifold shakes loose....





Tech By Trade

Explorer Addict
Joined
May 2, 2012
Messages
2,542
Reaction score
167
City, State
Your mom's house
Year, Model & Trim Level
07 Sport Trac
The oil pan gaskets are garbage in the engine tech set as well. I had to cut a bunch off the upper gasket to get it to seat right. Luckily I have no leak.









laker82

Member
Joined
March 28, 2015
Messages
39
Reaction score
2
Year, Model & Trim Level
02 explorer xlt
NTP 90398SB from Napa
Not quite the same kits, Napa lifetime warranty, Ebay call.
Napa has jack shaft gears and balance shaft gears. That may be more than you need.
When you get into the details; head bolts and harmonic bolt are one use bolts.
"Complete" is not always the same vendor to vendor.





2000StreetRod

Staff member
Moderator
Elite Explorer
Joined
May 26, 2009
Messages
10,593
Reaction score
254
City, State
Greenville, SC
Year, Model & Trim Level
00 Sport FI, 03 Ltd V8
Import/Export company in Mexico

Diamond Power is a brand name for an import/export company (Diamond Automotive SA de CV) located in Mexico. I seem to remember researching them before and learned that they don't make anything - they just repackage. Their parts could come from anywhere in the world and just be junk. For critical engine parts that require significant time and energy to replace I use quality parts. I think that Rock Auto sells Cloyes' kits that have a good reputation for quality vs cost.





Drewmcg

Elite Explorer
Joined
August 27, 2015
Messages
731
Reaction score
91
Location
Michigan
City, State
Ann Arbor, MI
Year, Model & Trim Level
2010 XLT 4WD
2002 XLS 2WD
Diamond Power is a brand name for an import/export company (Diamond Automotive SA de CV) located in Mexico. I seem to remember researching them before and learned that they don't make anything - they just repackage. Their parts could come from anywhere in the world and just be junk. For critical engine parts that require significant time and energy to replace I use quality parts. I think that Rock Auto sells Cloyes' kits that have a good reputation for quality vs cost.

+1 Cloyes kits (OEM) from Rockauto. My '02 XLS got 179k+ out of the first set of cassettes!

... and don't forget to enter the coupon code available on this site for 5% discount @ Rockauto....









ef2764

Member
Joined
September 20, 2015
Messages
25
Reaction score
0
City, State
St. Louis Missouri
Year, Model & Trim Level
2003 Ford Explorer
Balance shaft timing

So I took off the balance shaft sprocket to change the tensioner because I couldn't get the bolts out of the tensioner mount. The sprocket is funky looking it has half a key in it that doesn't engage with the keyway on the sprocket. I'm assuming that this setup is just like the cams where the timing chains position is irrelevant as long as the balance shaft relationship to TDC is correct. Has anyone messed with these before? If so what's the story with the funky gear who's key doesn't engage the shaft.

Thanks

J









laker82

Member
Joined
March 28, 2015
Messages
39
Reaction score
2
Year, Model & Trim Level
02 explorer xlt
You are talking about the crank side gear? It is keyed to the crank and the main drive to the jackshaft is also keyed with a smaller key. You can almost see it on post #5 photo.
You have to remove the main guide to get at the balance shaft guide.





2000StreetRod

Staff member
Moderator
Elite Explorer
Joined
May 26, 2009
Messages
10,593
Reaction score
254
City, State
Greenville, SC
Year, Model & Trim Level
00 Sport FI, 03 Ltd V8
removing balance shaft sprocket

So I took off the balance shaft sprocket to change the tensioner because I couldn't get the bolts out of the tensioner mount. The sprocket is funky looking it has half a key in it that doesn't engage with the keyway on the sprocket. I'm assuming that this setup is just like the cams where the timing chains position is irrelevant as long as the balance shaft relationship to TDC is correct. Has anyone messed with these before? If so what's the story with the funky gear who's key doesn't engage the shaft.

Thanks

J

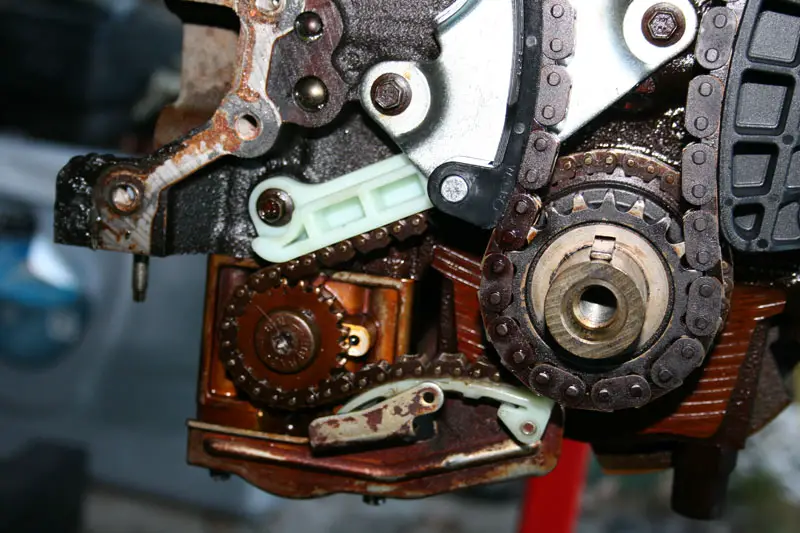

Did you remove the sprocket at the end of the balance shaft (left sprocket in the photo below)?

If so, I don't see how that would help to remove the vertical bolts that retain the balance shaft chain tensioner. In order to remove those the block cradle has to be removed. The following thread explains the timing: Balance Shaft Timing Procedure





ef2764

Member
Joined
September 20, 2015
Messages
25
Reaction score
0
City, State
St. Louis Missouri
Year, Model & Trim Level
2003 Ford Explorer
Balance shaft

Yes I removed the sprocket. This allowed me to move the chain and swap the plastic tensioner piece onto the old bracket. I read the timing thread and it doesn't really tell me what I need to know





Tech By Trade

Explorer Addict
Joined
May 2, 2012
Messages
2,542
Reaction score
167
City, State
Your mom's house
Year, Model & Trim Level
07 Sport Trac
Took me a bit to remember.
When I did mine, i pulled the bottom 2 bolts out to get the lower guide off, then there were 2 more on the back to pull the rear. The whole shaft came out, and i slid the inner sprocket off the crank. Next I used the marking on the gear to time the balance shaft and put it back on.

You may be SOL because I don't know if there is a way to time that gear to the balance shaft. I'm pretty sure there is nothing stopping it and the gear from turning other than the bolt that holds it on.





2000StreetRod

Staff member
Moderator
Elite Explorer
Joined
May 26, 2009
Messages
10,593
Reaction score
254
City, State
Greenville, SC
Year, Model & Trim Level
00 Sport FI, 03 Ltd V8
look for marks

Engine disassembly instructions:

"79. NOTE: DO NOT remove the balance shaft sprocket bolt.
On 4 x 4 vehicles, remove the balance shaft chain and crankshaft sprocket."

Look at the back of the sprocket and the front of the shaft for matching indentions. If found, reassemble.





ef2764

Member
Joined
September 20, 2015
Messages
25
Reaction score
0
City, State
St. Louis Missouri
Year, Model & Trim Level
2003 Ford Explorer
Harmonic balancer not seated all the way

So I got the engine reassembled and put back in. No more noises hooray. However after about a 15 minute test drive I spit out the serpentine belt. When I got a new belt today and installed it I noticed that it is riding funny on the crank pulley. I shut the motor off an re-seated the belt on the crank pulley and it jumped again. It is jumping in towards the motor which tells me that the balancer isn't seated all of the way. When I installed it I used a 2X4 and a hammer. It went on smoothly and I thought seated all the way onto the crank. It torqued fine but is about one ribs width off from where it is supposed to be.

Any thoughts?

J



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




2000StreetRod

Staff member
Moderator
Elite Explorer
Joined
May 26, 2009
Messages
10,593
Reaction score
254
City, State
Greenville, SC
Year, Model & Trim Level
00 Sport FI, 03 Ltd V8

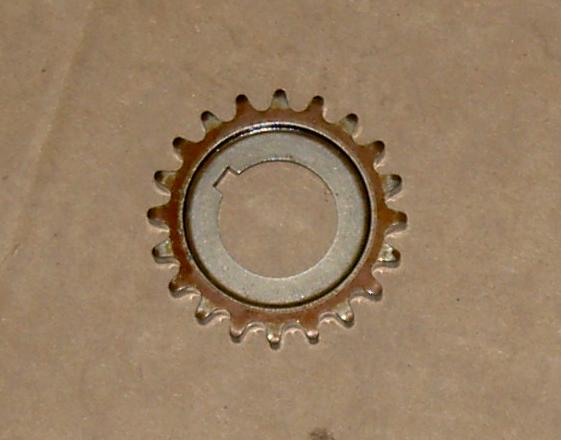

crankshaft sprocket removed?

Did you remove the crankshaft sprocket?

If you removed it and then installed it backwards the harmonic balancer will not seat in the correct position.

The harmonic balancer seats in the recessed area of the sprocket.
