Whats the deal with 4.0 headers? 91-94, 95-97, 98-01??

inh

Explorer Addict
Joined
June 30, 2005
Messages
1,307
Reaction score
1
City, State
Springfield(ish), MO
Year, Model & Trim Level
'00 XLS
I'm trying to find some affordable headers for my 2000 4.0 OHV, mostly because I want to lose three of the four cats, and replace the 4th with a high flow. There are plenty of headers for the 91-94, im guessing the 95-97 have a different EGR setup, which makes sense, but is 98-01 really that much different, or perhaps they are thinking for the SOHC engine and in reality a 95-97 header would fit my OHV engine fine?



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,735
Reaction score
26
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer

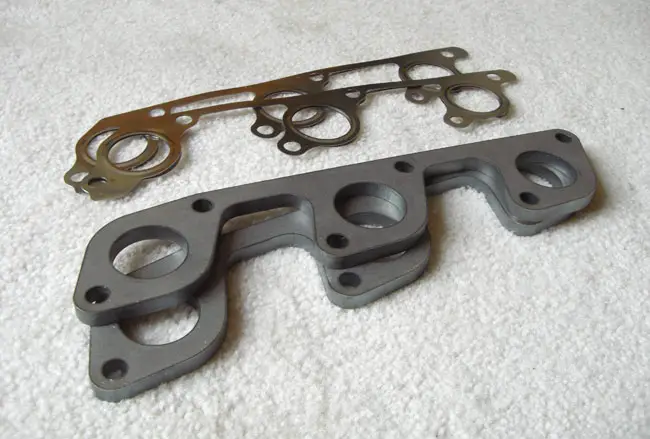

For one thing, the exhaust lobes/bolt pattern on the heads are different (between the two blocks) because I had to send the guy a new set of gaskets to trace from in order to laser cut some header flanges.






inh

Explorer Addict
Joined
June 30, 2005
Messages
1,307
Reaction score
1
City, State
Springfield(ish), MO
Year, Model & Trim Level
'00 XLS
Well crap, that sucks =[ Are you making some 98-01 headers IZ?





IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,735
Reaction score
26
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
Well crap, that sucks =[ Are you making some 98-01 headers IZ?
Yeah but its for the SOHC and wont be compatible with the stock exhaust cauz it crosses over on top of the trans (as opposed to running under on the stock SOHC and OHV config).





inh

Explorer Addict
Joined
June 30, 2005
Messages
1,307
Reaction score
1
City, State
Springfield(ish), MO
Year, Model & Trim Level
'00 XLS
Well, after further research, it looks like the right side is the same part for a 94 and 96 truck, but the left sides are different, so I'm guessing different EGR port location. An '00 truck has completely different heads all together.

I might just have to suck it up and get some headers without a Y pipe..





IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,735
Reaction score
26
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
Well if its only the EGR thats different, then you might be able to move the EGR port to wherever you need it - just cut the EGR port, fill up the old hole, cut a new hole and weld in the EGR port.
