Windshield washer

[Jlank]

New sport trac owner here. I bought an 05 black sport trac, so far I really like. The only problem is the wind shield washer doesn't work. I don't hear the pump running at all. I've looked thru the manual and don't see a fuse or relay for it. Can someone give me some advice on which relay or fuse it might be.

Thank you



[theluke19]

Looks like it may be #12

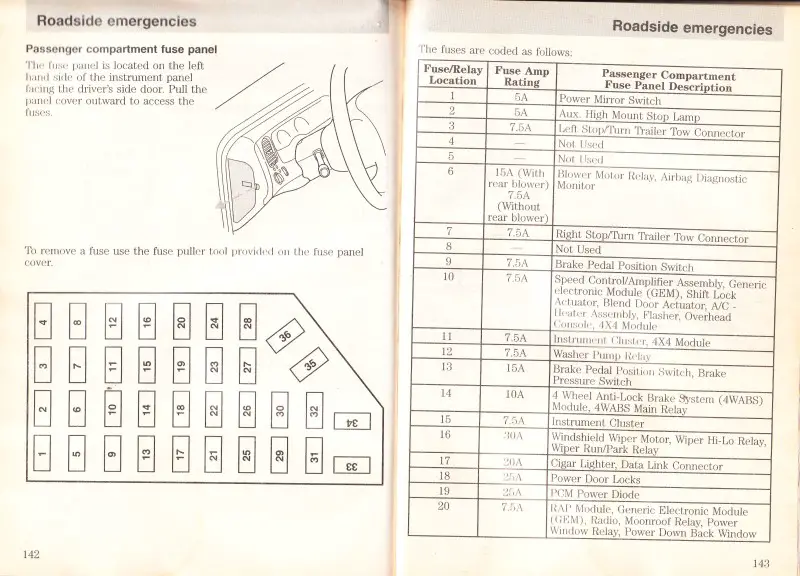

Here's a scan of the pages from my manual for the fuses and relays for my 2001 Job 1 Sport Trac.



[theluke19]

THat could be wrong, as his was a job1... Maybe pull that fuse, and see if it's blown.



[Jlank]

Thanks for the quick replies. I swear I didn't see that in my manual



[theluke19]

Looking at a newer manual - http://www.fordservicecontent.com/Ford_Content/catalog/owner_guides/05p27og1e.pdf

Looks like there isn't a fuse/relay for this (which strikes me a little odd..)

Could be the pump that's gone bad? Maybe the switch?



[Jlank]

I didn't want to throw parts at it until I checked out the small things.



[roamer37]

Washer pump relay 46B in the relay box on the passenger side frame rail right next to the engine. Its down low take the cover off I had three relays when I bought mine last year that did not work. Cleaned up the box and connections installed new relays and washers as well as fog lights and horn now all work.



[Jlank]

Thank you I'll look there tomorrow.
