94 Explorer Vacuum-Line madness (pics inside)

KiloWatts

Member
Joined
September 6, 2006
Messages
17
Reaction score
2
City, State
Philadelphia
Year, Model & Trim Level
'94 Explorer
Greetings!

I've started learning about my Explorer, and through various DIY repairs, the vacuum lines have become mixed up. I'm following the diagram, but have a few questions. Here's the rundown:

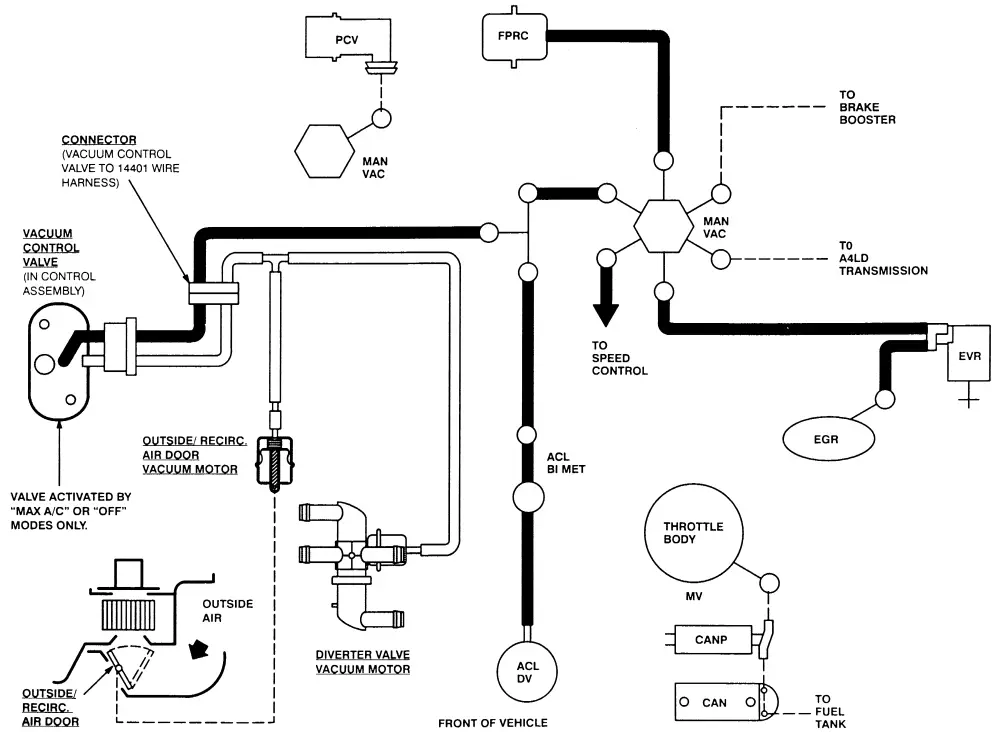

Here's the diagram. The items I can't locate are: Brake Booster, A4LD trans, FPRC, and Speed Control.

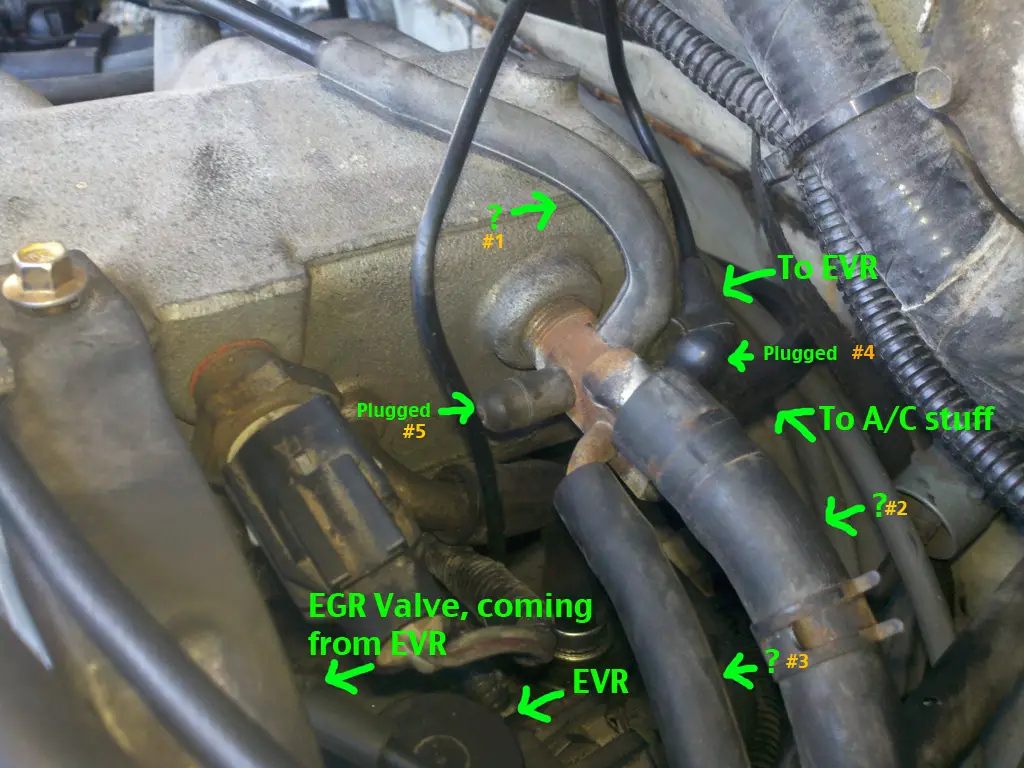

Here's where everything's plugged in. The EVR and EGR are correct. #1 goes across the top of the intake and down through the back somewhere. #2 and #3 go to two devices on the driver's side which you'll see clearly below. I plugged #4 and #5 because I don't know where they should go. There are 7 vacuum-line holes, but only five are used. According to the diagram there should be six, so at least one device is not receiving vacuum.

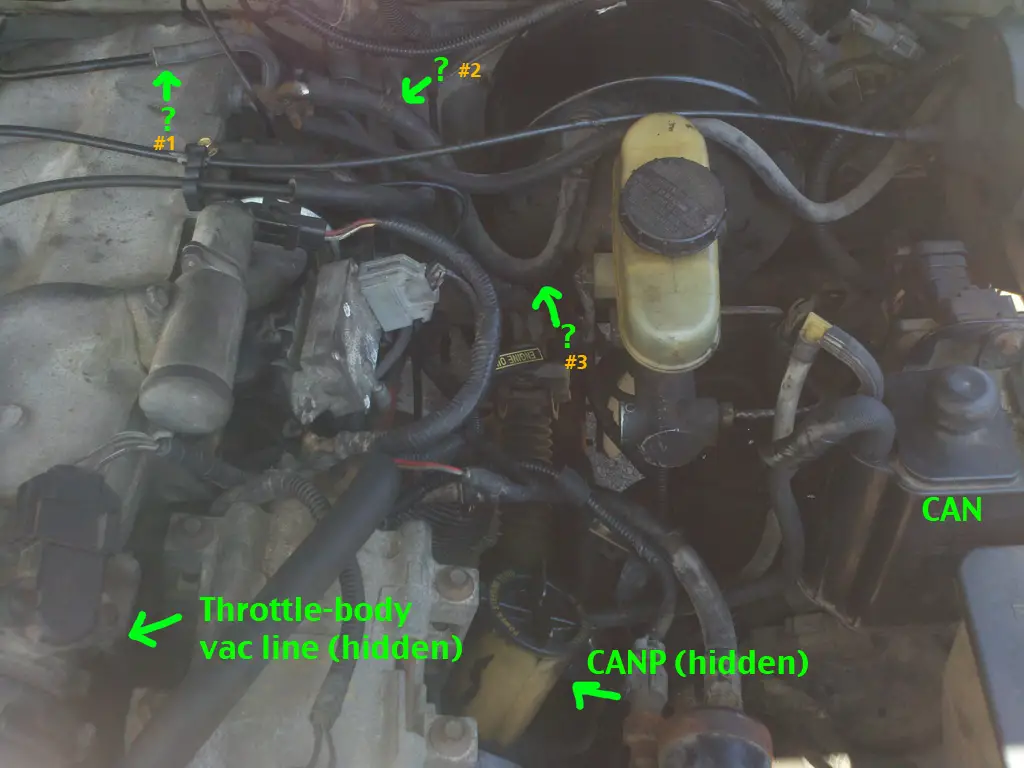

What are #1, #2, and #3 connected to? #1 is very stiff, and goes across the intake and down through the back somewhere.

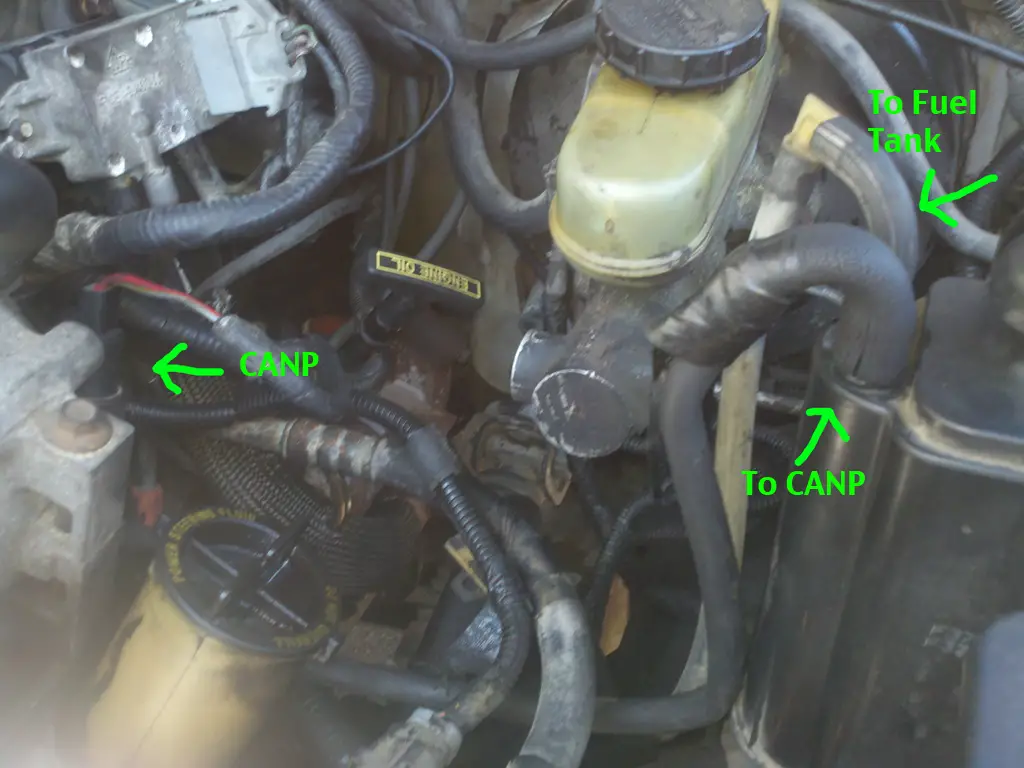

I think I figured this one out correctly. The CANP is a little solenoid going to the CAN, which is called a Charcoal Canister. I don't know its exact function. I'm also unsure whether it's connected the right direction. This is the only way it would fit (short line leading left, and longer leading to the CAN) A bigger question is whether I have the short line connected to the right spot (see below):

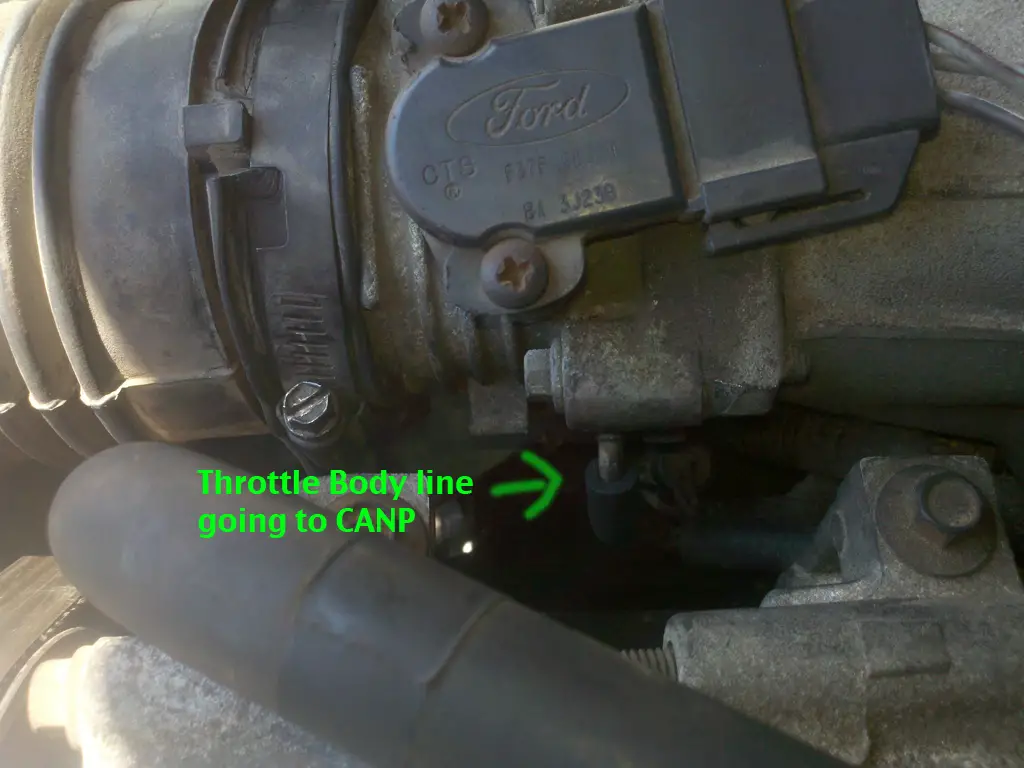

This is what I THINK is the Throttle-Body hole in the diagram, leading to the CANP.

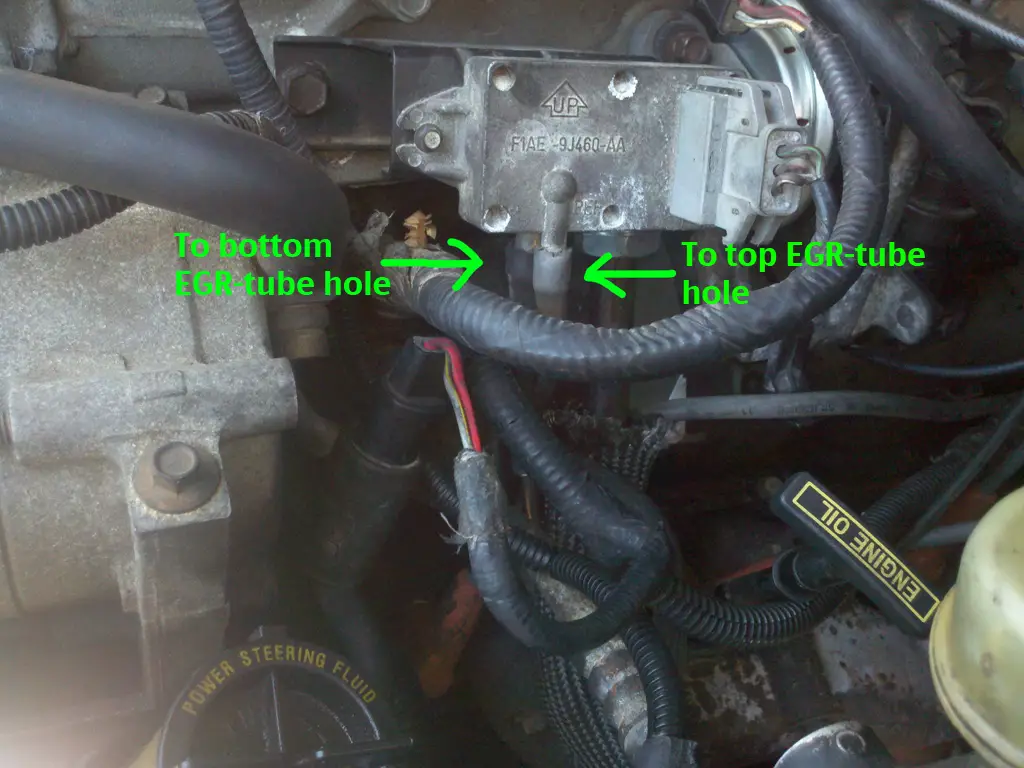

And finally, (slightly unrelated), just want to make sure this is correct. That's the DFPE. Front line is connected to the top EGR-tube hole. Back line is conncted to the bottom EGR-tube hole. I don't remember which hole is in or out.





Back to the diagram: In the top left there's a "Main VAC" leading to the PCV valve. Where is that, and from which vac-hole? Everything else on the left I haven't fussed with yet.

Thanks for your time...



Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
..The PCV and it's hose plug directly into the rear of the intake manifold..It does not lead up to the "octopus" Main Manifold vacuum multi connector thingy..:D

..Some of your notes you put on your pictures are incorrect..but it looks like most everything is plugged in correctly which let's you follow the diagram to learn more about what it means..:biggthump





KiloWatts

Member
Joined
September 6, 2006
Messages
17
Reaction score
2
City, State
Philadelphia
Year, Model & Trim Level
'94 Explorer
Thanks... If you have time, which notes are incorrect?

Also, if I only have 5 hoses plugged into the octopus, which one is missing?





KiloWatts

Member
Joined
September 6, 2006
Messages
17
Reaction score
2
City, State
Philadelphia
Year, Model & Trim Level
'94 Explorer
Okay, after researching the Fuel Pressure Regulator, I found it and it was the missing connection! I've plugged it into the 'octopus' now, so everything should be correct now.

So now I've just narrowed it down to identifying the Brake Booster, A4LD, and Speed control. ;)





Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
33,361
Reaction score
1,722
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
The black round canister behind your master cylinder is the power brake booster. The large vacuum line is correctly plugged in.

I don't have an auto trans or speed control so I can't help with that.





arco777

Elite Explorer
Joined
April 6, 2008
Messages
2,407
Reaction score
55
Year, Model & Trim Level
1994 Explorer 2dr 4x4
Okay, after researching the Fuel Pressure Regulator, I found it and it was the missing connection! I've plugged it into the 'octopus' now, so everything should be correct now.

So now I've just narrowed it down to identifying the Brake Booster, A4LD, and Speed control. ;)

The A4LD (trans) vac line runs down to the passenger side of the trans and hooks to the vacuum modulator. If you're experiencing 3000RPM shifts from 1-2, then there may be an issue with this line - otherwise it should be fine.

Brake booster is the round cylinder on the firewall and from your pics it's hooked up correctly.

Speed control is also hooked up fine, it's the round cylinder-lookin thing on the drivers side fender.

Do you have any actual driveability problems or a CEL? Otherwise everything should be hooked up fine - you'd notice if there was a vac leak.





L.A.X

Well-Known Member
Joined
July 18, 2013
Messages
405
Reaction score
2
City, State
Los Angeles, Ca
Year, Model & Trim Level
1991 Ford Explorer EB
I know this is an old thread but I need help





L.A.X

Well-Known Member
Joined
July 18, 2013
Messages
405
Reaction score
2
City, State
Los Angeles, Ca
Year, Model & Trim Level
1991 Ford Explorer EB
What is the long plastic cylinder looking thing on top of the heater box? Where does the vacuum line to that go?





arco777

Elite Explorer
Joined
April 6, 2008
Messages
2,407
Reaction score
55
Year, Model & Trim Level
1994 Explorer 2dr 4x4
It's a vacuum reservoir.





Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,470
Reaction score
70
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
From the reservoir, that plastic line will run over to the right fender into a wire cluster just to the bottom left of the heater fan..(between the fan and the fender)..

..This is how that vacuum line enters into the cab and runs behind your glove box over toward your heater controls..





MFrankln

New Member
Joined
April 9, 2014
Messages
3
Reaction score
0
City, State
Alabama
Year, Model & Trim Level
1993 Ford Explorer XLT
Amazing - THANK YOU!

I have a '93 Explorer XLT that has had a vacuum leak since I got the vehicle as a birthday gift in 2011. Could never find it.

In order to keep it running, I had to unplug the Mass Air Flow sensor and keep both feet busy to maintain idle. Even then, it ran rough.

But from Picture 4 below, I was able to locate the vacuum nipple that was hidden behind a half dozen other lines. Once properly plugged (as noted in image as it should be), I reconnected my MAF sensor and... she's running normal again!

I about jumped out of my boots!

I wish I could invite the author/owner of this thread and image over for a beer and some BBQ!

My baby is back to normal...

Thanks so much,

Mike









Roadrunner777

Explorer Addict
Joined
February 5, 2011
Messages
2,022
Reaction score
284
City, State
Bemidji, MN
Year, Model & Trim Level
94 4x4 Sport 88k
Just a few related notes...
There is a line going from the cruise control servo to points apparently unknown. It actually goes through the firewall and under the driver's side dashboard, to the brake pedal bracket. It's a safety feature that dumps the servo vacuum if you hit the brakes. If your cruise control is intermittent, the dump valve on the brake pedal is a common issue.

Also, I had to run for a few months with a bad tranny modulator due to weather, and some trans fluid got up in the modulator vacuum line, soaking the rubber end where it connects to the octopus. I never could get that really tight again, and sometimes in very cold weather, I would get a misfire blowing this hose off the octopus. When that happens, it makes an incredible sucking sound and shifts poorly. I'm not a big fan of how they used rigid plastic tubing and rubber ends. It's very difficult to repair reliably.

Ok, there's my 2 cents.
