98 explorer vacuum line help

[brandon7117]

I have a 98 4.0 sohc I recently did timing chain job and had the motor out. Since then the heater controls haven't worked. To the point I think I figured out the problem The red vacuum line that goes above right hand valve cover what line does it hook to? Also the vacuum pod thing on top of the upper intake plenum where is the vacuum line that goes to it. Its never had anything hooked to it. Ill take pics tomo if needed.



[brandon7117]

http://i744.photobucket.com/albums/xx87/brandon7117/brittaneyvacuumline_zps09b607c6.jpg

http://s744.photobucket.com/user/brandon7117/media/brittaneyvacuumline_zps09b607c6.jpg.html" target="_blank"><img src="http://i744.photobucket.com/albums/xx87/brandon7117/brittaneyvacuumline_zps09b607c6.jpg" border="0" alt=" photo brittaneyvacuumline_zps09b607c6.jpg"/></a>[/URL]
hope one these work this is the red line



[2000StreetRod]

vacuum bulb reservoir

That looks like the hose that goes to the vacuum bulb reservoir located below the air filter box. Normally you can't see the bulb even with the air filter box base removed.



[brandon7117]

thanks I looked back and found it before I un hooked it. Now I just gotta figure out if the line I had hooked up if it is the one that goes to the actuator thing on top of the intake. Not the IAC, I haven't figured out what it is but has a little vacuum pod on it



[brandon7117]

I looked at picture I took before I really started taking the motor apart.



[2000StreetRod]

Vis

The 1997 and 1998 SOHC V6 have a variable intake system that controls the length of the intake runners. VIS consists of a vacuum cylinder mounted under the upper intake manifold, a vacuum motor/actuator, and a vacuum solenoid. VIS shortens the intake runners when engine speed exceeds 3,000 rpm.

See VIS Conversion



[brandon7117]

So I'm looking for a vacuum line coming from the canister and then it goes to the vis right? Do you know what color it is because I know a lot of them where different colors.



[2000StreetRod]

canister?

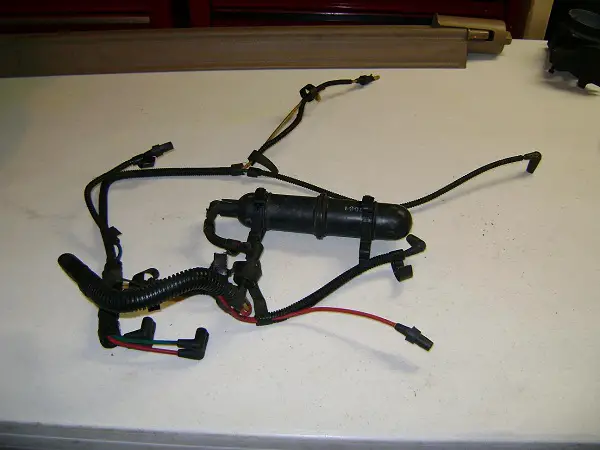

Is this the canister you're referring to?

If so, it is located between the upper and lower intake manifolds.



[brandon7117]

Yes I just need to know which line coming from the canister goes to the vis on top of the intake



[2000StreetRod]

vacuum regulator

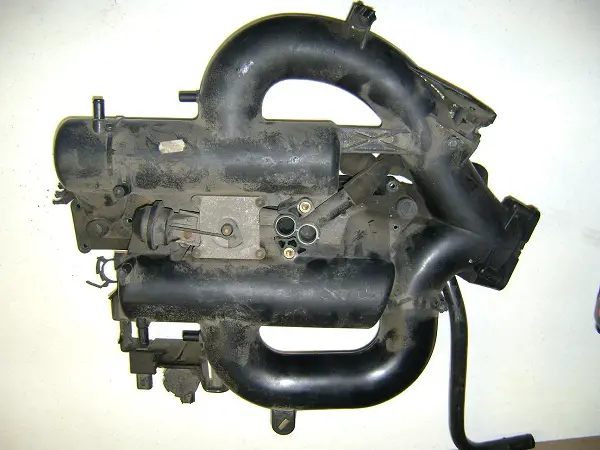

I've never had VIS on my 2000 Sport so I'm just guessing but the vacuum motor/actuator (shown below)

should be connected to the vacuum solenoid in the lower left corner of the photo below.

The canister is probably connected to a "T" fitting connected to the other side of the vacuum solenoid. I have a 1998 vacuum harness in my storage room and I can dig it out if you can't figure it out otherwise.



[brandon7117]

Thanks I think I see which one its supposed to go to it



[brandon7117]

Thanks for fast reply help. It was what I thought I had the vis line hooked to vacuum for the heater together cause I didn't see the red vacuum line till yesterday while doing intake gaskets
