just carve something stupid on the underside where no one would see it. like type R, or saleen, or steeda, or dont drink and drive or draw a little picture....yes...im bored.







Black Magic

Moderator Emeritus
Moderator Emeritus
Joined
February 10, 2000
Messages
6,144
Reaction score
6
City, State
St. Louis, MO
Year, Model & Trim Level
Explorer Street
Back to the pan...

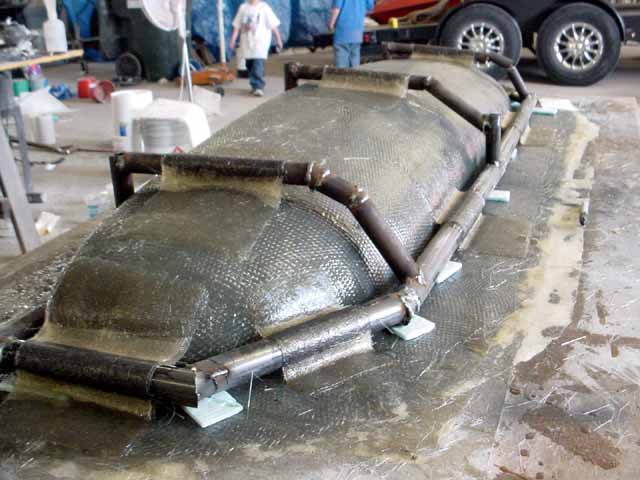

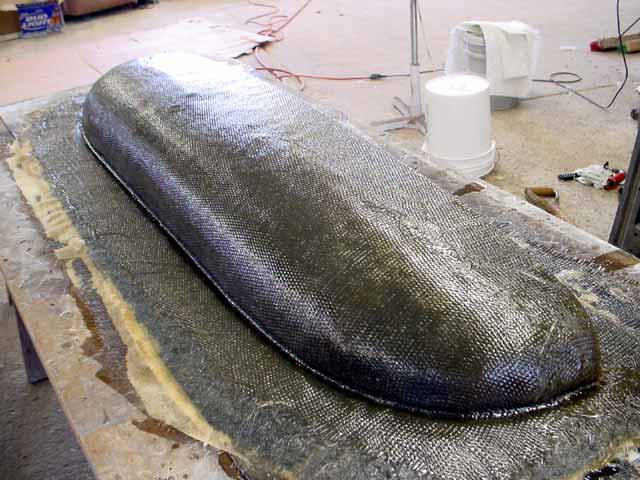

All the final layers of glass are on the mold. I have built a tube frame arround the mold and have tab'ed the mold to the frame, yesterday. So today after work I will go back to the shop and pop the mold. Pics to follow shorly...







Black Magic

Moderator Emeritus
Moderator Emeritus
Joined
February 10, 2000
Messages
6,144
Reaction score
6
City, State
St. Louis, MO
Year, Model & Trim Level
Explorer Street
Well, I think I will be able to pop the mold tonight. I have been getting many, many emails and PM's for pics. So I have made a page with all the build-up pics, there are no explinations or anything like that just all the pics I have thus far. I have more to post tonight too.

http://stlouismtb.tripod.com/rollpan/rollpanpics.html








Black Magic

Moderator Emeritus
Moderator Emeritus
Joined
February 10, 2000
Messages
6,144
Reaction score
6
City, State
St. Louis, MO
Year, Model & Trim Level
Explorer Street
Here are the latest pics...



Drum roll please...

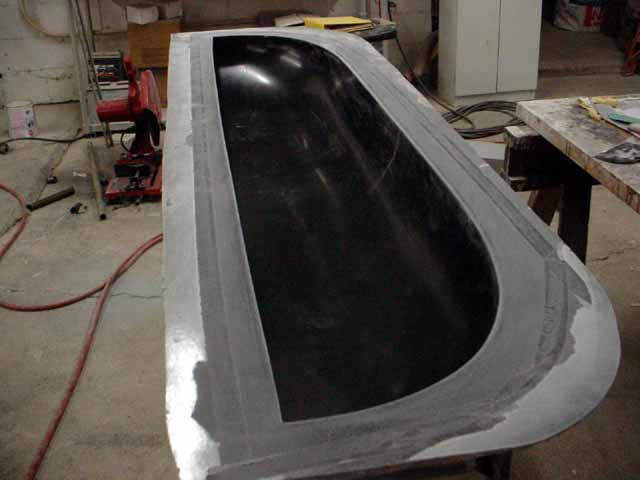

Here is the mold:

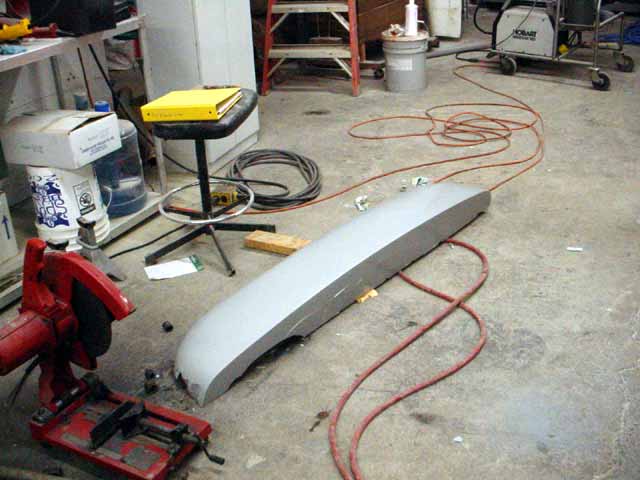

Had to break the plug taking it out of the mold:

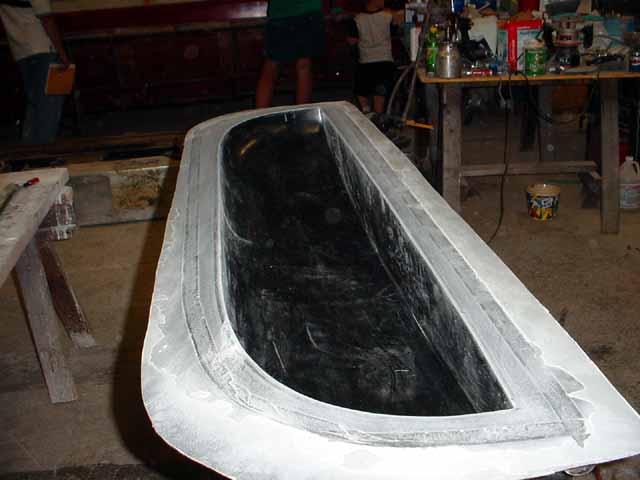

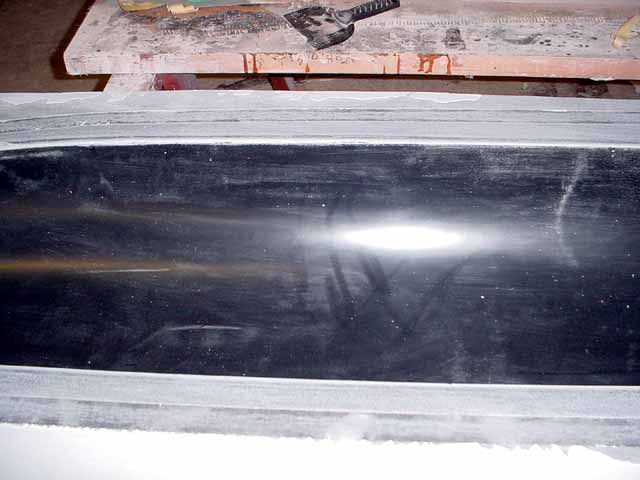

Started to sand out the mold. It has to be wet sanded to 1500.

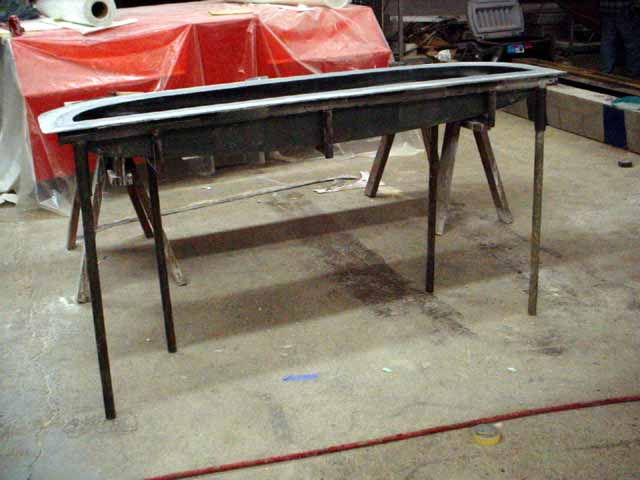

I even welded on collasable legs on to the mold so I can store it with minimal storage space.
