My NEW 2004 Jet Black Mach 1

JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,269
Reaction score
41
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT
Good Night all :) !!


Attachments

  • macheng2.jpg
    38.7 KB · Views: 582



Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.

















JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,269
Reaction score
41
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT

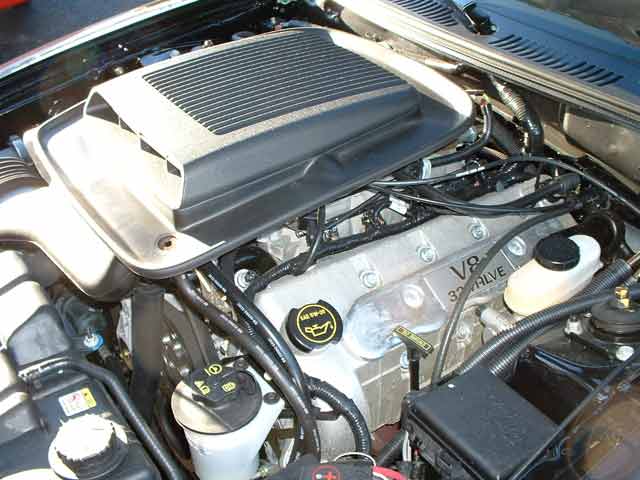

Ok, a couple of daylight motor shots :).
























DasFrem

Elite Poseur
Joined
February 21, 2000
Messages
1,025
Reaction score
5
City, State
Portland, OR
Year, Model & Trim Level
2 '97 sports
BADASS JEFF!!!! Congrats dude. So what are the specs on that thing, 4.6 NA DOHC V8 I can see, but what about the tranny? IRS? Specs Jeff, we need Specs!!!!!







JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,269
Reaction score
41
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT
Here's all the tech specs you could want :)

MACH 1
Front Suspension
Springs 600 lbs./in. linear
(lowers car ½ in.)
Struts 35 mm piston Tokico Valve Shocks
Stabilizer Bar 26.5 mm (1.04 in.) solid

Rear Suspension
Springs 250 lbs./in. linear
(lowers car ½ in.)
Shocks 30 mm piston, Tokico valve
Stabilizer Bar 23 mm (.905 in.) solid

Brakes
Front
Calipers Twin piston aluminum painted
Rotors 330 mm (13 in.) Brembo vented
Rear
Calipers Single Piston
Rotors 296mm (11.7 in.) Brembo vented

ABS and Traction Control

Misc. Subframe connectors

Engine
Engine Type MOD 4.6L DOHC V-8
Displacement 4.6L, 281 cu. in.
Horsepower @ rpm 305 @ 6000
Torque lb-ft. @ rpm 320 @ 4250
Compression Ratio 10.1:1
Bore and Stroke 90.2 mm x 90 mm
(3.55 in. x 3.54 in.)
Fuel System Sequential multi-port
Electronic fuel injection
Fuel Requirement Premium (91 octane minimum)
Exhaust System Stainless steel with Chromed rolled tips
MPG CITY/HWY 17/25 (5-speed manual)

Transmission
Tremec 5 Speed
Gear Ratios 1st - 3.38; 2nd - 2.00; 3rd - 1.32; 4th - 1.00; 5th - 0.62; Rev. - 3.38

Rear Suspension
Four-bar link with coil springs on lower arm, unique horizontal axle damper and stabilizer bar
8.8" 28 spline 3.55 Trac-Loc axle

Wheels 17 x 8-inch Magnum 500-style "Heritage Style" (5 spoke)
Tires Goodyear 245/45ZR17 Eagle ZR45
Dimensions
Wheelbase 257.3 cm (101.3 in.)
Overall Length 465.3 cm (183.2 in.)
Overall Height 132.9 cm (52.35 in.)
Overall Width 185.6 cm (73.1 in.)
Tread Width (Front/Rear) 152.9 cm (60.2 in.)/153.9 cm (60.6 in.)
Curb Weight 3465 lbs. (manual) 3475 lbs. (automatic)
Front/Rear Seating Capacity 4
Aerodynamics Coefficient of Drag (Cd) 0.36
Luggage Capacity 10.9 cu. ft.
Passenger Volume 83.0 cu. ft.
Total Interior Volume 93.9 cu. ft.
Fuel Tank Capacity
15.7 gal.











Alec

Elite Moderator
Moderator Emeritus
Joined
April 25, 2000
Messages
15,979
Reaction score
1
City, State
Houston, Texas
Year, Model & Trim Level
2008 JK
If you ever go on any trips with it, think about putting an extra gas tank in the trunk :p

;)







JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,269
Reaction score
41
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT
Originally posted by Alec
If you ever go on any trips with it, think about putting an extra gas tank in the trunk :p

;)


It goes farther on a tank of gas than my Explorer does.....







Alec

Elite Moderator
Moderator Emeritus
Joined
April 25, 2000
Messages
15,979
Reaction score
1
City, State
Houston, Texas
Year, Model & Trim Level
2008 JK
I just saw the 17/25 and the 15.7 gal tank vs the X's 17.5-21.

I usually go about 330 on a 14 gallon tank :D







94WhiteEB

Well-Known Member
Joined
December 19, 2002
Messages
120
Reaction score
0
City, State
Greensboro, NC
Year, Model & Trim Level
1994 Eddie Bauer 4x4
04 Mach 1's are supposed to FLY. Drop it 2", take out the horsy in the front and put in a smooth lookin grille.:D







Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
34,474
Reaction score
2,733
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
The grill delete is part of what makes the mach cool. Adding a grill would spoil that. Now on the other hand, side exit exhaust... :D

Nearly 400 miles per tank in a 3500lb mid 13 second car isn't too shabby :D













94WhiteEB

Well-Known Member
Joined
December 19, 2002
Messages
120
Reaction score
0
City, State
Greensboro, NC
Year, Model & Trim Level
1994 Eddie Bauer 4x4
Oh, I didn't notice the grille delete. Nevermind, that's pimp, don't change that.







JDraper

Somewhat Functional
Moderator Emeritus
Joined
January 11, 2001
Messages
15,269
Reaction score
41
City, State
McVeytown, PA
Year, Model & Trim Level
'18 XLT
Ok, it's been a year...the stock Crapyears are about burned off :burnout: so I'm gonna need new tires in the somewhat near future...Since we're talking tires...what about rims too???

Whaddya think....

Charcoal Bullits??




or Kazera's?








huskyfan23

Rah no Hans Bwix
Joined
November 21, 2002
Messages
6,721
Reaction score
6
City, State
WA
Year, Model & Trim Level
1994 XLT 4x4
I really like those stock rims but Bullitts would look great too.

Just noticed the Kazeras, those are my pick, and my opinion is all that matters. Go for it! :D







rino351

Explorer Addict
Joined
July 31, 2003
Messages
1,352
Reaction score
1
City, State
Golden, CO
Year, Model & Trim Level
'94 XLT
I say the cazera's. It gives some contrast, and they are just sweet! :D







Blee1099

Evil Asian
Moderator Emeritus
EF Vendor
Joined
March 3, 2002
Messages
13,891
Reaction score
41
City, State
Elkridge, MD
Year, Model & Trim Level
04 4Runner, 22 Silverado
JDraper said:
Ok, it's been a year...the stock Crapyears are about burned off :burnout: so I'm gonna need new tires in the somewhat near future...Since we're talking tires...what about rims too???


Gee.. I wonder why the rubber is almost gone.. There's enough rubber on Ferguson Valley Road & Strodes Run road.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





RFR2212

Typing Police
Elite Explorer
Joined
April 10, 2000
Messages
5,272
Reaction score
10
City, State
In the mug by Chitown
Year, Model & Trim Level
95 JEEP Wrangler
bullets can be picked up off the lot... go aftermarket..
