Real life experience please 4" front lift and SOA rear (92 sport)

venom97

Member
Joined
February 2, 2004
Messages
27
Reaction score
26
City, State
central,il
Year, Model & Trim Level
91 xlt
I about ready to order a lift and already have my spring perches. The rear will be a SOA conversion, I want the extra clearance and also want as much flex as I can keep without building an all out trail rig. The answer I'm looking for is will the 4" front with a small spring washer/spacer get me close to level? I know the SOA says... 5.5 but Ive read some people say a 4" can work but wanted to hear from those of you that have ran the set up. 5.5 front looks a little taller than I want to go in the front, looking to run 33x12.5x15s.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




fordpickupman

Elite Explorer
Joined
March 18, 2011
Messages
205
Reaction score
127
City, State
Cascade, ID
Year, Model & Trim Level
94 XLT
71 F250 Fummins
My SOA ended up close to 6", 5.5" is probably the true measurement. I did 64" chevys at the same time. I'm pretty sure I'm running over 6" on the front of my '94. The ball joint cut-n-turn made it possible to lift it without brackets.





fordpickupman

Elite Explorer
Joined
March 18, 2011
Messages
205
Reaction score
127
City, State
Cascade, ID
Year, Model & Trim Level
94 XLT
71 F250 Fummins
Drives great. Rides Awesome. The biggest expense was the Deaver coil springs.





Kirby N.

Elite Explorer
Joined
February 6, 2001
Messages
2,336
Reaction score
132
City, State
Colorado Springs, CO
Year, Model & Trim Level
1991 Ranger
On my sport I did a 3.5 James duff lift and added 1.25 spacers. I also removed the overloads on the spring pack when I did the spring over. It came out good. Little high in the rear but not bad.





venom97

Member
Joined
February 2, 2004
Messages
27
Reaction score
26
City, State
central,il
Year, Model & Trim Level
91 xlt

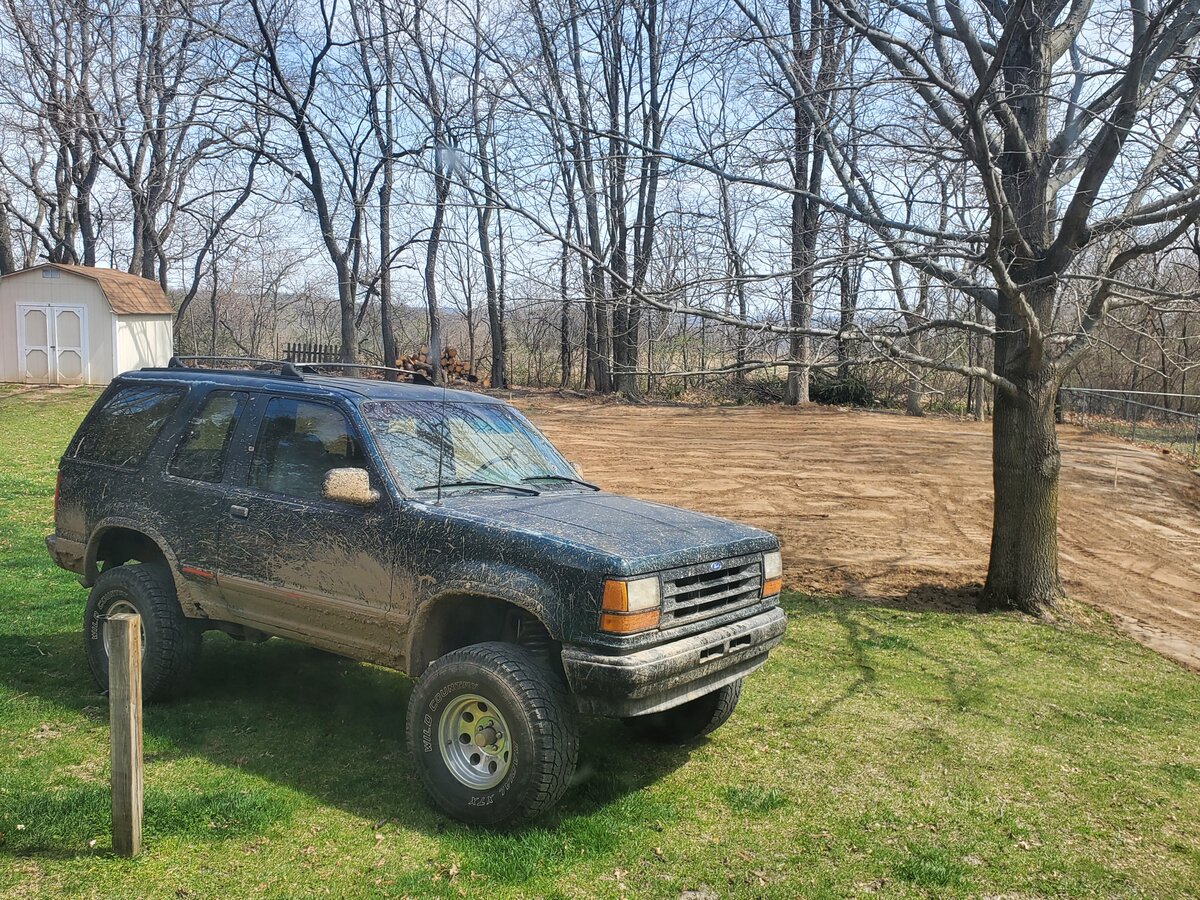

Thanks guys. I did 4" with 1" spacer up front and the soa on the rear. I'm happy with it, not a great pic but the best I have to show the result.
