Rear Door Speaker Holes


Trader0000

Police Explorer for sale....needs paint
Elite Explorer
Joined
November 5, 2017
Messages
47
Reaction score
10
City, State
Glen Ellyn , IL
Year, Model & Trim Level
2013 PIU 3.7L
I wanted to replace my utility rear door panels with the standard rear panels so that I could better hear the rear speakers. I could not find a cheap set so I decided to see if I could cut a hole in the door panel. I removed the rear door panel and found a surprise. Ford had molded a speaker star pattern consisting of 28 - 5/16” circles into the backside of the door panel that matches the speaker location.

After removing the panel I plugged in my Harbor Freight Wood/Soldering tool with the pointed tip. Then I centered the hot tip in the middle of each of the 5/16” holes, making a small dimple. Now I took a 1/8” drill bit and made the pilot holes from these dimples. After the pilot holes were drilled I took a step drill and carefully drilled out the holes to match the 5/16” template rings that Ford had molded in place. I thought about covering the back side with speaker cloth but have not done this yet. Then I reinstalled the door panels. This mod greatly increased the rear speaker volume and has the looks like an 80’s style factory speaker. I may later drill these holes larger using the step drill.


PIU Speaker 012.JPG


PIU Speaker 013.JPG


PIU Speaker 014.JPG


PIU Speaker 015.JPG

Last edited:

Join the Elite Explorers for $20. Gets rid of the ads!

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see practically no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.



adamsdell

New Member
Joined
February 1, 2017
Messages
16
Reaction score
1
City, State
North Wilkesboro, NC
Year, Model & Trim Level
2016 Ford Police Utility
I saw that on my door panels too and I want to do that. I will be doing that when it warms up, too cold here.
Looks good.



Fedon

New Member
Joined
December 5, 2017
Messages
24
Reaction score
23
City, State
Toronto, Ontario
Year, Model & Trim Level
Police Interceptor 2013
Did the same thing when i had the panels off to reconnect the latch cable.



Neitron

New Member
Joined
January 6, 2018
Messages
13
Reaction score
0
City, State
Kansas City, MO
Year, Model & Trim Level
13 PIU
Thanks for the idea, Fedon. Just finished connecting the door latch cable and drilled for sound in one shot.



unixadm

Active Member
Joined
July 5, 2015
Messages
102
Reaction score
17
Year, Model & Trim Level
2015 PIU Ecoboost
I replaced my rear door panels with retail versions.



2013PIU

New Member
Joined
October 29, 2017
Messages
34
Reaction score
12
City, State
WALNUT CREEK, CA
Year, Model & Trim Level
2013 PIU
Nice job! I'm thinking of doing this or using a hole saw to cut out the outer perimeter of the circle and attaching speaker covers. Do you recall the diameter of the big circle? I've attached a pic of some $10 covers.
I wanted to replace my utility rear door panels with the standard rear panels so that I could better hear the rear speakers. I could not find a cheap set so I decided to see if I could cut a hole in the door panel. I removed the rear door panel and found a surprise. Ford had molded a speaker star pattern consisting of 28 - 5/16” circles into the backside of the door panel that matches the speaker location.

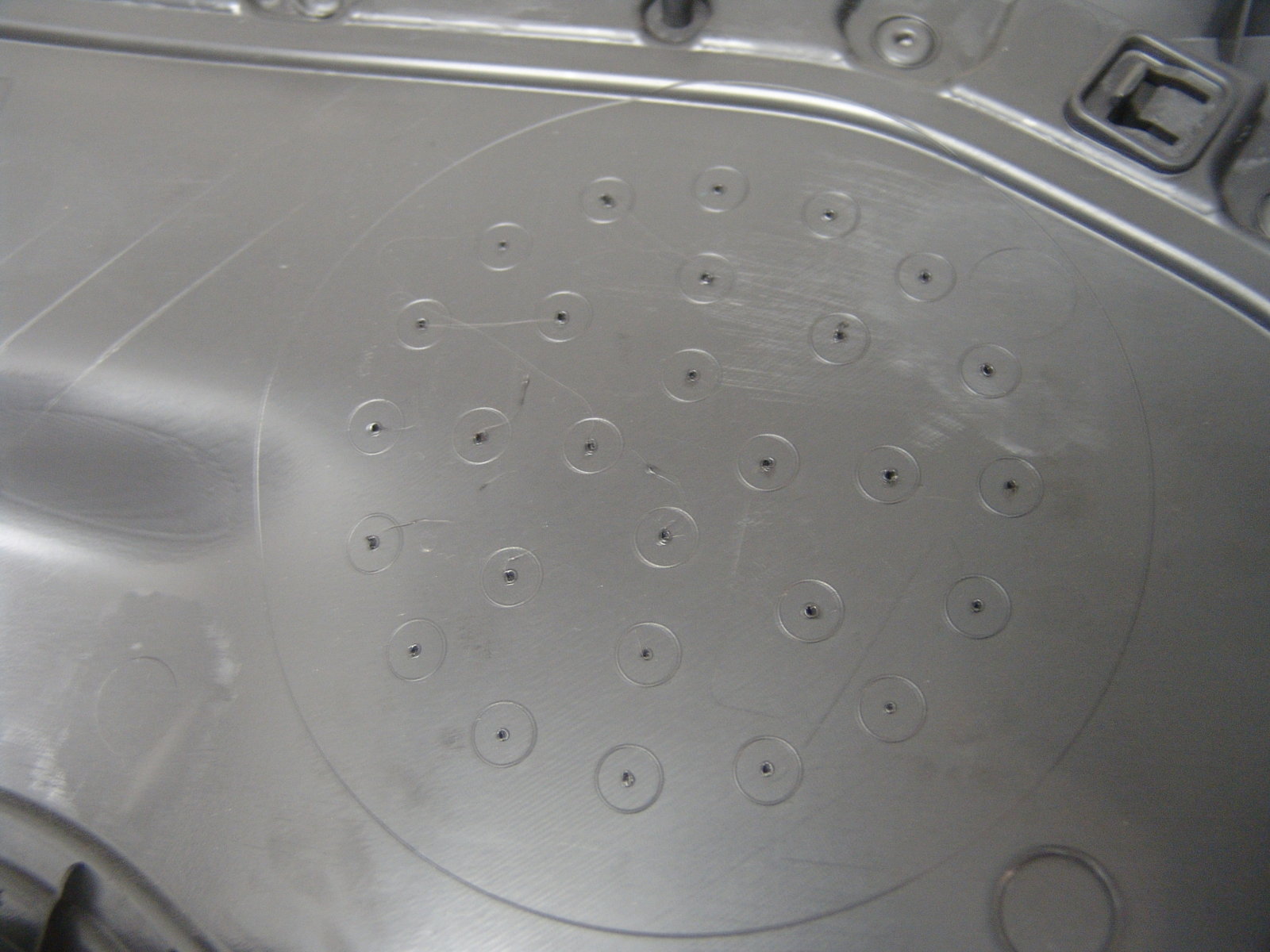

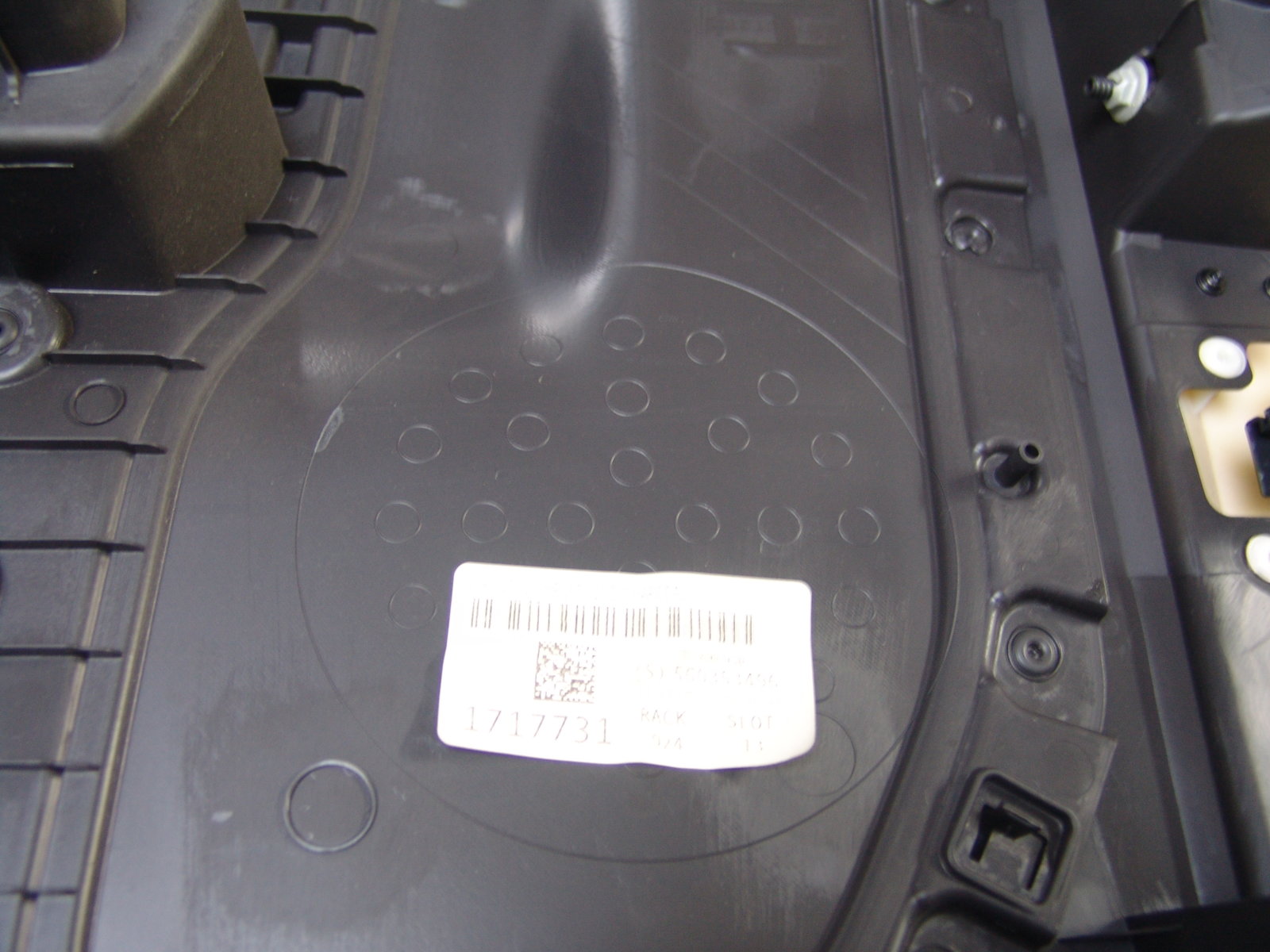

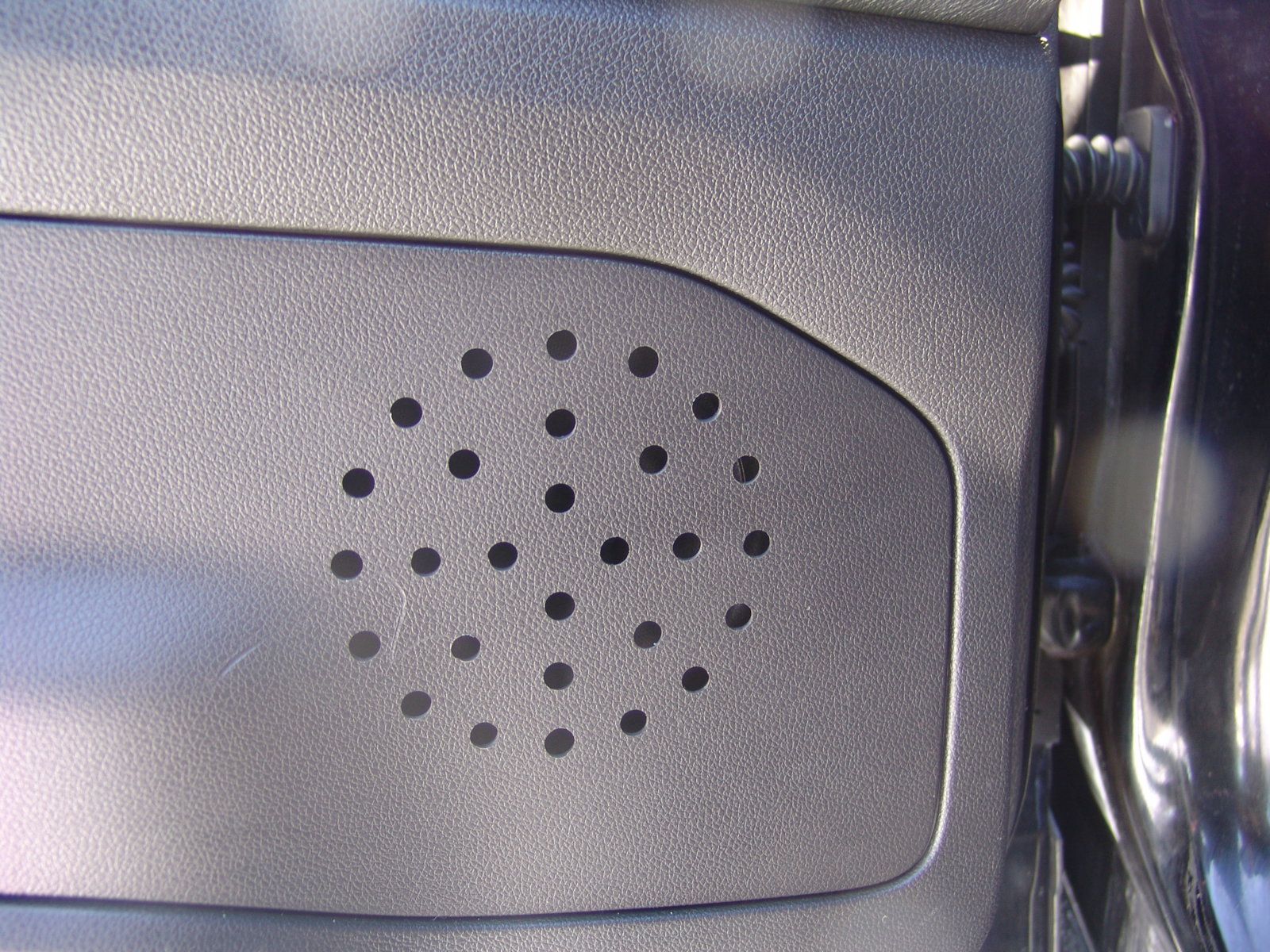

After removing the panel I plugged in my Harbor Freight Wood/Soldering tool with the pointed tip. Then I centered the hot tip in the middle of each of the 5/16” holes, making a small dimple. Now I took a 1/8” drill bit and made the pilot holes from these dimples. After the pilot holes were drilled I took a step drill and carefully drilled out the holes to match the 5/16” template rings that Ford had molded in place. I thought about covering the back side with speaker cloth but have not done this yet. Then I reinstalled the door panels. This mod greatly increased the rear speaker volume and has the looks like an 80’s style factory speaker. I may later drill these holes larger using the step drill.


View attachment 153536

View attachment 153537

View attachment 153538

View attachment 153539



unixadm

Active Member
Joined
July 5, 2015
Messages
102
Reaction score
17
Year, Model & Trim Level
2015 PIU Ecoboost
The prior owner of my 2015 PIU did the speaker covers and let me tell you, it looked GHETTO. Everyone who rode in the back of my Explorer always commented on my 1980's speakers. lol.

Hence why I swapped to the civi door panels which was a cheap upgrade.



nathansmith50

Member
Joined
January 22, 2015
Messages
53
Reaction score
6
City, State
grand rapids, MI
Year, Model & Trim Level
2014 PIU
Not sure about all of them but this was the case in mine. Maybe yours too. If you care.

my kids were complaining that they couldn’t hear the music. So I grabbed some speakers at the pick and pull and was going to install them. I was hoping they had connectors but was ready to run speaker wire if I had to. Pulled the door skin and what to my wondering eyes should appear? There are speakers in there! There are just no grilles in the door card. There is a pattern on the back for drilling. So I drilled out the holes and covered the whole panel in speaker cover material. I didn’t remove anything from the door card. Some super 77 spray adhesive and a screwdriver to tuck the edge behind the panel.

I have pictures but I have no online hosting.



KayGee

Well-Known Member
Joined
March 27, 2017
Messages
1,421
Reaction score
329
City, State
Farmington, MI
Year, Model & Trim Level
'16 & '17 PIU
I have pictures but I have no online hosting.
Online hosting is free. Imgur.com

I know this site wants to sell memberships, but you'd think there would be a stickied thread on how to post images (with and without a membership) as it seems to come up quite frequently.







nathansmith50

Member
Joined
January 22, 2015
Messages
53
Reaction score
6
City, State
grand rapids, MI
Year, Model & Trim Level
2014 PIU
I figured out the pictures.



peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
26,971
Reaction score
1,473
City, State
Ottawa, Ontario area
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
nathansmith50.....your thread was merged with this one identified above by Jason.

Peter



nathansmith50

Member
Joined
January 22, 2015
Messages
53
Reaction score
6
City, State
grand rapids, MI
Year, Model & Trim Level
2014 PIU
So I see. In any case. This is a nice in between. It looks, in my opinion, better than just holes or retail speaker grilles and it is a lot cheaper than new door panels.





DHG2496

Member
Joined
October 4, 2019
Messages
57
Reaction score
1
City, State
Fruitport, MI
Year, Model & Trim Level
14 Explorer PIU 3.5EB
I figured out the pictures.
Would you mind reposting a couple pics? They don't appear to be working and I was curious how you finished the edges of the fabric.



nathansmith50

Member
Joined
January 22, 2015
Messages
53
Reaction score
6
City, State
grand rapids, MI
Year, Model & Trim Level
2014 PIU


DHG2496

Member
Joined
October 4, 2019
Messages
57
Reaction score
1
City, State
Fruitport, MI
Year, Model & Trim Level
14 Explorer PIU 3.5EB
Thanks @nathansmith50 i didn’t realize there was that much of a gap to stuff the fabric in there. Thanks for sharing the pics!



nathansmith50

Member
Joined
January 22, 2015
Messages
53
Reaction score
6
City, State
grand rapids, MI
Year, Model & Trim Level
2014 PIU
Thanks @nathansmith50 i didn’t realize there was that much of a gap to stuff the fabric in there. Thanks for sharing the pics!
Another step I neglected to mention, I think, I sprayed the whole panel that is covered with spray adhesive first.
