The rig gets some much needed TLC


Josh S - rear glass, suspension, manual tcase

Hey guys I'm back! Well it's been a while since I've done anything major to my truck and it's high time! For starters, I've been running off of one shock in the rear forever and the shock will bottom out if I hit too hard. It was just a thrown together setup cuz I got some free 5150's so I slapped em on.

Anyways, it now has 1.5" per side widened beams up front with rigid bumpstops, kings, eibach coils still. The front end hangs pretty good right now minus the jacked alignment, but that's alright for now cuz I haven't been driving much.

The imminent plans include:
1) Cleaning up the rear fender hackage, round the corners and trim up the body straight so it looks cleaner, then maybe wrap the edges into the wheelwell.

2) mount the rear fiberglass quarter panels. These will be ordered in the next few days from Fiberwerx. I have the mounts already for the fenders, courtesy of Camburg. These are preferable and less of a PITA that dzus fasteners, and I like the look too.


3)finish rear suspension. This will involve the most work. after a lot of thought over the past year or two(while not having any spare $$), I have decided to keep the shocks under the bed instead of coming up through the floor. I have been in Sirhk100's old X that was set up this way and it hung hard enough for what I plan on doing. I just would like to bomb around the desert mildly(not fullon race speeds) with a bit of jumping in the mix, with also doing trails of course.

Having Kings up front I would like to stick with em, and also match them with 2.5s. I'm having trouble finding some used right now so they may have to be ordered new :( I'm estimating that I will need around a 10" stroke, but cycling will tell the truth.

I will disassemble the Deaver leaf pack that is on there currently, and just have the main leaf to cycle the suspension, and get some rough measurements off of an "imaginary" upper mount, then I will know the right length to get. A crossmember will need to be fabbed for the shocks to mount to, as well as some of the stock spare tire mount cut off. gooood, my sawzall is getting a bit of dust settling on it :D

in this same time I will mount my Radflo 2" stroke hydro bumps in the cans I just picked up from Camburg. These will be nice for the harder hits in the whoops or on dropoffs or mild jumps. The short stroke and bodies of these custom bumps work great for mounting under our explorers and fitting underneath the floor. After this is complete I will measure for and order some limit straps to keep my leaf pack and shocks together at droop.

While this doesn't sound like a whole lot, it's going to be a lot of work for me but I know it is going to be awesome!

One more current event lol...I ordered a manual t-case from a guy that will be waiting for me when I get back to Chico. Just need to track down some linkage and a shifter and I'll toss that baby in to get rid of these darn shift motor blues :rolleyes:

I'm down in OC right now and won't be back up home to the truck in chico for another week or so, so not really any pics of the stuff...but you can count on this thread having mad amounts of pics once the work starts!!!



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




IZwack

Moderator Emeritus
Joined
February 5, 2003
Messages
21,771
Reaction score
19
City, State
Germantown, MD
Year, Model & Trim Level
1998 Ford Explorer
Wow NV4500 -- big stuff!



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




james t

Elite Explorer
Moderator Emeritus
Joined
January 27, 2002
Messages
10,689
Reaction score
7
City, State
Texarkana AR/TX
Year, Model & Trim Level
94 SAS sport
Nothing wrong with the 4500/atlas... pretty much bulletproof. :thumbsup:









Josh S.

can't kick the habit
Elite Explorer
Joined
January 19, 2001
Messages
1,901
Reaction score
4
City, State
Seabeck, WA
Year, Model & Trim Level
'93 sport 4x4
Well since I sold my old truck that was the DOM hauler, we had to make a new lumber rack for the toyota...literally...:D


Seriously redneck I know, but it actually worked out really well and it took us a couple of hours to build, with some free scrap wood from work. Cheap and removable. My buddy said he got a lot of wierd looks driving through Seattle lol.

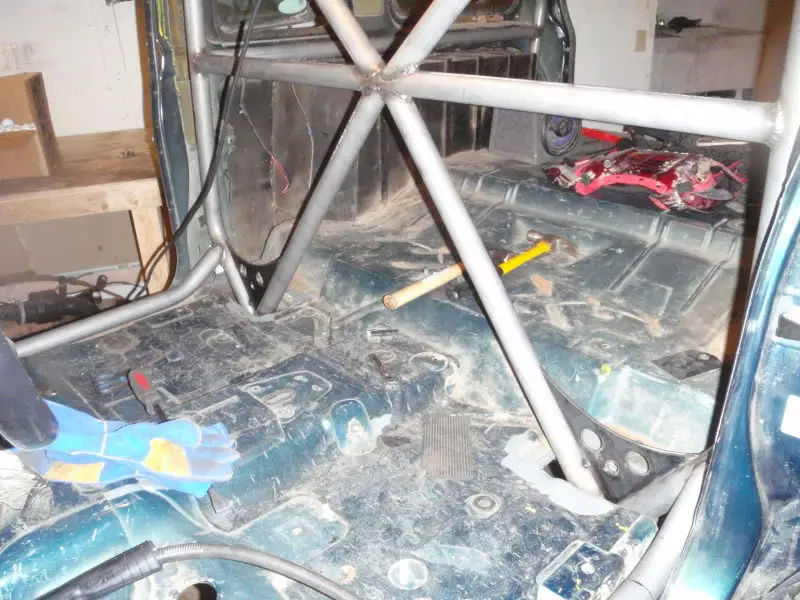

Got the D-pillars done..
