Tow-Mode Button Installation | Ford Explorer - Ford Ranger Forums - Serious Explorations
  • Register Today It's free!

Tow-Mode Button Installation

ieee_raider

Well-Known Member
Joined
May 22, 2013
Messages
361
Reaction score
7
City, State
Paris, TX
Year, Model & Trim Level
2013 Ford Explorer Sport
Hi All,

I had wanted to do this a while back but didn't do the research. Thanks to SoonerSport's digging (shown here: http://www.explorerforum.com/forums/showpost.php?p=3266353&postcount=122) I was able to order the correct part.
I wanted to have its own thread in the mods section so it was easy to find... and to add my pics.
For those that don't know... on the Sport, the only differences with the tow package and non tow package is this button, the hitch, and the wiring harness.
Installation took about 2 minutes.

So here's the part: BB5Z13D730CA

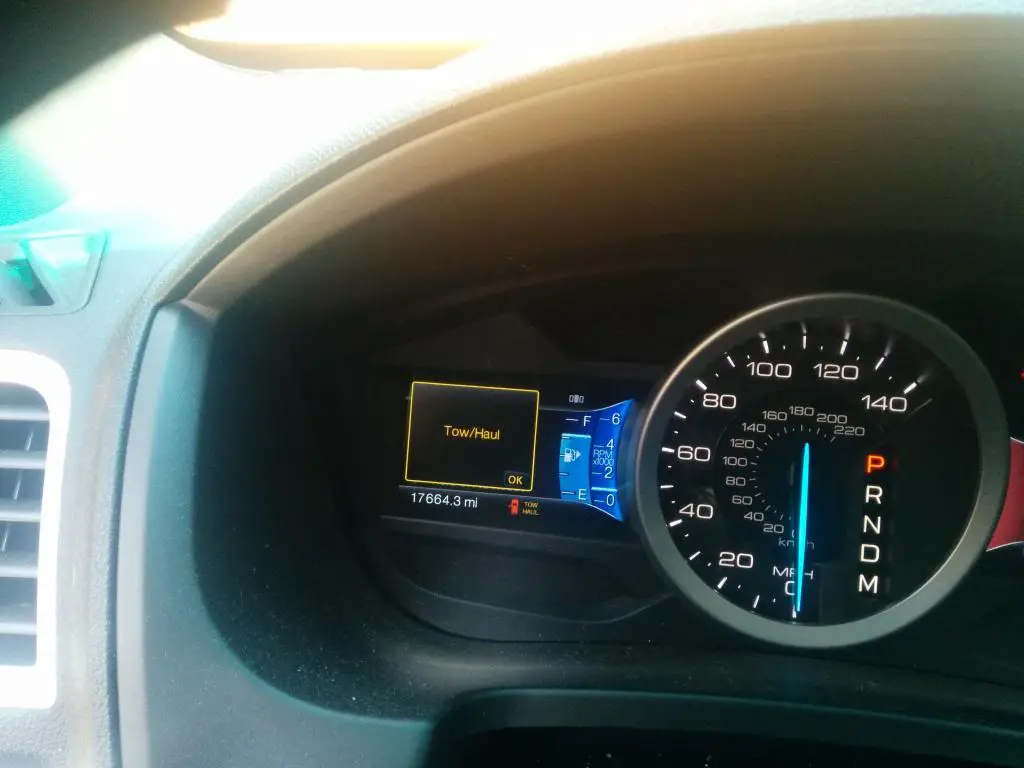

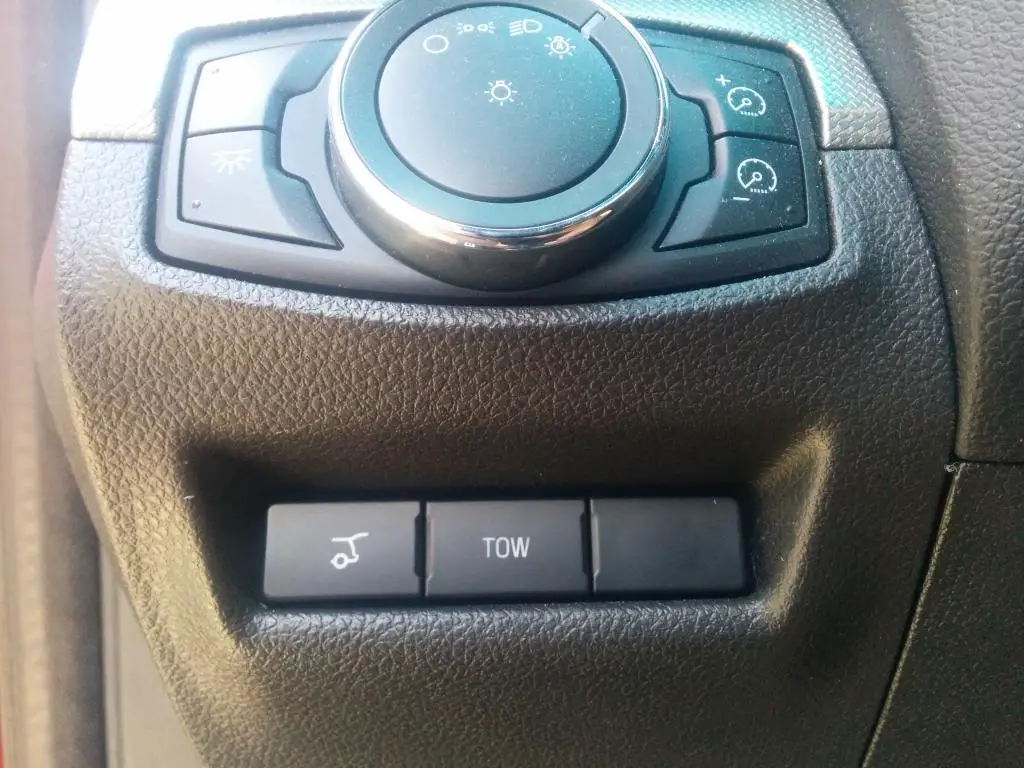

And here are the installed pics:






Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





MyNewGlock23

Member
Joined
October 3, 2013
Messages
13
Reaction score
0
City, State
Dirty, New Jersey
Year, Model & Trim Level
2006 Audi A4
This is pretty awesome. $570 to add it from the dealer, just over $120 to do it yourself...







ieee_raider

Well-Known Member
Joined
May 22, 2013
Messages
361
Reaction score
7
City, State
Paris, TX
Year, Model & Trim Level
2013 Ford Explorer Sport
This is pretty awesome. $570 to add it from the dealer, just over $120 to do it yourself...

Well, depending on the model...
Some models also added an oil cooler and a transmission cooler. Some people say the transmission model changed in 2012+ models.
So $120 doesn't get you the whole deal except on a Sport model.







MyNewGlock23

Member
Joined
October 3, 2013
Messages
13
Reaction score
0
City, State
Dirty, New Jersey
Year, Model & Trim Level
2006 Audi A4
Well, depending on the model...
Some models also added an oil cooler and a transmission cooler. Some people say the transmission model changed in 2012+ models.
So $120 doesn't get you the whole deal except on a Sport model.

Gotcha...that makes sense. I was just looking at the numbers... I wasn't aware of the oil and trans coolers.







Sgt1411

Elite Explorer
Joined
February 22, 2011
Messages
4,511
Reaction score
477
City, State
VanBC/GoodyearAZ
Year, Model & Trim Level
2021 Explorer ST
Callsign
PRINCE51
Dont forget the larger radiator on the Tow Package.







twodogs603

Active Member
Joined
June 18, 2014
Messages
51
Reaction score
0
City, State
Norfolk,Va
Year, Model & Trim Level
2014 ford explorer base
I was looking to add the tow mode button to my 2014, but it doesnt have the recessed area under the headlight switch, like the picture above. Did they move it for the 2014, or would I have to order that dash piece designed for the button? I believe the wire harness is just tucked away behind the headlight switch, I believe it was a 3 or 4 prong plug? Any ideas?













jarettp

Well-Known Member
Joined
July 29, 2014
Messages
148
Reaction score
3
Year, Model & Trim Level
2014 Explorer Limited 4wd
I just ordered this button in preparation for a uhaul trailer move next week. What did the installation entail? I'm getting the one with the power lift gate, auto park, and tow/haul.







tbroecker01

Member
Joined
April 18, 2015
Messages
27
Reaction score
1
City, State
West Bend, WI
Year, Model & Trim Level
2012 Explorer Base
Thanks for the pictures and links. That will definitely help me out. Much appreciated.







jmr061

Explorer Addict
Joined
August 24, 2014
Messages
2,037
Reaction score
211
City, State
Wisconsin
Year, Model & Trim Level
16 Exp Sport
I just ordered this button in preparation for a uhaul trailer move next week. What did the installation entail? I'm getting the one with the power lift gate, auto park, and tow/haul.

Do you have all those features? Just hoping your not thinking adding the buttons will add everything.













jarettp

Well-Known Member
Joined
July 29, 2014
Messages
148
Reaction score
3
Year, Model & Trim Level
2014 Explorer Limited 4wd
I just ordered this button in preparation for a uhaul trailer move next week. What did the installation entail? I'm getting the one with the power lift gate, auto park, and tow/haul.

Could still use some help on this. Do I need to remove the trim to change those buttons or do the buttons just pull out? I'm getting this in the mail tomorrow.







tbroecker01

Member
Joined
April 18, 2015
Messages
27
Reaction score
1
City, State
West Bend, WI
Year, Model & Trim Level
2012 Explorer Base
Does this look like the factory wire harness for the 4-pin and 7-pin connections?
Explorer Wire Harness

I was able to find the part number for the factory 7-pin trailer connector, but not the 4-pin.

Does anyone have any part numbers for the 4-pin trailer connector?







albguy40

Member
Joined
May 7, 2015
Messages
41
Reaction score
0
City, State
Toronto, ON
Year, Model & Trim Level
2013 Explorer Ltd. AWD
Also looking to find out what the installation entails. Is there anything behind the blank switch right now? My explorer has the Autopark and the Power Liftgate so I have the bank of switches. It just didn't come with the tow package and I'm trying to retrofit something as close to OEM as possible (Oil cooler, 4 + 7 pin harness and tow button).







Sgt1411

Elite Explorer
Joined
February 22, 2011
Messages
4,511
Reaction score
477
City, State
VanBC/GoodyearAZ
Year, Model & Trim Level
2021 Explorer ST
Callsign
PRINCE51
Also looking to find out what the installation entails. Is there anything behind the blank switch right now? My explorer has the Autopark and the Power Liftgate so I have the bank of switches. It just didn't come with the tow package and I'm trying to retrofit something as close to OEM as possible (Oil cooler, 4 + 7 pin harness and tow button).

The OEM Tow Package has a larger radiator too.

Go on Fordparts.com it will will show two radiators, one is for Tow Package.

It will also require the undercarriage air duct that grabs air from the front and forces it onto the Power Transfer Unit for cooling.







ieee_raider

Well-Known Member
Joined
May 22, 2013
Messages
361
Reaction score
7
City, State
Paris, TX
Year, Model & Trim Level
2013 Ford Explorer Sport
Also looking to find out what the installation entails. Is there anything behind the blank switch right now? My explorer has the Autopark and the Power Liftgate so I have the bank of switches. It just didn't come with the tow package and I'm trying to retrofit something as close to OEM as possible (Oil cooler, 4 + 7 pin harness and tow button).

There's one connector plug for the 3 buttons.
You pull the trim off to get access to the buttons then you can pop out the button assembly.
I don't know the part number for yours though because I don't know if anyone has done this mod yet for one with autopark.
Shouldn't be too tough to find though.







albguy40

Member
Joined
May 7, 2015
Messages
41
Reaction score
0
City, State
Toronto, ON
Year, Model & Trim Level
2013 Explorer Ltd. AWD
There's one connector plug for the 3 buttons.
You pull the trim off to get access to the buttons then you can pop out the button assembly.
I don't know the part number for yours though because I don't know if anyone has done this mod yet for one with autopark.
Shouldn't be too tough to find though.

Perfect! I was hoping that the hardware was already there behind the blank. did you have to do any programming?







Exploder82

Well-Known Member
Joined
September 8, 2015
Messages
167
Reaction score
12
City, State
IL
Year, Model & Trim Level
2016 Explorer Sport ;p
Does this look like the factory wire harness for the 4-pin and 7-pin connections?
Explorer Wire Harness

I was able to find the part number for the factory 7-pin trailer connector, but not the 4-pin.

Does anyone have any part numbers for the 4-pin trailer connector?

DB5Z-15K868-D 13-15 Explorer

BB5Z-15K868-D 11-12 Explorer

Wiring harness with the 4/7 pin connectors built into the harness. Levit Town Ford parts is the cheapest including shipping.







albguy40

Member
Joined
May 7, 2015
Messages
41
Reaction score
0
City, State
Toronto, ON
Year, Model & Trim Level
2013 Explorer Ltd. AWD
DB5Z-15K868-D 13-15 Explorer

BB5Z-15K868-D 11-12 Explorer

Wiring harness with the 4/7 pin connectors built into the harness. Levit Town Ford parts is the cheapest including shipping.

Also just as an FYI for everyone looking for this. 15K868 is the generic part #. They have numerous versions of it based on what your car has (keyless entry, Blind Spot, Parking sensors...).




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Exploder82

Well-Known Member
Joined
September 8, 2015
Messages
167
Reaction score
12
City, State
IL
Year, Model & Trim Level
2016 Explorer Sport ;p
Also just as an FYI for everyone looking for this. 15K868 is the generic part #. They have numerous versions of it based on what your car has (keyless entry, Blind Spot, Parking sensors...).

I paid $59 for this.







Top
