How to: 2nd Gen Gauge Cluster Removal and LED Conversion V2

This is my second and hopefully much more helpful writeup on converting the 95-01 gauge cluster to LEDs. I have tried 3 different types of 12v wedge based 194 replacements and I have finally found the one that puts out enough light and lights up the cluster evenly.

Here were my candidates.

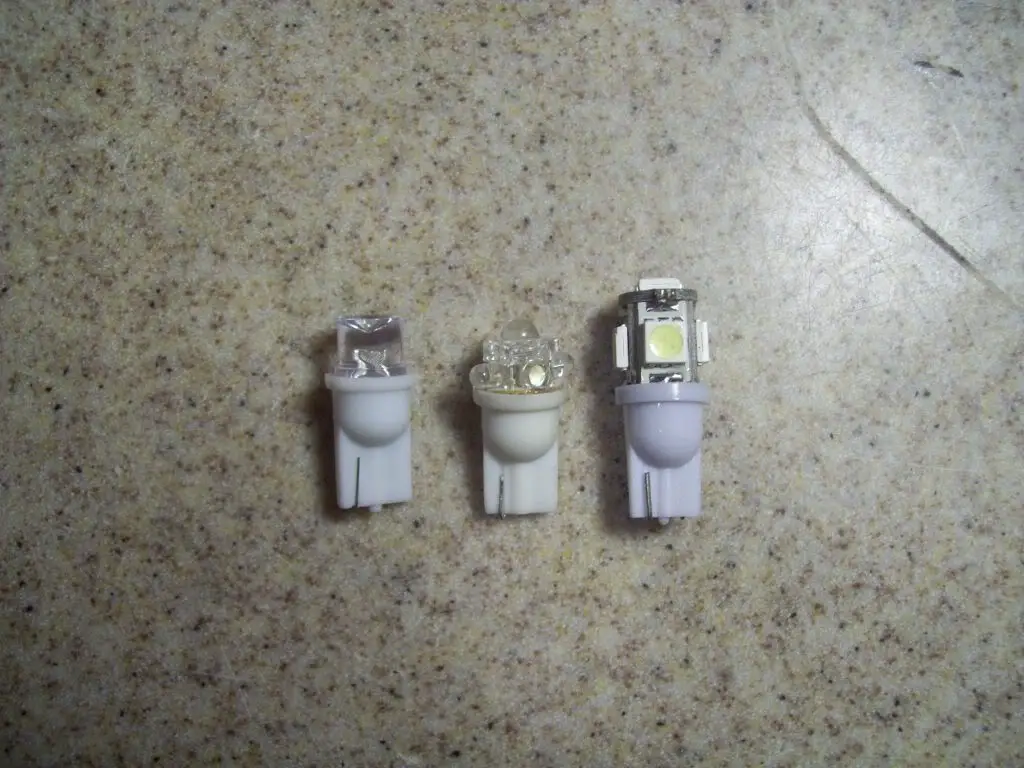

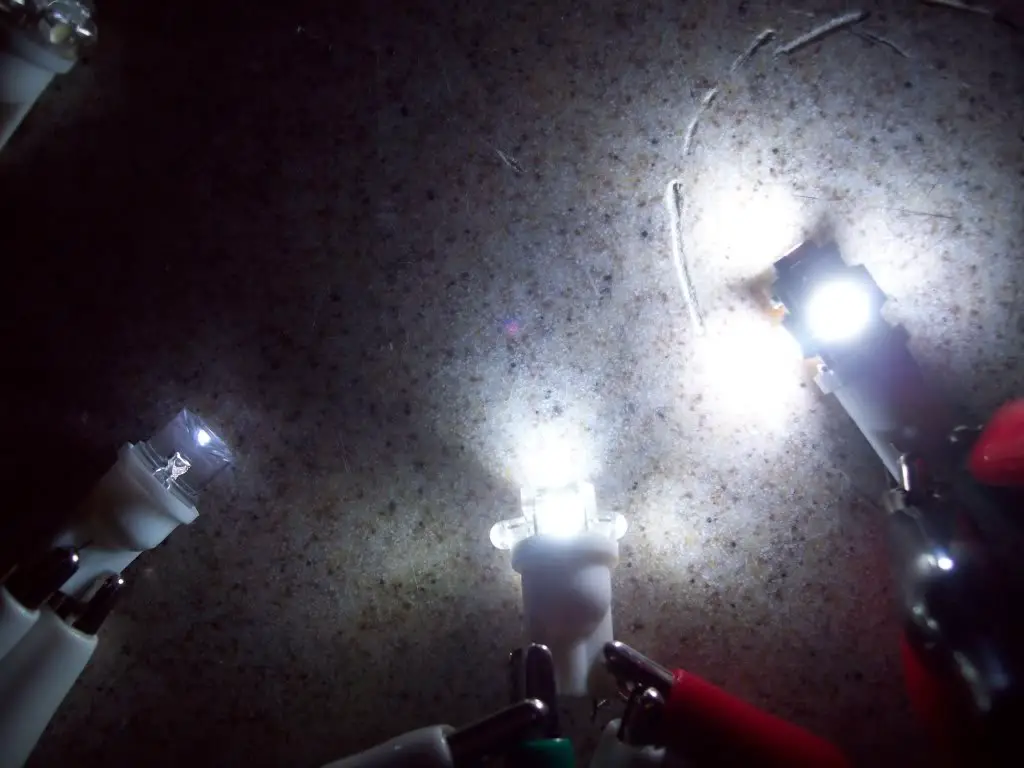

From Left to Right: Inverted Wedge LED, Refractor LED, SMD LEDs

The Results

Inverted Wedge LED: Even Light output, but not bright enough

Refractor LED: Horribly Uneven light output, Short Lifespan (they started blowing on me)

SMD (Surface Mount Diode): Even Light output and very bright (brighter the the 194LL Bulbs)



Getting to the cluster:

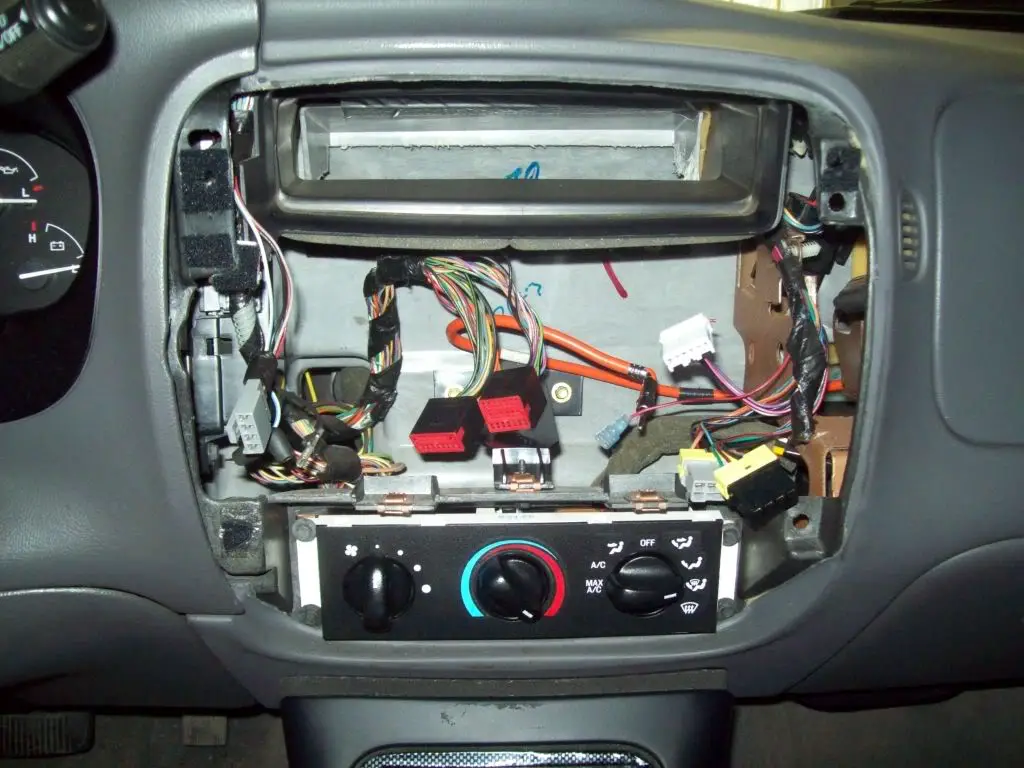

Step 1

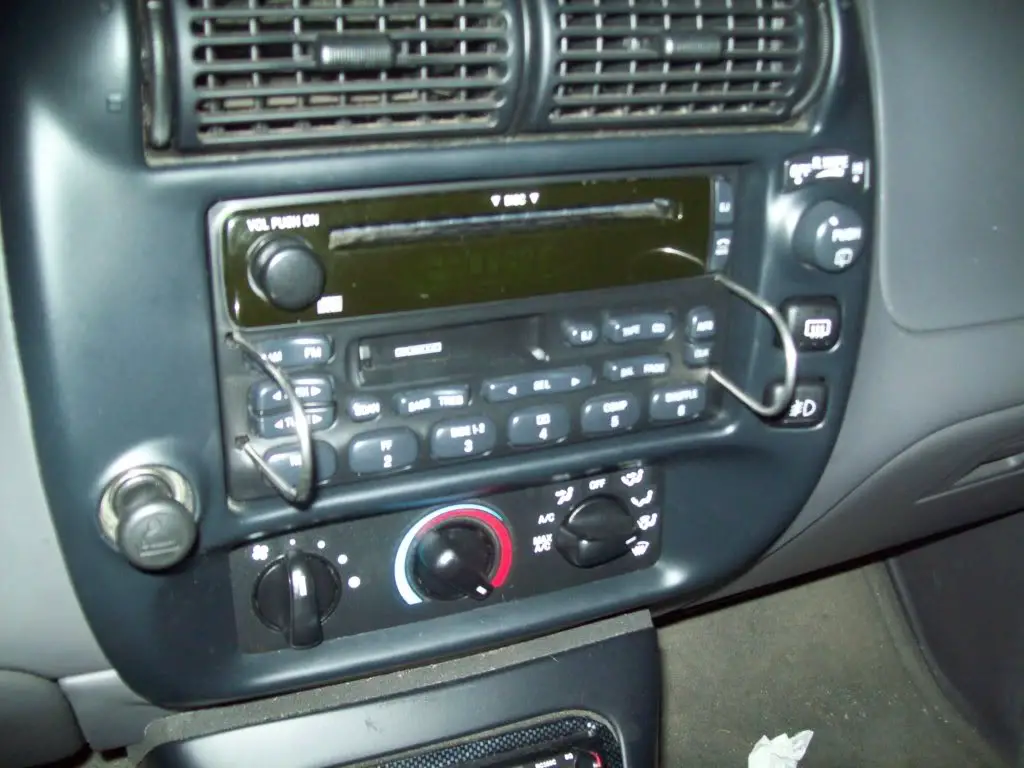

Remove the Radio


Step 2

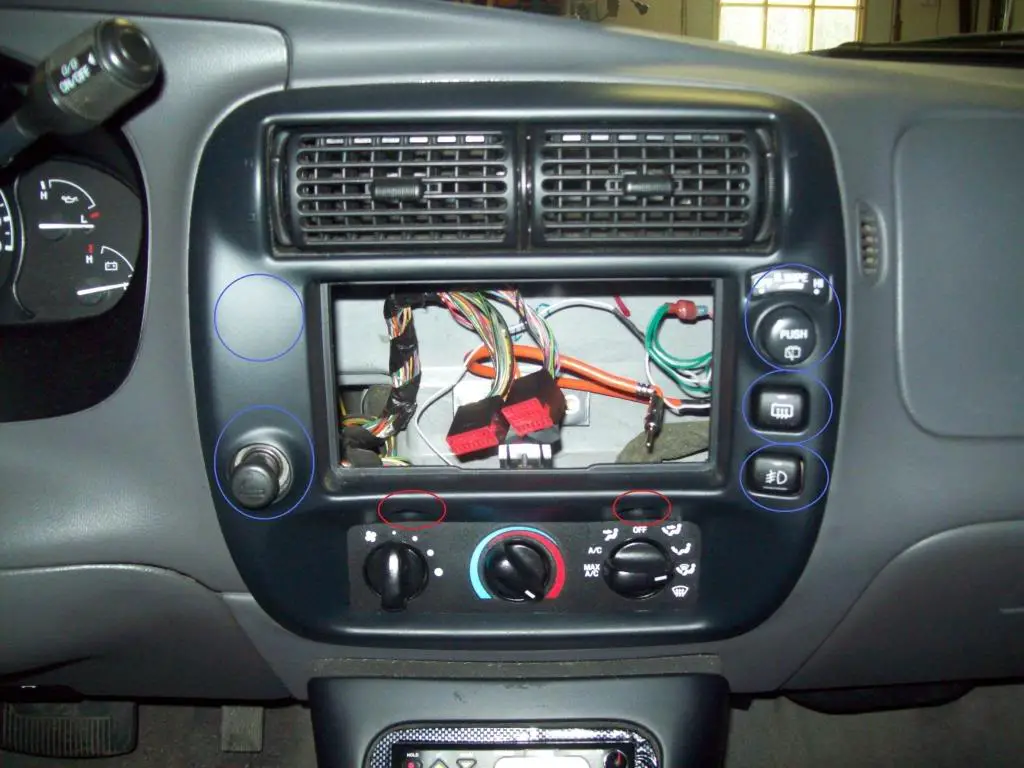

Remove the 2 screws (circled in red)
Disconnect the 5 wiring harness behind the bezel (circled in blue)

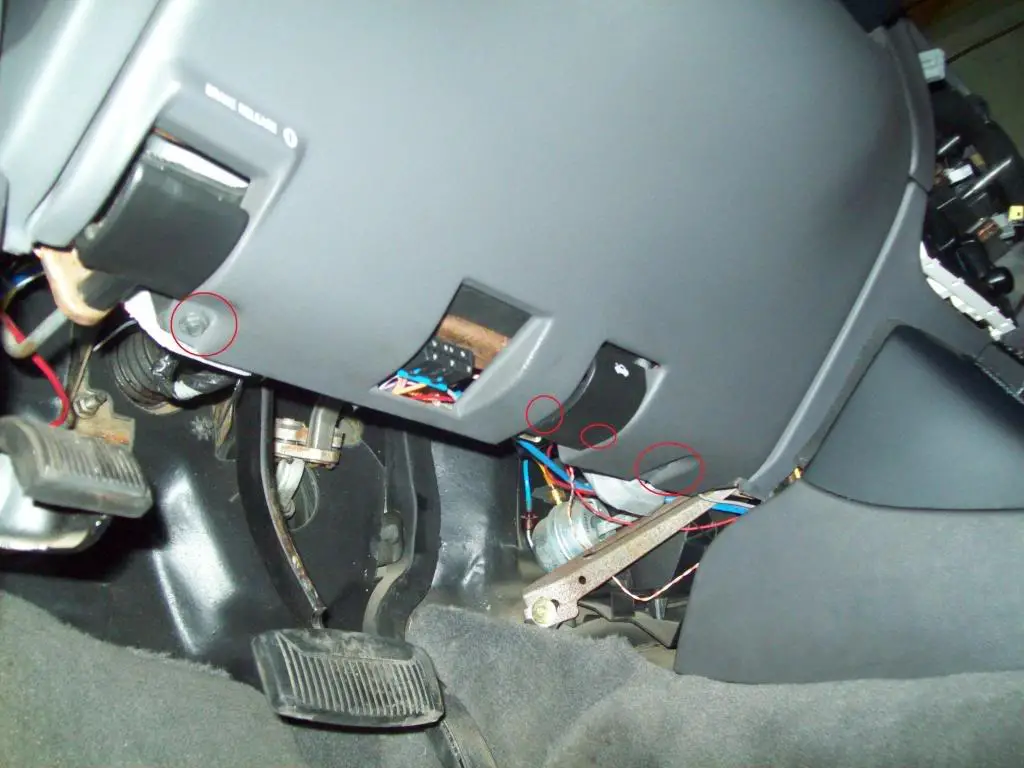

Step 3
Remove the 4 screws holding the plastic panel in place. (2 are hidden under the hood release) Then pull back on the top of the panel ( it is held in by clips)

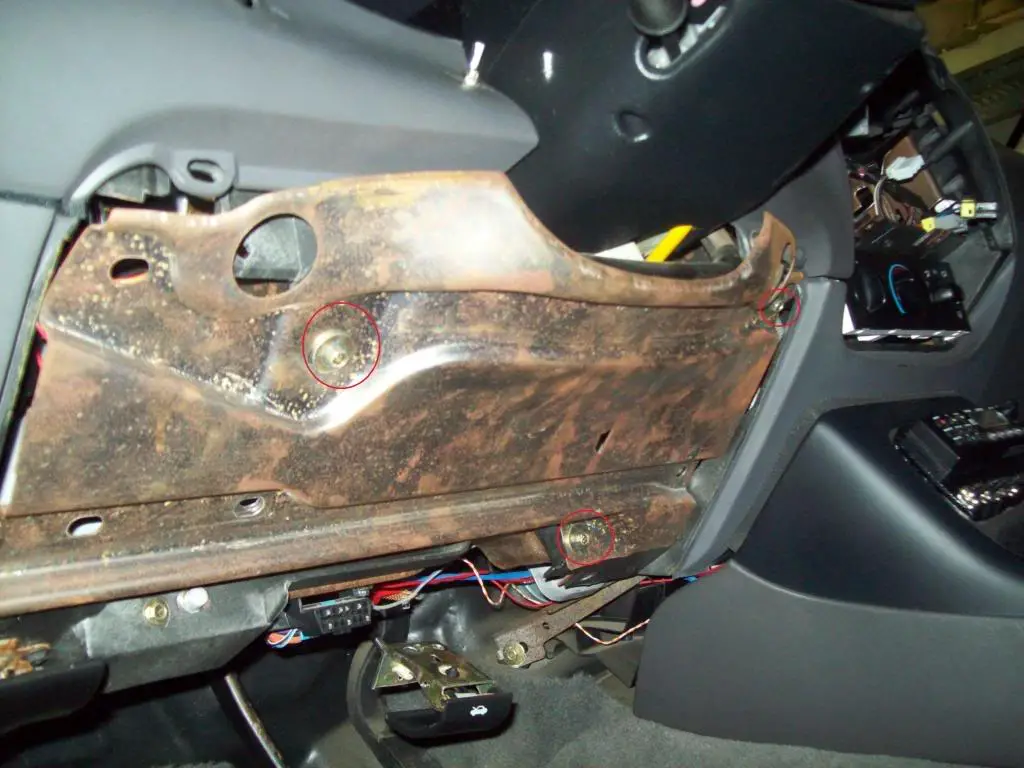

Step 4
Remove the 3 bolts holding the metal shield in place

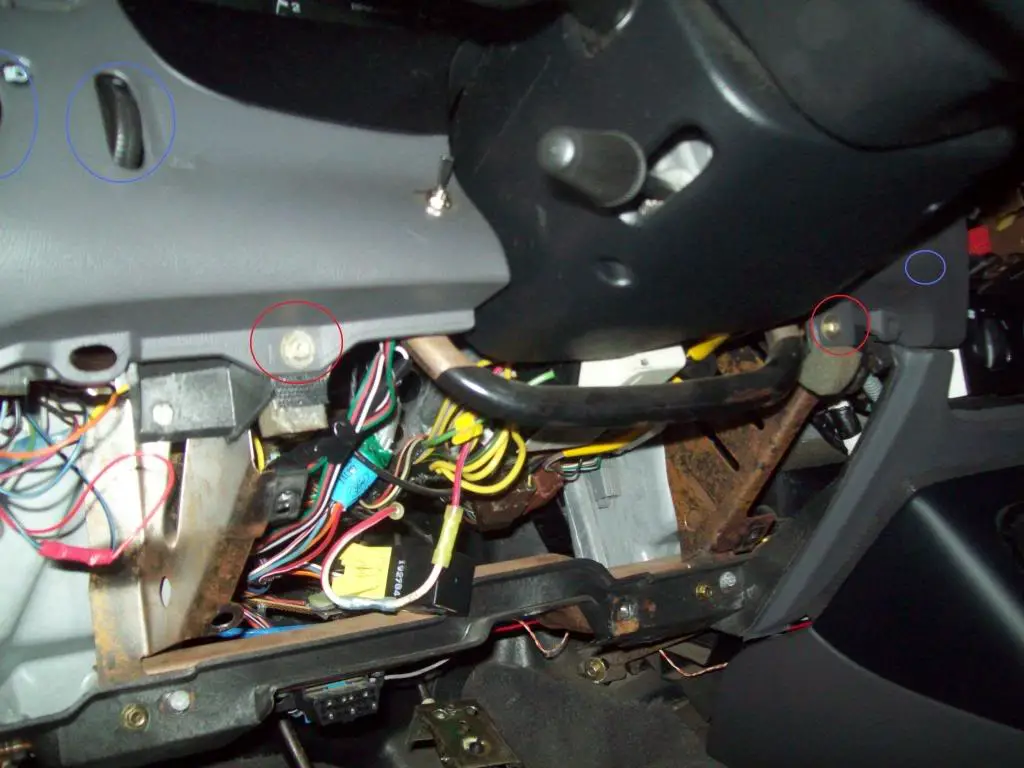

Step 5
Remove the 2 screws at the bottom of the gauge bezel (note the wiring harness locations circled in blue)


Step 6

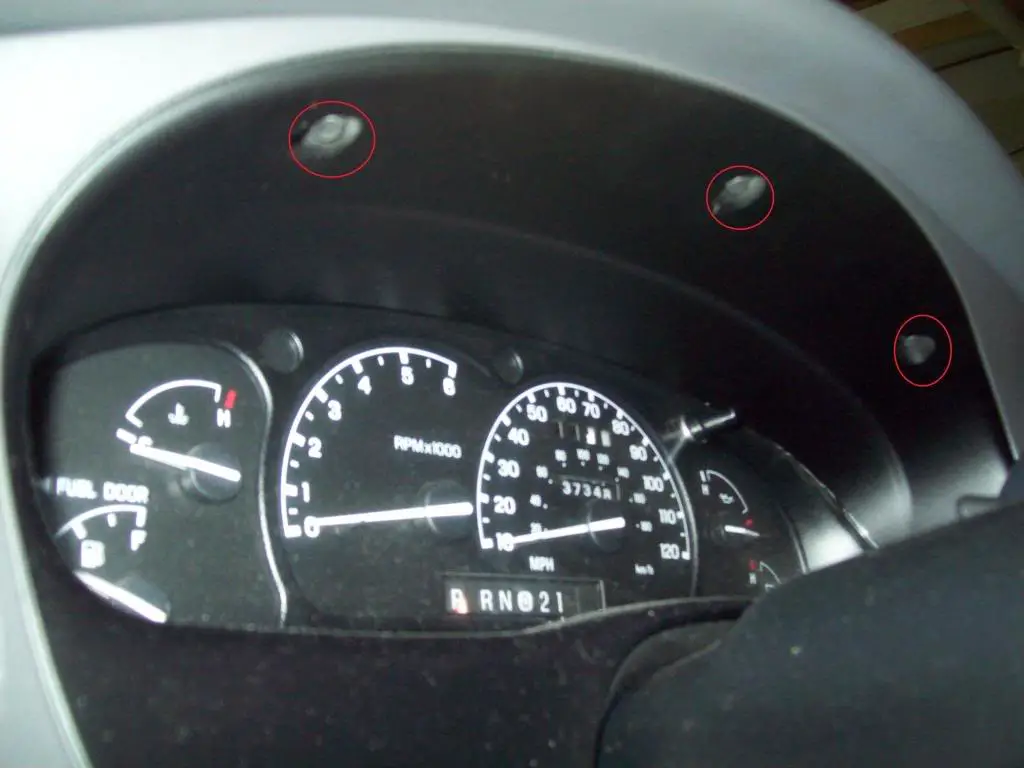

Remove the 3 screws at the top of the gauge bezel


Step 7

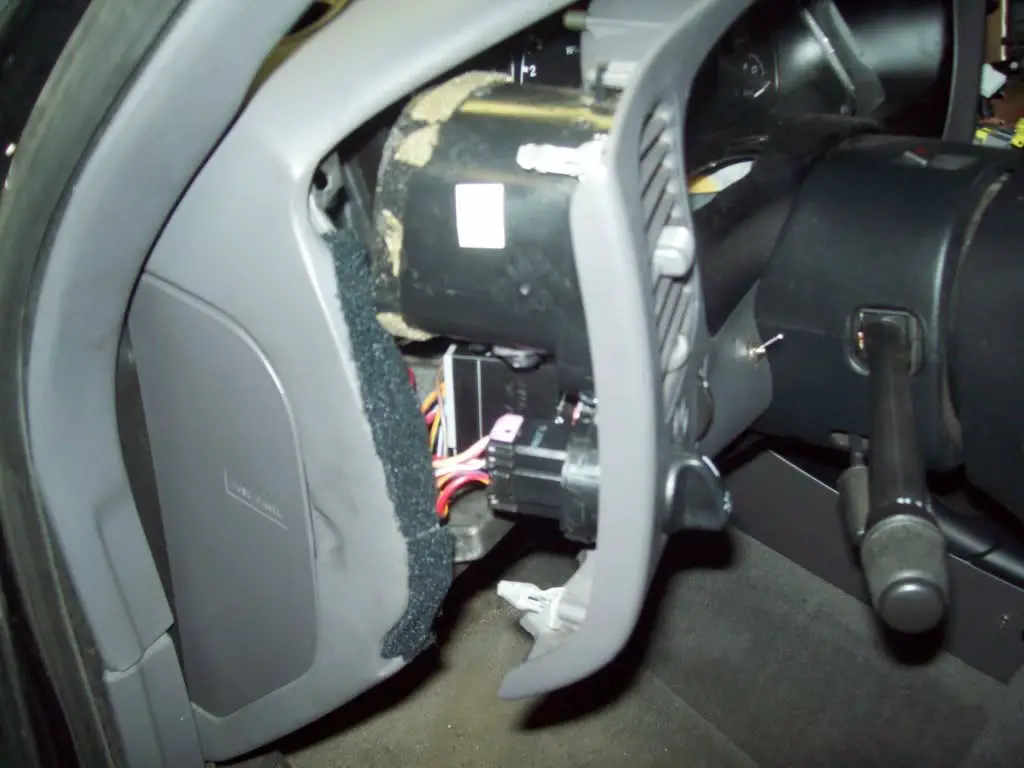

Pull out the bezel enough to disconnect the 3 wiring harnesses. (Headlight Switch, Dimmer, and Rear Parking Assist) Then Remove the bezel. (Shifter must be in 1st gear)

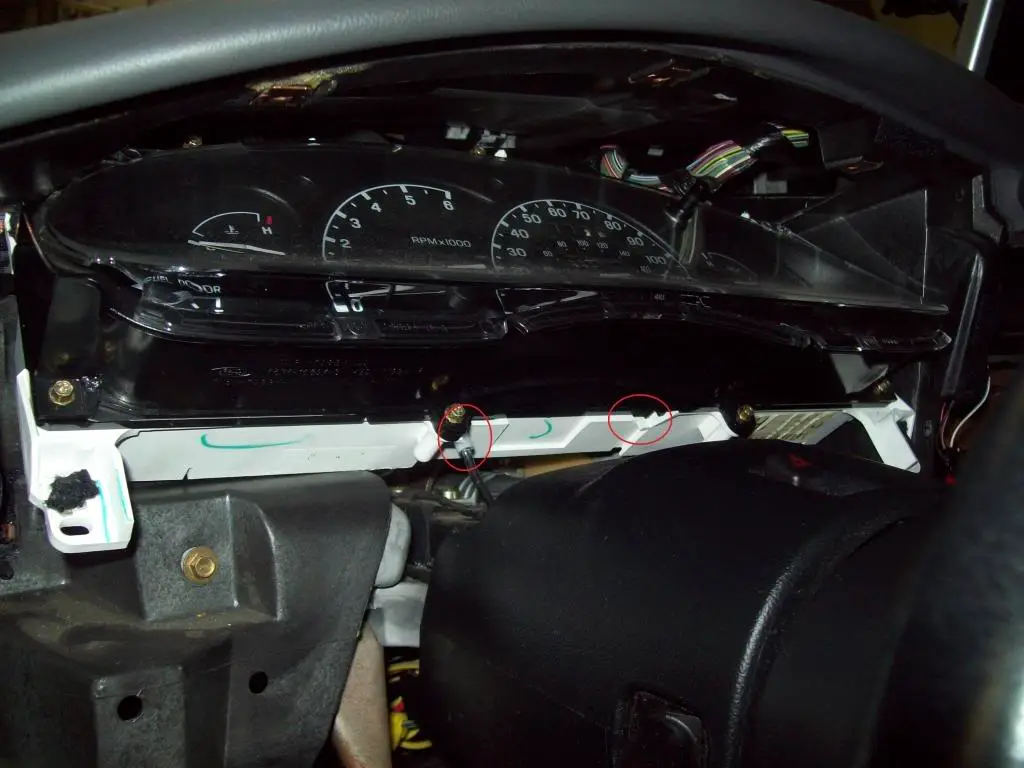

Step 8

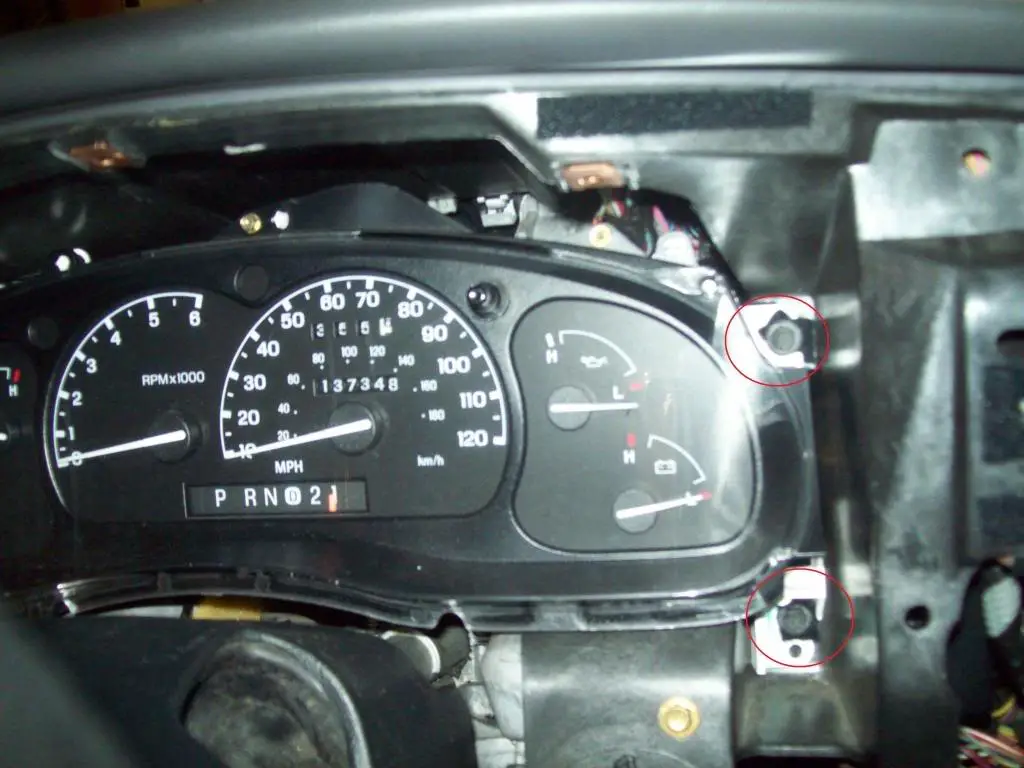

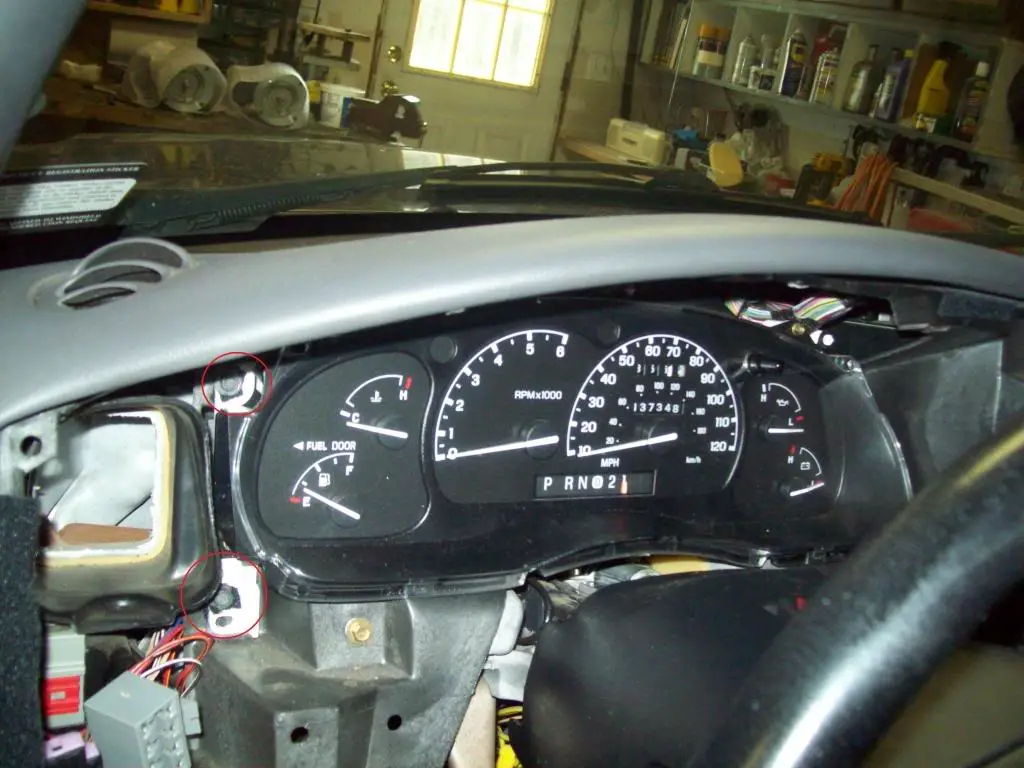

Remove the 4 screws holding in the Gauge Cluster



Step 9
Tilt the Cluster back and remove the Shift Indicator from the cluster, there are 2 plastic tabs that must be held on each side to remove the indicator.
Disconnect the 3 wiring harness from behind the cluster, then remove the Cluster



Now Hopefully You are holding your Instrument Cluster and can go on to the fun part.

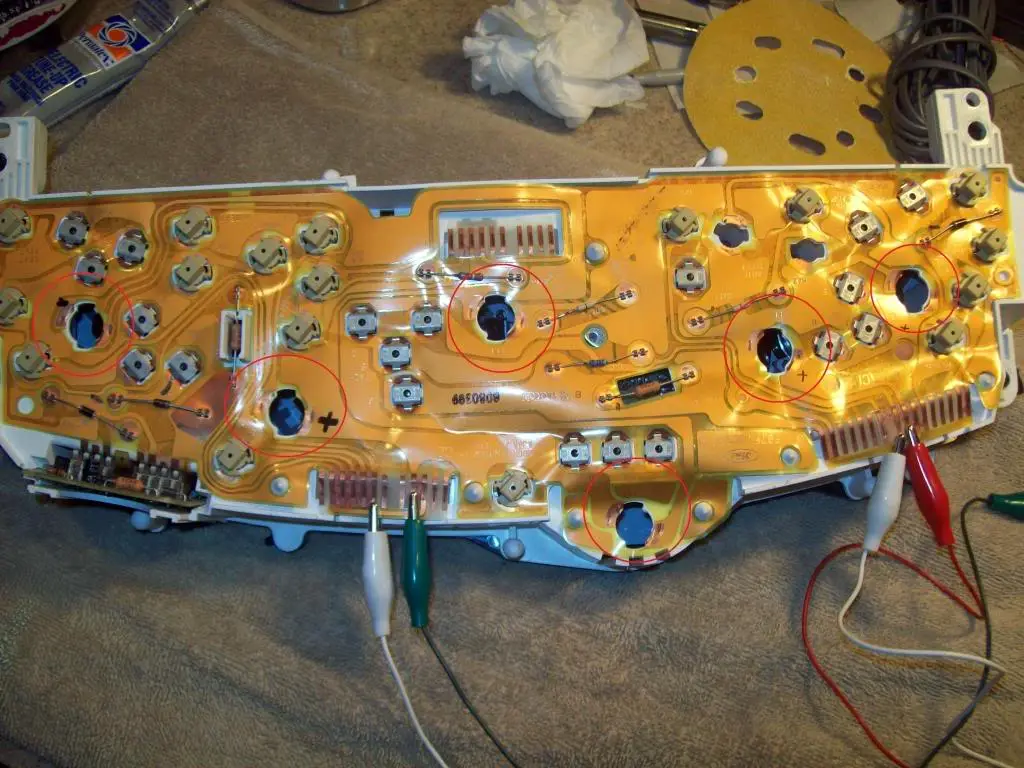

Remove the 6 back light bulbs from the cluster. (Circled in Red)
( I also highly recommend you also remove the THEFT light LED so you don't risk blowing it like I did when I was trying to figure out how to bench test the cluster)
The PC board on the back of the cluster is flexible so you can carefully pull the contacts where the wiring harnesses attach out of the sockets so you can attach alligator clips to bench test.
(The white wires are the - and the RED and GREEN are +)

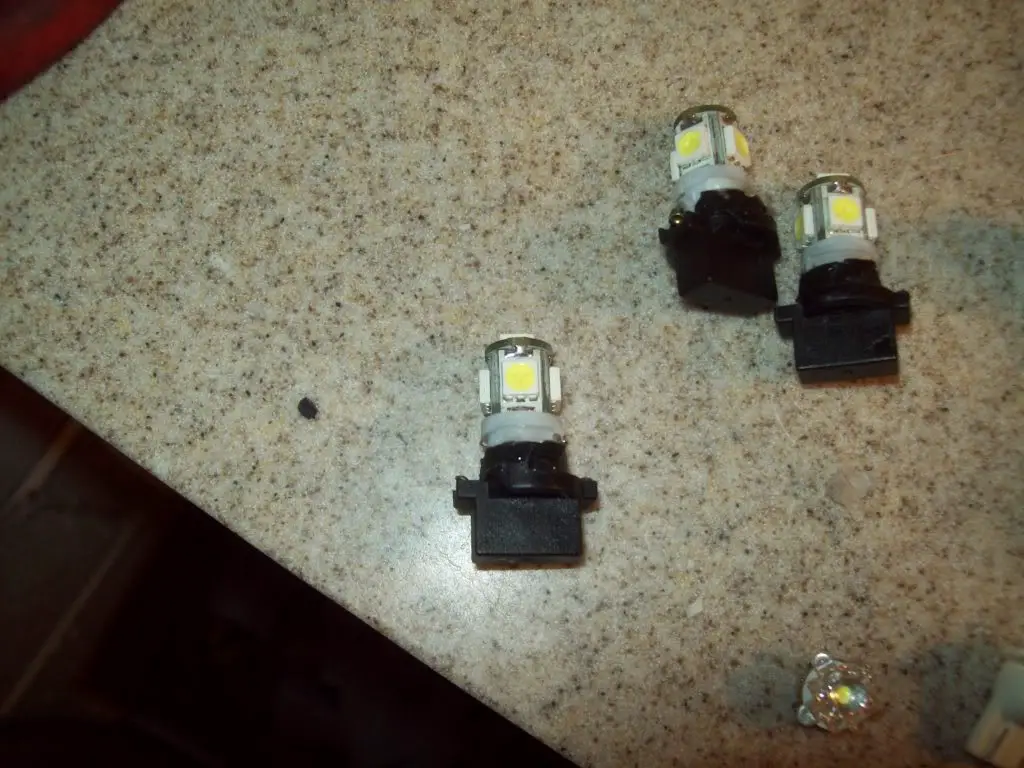

Here are the LEDs in the sockets. ( I used a bit of hot glue to make sure they didn't come out)


I apologize for not having a night shot of the final product, but the camera I have with me is an absolute noise box and takes terrible low light pics. When I get back my Canon ill get some pics.

Good Luck!



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8
I looked at the pictures before I read your post and thought how in the hell did you get those to fit haha.

Did you pull the cluster apart to grind down the fiber optics?

Looks great BTW



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Hunter32

Well-Known Member
Joined
November 30, 2011
Messages
183
Reaction score
11
City, State
Edgewater, FL
Year, Model & Trim Level
1996 Explorer 5.0
yes i did. and i ended up cutting off a rather large portion of those optics. Probably just about 2/5 of an inch. I used a dremel and then i coated it with clear nail polish.

I wish i had gotten some pictures for you guys but my camera was dead

There are no real dark spots in the cluster and it is much brighter than before. I'm loving it! I was thinking about using red nail polish to make the needles red but i think i've read that if you take the needles off you risk putting them back on in the wrong position? (thus making your needles read false readings)

so i just wasnt going to risk it..





tgrfly

Well-Known Member
Joined
December 26, 2011
Messages
207
Reaction score
1
City, State
Muncie, IN
Year, Model & Trim Level
'03 Ford Explorer Limited
So where did you get those LEDs and did they fit fine?





Hunter32

Well-Known Member
Joined
November 30, 2011
Messages
183
Reaction score
11
City, State
Edgewater, FL
Year, Model & Trim Level
1996 Explorer 5.0
i got them off ebay and they fit after i grinded down the fiber optics inside the guage cluster. if you get the 5 LED ones then they should fit without having to grind anything down





storlied

Explorer Addict
Joined
June 20, 2007
Messages
4,528
Reaction score
3
City, State
Anchorage, Alaska
Year, Model & Trim Level
98 5.0L V8 AWD XLT
We need V3 pictures man! lol





CTroxtell

Well-Known Member
Joined
November 7, 2010
Messages
150
Reaction score
0
City, State
High Point Area, NC
Year, Model & Trim Level
94 EB 304k and counting
Patiently waiting for V3





lunchfist

Member
Joined
January 1, 2012
Messages
43
Reaction score
0
City, State
dubuque ia
Year, Model & Trim Level
2001 explorer 4.0 SOHC

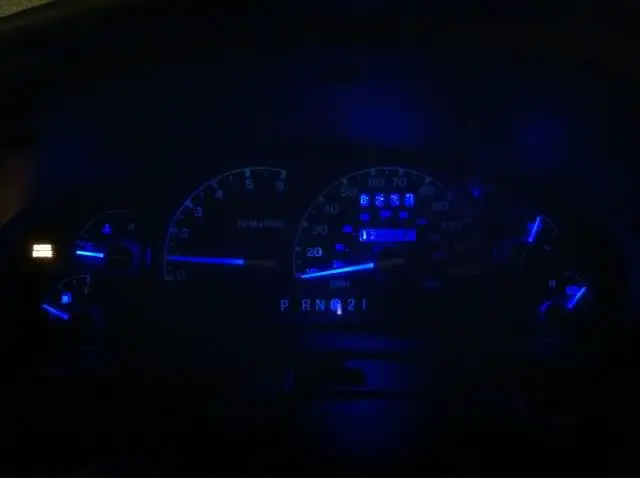

5smd LEDs installed...

I LOVE THIS FORUM!




i went with blue LEDs because i wanted blue needles, slowly working toward changing all interior lighting to blue.

I'll have to do something about that green film on the gauge faces.....

2001 Exp XLT 4.0 SOHC













Brad1976

Member
Joined
October 3, 2011
Messages
11
Reaction score
0
Year, Model & Trim Level
2002 Eddie Bauer Explorer
MustangP51,

Because of your signature, I now have a LOT more mods to do to my '02 E Eddie Bauer... Wondering if you may have gotten the opportunity to take the pics of your V3.0. Since I'm about to undertake this dash light upgrade I wouldn't mind seeing the difference before I buy the lights... :)





Sip

Well-Known Member
Joined
December 9, 2011
Messages
103
Reaction score
2
Location
Houston
City, State
Texas
Year, Model & Trim Level
Ford Explorer 91
you have a ford explorer 91 and did you get the needles fix?





MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8

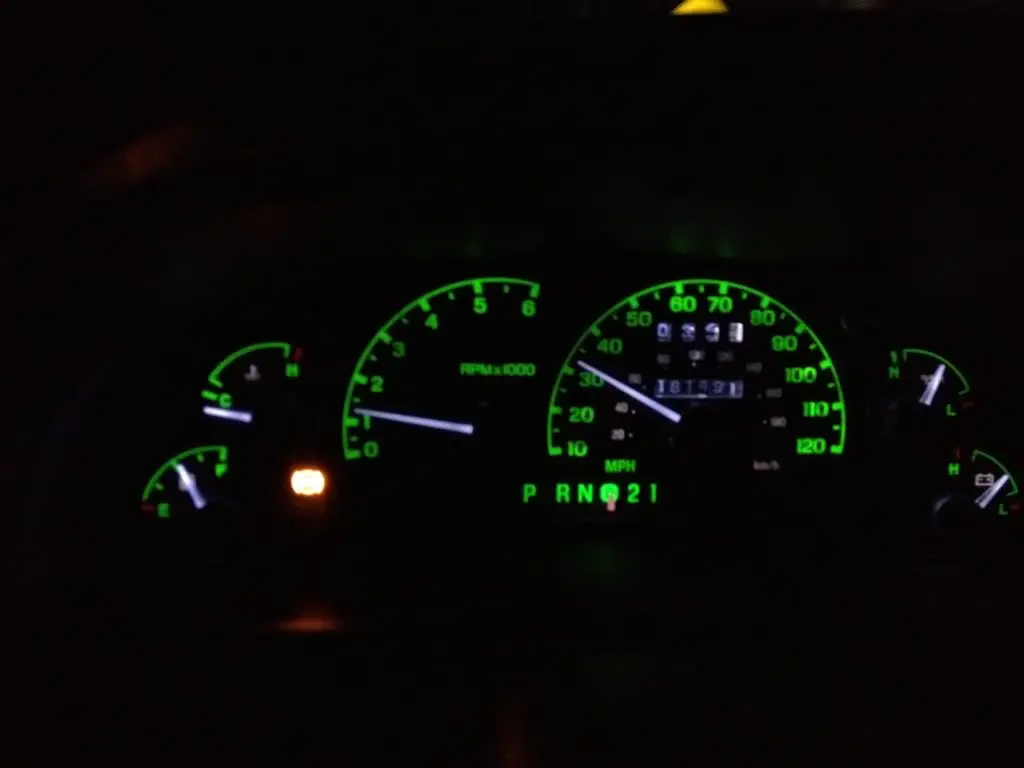

Well This is V3.0. It consists of 6 10mm .5 watt LEDs and 6 5mm LEDs. This was not a Plug and Play setup, I had to make small circuit boards consisting of a voltage regulator circuit to power these LEDs. I don't have any pictures of the retrofit but this was not for the faint of heart and was probably more time consuming then it was worth. I took this picture a few weeks ago but never got around to uploading it.



Please excuse the ABS Light, a mouse chewed through the wire going to the rear wheel speed sensor. Wires have been fixed, and the mouse.....eliminated.





Varsity

Don't need no stinkin 4WD...yet
Elite Explorer
Joined
January 4, 2011
Messages
615
Reaction score
28
City, State
Chicago, IL
Year, Model & Trim Level
'00 Sport
^^^That looks really impressive, but not sure I wanna see the write-up.... I did the v2 which was just replacing the 194s with 194 LEDs and its great but my RPM needle doesn't seem to light up. The gauges around it and everything work nice, but just the stupid RPM needle is barely lit up. I don't know if you know anything about that.

The picture looks great though, does v3 seem the brightest/fullest one yet?





Brad1976

Member
Joined
October 3, 2011
Messages
11
Reaction score
0
Year, Model & Trim Level
2002 Eddie Bauer Explorer
1. Does anyone possibly have a picture of the inside of a console at all? I'm not referring to the "back" of the console like in the earlier pages of this thread. I'm referring to the inside, after the circuit board has possibly been removed...

I should be able to afford getting my LED's within the next month or two and planning on a HUGE lighting mod.....

2. Once I'm done my mods, if there's anyone that might be able to help me post the pics within this forums server, could you please PM me? I'd rather not use one of the free servers out there like photobucket, and honestly can't afford to really send in any money to this site as much as I would sincerely love to!!! :(

Tanks!





Sip

Well-Known Member
Joined
December 9, 2011
Messages
103
Reaction score
2
Location
Houston
City, State
Texas
Year, Model & Trim Level
Ford Explorer 91
This is my second and hopefully much more helpful writeup on converting the 95-01 gauge cluster to LEDs. I have tried 3 different types of 12v wedge based 194 replacements and I have finally found the one that puts out enough light and lights up the cluster evenly.

Here were my candidates.
From Left to Right: Inverted Wedge LED, Refractor LED, SMD LEDs

The Results

Inverted Wedge LED: Even Light output, but not bright enough

Refractor LED: Horribly Uneven light output, Short Lifespan (they started blowing on me)

SMD (Surface Mount Diode): Even Light output and very bright (brighter the the 194LL Bulbs)



Getting to the cluster:

Step 1
Remove the Radio


Step 2
Remove the 2 screws (circled in red)
Disconnect the 5 wiring harness behind the bezel (circled in blue)



Step 3
Remove the 4 screws holding the plastic panel in place. (2 are hidden under the hood release) Then pull back on the top of the panel ( it is held in by clips)


Step 4
Remove the 3 bolts holding the metal shield in place


Step 5
Remove the 2 screws at the bottom of the gauge bezel (note the wiring harness locations circled in blue)


Step 6
Remove the 3 screws at the top of the gauge bezel


Step 7
Pull out the bezel enough to disconnect the 3 wiring harnesses. (Headlight Switch, Dimmer, and Rear Parking Assist) Then Remove the bezel. (Shifter must be in 1st gear)


Step 8
Remove the 4 screws holding in the Gauge Cluster



Step 9
Tilt the Cluster back and remove the Shift Indicator from the cluster, there are 2 plastic tabs that must be held on each side to remove the indicator.
Disconnect the 3 wiring harness from behind the cluster, then remove the Cluster



Now Hopefully You are holding your Instrument Cluster and can go on to the fun part.

Remove the 6 back light bulbs from the cluster. (Circled in Red)
( I also highly recommend you also remove the THEFT light LED so you don't risk blowing it like I did when I was trying to figure out how to bench test the cluster)
The PC board on the back of the cluster is flexible so you can carefully pull the contacts where the wiring harnesses attach out of the sockets so you can attach alligator clips to bench test.
(The white wires are the - and the RED and GREEN are +)


Here are the LEDs in the sockets. ( I used a bit of hot glue to make sure they didn't come out)


I apologize for not having a night shot of the final product, but the camera I have with me is an absolute noise box and takes terrible low light pics. When I get back my Canon ill get some pics.

Good Luck!



Will this work on ford explorer 91 and also where can I find the SMD lights?





blankskater1

Member
Joined
August 16, 2009
Messages
43
Reaction score
0
City, State
269
Year, Model & Trim Level
2010 Sportback Ralliart
i got my SMD lights on ebay SUPER cheap and I love this mod!!





krajik1

Member
Joined
February 28, 2012
Messages
11
Reaction score
0
City, State
denver colorado
Year, Model & Trim Level
2004 ford explorer
Hey I have a 2004 ford explorer and I wanna do this to my truck my background is black it lights up green and my sticks light up red my truck is blue what do u recommend me doing?





Sip

Well-Known Member
Joined
December 9, 2011
Messages
103
Reaction score
2
Location
Houston
City, State
Texas
Year, Model & Trim Level
Ford Explorer 91
^^^That looks really impressive, but not sure I wanna see the write-up.... I did the v2 which was just replacing the 194s with 194 LEDs and its great but my RPM needle doesn't seem to light up. The gauges around it and everything work nice, but just the stupid RPM needle is barely lit up. I don't know if you know anything about that.

The picture looks great though, does v3 seem the brightest/fullest one yet?





how do you get the gauge needles white?





MustangP51

Explorer Addict
Joined
January 16, 2005
Messages
1,385
Reaction score
2
City, State
Connecticut
Year, Model & Trim Level
2009 Limited V8


Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




interscope8

Explorer Addict
Joined
April 22, 2010
Messages
1,133
Reaction score
0
City, State
Purdue University
Year, Model & Trim Level
2001 Sport Trac 4x4
http://www.superbrightleds.com/more...led-bulb-5-smd-led-wide-angle-wedge-base/206/

Im planning on doing this to satisfy my itch to get another project going on my truck while school is going on and Im not driving every day. I want Blue LEDs and I saw scrogathon's post (#137) and am wanting that color. Im new to the LED lighting field and was wondering if the lights I linked would work for something similar
