Drop Pitman Arm question!!!! ugh!

Maniak

Moderator-Stock 91-94
Elite Explorer
Moderator Emeritus
Joined
February 9, 1999
Messages
12,063
Reaction score
123
City, State
Vail, Arizona
Year, Model & Trim Level
1992 XLT 4x4
Is the issue that the keyway is in the wrong spot?

If so, use a file and cut down the right tooth so it can be installed. IIRC, someone did that somewhat recently on a solid axle conversion so the arm they had would go on the steering box they had.

Edit: I just did some searching here on EF for "modify and pitman and arm" and found quite a few threads that talked about using the Fa600 and non of them mentioned modifying the FA600. They were all giving the option of using the fa600 or modifying the superrunner steering.

~Mark

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Nedwreck

Well-Known Member
Joined
September 2, 2008
Messages
407
Reaction score
0
City, State
Kentucky, Y'all!
Year, Model & Trim Level
'93 xlt, '92 4x4
Just for reference... I have a Skyjacker FA600 drop pitman with about 4-5" of lift (my 6" soft springs squished down a bit). My steering gear is nearly level.

Not sure, but I *think* the FA600 gave me 4" of Actual drop for the steering gear.

Maybe I can find a camera and take a pic if needed.

<



SwaintaN

Explorer Addict
Joined
March 15, 2008
Messages
2,368
Reaction score
1
City, State
Carey, Ohio (Georgia Grown)
Year, Model & Trim Level
93 XLT
i was drinking, did throw the pitman arm puller. about threw the pitman arm its self, till i was reminded i wouldn't be able to send it back damaged.

the keys were off by more then half a turn, wouldnt having to many keys make it now work?

you said you have the fa600 that it was more so of a 4" drop arm, but you said your springs already squished/sagged so if i put on the fa600 and my springs squish/sag etc woudlnt that make the arm to long?

<



Nedwreck

Well-Known Member
Joined
September 2, 2008
Messages
407
Reaction score
0
City, State
Kentucky, Y'all!
Year, Model & Trim Level
'93 xlt, '92 4x4
you said you have the fa600 that it was more so of a 4" drop arm, but you said your springs already squished/sagged so if i put on the fa600 and my springs squish/sag etc woudlnt that make the arm to long?

perhaps so. I got my springs used, which were skyjacker. i think.

if i recall, the rough country springs are considerably stiffer/higher rate than most of the brands out there. so they might not sag nearly as much i'm thinking. if they do and clearance gets bad... the f150 coil spring spacer trick should work.

so my very old digital camera isnt helping. (glare and out of focus)

however my tape measure maybe did. from the bottom of the output shaft itself (on the steering box), to the bottom of the arm where the link inserts, is about 7".
So I'm thinking if you hold the steering link so all the steering arms are level, and you get a measurement about 7" (where the drag link stud meets the arm body, to the bottom of the steering box output shaft), then a FA600 outta do it.

and on second look, if my arm was 1/2" longer steering gear would be perfectly flat and level. if my 6" springs settled down to 4 1/2", then we're spot on.

hope that all makes sense. heh


<



91ROKKRAWLER

Well-Known Member
Joined
December 6, 2007
Messages
511
Reaction score
1
City, State
Bend, OR
Year, Model & Trim Level
'91 Xploder
the fa600 is the one we all need.. the fa400 is only 2-2.5" of actual drop. fa600 is 4-5" true drop

<



jd4242

Elite Explorer
Joined
October 15, 2008
Messages
10,791
Reaction score
287
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger
To begin with, this is a somewhat kinda, not really, but ok... repost.... I started a thread called What are these bushings? (pic)! and it was stated my drop pitman arm wasnt long enough.. i bought a Skyjacker FA400 which is THE EXACT same as the Rough Country arm... skyjacker was just thicker! SOooooo should I try to get the FA500 or would that be WAY TO MUCH DROP!! here are updated pics below. Should I leave the RC on and send back the FA400 and just deal with them not being straight or what!?!

picture.php

picture.php


This is the picture that was seen that brought up the question that the tie rods/drag link were not level.
picture.php

picture.php

i see you got those "bushing fixed":D get the fa 600
$200 shipped
http://www.streetsideauto.com/search.asp?keywords=fa600

<



SwaintaN

Explorer Addict
Joined
March 15, 2008
Messages
2,368
Reaction score
1
City, State
Carey, Ohio (Georgia Grown)
Year, Model & Trim Level
93 XLT
lol yeah street side auto is the ones im dealing with, they have been graceful enough to sell, take back, sell, take back, now sell again, lol. ok Ill order the fa600, since i just did ball joints and trying to do the pitman and endlinks at same time i know im gonna need a alignment.. just so i got is straight then everyone is saying FA600 for my 4.5" lift; right?

<



91ROKKRAWLER

Well-Known Member
Joined
December 6, 2007
Messages
511
Reaction score
1
City, State
Bend, OR
Year, Model & Trim Level
'91 Xploder
correct. the one and only one big enough. unless you cut n weld it to make it custom which is technically wrong since its cast but people do it and it holds. get the fa600.

<



<



SwaintaN

Explorer Addict
Joined
March 15, 2008
Messages
2,368
Reaction score
1
City, State
Carey, Ohio (Georgia Grown)
Year, Model & Trim Level
93 XLT
beating a dead horse here.. forgot to update a long time ago, did the fa600 and it turned the drag link making it not workable, kinked up when turning the steering wheel. so had to go back to the one from RC sent me.. so still not level, buying a double steering stabilizer to replace single soon.

<



jd4242

Elite Explorer
Joined
October 15, 2008
Messages
10,791
Reaction score
287
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger
I finally got a pic of how our front looks. this is from straight on, sitting on the ground in front of the truck. AFIAK this is the fa400 drop arm (superlift) on a James Duff 3.5" lift.



We get virtually no bump steer since putting on this dropped arm.

~Mark

Hey what linkage do you have on there?the bars look straight and how did they get that straight without hitting each other?

<



Tbars4

Moderator Emeritus
Elite In Memoriam
Joined
March 4, 2007
Messages
26,366
Reaction score
69
City, State
anaheim hills,california
Year, Model & Trim Level
95 ranger 4x4/ 91 X 4x4
...I was just noticing the post above about the indexing being off...

...Ford steering box's and pit arm's are either indexed "X" or "+" ... When ordering pitman arms it is always a good idea to verify your index and then verify with whom you are ordering from...I hope this helps future readers...

<



Maniak

Moderator-Stock 91-94
Elite Explorer
Moderator Emeritus
Joined
February 9, 1999
Messages
12,063
Reaction score
123
City, State
Vail, Arizona
Year, Model & Trim Level
1992 XLT 4x4
Hey what linkage do you have on there?the bars look straight and how did they get that straight without hitting each other?

I didn't do anything special. These are just Tie Rods for a 1992 Explorer 4x4. I don't remember if they are Moog or McQuay Norris extremes.

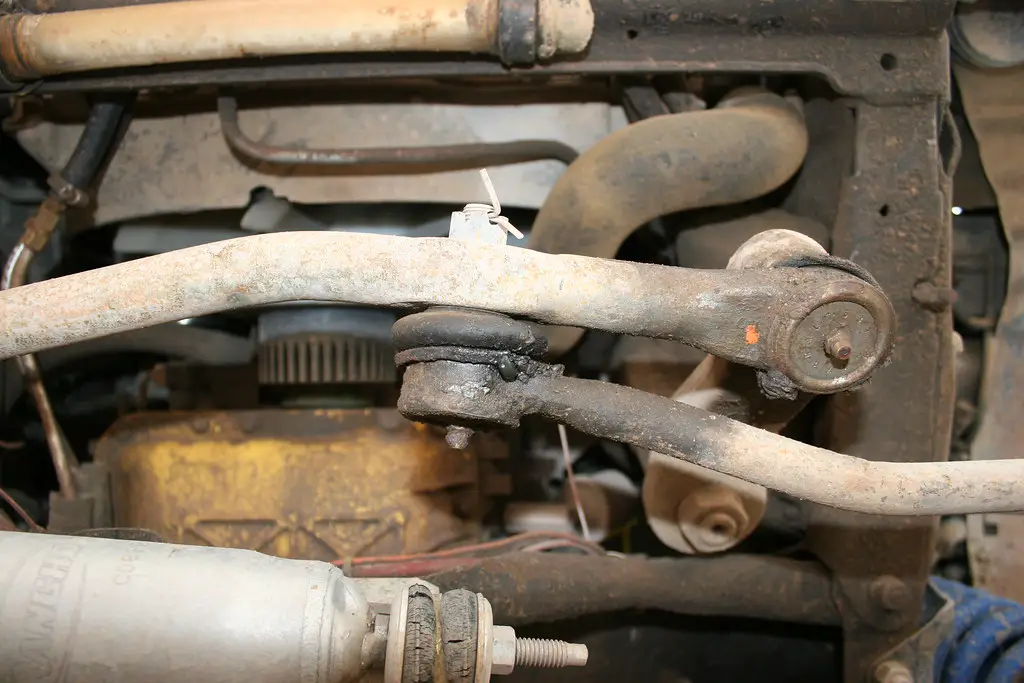

Here are some shots I just took of the suspension.. Maybe it will help some..









One thing that just occured to me, Our axles are pushed slightly forward, even before we went with the extended radius arms. We put double washers on the front side the the RA bushing which moved the axle slightly forward (about 1/2" IIRC). It never occured to me that it changed the angle of the tie rods until just now..

~Mark

<



jd4242

Elite Explorer
Joined
October 15, 2008
Messages
10,791
Reaction score
287
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger
yea they do have bends,just looked straight from that first pic.man those things are level.

<



Glen4X4

Explorer Addict
Joined
June 5, 2007
Messages
5,466
Reaction score
4
City, State
Lewistown, Pa
Year, Model & Trim Level
2000 XLS
Glad I found this thread.....I planned on ordering the FA400 cause the steering is not very level at all for the lift, so I know for sure to get the FA600

<



Riceburner247

Active Member
Joined
April 30, 2006
Messages
60
Reaction score
0
City, State
97701
Year, Model & Trim Level
'92 EB
I'm running the 5.5" Superlift setup on my 92 4door. I don't know why they don't include a bigger drop pitman arm, the 4" drop isn't enough. I ordered the FA600 and it puts the steering arms right where they should be.

<
