My new front end got in today. It's a custom Dynatrac 44 front axle assembly.

List of goodies include:
Reverse cut housing upgrade
Warn premium manual locking hub set
30 spline 3/4 ton alloy steel axles
Upgraded Disc brake Ass. 5.5.5
Ford coil spring bracketry
5:13 gears-reverse cut
ARB 3.92+ ver.
1310 dana 44 u-bolt style yoke
Heavy duty ends package
Heavy duty steel dif. cover
High clearance steering package
Width= 62 in.

I saved my pennies for quite awhile to be able to afford it but she's a beauty. I almost feel like not installing it.

I hope the pictures come out my battery started going dead.

The installer is fourxDr. in Burbank and Winter's designing the radius arms. We know they will be wristed but will not have pin's like bc broncos. I'll include pictures as we go along. Today they took apart the front end. I'm hoping the job will take about a month.:bounce:


Attachments

  • left side 1.jpg
    left side 1.jpg
    97.1 KB · Views: 1,898



Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon
Ditto.


Attachments

  • 12-frt. view closed hood.jpg
    12-frt. view closed hood.jpg
    55.1 KB · Views: 302



Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon

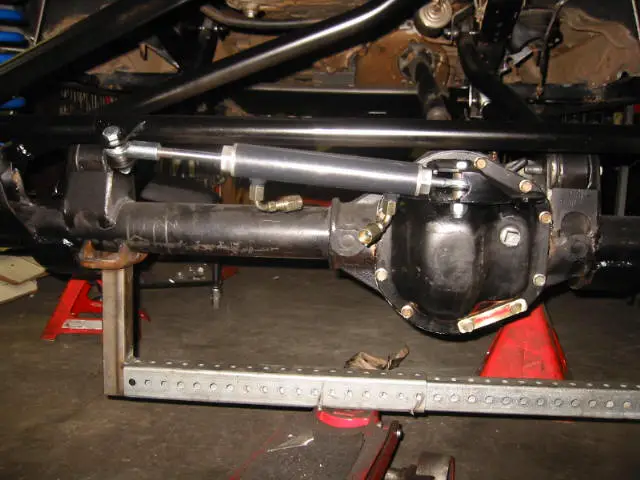

Ram assist front view.


Attachments

  • 13-ram assist frt..jpg
    13-ram assist frt..jpg
    57.7 KB · Views: 331






FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon

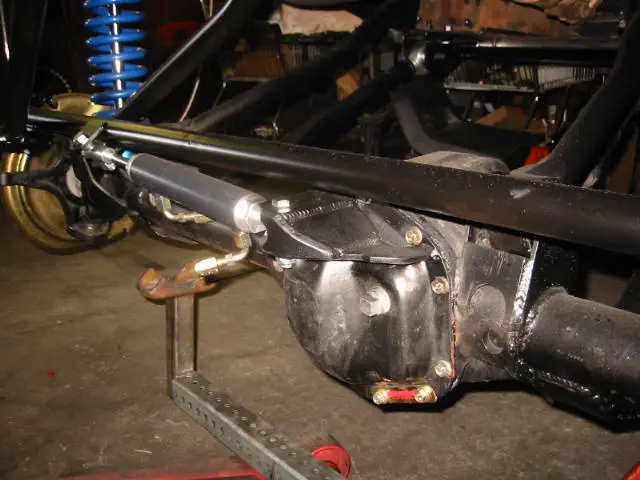

Ram assist side view.


Attachments

  • 14-ram assist side.jpg
    14-ram assist side.jpg
    55.6 KB · Views: 312






FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon
The only thing that worries me is this warning posted in the men's room towel drier. Makes me kinda think about the good Dr.:D Must be a jeeper thing;)


Attachments

  • 113-1314_img.jpg
    46.8 KB · Views: 322






FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon
Hey Grape Ape we cut the hell out of the crosmember and moved the axle as foward as posible. That's one of the advantages with the 4 link. There is no contact. Hope this helps.







Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
34,278
Reaction score
2,489
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
Looks fantastic Tom :D Well worth the wait. Speaking of... looks like the truck got a little dusty, you can barely make out the kokopeli:p













Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
34,278
Reaction score
2,489
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
The kokopeli is a drawing of an Indian flute player.







JoshC

Only rolled it once honey
Joined
May 1, 2000
Messages
4,341
Reaction score
6
City, State
Culloden, WV
Year, Model & Trim Level
97 4d OHV
Very impressive Tom...looking forward to the ramp pictures. What are the width on those tires again?

Happy trails!!













FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon
Thanks Rick, can't wait for the maiden voyage to TH next week.

Josh C. Tires are 37X12.50X17.

Ryan I'll take some measurements when I get the rig back. Remind me if I forget.







Grape Ape

Active Member
Joined
November 20, 2001
Messages
97
Reaction score
0
City, State
High Point, NC
Year, Model & Trim Level
'97 Ford Ranger S/C 4x4
Hey Fakrwee,

Yes, I saw you chopped it up, but you need to brace it. You can't just leave the crossmember like that.

I am using a three link with coil-overs and moved the axle forward about 2".

Definitely ask your fab guys about the strength issue of that crossmember.

Dean







Rick

Pumpkin Pilot
Staff member
Admin
Elite Explorer
Joined
February 8, 1999
Messages
34,278
Reaction score
2,489
City, State
Wayoutin, Aridzona
Year, Model & Trim Level
'93 XL Pumpkin Edition
Callsign
AB7FH
Grape Ape. I've looked at your webpage before. Very nice graphic work!







Trckmagik

Ole Bag
Moderator Emeritus
Joined
August 22, 1999
Messages
4,731
Reaction score
4
City, State
Celina, Texas
Year, Model & Trim Level
1996
Very nice Grape Ape.










Grape Ape

Active Member
Joined
November 20, 2001
Messages
97
Reaction score
0
City, State
High Point, NC
Year, Model & Trim Level
'97 Ford Ranger S/C 4x4
Thanks for the compliments guys. I try to cover all models.
I don't want to take the focus off of Fakrwee truck though.
Email me if you want some art work:
[email protected]

Dean







FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon
Just got back from the shop and took a ton of photos. Like the Doc say's BAD ASS:cool: I have to sort them out and post them tomorrow. I'll post a couple just to give you guy's an idea.:D


Attachments

  • 1-dr.side nxt. to ramp.jpg
    1-dr.side nxt. to ramp.jpg
    57.6 KB · Views: 362






FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon
2


Attachments

  • 2-frt. driver side.jpg
    2-frt. driver side.jpg
    54.2 KB · Views: 358






FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon
3


Attachments

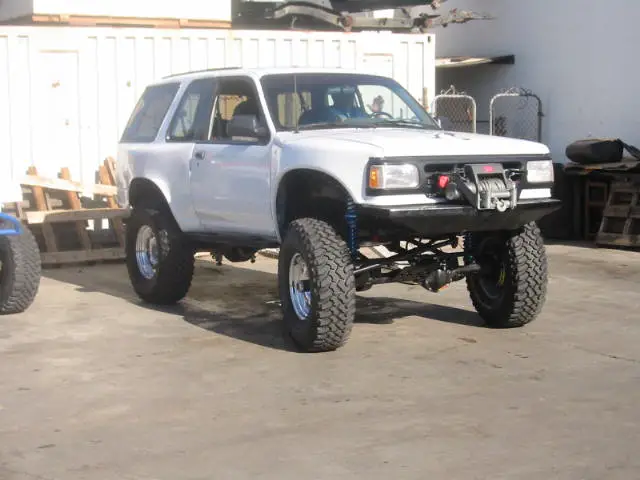

  • 3-frt. pass side.jpg
    3-frt. pass side.jpg
    47.5 KB · Views: 341






FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon
4


Attachments

  • 4-full driver side.jpg
    4-full driver side.jpg
    39.9 KB · Views: 332



Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon
Dean I got some good pics I'll post tomorrow for you on the engine crossmember chop and brace.


Attachments

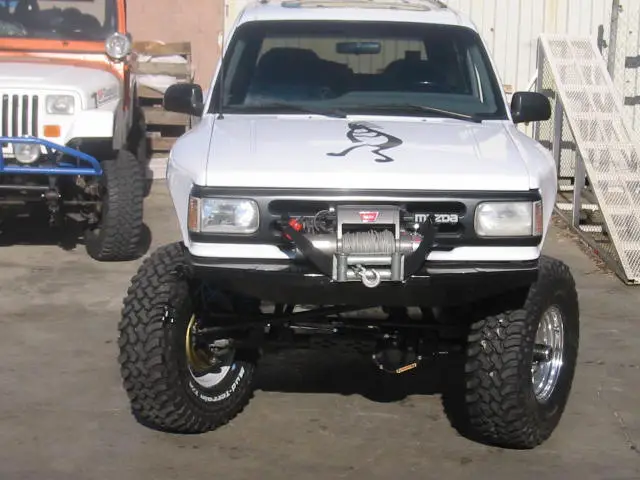

  • 5-frt. straight.jpg
