FAKRWEE Navajo 44 swap

My new front end got in today. It's a custom Dynatrac 44 front axle assembly.

List of goodies include:
Reverse cut housing upgrade
Warn premium manual locking hub set
30 spline 3/4 ton alloy steel axles
Upgraded Disc brake Ass. 5.5.5
Ford coil spring bracketry
5:13 gears-reverse cut
ARB 3.92+ ver.
1310 dana 44 u-bolt style yoke
Heavy duty ends package
Heavy duty steel dif. cover
High clearance steering package
Width= 62 in.

I saved my pennies for quite awhile to be able to afford it but she's a beauty. I almost feel like not installing it.

I hope the pictures come out my battery started going dead.

The installer is fourxDr. in Burbank and Winter's designing the radius arms. We know they will be wristed but will not have pin's like bc broncos. I'll include pictures as we go along. Today they took apart the front end. I'm hoping the job will take about a month.:bounce:


Attachments

  • left side 1.jpg
    left side 1.jpg
    97.1 KB · Views: 1,898



Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon
And in honor of the good Doc I'm posting his Heep. There's rumors he might swap it for an Explorer:D


Attachments

  • 20-doc\'s jeep.jpg
    20-doc\'s jeep.jpg
    47.6 KB · Views: 439



Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon
Here you can see why.:p Thanks DOC.


Attachments

  • 19-tom & mikes.jpg
    19-tom & mikes.jpg
    48.6 KB · Views: 431






Grape Ape

Active Member
Joined
November 20, 2001
Messages
97
Reaction score
0
City, State
High Point, NC
Year, Model & Trim Level
'97 Ford Ranger S/C 4x4
Thanks for the pics of the engine crossmember. Those will help mucho!
It looks like they used some 3/4" or 1" tubing. Looks real clean.
And again, sweet setup. Can't wait to see some action pics!
Now I just have to get mine done!

Dean







ALYZ1FLR

Well-Known Member
Joined
November 16, 2001
Messages
346
Reaction score
2
City, State
MOBILE ALABAMA
Year, Model & Trim Level
91 Eddie B. 4x4
Posted earlier in thread

Alot earlier in this thread I had asked a question about the crossmember. Why not make the engine crossmember a bolt in two or three piece? , removable center section. Without suspension parts hanging on it, it looks like it could be channeled with a removable center section so oil pan could be removed. And create alot more space. Y both sides with flat or u style bolt in center section???:hammer:







Grape Ape

Active Member
Joined
November 20, 2001
Messages
97
Reaction score
0
City, State
High Point, NC
Year, Model & Trim Level
'97 Ford Ranger S/C 4x4
Hey ALYZ1FLR,

Yes, that is possible, and would be a good idea, as far as oil pan access is concerned. The lower removable section would need to be strong, since the engine mounts are attached to the upper portion of the existing crossmember. As long as the forward most crossmember (just behind the bumper) is retained or replaced, I don't see why it wouldn't work.
Actually, I might just do that with mine!

Dean







FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon
Hey AL, we thought about it, but to have one made was just going to be too costly for me in manhours vs how many times do you have to pull the oil pan. In 35 years I've never had to remove the oilpan in any of my rigs.
If your doing it yourself and know what your doing it's doable. I had to cut cost somewhere. One thing about having someone do your rig is cost overruns are crazy:confused:

Good luck Dean. When are you posting some pics:D







Grape Ape

Active Member
Joined
November 20, 2001
Messages
97
Reaction score
0
City, State
High Point, NC
Year, Model & Trim Level
'97 Ford Ranger S/C 4x4
Hey Tom,

I'll be posting pics when I get my web site updated. For now there are just some older pic:
Dead Link Removed

I just moved the truck from my driveway into my friends shop. We'll be doing the steering and trackbar this weekend, plus some other things.

I will try to get some pics soon and someone can post them for me.

Dean







FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon
Great looking site Dean. When you get a thread going send me the pics and I'll post them for you.







Kirby N.

Elite Explorer
Joined
February 6, 2001
Messages
2,438
Reaction score
219
City, State
Colorado Springs, CO
Year, Model & Trim Level
1991 Ranger
tom, what are you doing for a sparetire?

Again, that is the coolest rig on here!







FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon
Thanks Kirby. I don't know where I'm putting the spare yet. I'd like to keep it inside for balance.

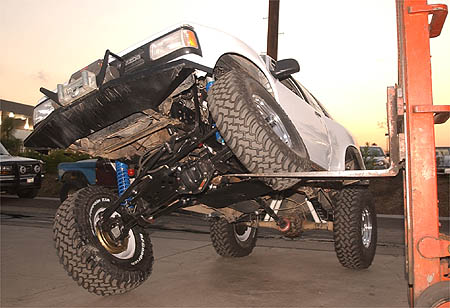

The Doc just sent me these new pics.


Attachments

  • dsc_0002.jpg
    44.3 KB · Views: 382






FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon

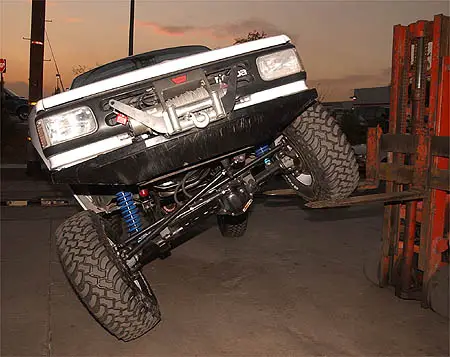

another.


Attachments

  • dsc_0005.jpg
    46.5 KB · Views: 438






FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon
.

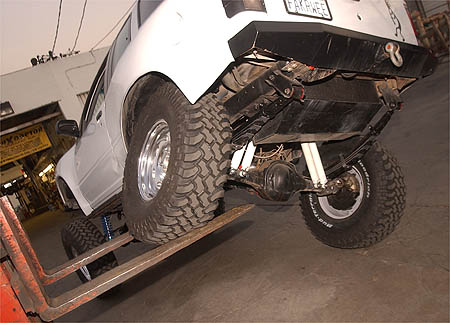

Attachments

  • dsc_0023.jpg
    43 KB · Views: 380






FAKRWEE

Elite Explorer
Elite Explorer
Joined
April 19, 2000
Messages
1,263
Reaction score
3
City, State
Carlsbad, Ca.
Year, Model & Trim Level
2010 Jeep Rubicon
.

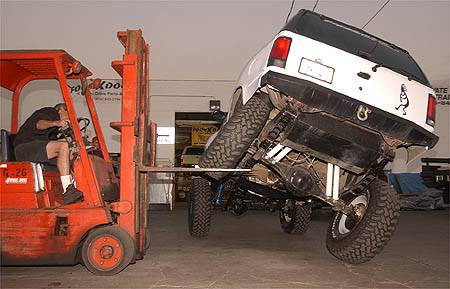

Attachments
