Homemade shackles

Regulator_XLS

Well-Known Member
Joined
November 24, 2006
Messages
139
Reaction score
2
City, State
Barrie, ON
Year, Model & Trim Level
99 XLS
also, im not capable of doing an sas at this point, anything else i can do to get the fron up, obviously the torsion bars have been cranked.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Minivek

Well-Known Member
Joined
July 22, 2003
Messages
443
Reaction score
4
City, State
Quebec, Canada
Year, Model & Trim Level
'03 Limited Ex silver
Nice lookin shackles guys, I never thought this thread would become a shackle gallery :thumbsup: :D







Regulator_XLS

Well-Known Member
Joined
November 24, 2006
Messages
139
Reaction score
2
City, State
Barrie, ON
Year, Model & Trim Level
99 XLS
heres mine


Attachments

  • DSCN1396.jpg
    91.5 KB · Views: 3,448






Minivek

Well-Known Member
Joined
July 22, 2003
Messages
443
Reaction score
4
City, State
Quebec, Canada
Year, Model & Trim Level
'03 Limited Ex silver
heres mine



The back looks a lot like mine, except I painted the green parts CAT yellow. BTW, did you have to lengthen the rear sway bar links after the lift??







Regulator_XLS

Well-Known Member
Joined
November 24, 2006
Messages
139
Reaction score
2
City, State
Barrie, ON
Year, Model & Trim Level
99 XLS
The back looks a lot like mine, except I painted the green parts CAT yellow. BTW, did you have to lengthen the rear sway bar links after the lift??[/QU
No I didnt but i probably should theyre pretty tight, also i wrecked my front fenders at a mud bog so thats at the top of my list.







kert0307

Explorer Addict
Joined
September 6, 2005
Messages
2,416
Reaction score
8
City, State
Pella, Iowa
Year, Model & Trim Level
'00 Sport and '89 B2
I got some Auto Zone shackles and drilled them out large enough to fit the factory bolts. Then took the smaller bolt that came with the kit and used them as a center brace.

I did the same thing, and painted them black, so they didn't stick out as much







colindo94

Explorer Addict
Joined
September 1, 2006
Messages
1,102
Reaction score
4
City, State
Cameron Park, CA
Year, Model & Trim Level
94' XLT
I made these same shackles a while back. They are great and very strong, even without the center support. I did notice at the rubicon last week that they drag over every steep drop I drop off of. I never even hit my bumper because they hang down so low.







Mud Bug 94

Explorer Addict
Joined
January 16, 2007
Messages
1,202
Reaction score
2
City, State
Bloomingdale, N J
Year, Model & Trim Level
94 XLT-367k miles
mine too,but i constantly worry about backin into something and bending a leaf....







Exploderpilot

Explorer Addict
Joined
November 7, 2003
Messages
3,066
Reaction score
0
City, State
Nuevo, CA (where?)
Year, Model & Trim Level
07 Titan SE
Hey shackle builder guys! go to the deaver spring website, and look at the baja bushings. make ford leafs act like deavers! or, not have too.....







v8_dave

Member
Joined
October 11, 2007
Messages
34
Reaction score
0
City, State
CT
Year, Model & Trim Level
'02 Explorer, '05 Exped
Time for shackles?

New here, but figured I would toss this up out of hilarity. The rest of the truck is in great shape though rust wise. So what do you suggest lengthwise for a non lifted front end, not for looks, but for strictly offroading. I dont want too much slant nose up front. :) Also how long are the 9/16" bolts?



Thanks guys!







sn0border88

Master Apprentice
Elite Explorer
Joined
June 27, 2005
Messages
4,196
Reaction score
5
City, State
Souderton, PA
Year, Model & Trim Level
1992 XLT
you could take the picture, but you couldnt measure the shackle or bolts to find out what length you need???







v8_dave

Member
Joined
October 11, 2007
Messages
34
Reaction score
0
City, State
CT
Year, Model & Trim Level
'02 Explorer, '05 Exped
you could take the picture, but you couldnt measure the shackle or bolts to find out what length you need???

It does seem silly, but I wanted to know if going with 10, 11, 12" long shackle would be recommended with a stock setup.

It seems easier for someone to say, "I used 2.5" bolts with my 3/8" wide plates but it did not catch the nylon completely so I recommend 3"..."







Mud Bug 94

Explorer Addict
Joined
January 16, 2007
Messages
1,202
Reaction score
2
City, State
Bloomingdale, N J
Year, Model & Trim Level
94 XLT-367k miles
the springs are 2.5 wide...figure an extra 1/4 inch for bushings on eash side...(3 inch)and figure on 3/8 plate times two....3/4 so a 4 or a 4and 1/4 bolt with like 1 inch of thread should be good....the stock shackles are 6 inches bolt to bolt....if you want 2 inches of lift out of them they need to be 10 inches...with shackles your actual ride height is 50%of the differnce from stock that you choose...







Minivek

Well-Known Member
Joined
July 22, 2003
Messages
443
Reaction score
4
City, State
Quebec, Canada
Year, Model & Trim Level
'03 Limited Ex silver
I made mine out of 1/2" flatbar, the holes are 9/16" and the bolts I used are 9/16" as well, this is the largest bolts you can use (any bigger wouldn't fit in the spring eye bushing sleeves) and they fit the spring eyes perfectly, without any binding whatsoever. Plus 9/16 grade 8 nuts and bolts are readily available and cheap, I got everything for 10$, get 5" long bolts, because the new shackles thicker.

As for tightening, I saw somewhere the torque is supposed to be somewhere around 48-50 ft-lbs, but since I used stover nuts (all metal locknuts). and tightened the bolts until the rubber bushing started squishing, don't overtorque, or else your shackles won't operate properly, they restrict normal movement rates.

Big Red: For the rear I had a special 2" lift leaf pack made for me, it was cheap here but I don't know how expensive it might be where you are. It's a bit more expensive than an add a leaf, but I have the exact same ride I wanted, it ride a brand new superduty, no lean, nice flex, no shaking, the ride is kinda stiff, but that's how I want it. Then I made my shackle so I'd get another 2" of lift. For the front I got a set of drop brackets, and dropped pitman arm.



5" long bolts :D







steelo1

Well-Known Member
Joined
December 5, 2006
Messages
296
Reaction score
1
City, State
Hervey Bay, Queensland
Year, Model & Trim Level
1999 XLT 4.0L
the springs are 2.5 wide...figure an extra 1/4 inch for bushings on eash side...(3 inch)and figure on 3/8 plate times two....3/4 so a 4 or a 4and 1/4 bolt with like 1 inch of thread should be good....the stock shackles are 6 inches bolt to bolt....if you want 2 inches of lift out of them they need to be 10 inches...with shackles your actual ride height is 50%of the differnce from stock that you choose...

Great, this is just the info I've been looking for, thanks heaps. Oh & I take it thats 10" bolt to bolt (just clarifying) :thumbsup: :D
& yes I know its an old thread ok LOL

so these ones wouldn't be a 2' lift?







03VATrac

Member
Joined
May 14, 2006
Messages
12
Reaction score
0
City, State
Newport News, VA
Year, Model & Trim Level
03 XLT Sports Trac
Well I got bored today and fabbed up a pair of shackles. I decided 3/8" was plenty thick and I used 2" wide stock. Paid $10 for a 4' length and chopped it into 12" pieces. Going by the 1" of shackle equals 1/2" of lift, I made my holes 9.5" center to center. The originals are 5.5" center to center so theoretically, these will give an honest 2" of lift. They are longer than the warriors but I figure I can always drill holes closer together if need be but I cant lengthen them if they are too short. There seems to be different opinions on bolt size so I only drilled my holes up to 1/2" until I get to install them. The original metric bolts seem to be closer to 1/2" than to 9/16 so when I get them out, I will fit them to the original bolts and source longer ones of he same diameter. If I can get a 9/16" bolt to go through the spring and frame, I will go with that size since I already have the appropriate grade 8 bolts. I originally planned to just do the flat bars without the center brace but decided that it might help to reduce side to side deflection around turns on the street. I used a pieces of 1.5" x 1" rectangle tubing I had left over from the in bed bike rack I also built this evening. I was a busy guy tonight.

Well here they are. Hopefully I will find time to get them installed this weekend. And no comments on my mediocre welding:D


Where did you get your materials?







invalid665

New Member
Joined
August 12, 2009
Messages
1
Reaction score
0
City, State
moline, il
Year, Model & Trim Level
97 xlt

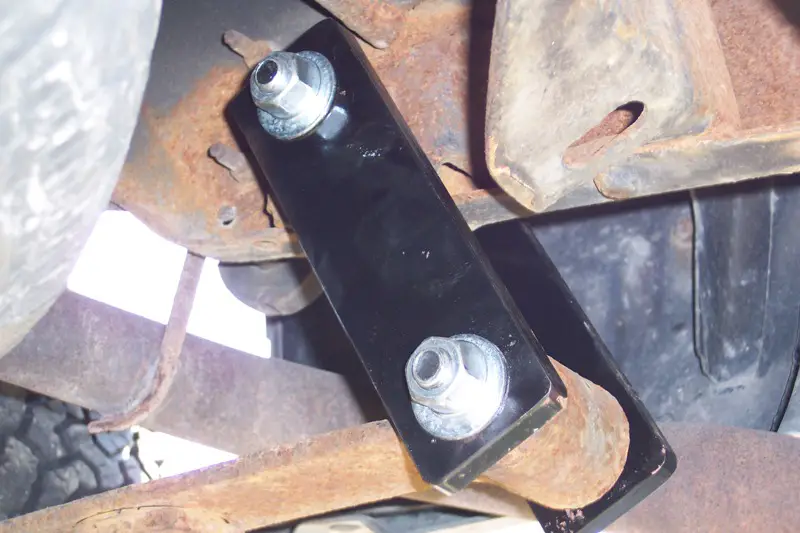

Thanks for the info, looky what i made:D


Attachments

  • kjhg.jpg
    119.8 KB · Views: 3,397






bcboy4ca

Active Member
Joined
April 26, 2009
Messages
70
Reaction score
0
City, State
Chilliwack, BC
Year, Model & Trim Level
'98 XLT
I used this thread to make my own shackles :). Like the OP I used 2 1/2" x 1/2" flat bar that I had cut into 10" lengths, drilled 9/16" holes 8 1/2" apart and used 5" long 9/16" grade 8 bolts. Total cost in CDN $35.00.

I just did the install in my driveway with basic hand tools in 1.5 hours. The most invaluable tool I can recommend if you are going to do this is a bottle jack to place between the top of the leafs and the frame to push the leafs into position on the longer shackles.

I will post pictures later today.







fordxranger

Active Member
Joined
March 28, 2009
Messages
54
Reaction score
0
City, State
Everett, WA
Year, Model & Trim Level
92 Eddie/89 ranger ex cab
I quickly made an ms paint idea for a set of shackles I'd like to build for my sport. I'm making them stock length, I can't run extended shackles cause they'll hit my tow hitch I have on the rig. I'm mostly wanting to make these cause I have the material, I need something to do and I want some stronger shackles than the factory stamped ones. I was wondering if .25" is a good enough material thickness to use for a set of shackles? I will be running a center support and If I still have the sheet may cut some .125" plate to weld around the area where the bolt goes. the sketch might cut out any confusion as to what I have in my head:


I think they will be plenty strong cause they will already be thicker than the factory ones. whats everyone else think?




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





4fords

New Member
Joined
September 29, 2009
Messages
4
Reaction score
0
City, State
Wis.
Year, Model & Trim Level
'96 xlt
If you use a center support, a pipe over the bolt would be a good idea to prevent distortion in the shackle. Will do this if I extend my shackles. Not lookoing for huge lift or articulation. Maybe an inch to give some rake to the truck. Already got f150 springs in the rear. Instead of extra plate, put tube lengthwise on the shackle for rigidity.
