Homemade shackles

Big Red

Well-Known Member
Joined
November 4, 2006
Messages
159
Reaction score
0
City, State
Richmond, VA
Year, Model & Trim Level
'96 XLT 4WD
Don't sweat the center brace. It isn't needed if the shackle material is stout enough, and it will actually flex better...

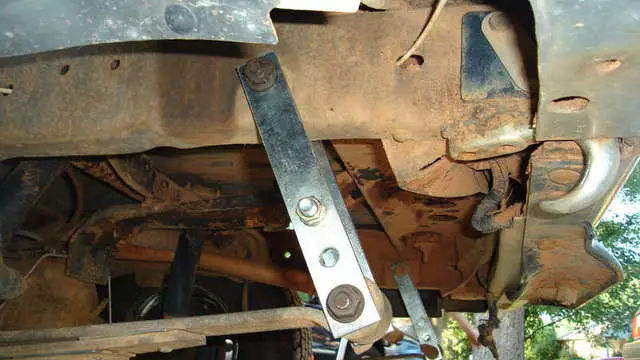

Here's mine...


What did you use that is 'stout enough'? And this might be a stupid question but how tight do you tighten the bolts that go through the leaf spring and the shackle holes? I mean do you let the two sides of the shackle tighten all the way up against the leaf spring? And lastly what kind of bolts did you use because I don't want to use something that won't make it on the trail!




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





glfredrick

Explorer Addict
Joined
January 25, 2003
Messages
2,432
Reaction score
10
City, State
Louisville, Kentucky
Year, Model & Trim Level
86-98 Ranger STX
I used 3/8" steel, and the proper sized metric bolts in an equivalent to "aircraft grade" which is somewhat above an 8 -- more like 12. :D

The bolts are sort of difficult to find, but it is possible through one of the big nut and bolt wharehouses. I forget the proper size, but they matched them up for me. They also have mechanical locking nuts (the ones that are stamped steel -- not "nylock") and I run a washer on each end of the spring bushing.

I snugged them up to the bushings, but didn't "crush" them. Since installing them, I've had plenty of wheeling time -- no problems at all, as you can see from the pic. They flex nicely and they are FAR stronger than the factory pressed-tin versions.

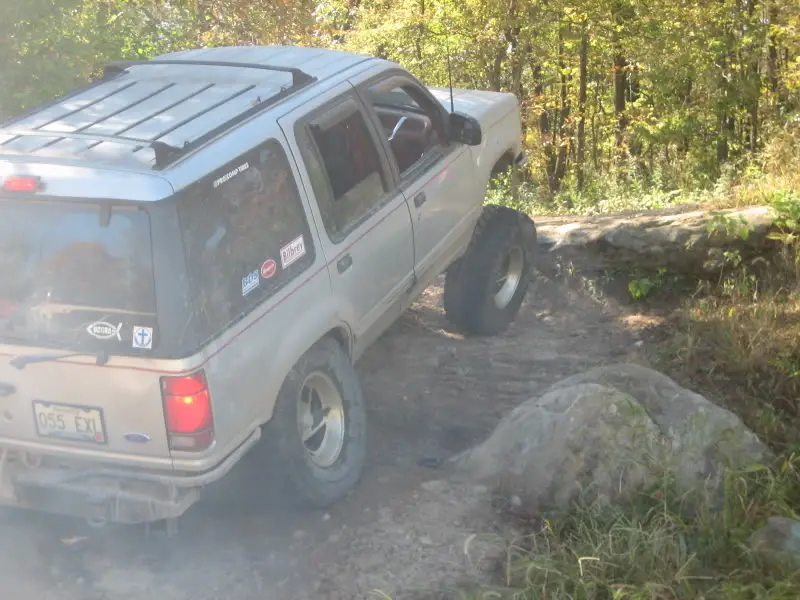

Here's another shot of them working...








Minivek

Well-Known Member
Joined
July 22, 2003
Messages
443
Reaction score
4
City, State
Quebec, Canada
Year, Model & Trim Level
'03 Limited Ex silver
I made mine out of 1/2" flatbar, the holes are 9/16" and the bolts I used are 9/16" as well, this is the largest bolts you can use (any bigger wouldn't fit in the spring eye bushing sleeves) and they fit the spring eyes perfectly, without any binding whatsoever. Plus 9/16 grade 8 nuts and bolts are readily available and cheap, I got everything for 10$, get 5" long bolts, because the new shackles thicker.

As for tightening, I saw somewhere the torque is supposed to be somewhere around 48-50 ft-lbs, but since I used stover nuts (all metal locknuts). and tightened the bolts until the rubber bushing started squishing, don't overtorque, or else your shackles won't operate properly, they restrict normal movement rates.

Big Red: For the rear I had a special 2" lift leaf pack made for me, it was cheap here but I don't know how expensive it might be where you are. It's a bit more expensive than an add a leaf, but I have the exact same ride I wanted, it ride a brand new superduty, no lean, nice flex, no shaking, the ride is kinda stiff, but that's how I want it. Then I made my shackle so I'd get another 2" of lift. For the front I got a set of drop brackets, and dropped pitman arm.







Joined
April 1, 2007
Messages
25
Reaction score
1
City, State
opelika alabama
Year, Model & Trim Level
97 mercury mountaineer
How much lift did these give you from the original highth?







colindo94

Explorer Addict
Joined
September 1, 2006
Messages
1,102
Reaction score
4
City, State
Cameron Park, CA
Year, Model & Trim Level
94' XLT
I made a set just the same. I uses 1/2" flatbar and drilled 1/2" hole with some grade 8 bolts. I;ve wheeled all over with them and have had no troubles with out the brace







schmidlkofer

Well-Known Member
Joined
March 1, 2007
Messages
911
Reaction score
0
City, State
thornton, colorado.
Year, Model & Trim Level
94 XLT
Don't sweat the center brace. It isn't needed if the shackle material is stout enough, and it will actually flex better...

Here's mine...


stuck?













Big Red

Well-Known Member
Joined
November 4, 2006
Messages
159
Reaction score
0
City, State
Richmond, VA
Year, Model & Trim Level
'96 XLT 4WD
Does anyone have a diagram of the shackles? How long and wide? obviously they're .5" thick. Thanks!







colindo94

Explorer Addict
Joined
September 1, 2006
Messages
1,102
Reaction score
4
City, State
Cameron Park, CA
Year, Model & Trim Level
94' XLT

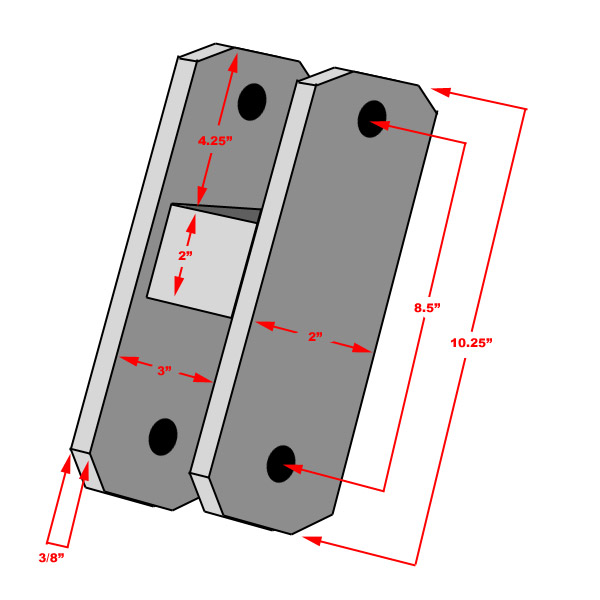

This is what I used, just no center support













SnakeCharmer

Active Member
Joined
December 26, 2006
Messages
69
Reaction score
1
City, State
Kansas City, KS
Year, Model & Trim Level
'07 XLT 4x4, '01 ST 4x2
Well I got bored today and fabbed up a pair of shackles. I decided 3/8" was plenty thick and I used 2" wide stock. Paid $10 for a 4' length and chopped it into 12" pieces. Going by the 1" of shackle equals 1/2" of lift, I made my holes 9.5" center to center. The originals are 5.5" center to center so theoretically, these will give an honest 2" of lift. They are longer than the warriors but I figure I can always drill holes closer together if need be but I cant lengthen them if they are too short. There seems to be different opinions on bolt size so I only drilled my holes up to 1/2" until I get to install them. The original metric bolts seem to be closer to 1/2" than to 9/16 so when I get them out, I will fit them to the original bolts and source longer ones of he same diameter. If I can get a 9/16" bolt to go through the spring and frame, I will go with that size since I already have the appropriate grade 8 bolts. I originally planned to just do the flat bars without the center brace but decided that it might help to reduce side to side deflection around turns on the street. I used a pieces of 1.5" x 1" rectangle tubing I had left over from the in bed bike rack I also built this evening. I was a busy guy tonight.

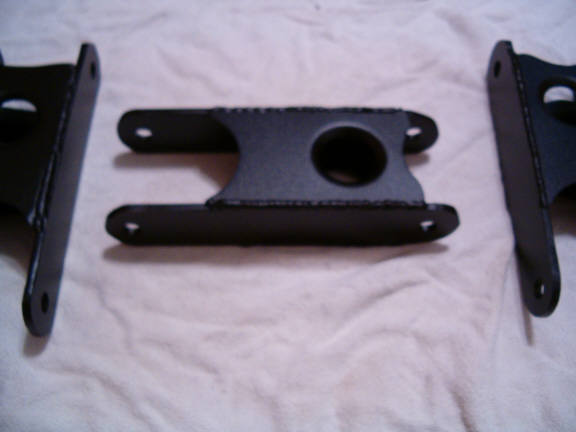

Well here they are. Hopefully I will find time to get them installed this weekend. And no comments on my mediocre welding:D




















SnakeCharmer

Active Member
Joined
December 26, 2006
Messages
69
Reaction score
1
City, State
Kansas City, KS
Year, Model & Trim Level
'07 XLT 4x4, '01 ST 4x2
Well I got mine installed today. I did it by myself and it took me most of the day because of one bolt that wouldn't come out of the spring eye. I tried persuading it with a hammer and air chisel for a good two hours and couldn't get it out. I ended up cutting the head off and driving it out the other way. Pretty sure it was bent because the others came right out. A couple of installation pointers I can give for those getting ready to do this...one, disconnect the shocks and sway bar before you begin. And two, forget the one side at a time thing like the Warrior instructions say to do. I tried it and the other side makes it pretty much impossible to drop the spring low enough to line the bolt hole up and the spring pulls to the side when you try and if you did get it in, the bolt would have a hell of a time going in. I had it on jack stands and lowered the rear with a jack under the pumpkin to line up both sides at he same time.

After installing the shackles and giving the torsion bars 8.5 turns, I got exactly 2" all the way around. Test drive revealed no noticeable allignment issues so I wil wait until the new tires to get one done. Neglected to take a before picture but its an obvious difference over stock.










Dopler174

Official Welcome Committe
Moderator Emeritus
Joined
February 21, 2005
Messages
4,994
Reaction score
3
City, State
Greensboro, NC
Year, Model & Trim Level
1993 XLT 4X4
Nice! I guess I will make my own also.







MR SCARY

Member
Joined
July 27, 2007
Messages
10
Reaction score
0
City, State
CT
Year, Model & Trim Level
98 XLT
Made my own the other day,nice quick and simple.When I was installing them I used a sissors jack between the spring and the frame to push the spring down(truck was supported on j-stands) to line up the bolts.Did the TT to level and the truck looks 100% better than having saggy a$$.













Dopler174

Official Welcome Committe
Moderator Emeritus
Joined
February 21, 2005
Messages
4,994
Reaction score
3
City, State
Greensboro, NC
Year, Model & Trim Level
1993 XLT 4X4
I guess I'm going to do my shackles today. I did a spring spacer yesterday to get +2 inches in the front. I broke my shock mount stud. So I'm headed towards AutoZone to get a new one. YAY!!!!:thumbdwn:







Dopler174

Official Welcome Committe
Moderator Emeritus
Joined
February 21, 2005
Messages
4,994
Reaction score
3
City, State
Greensboro, NC
Year, Model & Trim Level
1993 XLT 4X4

I got some Auto Zone shackles and drilled them out large enough to fit the factory bolts. Then took the smaller bolt that came with the kit and used them as a center brace.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Regulator_XLS

Well-Known Member
Joined
November 24, 2006
Messages
139
Reaction score
2
City, State
Barrie, ON
Year, Model & Trim Level
99 XLS
i installed my shackles last night that i made, and i got exactly 1 5/8'' of lift after i put on my new bumper. Did all your guys springs straighten out a little bit once installed.
