How do i aim the headlights horizontaly


titanium

New Member
Joined
December 1, 2013
Messages
2
Reaction score
0
City, State
brockville ont.
Year, Model & Trim Level
2013 explorer titanium
I just replaced my halogens for HID kit and now my headlights both veare off to the right.There is a little white screw on the headlight housing but it only adjusts vertical.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




bigmoose15

Active Member
Joined
January 15, 2013
Messages
138
Reaction score
1
City, State
Cambridge, MA
Year, Model & Trim Level
2013 ExSport
Per the manual, it is not possible to adjust the horizontal.

Are you sure the bulbs are installed fully and locked in? Mine were a huge pain to fully rotate and snap in.





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
28,379
Reaction score
1,736
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
I just replaced my halogens for HID kit and now my headlights both veare off to the right.There is a little white screw on the headlight housing but it only adjusts vertical.
As bigmoose15 stated, they cannot be adjusted horizontally. From page 357 of your Owner's Guide;

Note: HORIZONTAL AIMING IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE
.

Peter





Eltee

Elite Explorer
Joined
September 16, 2007
Messages
332
Reaction score
133
Location
West of the Rockies
City, State
West Coast USA
Year, Model & Trim Level
2013 Explorer XLT
4WD

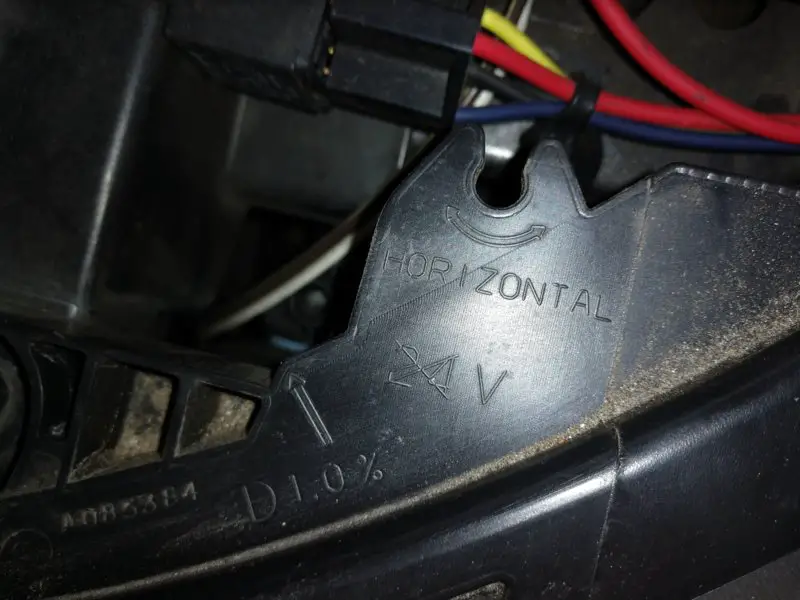

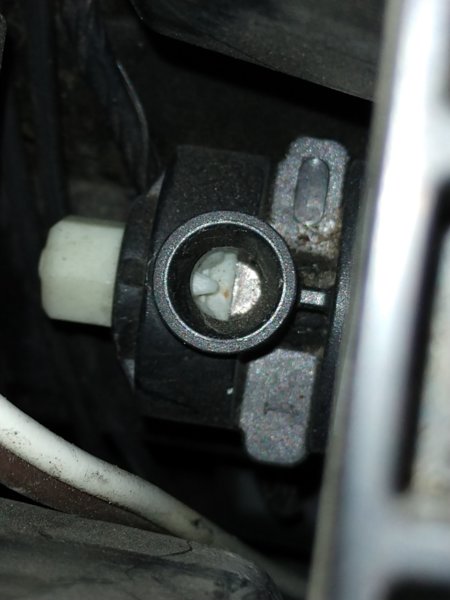

I am trying to lower and properly aim my headlights as I think the prior owner may have messed with them in the past (the car had some DIY mods when I bought it). I read the manual and searched online and I was aware that it is not adjustable horizontally and that a phillips is needed for the vertical. I even printed out page 358 of the manual but what I saw did not quite match up. I see a piece with a white nut facing to the back of the car and vertical piece but no phillips screw head visible (should I use the phillips to just turn the gear teeth?). I also noted an area embossed with "Horizontal" and guides for a screwdriver. Please see pics.








massacre

Elite Explorer
Joined
January 24, 2018
Messages
873
Reaction score
182
Year, Model & Trim Level
‘94 Explorer
‘19 Nautilus
We had a 2017 MKX and got flashed by people all the time
Took it to ford they said headlights were adjusted as much as possible.
2019 nautilus we have not had the same problem





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
28,379
Reaction score
1,736
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
I am trying to lower and properly aim my headlights as I think the prior owner may have messed with them in the past (the car had some DIY mods when I bought it). I read the manual and searched online and I was aware that it is not adjustable horizontally and that a phillips is needed for the vertical. I even printed out page 358 of the manual but what I saw did not quite match up. I see a piece with a white nut facing to the back of the car and vertical piece but no phillips screw head visible (should I use the phillips to just turn the gear teeth?). I also noted an area embossed with "Horizontal" and guides for a screwdriver. Please see pics.
I believe you need a socket wrench and not a screwdriver. I mentioned the same to another member with a similar question many months ago. No idea on that "Horizontal" adjustment. I haven't seen or read about that before. Perhaps it is PIU specific?

Peter





Michael Blackburn

New Member
Joined
March 15, 2019
Messages
37
Reaction score
12
City, State
Virginia Beach, VA
Year, Model & Trim Level
2018 Explorer Limited 4WD
Yes, a #2 long shaft phillips screwdriver is used to turn the gear teeth. Or you can use a wrench or a socket.

Fritz





MtnCar

New Member
Joined
July 25, 2013
Messages
36
Reaction score
2
Year, Model & Trim Level
2013 Explorer Sport
On my '13 Sport there is horizontal adjustments. However they are capped from the factory. In order to access the adjuster you need to cut the caps off with a Dremel to something similar. The headlights will need to be removed from the vehicle to remove the caps. After removed they can be accessed from inside the fender lining or the engine bay if your hands are small enough. I discovered this when I retrofitted my headlights to a proper HID projector setup.





RhinoQuartz

Active Member
Joined
December 16, 2018
Messages
687
Reaction score
110
Year, Model & Trim Level
17 Explorer Base
On my '13 Sport there is horizontal adjustments. However they are capped from the factory. In order to access the adjuster you need to cut the caps off with a Dremel to something similar. The headlights will need to be removed from the vehicle to remove the caps. After removed they can be accessed from inside the fender lining or the engine bay if your hands are small enough. I discovered this when I retrofitted my headlights to a proper HID projector setup.
Hey if you happen to have pictures of that set up, please feel free to share them, sounds very interesting.





MtnCar

New Member
Joined
July 25, 2013
Messages
36
Reaction score
2
Year, Model & Trim Level
2013 Explorer Sport

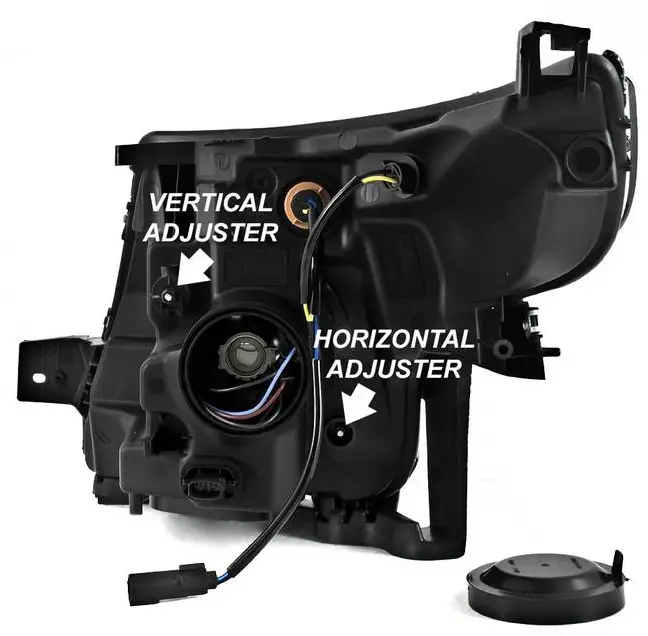

Here is a pic I found online that shows the location of the adjusters.
