'94 Ranger SuperCab
Just a little abought my truck.

94 Ranger Splash Supercab
5.0 engin
GT-40y Heads
GT-40 Intake
Comp Cams Cam (have to find the spec sheet)
FMS Roller rockers

Drivetrane
zf-5 trans
np-203/np-205 (ORD doubler) T-case
4.56:1 Gears Lock Rite front, Ford traction loc rear (rebuilt and re stacked)

3" Body Lift
4" springs + 1.5 spacer front
Explorer 4x4 springs + 5.5 block rear
custom extended radius arms (heimed and lengthened)
custom steering linkage
Entire lift to be changed after Christmas (springs and shocks)

Custom dual fuel cells in bed
Primary Beer keg
Secondary steel fuel cell
Bed cage
Snorkel (in the design phase)
KC Daylighters


So here are some pics


Attachments

  • DSC01087truck.JPG
    38.8 KB · Views: 1,452
  • DSC01089truck.JPG
    34.5 KB · Views: 1,446
  • DSC01091truck.JPG
    33.3 KB · Views: 1,415
  • DSC00980truck.JPG
    42.5 KB · Views: 1,427


Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




R.J.

Elite In Memoriam
Joined
November 16, 2006
Messages
2,310
Reaction score
220
City, State
La Habra Hts, CA
Year, Model & Trim Level
90 Bronco II
i like waht what i see :D





94 Crawler

Well-Known Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab
More pics

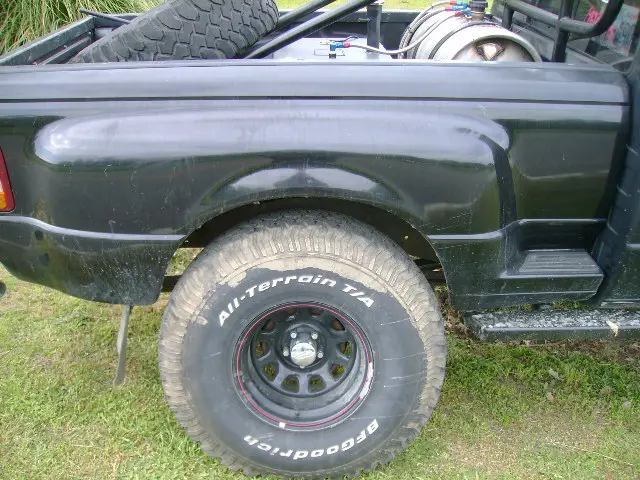

Some flex pics. Front springs limit droop and compression. Rear droop is limited by shocks compression probably the helper springs (got to go).


Attachments

  • DSC01089truck.JPG
    34.5 KB · Views: 1,382
  • DSC01078truck.JPG
    54.5 KB · Views: 1,397
  • DSC01077truck.JPG
    29.5 KB · Views: 1,393
  • DSC01086truck.JPG
    41.5 KB · Views: 1,395




94 Crawler

Well-Known Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab
and a few more

More pics


Attachments

  • DSC01093truck.JPG
    38.4 KB · Views: 1,431
  • DSC01096truck.JPG
    28.3 KB · Views: 1,384
  • DSC01095truck.JPG
    56.4 KB · Views: 1,387
  • DSC01090truck.JPG
    47.2 KB · Views: 1,386




RangerX

Elite Ranger
Staff member
Moderator
Elite Explorer
Joined
July 14, 1999
Messages
10,120
Reaction score
370
City, State
Omao, Kauai
Year, Model & Trim Level
'93 Ranger XLT 4X4
Serious driveline! :thumbsup:

Any plans for bigger axles?





Joined
November 19, 2007
Messages
41
Reaction score
0
City, State
PA just outside of the Burgh
Year, Model & Trim Level
88 Bronco II/96 5.0
Nice ride!!! Did you need anything special to rig the NP t-case to the newer tranny???













Dannyboy

Other Make & Models Mod
Elite Explorer
Moderator Emeritus
Joined
February 16, 2001
Messages
5,438
Reaction score
11
City, State
43°48′48″N 91°13′59″W
Year, Model & Trim Level
91 4 do'
I love the fact that the fuel cell is the secondary tank and the keg is primary. :D

everyone knows that a 5.0 can be converted to run on draft beer.:bdrunk:





Sams01XplrSprt

Southern Cali Explorer
Joined
November 14, 2004
Messages
14,231
Reaction score
2
City, State
Newport Beach California & Bay Area California
Year, Model & Trim Level
2001 Sport (sold)
nice truck u got there





Rusty

Well-Known Member
Joined
September 13, 2007
Messages
458
Reaction score
0
City, State
MA
Year, Model & Trim Level
97 Xlt and 97 Sport
nice build up.. sweet rig you got there my friend! Looks like it gets used as well! good stuff!





94 Crawler

Well-Known Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab
Thanks

Lets see
RangerX
My plans for the driveline are full width 44 and 8.8. I already have the high pinion 44 from a 79 Bronco. Iwant to go with an OX locker front and rear maby the 8.8 OX locker will be avalable within the next two years. I would go with Dana 60's but they are hard to find in this area$$$$$$. Also I think the 1/2 ton axles are wide enough my opinion.

ziggyofthenorth

The np203 was from a chevy b/c it was free:thumbsup: I had to have the case drilled and tapped also had to find a 31 spline input shaft (Ford). In all I probably have as much invested in that case alone to have been ripped off on a Ford case. But for anyone wondering any 1/2 ton and up transfer case will bolt to any 1/2 ton and up trans Ford only. They have used the same pattern for years best as I can tell. Case in point I actuly had the np205 bolted to a E4OD just to see if it would work.

FROADER
Thanks I was going to use two kegs but i could not source another one (LEAGALY). I got disgusted and drug out the old cell from my Chevy for the secondary. Since then I have found them for $50.00. :( Oh well I will run it as is.

Thanks all for the complements as of right now I have only driven it in the yard and in the garden. I have several bugs to work out befor it is ready for the streat again.





Joined
November 19, 2007
Messages
41
Reaction score
0
City, State
PA just outside of the Burgh
Year, Model & Trim Level
88 Bronco II/96 5.0
Thank you Crawler! Being that I already have the M5OD-R2 and NP-205, that eases my mind. They're stored about 30 miles apart in case you're wondering why I didn't just try putting them together.
I want the ZF too, but I couldn't pass up the R2 at $50. It came out of an F-250, so it may last.





94 Crawler

Well-Known Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab
M5od-r2

That M5OD-R2 is the 1/2 ton tranny right if so they should mate nicely. Also the zf is not an easy install you have to run manifolds or reshape the headers. There is part of the bottem of the bellhousing you have to remove to use the Duff headers and one tube that has to be tweeked to clear the bellhousing. Most importantly 3" Body Lift is required or major modification of the transmission tunnel will need to be preformed. As i currently have maby an inch and a half of clearence above the tranny. See pic above of shift tower sticking through trans tunnel. I realy dont know if you could get the geomitry corect on the shifter to clear the dash without the body lift. With the mazda trans you should not have to fab anything except for the np205 shifter, which works better with the dual setup. Also with the corect mods the 205 can have the capability of 2hi, 2low, 4hi, 4low, front wheel drive, and front wheel drive low if you need it. I dont think I need the front wheel drive option and the 2low comes with the dual shifter. I am however concidering another doubler when i do my sas some time in"09". Altho I feel the truck is extremely capable now only time will tell.









94 Crawler

Well-Known Member
Joined
March 9, 2007
Messages
321
Reaction score
0
City, State
Stantonsburg,NC
Year, Model & Trim Level
'94 Ranger SuperCab

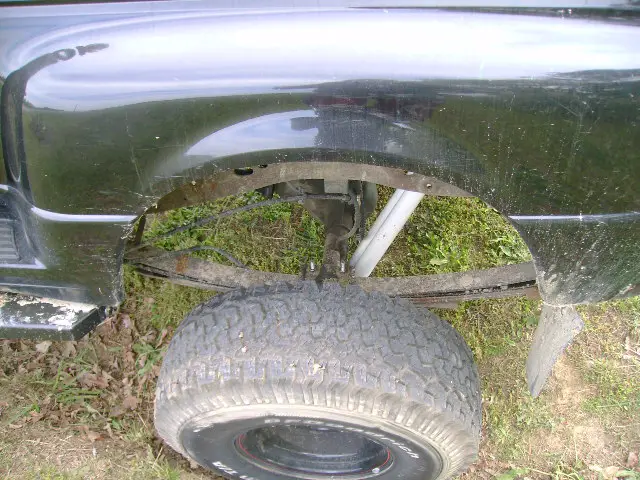

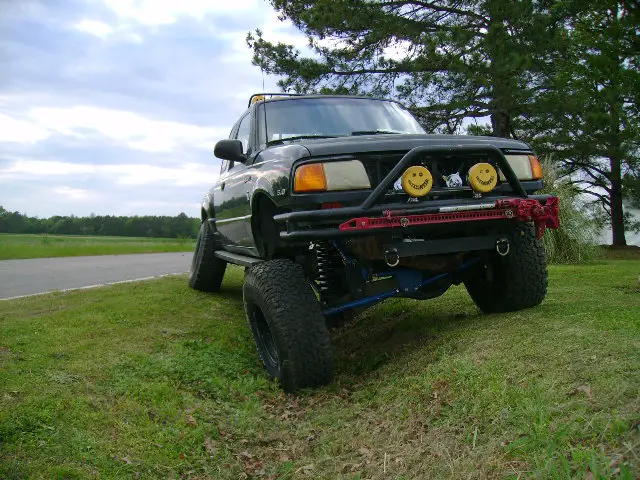

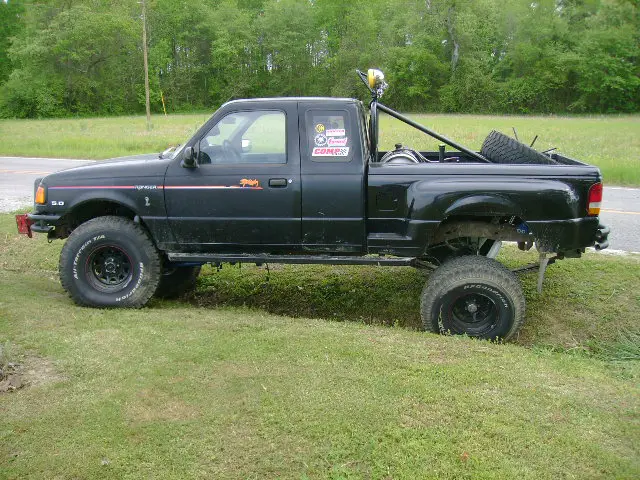

Thought i'd add some more pics. Skyjacker 6" soft ride springs front, back to stock block + aal + 4" shakle rear. I have around 16" of wheel travel front and rear.
